Model LG 37LV3500 – Common Parts & Diagrams

Common parts from model LG 37LV3500

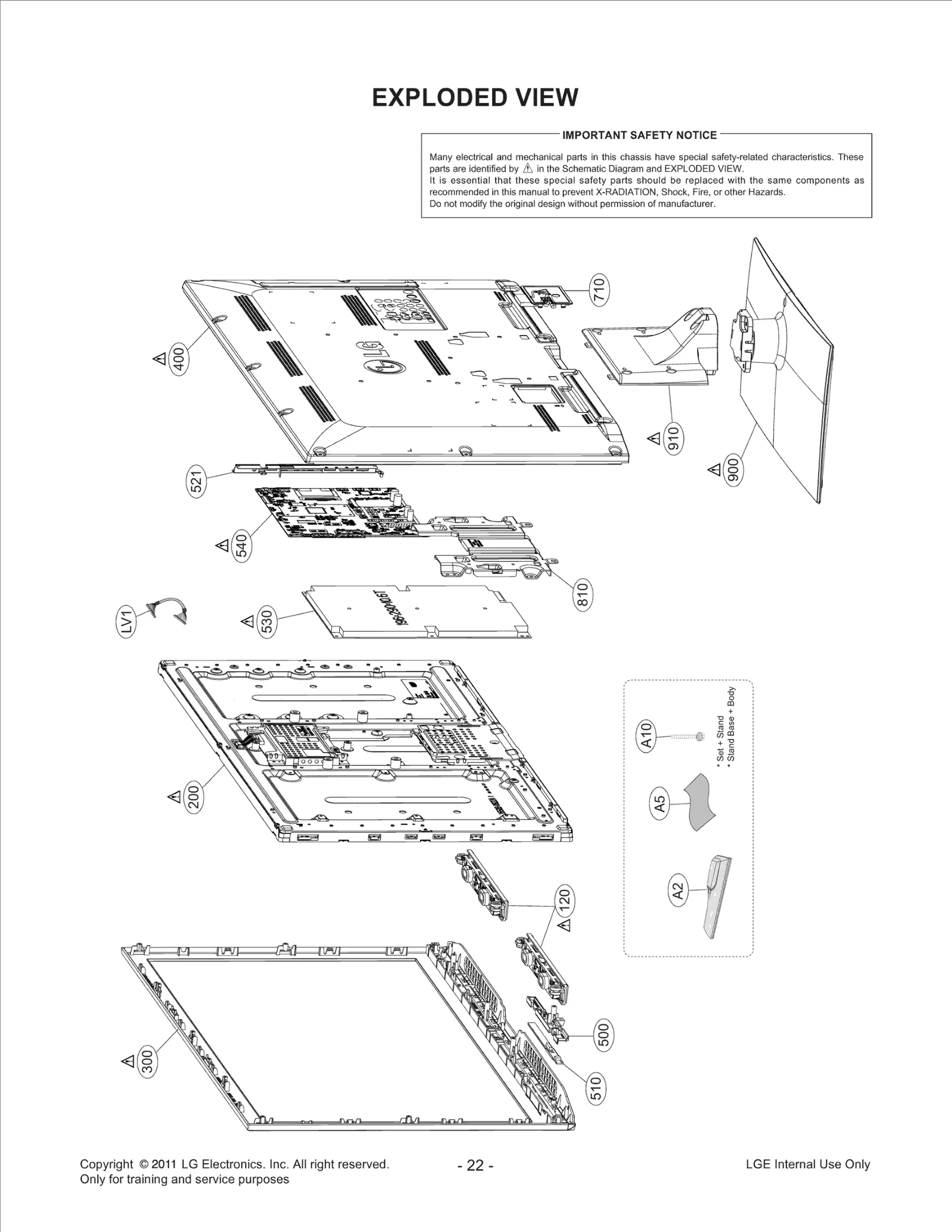

Diagram 0

Print

• This Diagram
• All Diagrams

200

LCD,Module-TFT LGE EAJ62087801 Contact Us For Availability

View on Model

300

Cabinet Assembly LGE ABJ73267724 Contact Us For Availability

View on Model

400

Cover Assembly,Rear LGE ACQ83490323 Contact Us For Availability

View on Model

500

Bracket LGE MAZ62827902 Contact Us For Availability

View on Model

510

PCB Assembly,Sub LGE EBR72671401 Contact Us For Availability

View on Model

521

Plate LGE MGJ62683306 Contact Us For Availability

View on Model

530

Power Supply Assembly LGE EAY62169401 Contact Us For Availability

View on Model

540

Chassis Assembly LGE EBT61822101 Contact Us For Availability

View on Model

710

MAZ62833504 LG Bracket Backorder LGE MAZ62833504 View Details $2.09

View on Model

810

Supporter LGE MJH62276405 Contact Us For Availability

View on Model

900

Base Assembly LGE AAN73530414 Contact Us For Availability

View on Model

910

Supporter LGE MJH62276202 Contact Us For Availability

View on Model

A1

Title LGE SAC34134216 Contact Us For Availability

View on Model

A2

AKB72915239 LG Remote Controller Assembly Backorder LGE AKB72915239 View Details $25.64

View on Model

A3

EAD60817902 LG Power Cord Attachment Backorder LGE EAD60817902 View Details $16.34

View on Model

A5

Bag,Vinyl LGE MAF60779001 Contact Us For Availability

View on Model

A8

Screw,Tapping LGE FAB30021301 Contact Us For Availability

View on Model

A10

FAB30016103 LG Home Audio & Theater Machine S Backorder LGE FAB30016103 View Details $3.33

View on Model

A21

Cover,Rear LGE MCK62976201 Contact Us For Availability

View on Model

LV1

Cable,FFC LGE EAD61668639 Contact Us For Availability

View on Model

LV35

Screw,Taptite LGE FAB30013213 Contact Us For Availability

View on Model

×
