Model LG 37LT560E – Common Parts & Diagrams

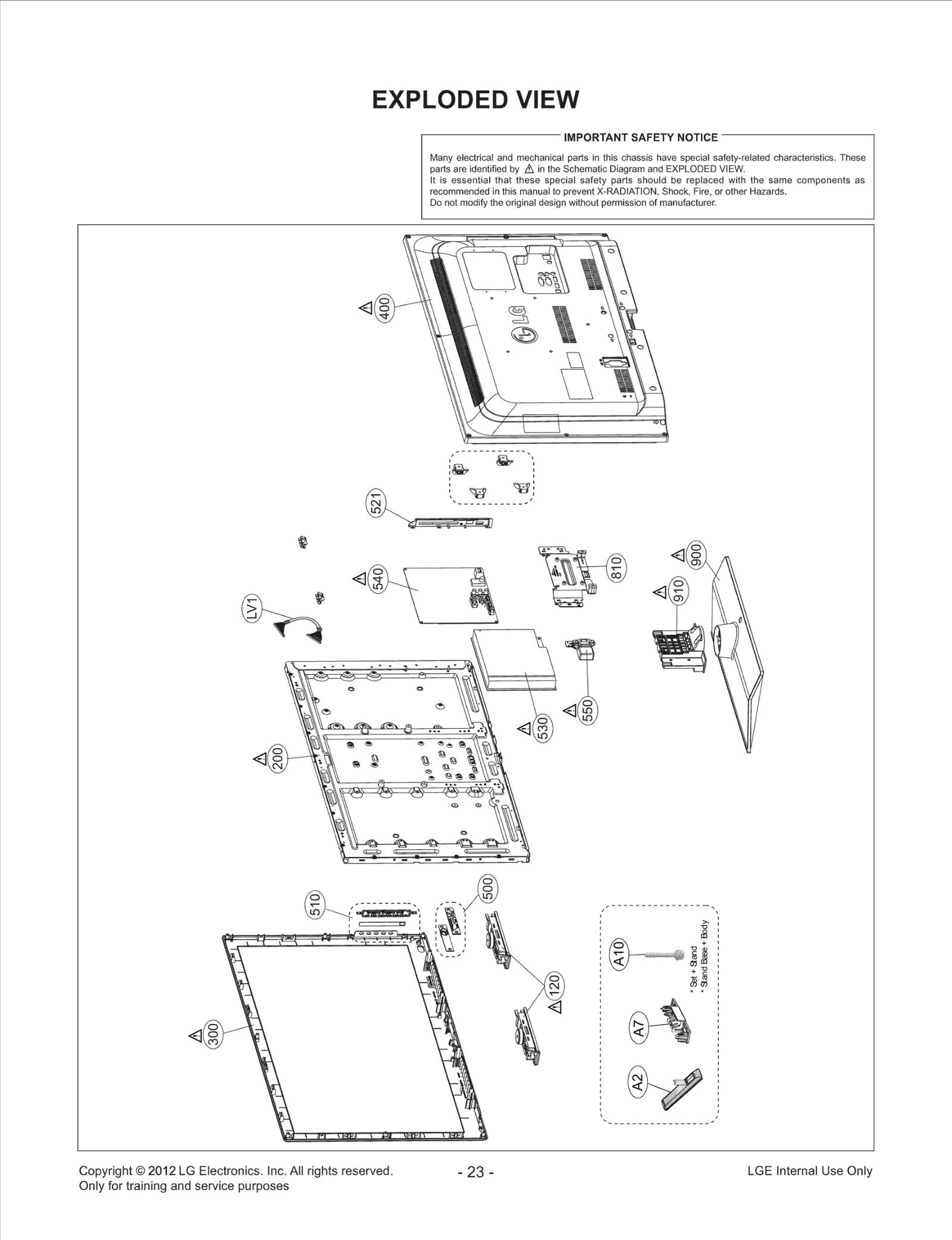

Diagram 0
Diagram 1
Common parts from model LG 37LT560E
200
LCD,Module-TFT LGE EAJ62128201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73789803 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85845926 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR74891801 Contact Us For Availability
501
Indicator LGE MES62738302 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR75460001 Contact Us For Availability
521
Bracket Assembly LGE ABA74228802 Contact Us For Availability
530
SMPS,AC/DC LGE EAY62788701 Contact Us For Availability
540
PCB Assembly LGE EBR75566201 Contact Us For Availability
550
PCB Assembly LGE EBR61100303 Contact Us For Availability
900
Base Assembly LGE AAN74109315 Contact Us For Availability
910
Supporter LGE MJH62654203 Contact Us For Availability
A7
Cover LGE MCK66987803 Contact Us For Availability
AR102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C11
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C205
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C253
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C405
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C467
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C493
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C510
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C514
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C522
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C532
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C534
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C536
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1101
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1643
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1663
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C1800
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1802
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C2407
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C3705
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C3713
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
CA1
Harness,Single LGE EAD60820504 Contact Us For Availability
CA3
Harness,Single LGE EAD61646214 Contact Us For Availability
CA4
Harness,Single LGE EAD60673306 Contact Us For Availability
D200
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D1100
Diode,Switching LGE EAH60666101 Contact Us For Availability
D2402
Diode,TVS LGE EAH39491701 Contact Us For Availability
D2405
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62354101 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC407
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC408
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61848801 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC1601
IC,OP Amplifier LGE EAN61829701 Contact Us For Availability
IC1800
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC3703
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1450
Connector,USB LGE EAG62893101 Contact Us For Availability
JK1800
Jack,Modular LGE EAG61453603 Contact Us For Availability
JK1801
Jack,Phone LGE EAG60841808 Contact Us For Availability
L202
Filter,Bead LGE EAM32500903 Contact Us For Availability
L404
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L406
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L412
Filter,Bead LGE EAM58113401 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD62046903 Contact Us For Availability
P1
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P703
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q31
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q403
FET LGE EBK60752501 Contact Us For Availability
Q3703
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R16
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R21
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R142
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R246
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R258
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R434
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R447
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R456
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R473
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R889
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1135
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1201
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1237
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1458
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R1672
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1805
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R1808
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1812
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R1849
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R2404
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2414
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3752
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R3755
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R4002
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4004
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R4023
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R4029
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
SW3
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU3700
Tuner,Analog/Digital LGE EBL61060101 Contact Us For Availability
ZD1802
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
