Model LG 37LH40 – Common Parts & Diagrams
Diagram 0

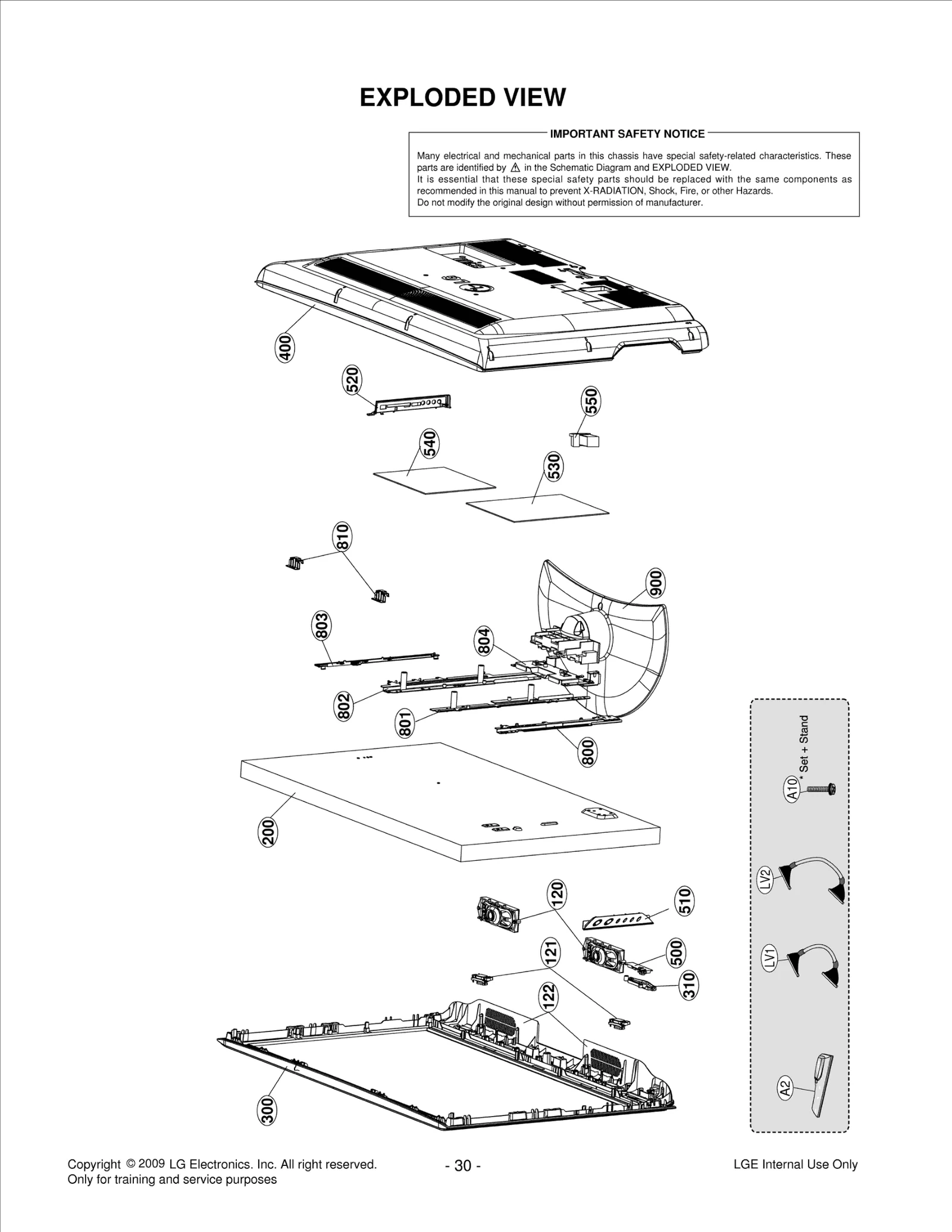

Diagram 1
Common parts from model LG 37LH40
121
Speaker,Tweeter LGE EAB58536001 Contact Us For Availability
122
Bracket LGE MAZ57128704 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60662401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ69080804 Contact Us For Availability
310
Cover Assembly LGE ACQ69998502 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ69083704 Contact Us For Availability
500
PCB Assembly,Front LGE EBR59216901 Contact Us For Availability
510
PCB Assembly LGE EBR61125101 Contact Us For Availability
520
Bracket Assembly LGE ABA69568702 Contact Us For Availability
530
Power Supply Assembly LGE EAY57681001 Contact Us For Availability
540
BPR Total Assembly LGE EBU60677401 Contact Us For Availability
550
PCB Assembly LGE EBR61677203 Contact Us For Availability
800
Supporter LGE MJH55846402 Contact Us For Availability
801
Supporter LGE MJH55846502 Contact Us For Availability
802
Supporter LGE MJH55846602 Contact Us For Availability
803
Supporter LGE MJH55846702 Contact Us For Availability
804
Supporter LGE MJH55846802 Contact Us For Availability
810
Supporter LGE MJH56736703 Contact Us For Availability
900
Base Assembly LGE AAN67805605 Contact Us For Availability
A1
Manual,Owners LGE MFL58558507 Contact Us For Availability
A2
Remote Controller LGE MKJ42519621 Contact Us For Availability
A4
Title LGE SAC33601903 Contact Us For Availability
A5
Cover LGE MCK54408002 Contact Us For Availability
A21
Cover LGE 3550V00590A Contact Us For Availability
AR9
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR308
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR1071
Resistor,Array LGE EBC32260601 Contact Us For Availability
C1
Harness,Single LGE EAD60673304 Contact Us For Availability
C2
Harness,Single LGE EAD35983003 Contact Us For Availability
C3
Harness,Single LGE EAD39295765 Contact Us For Availability
C4
Harness,Single LGE EAD60676307 Contact Us For Availability
C5
Harness,Single LGE EAD35908414 Contact Us For Availability
C13
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C16
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C125
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C141
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C161
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C163
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C187
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C212
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C600
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C622
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C630
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C642
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C722
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C726
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C734
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1000
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1004
CAPACITOR,FIXED CERA LGE 0CC820CK41A Contact Us For Availability
C1028
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1032
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1035
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1036
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C1054
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C1071
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1209
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C1223
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1231
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1235
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1249
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1252
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C1311
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C1313
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1328
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C1329
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1332
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C1337
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1338
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C1341
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C1353
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1355
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C1376
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C1377
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C1378
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C1383
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
D500
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D1203
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1225
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1300
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
D1303
DIODE,SWITCHING LGE 0DSON00028A Contact Us For Availability
D1304
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
IC1
IC,DDR2 SDRAM LGE EAN54839201 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC101
S/W,Firmware LGE SAA34081305 Contact Us For Availability
IC102
S/W,Firmware LGE SAA34243809 Contact Us For Availability
IC103
IC,Reset LGE EAN43244901 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC107
IC,Reset LGE EAN60670101 Contact Us For Availability
IC301
IC,DDR2 SDRAM LGE EAN60220901 Contact Us For Availability
IC501
TRANSISTOR,FETS LGE 0TFTH80001A Contact Us For Availability
IC502
IC,Analog Switch LGE EAN60540901 Contact Us For Availability
IC705
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC708
IC,LDO Voltage Regulator LGE EAN57770801 Contact Us For Availability
IC1000
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC1001
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC1002
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC1003
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC1100
IC,Video Processors LGE EAN60659101 Contact Us For Availability
IC1101
S/W,Firmware LGE SAA34268402 Contact Us For Availability
IC1200
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1202
IC,Analog Switch LGE EAN43439401 Contact Us For Availability
IC1300
IC,DC,DC Converter LGE EAN60660401 Contact Us For Availability
IC1301
IC,Power Generator LGE EAN59119001 Contact Us For Availability
IC1302
IC,Display Driver LGE EAN58905601 Contact Us For Availability
JK500
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK500
Jack,DIN LGE EAG39789402 Contact Us For Availability
JK601
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1201
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK1205
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK1206
Jack,Complex LGE EAG59952001 Contact Us For Availability
L718
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1001
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L1004
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L1010
Filter,Bead LGE EAM42641602 Contact Us For Availability
L1013
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1203
Filter,Bead LGE EAM38769501 Contact Us For Availability
LD1000
LED,Chip LGE 0DL210009GC Contact Us For Availability
LD1100
LED,Chip LGE EAV30299601 Contact Us For Availability
LV1
Cable,FFC LGE EAD60690601 Contact Us For Availability
LV2
Cable,FFC LGE EAD60690501 Contact Us For Availability
P600
WAFER LGE 6602T25009C Contact Us For Availability
P700
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P1100
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P1200
Connector,Wafer LGE EAG58732902 Contact Us For Availability
P1301
Connector,FFC/FPC/PIC LGE EAG32730601 Contact Us For Availability
P3000
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1100
FET LGE 0TFRH80001A Contact Us For Availability
Q1300
FET LGE EBK38029201 Contact Us For Availability
Q1301
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
Q1302
TR,Bipolar LGE 0TRKE80078A Contact Us For Availability
R11
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R23
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R131
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R162
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R182
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R541
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R621
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R626
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R723
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
R735
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R750
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R751
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R759
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R766
Resistor,Chip LGE 0RJ3903E472 Contact Us For Availability
R767
Resistor,Chip LGE 0RJ3003E472 Contact Us For Availability
R770
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R771
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R781
Capacitor,Ceramic,Ch LGE EAE36882801 Contact Us For Availability
R1002
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1014
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1015
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R1019
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R1033
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R1118
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1152
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R1158
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1209
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R1215
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1252
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1254
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1273
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1287
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1293
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R1298
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1302
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1311
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R1313
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R1316
RESISTOR,METAL GLAZE LGE 0RH4702D422 Contact Us For Availability
R1324
RESISTOR,METAL GLAZE LGE 0RJ1302E472 Contact Us For Availability
R1325
Resistor,Chip LGE 0RH3902D422 Contact Us For Availability
R1326
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R1327
Resistor,Chip LGE 0RH5101D422 Contact Us For Availability
R1339
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R1345
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R1358
Resistor,Chip LGE 0RJ3600D477 Contact Us For Availability
R1374
Resistor,Chip LGE 0RH1802D422 Contact Us For Availability
R1375
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R1377
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R2115
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R2201
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R2202
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R3006
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R3007
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
SC1
Screw,Tapping LGE FAB30021301 Contact Us For Availability
SW1100
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW1100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW3006
SWITCH TACT LGE 140-313B Contact Us For Availability
TH1300
Thermistor,NTC LGE EBG60659401 Contact Us For Availability
TU1001
Tuner,Analog/Digital LGE EBL60152901 Contact Us For Availability
VR508
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
Crystal LGE 6212AB2015C Contact Us For Availability
× ![]()
Login and Registration Form
