Model LG 37LH30 – Common Parts & Diagrams
Diagram 0

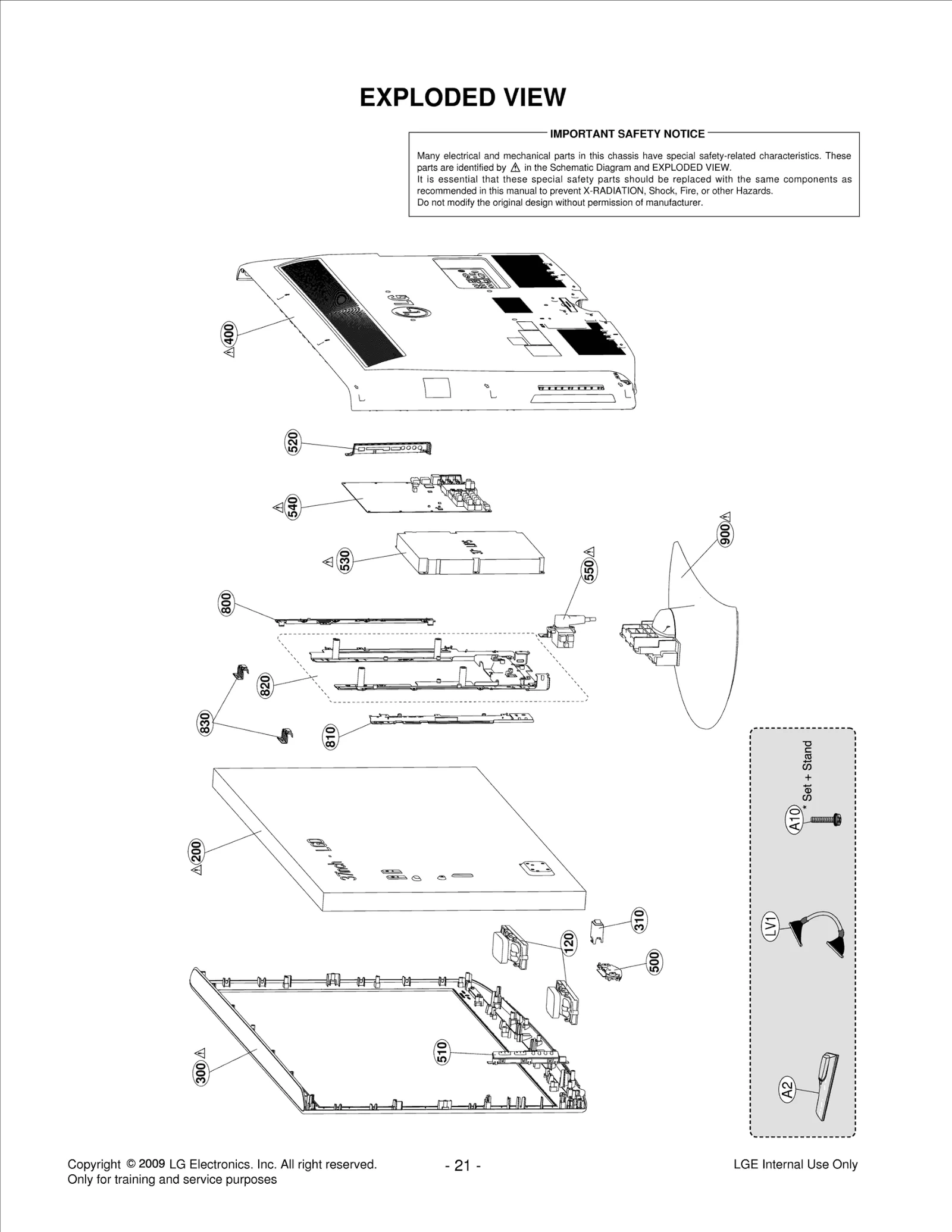

Diagram 1
Common parts from model LG 37LH30
200
LCD,Module-TFT LGE EAJ59211901 Contact Us For Availability
200T
Time Control LGE EAT60663401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ68920007 Contact Us For Availability
310
Bracket LGE MAZ57018902 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ65854206 Contact Us For Availability
500
PCB Assembly,Front LGE EBR59217502 Contact Us For Availability
510
PCB Assembly LGE EBR60148103 Contact Us For Availability
520
Bracket Assembly LGE ABA69568705 Contact Us For Availability
530
Power Supply Assembly LGE EAY57681001 Contact Us For Availability
540
BPR Total Assembly LGE EBU60680808 Contact Us For Availability
550
PCB Assembly LGE EBR61677203 Contact Us For Availability
800
Supporter LGE MJH55846702 Contact Us For Availability
801
Supporter LGE MJH55846502 Contact Us For Availability
802
Supporter LGE MJH55846602 Contact Us For Availability
804
Supporter LGE MJH55846802 Contact Us For Availability
810
Supporter LGE MJH55846402 Contact Us For Availability
820
Frame Assembly LGE ADV67067802 Contact Us For Availability
830
Supporter LGE MJH56736703 Contact Us For Availability
900
Base Assembly LGE AAN67805605 Contact Us For Availability
A1
Manual,Owners LGE MFL58558501 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB69680401 Contact Us For Availability
A4
Title LGE SAC33601901 Contact Us For Availability
A5
Cover LGE MCK54408004 Contact Us For Availability
A8
Screw,Tapping LGE FAB30021301 Contact Us For Availability
AR14
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR103
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR1070
Resistor,Array LGE EBC32260601 Contact Us For Availability
C1
Harness,Single LGE EAD60673304 Contact Us For Availability
C2
Harness,Single LGE EAD35908102 Contact Us For Availability
C3
Harness,Single LGE EAD35983004 Contact Us For Availability
C4
Harness,Single LGE EAD39295755 Contact Us For Availability
C5
Harness,Single LGE EAD60676303 Contact Us For Availability
C30
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C122
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C161
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C186
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C600
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C607
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C722
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C726
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C748
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C750
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C755
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C782
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C788
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C789
Capacitor,Ceramic,Ch LGE EAE36882801 Contact Us For Availability
C793
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C794
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1012
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C1019
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1028
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1036
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C1069
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1072
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1078
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1207
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1208
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C1222
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1230
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1235
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1243
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
D500
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D1220
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC1
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC101
S/W,Firmware LGE SAA34081305 Contact Us For Availability
IC102
S/W,Firmware LGE SAA34243809 Contact Us For Availability
IC103
IC,Reset LGE EAN43244901 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC107
IC,Reset LGE EAN60670101 Contact Us For Availability
IC503
TRANSISTOR,FETS LGE 0TFTH80001A Contact Us For Availability
IC705
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC1000
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC1002
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC1003
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC1200
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
JK501
Jack,DIN LGE 6612B00015D Contact Us For Availability
JK501
Jack,DIN LGE EAG39789402 Contact Us For Availability
JK601
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1200
Jack,Complex LGE EAG59952301 Contact Us For Availability
JK1204
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK1205
JACK,PHONE LGE 6612F00099A Contact Us For Availability
L604
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L726
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L728
Filter,Bead LGE EAM38769506 Contact Us For Availability
L1002
Inductor,Multilayer,Chip LGE EAP39314714 Contact Us For Availability
L1004
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L1010
Filter,Bead LGE EAM42641602 Contact Us For Availability
L1202
Filter,Bead LGE EAM38769501 Contact Us For Availability
LD1000
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Harness,Single LGE EAD60679315 Contact Us For Availability
P600
WAFER LGE 6602T25009C Contact Us For Availability
P800
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P1204
Connector,Wafer LGE EAG58732902 Contact Us For Availability
Q108
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R32
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R41
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R47
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R172
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R260
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R268
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R534
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R539
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R544
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R552
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R589
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R622
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R626
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R713
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R723
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
R735
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R737
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R770
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R1011
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1019
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R1062
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R1201
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1215
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1228
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1238
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1253
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1264
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R1271
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1272
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1297
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1302
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R2108
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R2118
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2217
Resistor,Chip LGE 0RJ5111D477 Contact Us For Availability
R3007
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
SW1
Switch,Rocker LGE EBF58261504 Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW100
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW3004
SWITCH TACT LGE 140-313B Contact Us For Availability
TU1001
Tuner,Analog/Digital LGE EBL60152902 Contact Us For Availability
VR509
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
