Model LG 37LG500H-UA – Common Parts & Diagrams

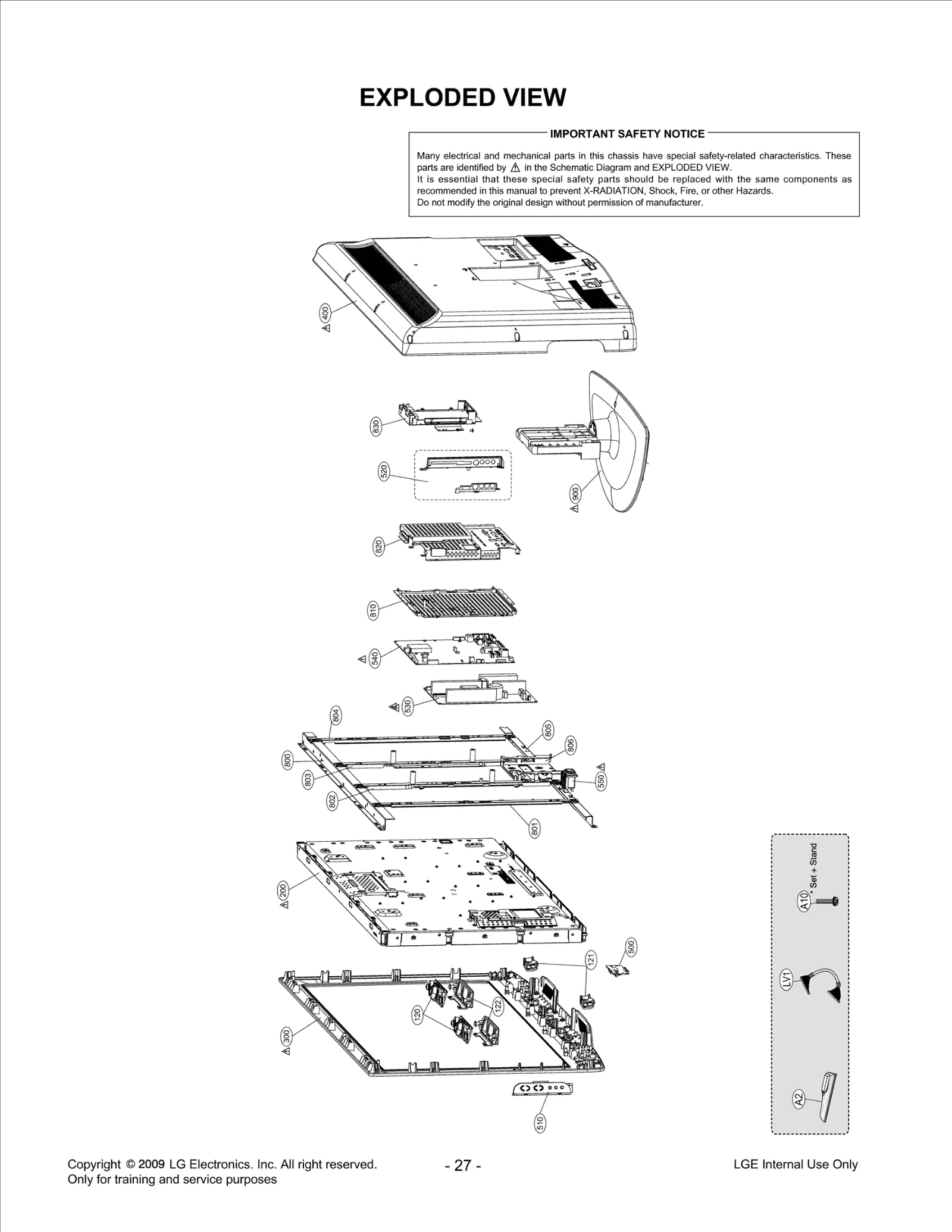

Diagram 0
Diagram 1
Common parts from model LG 37LG500H-UA
120
Speaker,Full Range LGE EAB41280201 Contact Us For Availability
121
Speaker,Tweeter LGE EAB41284402 Contact Us For Availability
122
Bracket Assembly LGE ABA35815711 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ57535001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ34635626 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ73100602 Contact Us For Availability
500
Package Assembly LGE AGF73030401 Contact Us For Availability
510
Package Assembly LGE AGF72942501 Contact Us For Availability
520
Bracket Assembly LGE ABA35157203 Contact Us For Availability
530
SMPS,AC/DC LGE EAY40505001 Contact Us For Availability
540
Package Assembly LGE AGF72942201 Contact Us For Availability
550
Filter,AC Line LGE EAM36140904 Contact Us For Availability
800
Supporter LGE MJH40605902 Contact Us For Availability
801
Supporter LGE MJH40606502 Contact Us For Availability
802
Supporter LGE MJH40606102 Contact Us For Availability
803
Supporter LGE MJH40606402 Contact Us For Availability
804
Supporter LGE MJH40606602 Contact Us For Availability
805
Supporter LGE MJH40606002 Contact Us For Availability
806
Supporter LGE MJH40606706 Contact Us For Availability
810
Plate LGE MGJ40620602 Contact Us For Availability
820
Plate,Shield LGE MGJ47307104 Contact Us For Availability
822
Package Assembly LGE AGF37019101 Contact Us For Availability
830
Package Assembly LGE AGF73030602 Contact Us For Availability
900
Base Assembly LGE AAN34784115 Contact Us For Availability
A
Bracket LGE MAZ40630901 Contact Us For Availability
A
Supporter LGE MJH59708301 Contact Us For Availability
A1
Manual,Owners LGE MFL34797007 Contact Us For Availability
A3
Power Cord LGE 6410VUH005F Contact Us For Availability
A9
Screw,Taptite LGE FAB30236101 Contact Us For Availability
A10
Screw Assembly LGE FAB30016414 Contact Us For Availability
C102
Capacitor,AL,Chip LGE 0CE476VF6DC Contact Us For Availability
C104
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
IC100
Receiver Module LGE EAV59155101 Contact Us For Availability
IC101
Sensor,RGB LGE EBD60010801 Contact Us For Availability
L100
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD100
LED,Chip LGE EAV44273501 Contact Us For Availability
LV1
Harness,Single LGE EAD43289502 Contact Us For Availability
P101
Connector,Wafer LGE 6602T12005C Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R103
RESISTOR,METAL GLAZE LGE 0RJ1101D677 Contact Us For Availability
R112
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R117
Resistor,Chip LGE 0RH1004D422 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
SW105
Switch,Tact LGE EBF55334201 Contact Us For Availability
ZD100
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD100
Diode,TVS LGE EAH33945901 Contact Us For Availability
× ![]()
