Model LG 37LG30 – Common Parts & Diagrams

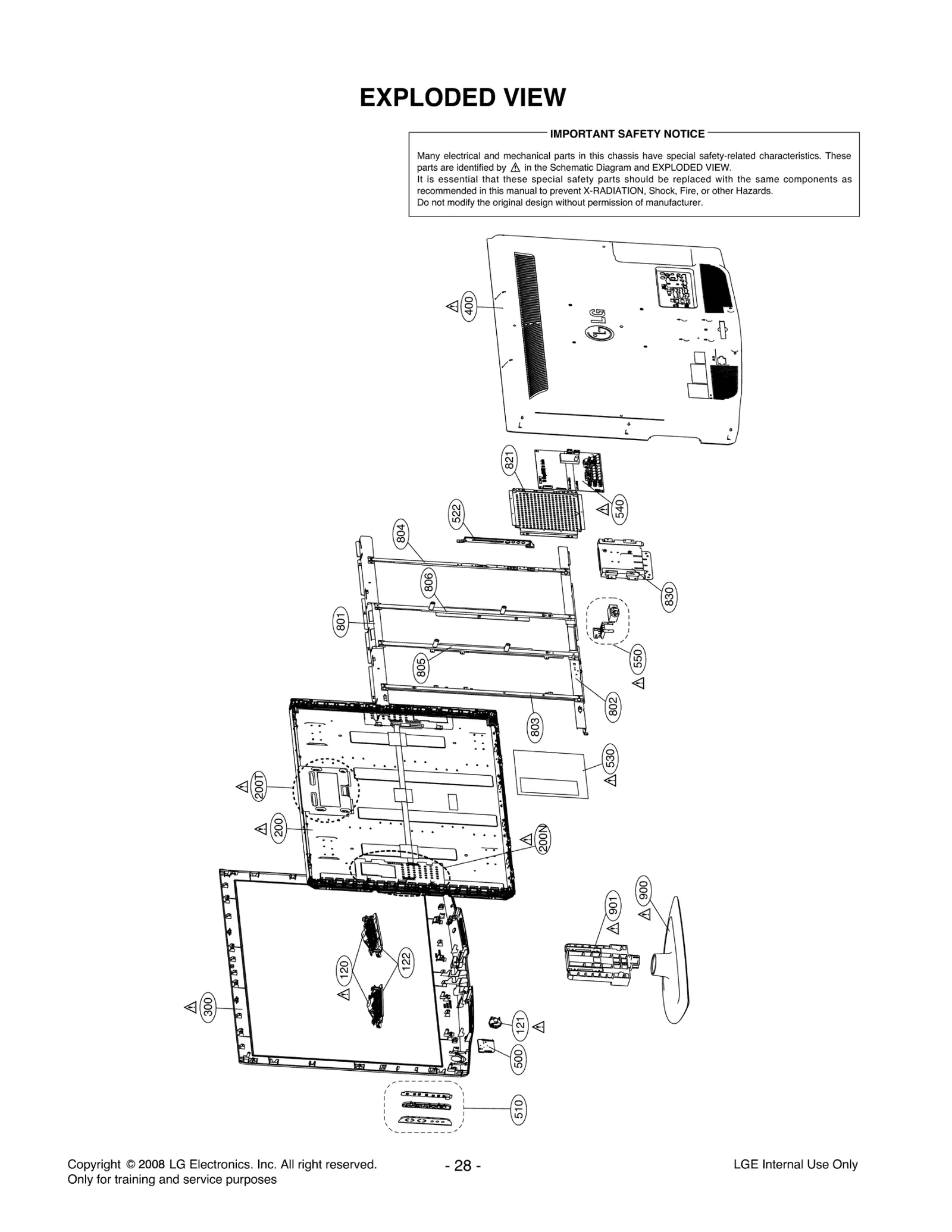

Diagram 0
Diagram 1
Common parts from model LG 37LG30
120
Speaker,Full Range LGE EAB41280201 Contact Us For Availability
121
Speaker,Tweeter LGE EAB41284401 Contact Us For Availability
122
Bracket Assembly LGE ABA35815702 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ41858701 Contact Us For Availability
200N
Inverter Assembly LGE EAY56798401 Contact Us For Availability
200T
Time Control LGE EAT56802501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35594106 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35594412 Contact Us For Availability
500
PCB Assembly,Front LGE EBR42596401 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR52293701 Contact Us For Availability
522
Bracket Assembly LGE ABA35569902 Contact Us For Availability
530
SMPS,AC/DC LGE EAY40505001 Contact Us For Availability
540
Main Total Assembly LGE EBU50004403 Contact Us For Availability
550
Chassis Assembly LGE EBT43370301 Contact Us For Availability
801
Plate,Metal LGE MGJ42433301 Contact Us For Availability
802
Plate,Metal LGE MGJ42434501 Contact Us For Availability
803
Supporter LGE MJH40607001 Contact Us For Availability
804
Supporter LGE MJH41046701 Contact Us For Availability
805
Supporter LGE MJH40606801 Contact Us For Availability
806
Supporter LGE MJH40606901 Contact Us For Availability
821
Plate LGE MGJ40315501 Contact Us For Availability
830
Supporter LGE MJH40606705 Contact Us For Availability
900
Base Assembly LGE AAN34784113 Contact Us For Availability
901
Supporter LGE MJH40310802 Contact Us For Availability
A1
Manual,Owners LGE MFL34797048 Contact Us For Availability
A4
Cover LGE MCK40307701 Contact Us For Availability
AR200
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C1
Harness,Single LGE EAD42065904 Contact Us For Availability
C2
Harness,Single LGE 6631900049N Contact Us For Availability
C3
Harness,Single LGE EAD43289503 Contact Us For Availability
C4
Harness,Single LGE 6631V12031J Contact Us For Availability
C5
Harness,Single LGE EAD42560501 Contact Us For Availability
C6
Harness,Single LGE EAD39295714 Contact Us For Availability
C104
CAPACITOR,FIXED CERA LGE 0CK225DFK4A Contact Us For Availability
C125
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C172
Capacitor,Ceramic,Chip LGE 0CH3224K946 Contact Us For Availability
C220
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C302
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C405
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C406
CAPACITOR,FIXED CERA LGE 0CC270DK41A Contact Us For Availability
C435
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C508
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C528
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C543
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C551
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C562
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C568
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C617
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C632
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C647
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C704
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C718
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C720
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C724
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C741
CAPACITOR,FIXED CERA LGE 0CK822CK56A Contact Us For Availability
C747
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C808
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C814
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C903
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C1702
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C1712
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
D401
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D615
Diode,TVS LGE EAH33945901 Contact Us For Availability
D633
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D912
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC100
IC,Video Processors LGE EAN37156404 Contact Us For Availability
IC103
S/W,Firmware LGE SAA32906108 Contact Us For Availability
IC104
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC200
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC400
IC,Data Controller LGE 0ICTMLG019C Contact Us For Availability
IC502
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
IC704
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC708
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC709
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC710
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC711
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC802
IC,Analog Switch LGE EAN41347201 Contact Us For Availability
IC901
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC902
IC,EEPROM LGE EAN35989901 Contact Us For Availability
JK600
Jack,Complex LGE 6612J00062H Contact Us For Availability
JK601
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK603
Jack,RCA LGE 6612J10043A Contact Us For Availability
JK605
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK801
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK901
Jack,RCA LGE 6612J10031C Contact Us For Availability
JK902
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
L310
Filter,Bead LGE EAM38769501 Contact Us For Availability
L402
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L407
Inductor,Multilayer, LGE EAP39314701 Contact Us For Availability
L505
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L507
Filter,Bead LGE EAM38769505 Contact Us For Availability
L702
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L715
Filter,Bead LGE EAM30764101 Contact Us For Availability
L721
Filter,Bead LGE EAM42641602 Contact Us For Availability
LD400
LED,Chip LGE 0DL210009GC Contact Us For Availability
P101
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P301
Connector,Wafer LGE EAG39798202 Contact Us For Availability
P700
Connector,Wafer LGE EAG39798201 Contact Us For Availability
Q301
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q802
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q900
TRANSISTOR,BIPOLARS LGE 0TRIH80003A Contact Us For Availability
Q1902
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R101
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R104
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R107
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R210
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R211
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R217
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R315
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R423
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R436
Resistor,Array LGE EBC32260601 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R630
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R636
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R643
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R716
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R717
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R741
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R742
Resistor,Chip LGE 0RJ4320D477 Contact Us For Availability
R751
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R752
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R844
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R859
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R937
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R939
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R940
Resistor,Chip LGE 0RJ6803D677 Contact Us For Availability
R943
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R947
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R953
RESISTOR,METAL GLAZE LGE 0RJ1203D677 Contact Us For Availability
R961
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R979
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1022
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R1024
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R1028
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R1031
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R1128
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1920
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
SW107
SWITCH TACT LGE 140-313B Contact Us For Availability
TU401
Tuner,Analog/Digital LGE EBL37676801 Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
