Model LG 37LF11-UA – Common Parts & Diagrams

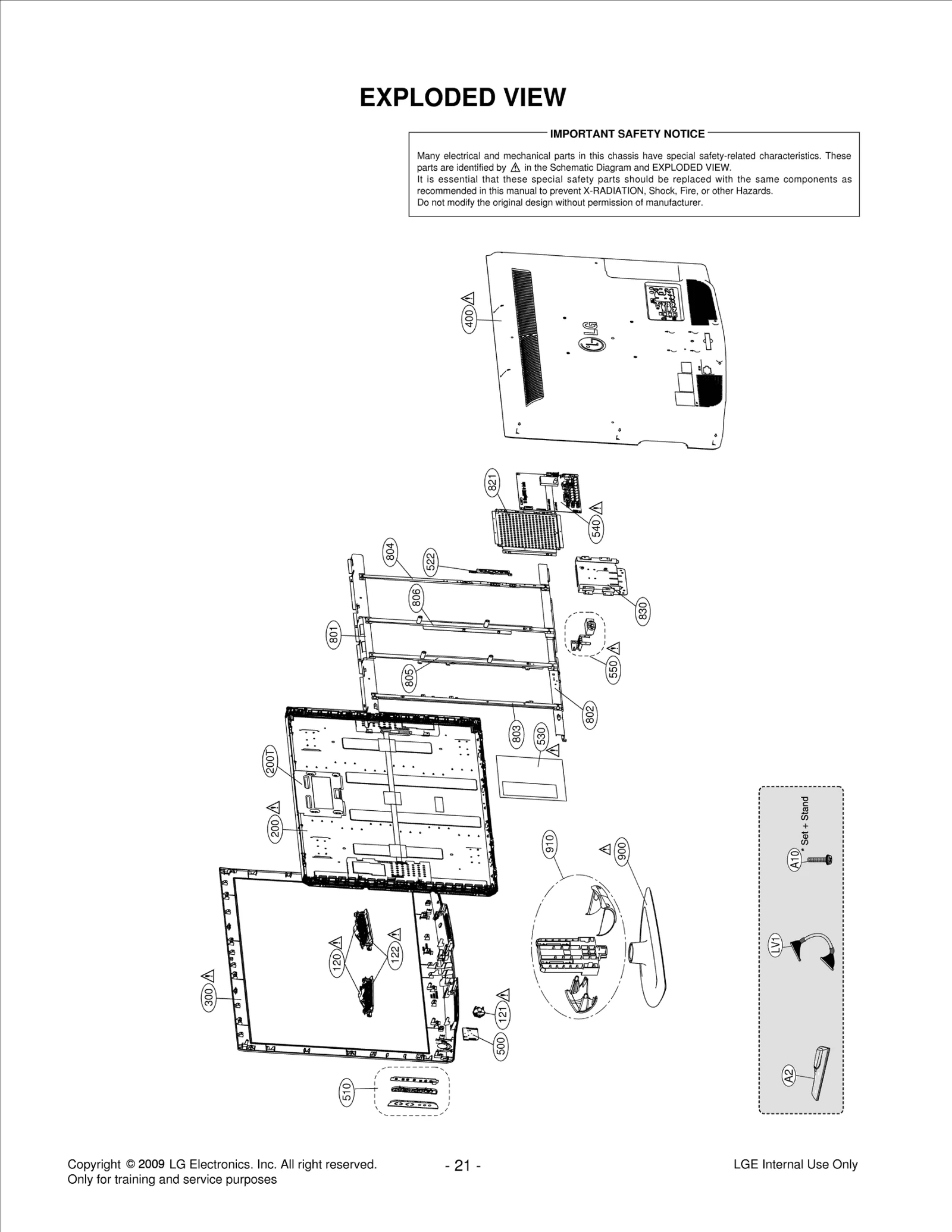

Diagram 0
Diagram 1
Common parts from model LG 37LF11-UA
120
Speaker,Full Range LGE EAB41280202 Contact Us For Availability
121
Knob LGE MEY40870302 Contact Us For Availability
122
Bracket Assembly LGE ABA35815711 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ59211901 Contact Us For Availability
200T
Time Control LGE EAT60663401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35594116 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35594442 Contact Us For Availability
500
PCB Assembly,Front LGE EBR62100901 Contact Us For Availability
510
PCB Assembly LGE EBR59953703 Contact Us For Availability
530
Power Supply Assembly LGE EAY57681004 Contact Us For Availability
540
PCB Assembly LGE EBR61100411 Contact Us For Availability
550
Filter,AC Line LGE EAM36140904 Contact Us For Availability
801
Plate,Metal LGE MGJ42433302 Contact Us For Availability
802
Plate,Metal LGE MGJ42434502 Contact Us For Availability
803
Plate,Metal LGE MGJ61841903 Contact Us For Availability
804
Supporter LGE MJH41046702 Contact Us For Availability
805
Supporter LGE MJH40606803 Contact Us For Availability
806
Supporter LGE MJH40606903 Contact Us For Availability
821
Plate LGE MGJ40315506 Contact Us For Availability
830
Supporter LGE MJH40606701 Contact Us For Availability
900
Base Assembly LGE AAN34784120 Contact Us For Availability
910
Supporter LGE MJH55040401 Contact Us For Availability
A1
Manual,Owners LGE MFL58558501 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB69680401 Contact Us For Availability
A10
Screw,Taptite LGE FAB30018303 Contact Us For Availability
LV1
Harness,Single LGE EAD60679360 Contact Us For Availability
× ![]()
