Model LG 37LD650H – Common Parts & Diagrams

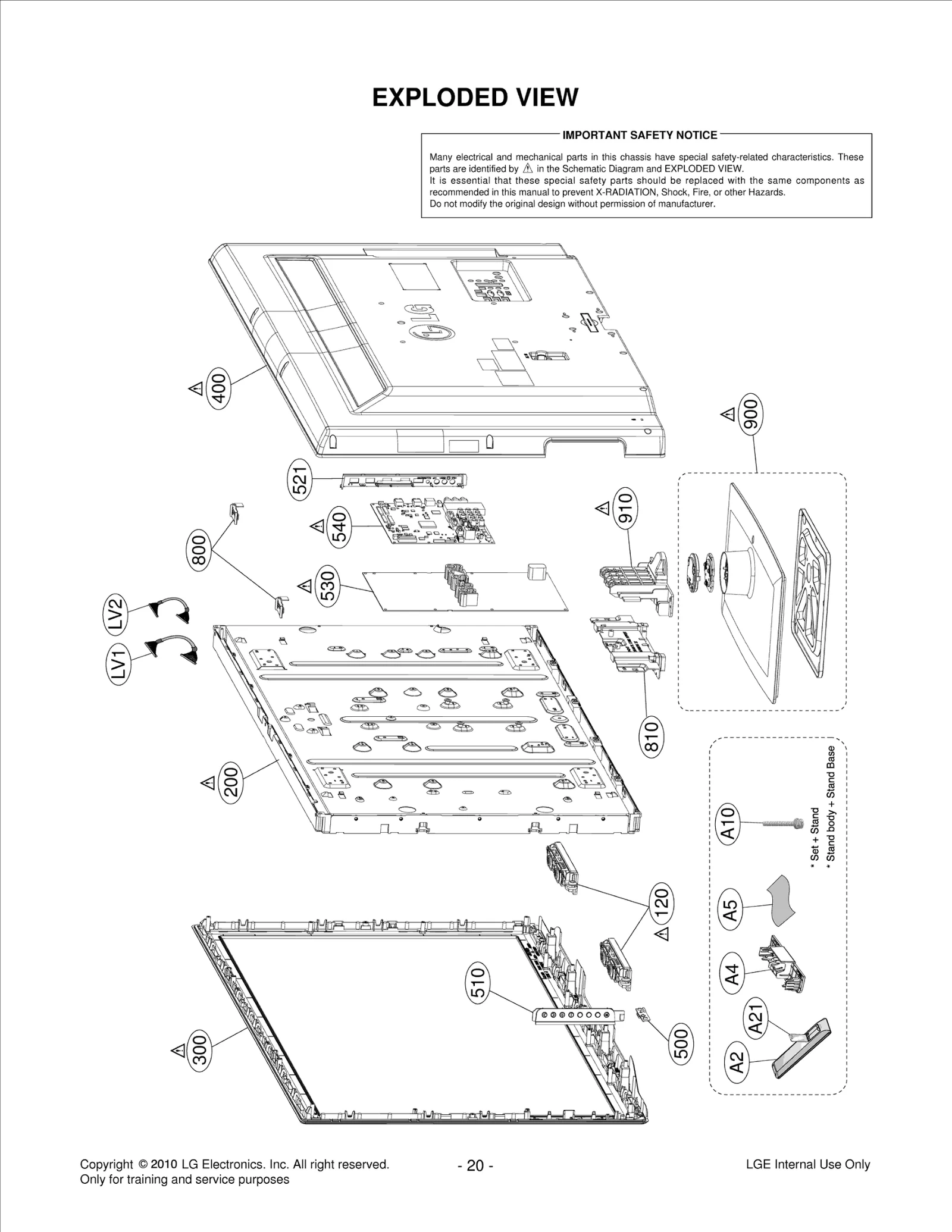

Diagram 0
Diagram 1
Common parts from model LG 37LD650H
120
Speaker,Full Range LGE EAB60961401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60871101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72967613 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ76910105 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64966003 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR71642501 Contact Us For Availability
521
Bracket Assembly LGE ABA72942718 Contact Us For Availability
530
SMPS,AC/DC LGE EAY61209601 Contact Us For Availability
540
PCB Assembly LGE EBR67465501 Contact Us For Availability
590
Package Assembly LGE AGF73983404 Contact Us For Availability
610
Supporter LGE MJH59708302 Contact Us For Availability
800
Supporter LGE MJH61887404 Contact Us For Availability
810
Supporter LGE MJH61879501 Contact Us For Availability
900
Base Assembly LGE AAN73211204 Contact Us For Availability
910
Bracket Assembly LGE ABA73410402 Contact Us For Availability
A2
Remote Controller LGE MKJ40653832 Contact Us For Availability
A3
Power Cord,Detach LGE EAD60817903 Contact Us For Availability
A3
Power Cord LGE 6410VUH005F Contact Us For Availability
A4
Cover LGE MCK62680402 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A10
Screw Assembly, stand LGE FAB30016106 Contact Us For Availability
AR603
Resistor,Array LGE EBC37094001 Contact Us For Availability
AR1520
RESISTOR,METAL GLAZE LGE 0RJ0512C687 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C114
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C119
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C126
CAPACITOR,FIXED CERA LGE 0CC820CK41A Contact Us For Availability
C138
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C313
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C326
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C335
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C340
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C360
Capacitor,Ceramic,Chip LGE 0CH2122K516 Contact Us For Availability
C400
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C403
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C406
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C407
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C426
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C427
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C431
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C432
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C437
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C440
Capacitor,Ceramic,Ch LGE EAE36882801 Contact Us For Availability
C441
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C445
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C520
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C629
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE 0CC050CK11A Contact Us For Availability
C802
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C807
Capacitor,Ceramic,Chip LGE 0CK475FHG6A Contact Us For Availability
C810
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C904
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C1008
Capacitor,Ceramic,Chip LGE EAE60685701 Contact Us For Availability
C1030
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C1034
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C1042
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C1063
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1069
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C1235
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1241
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1411
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C1412
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1414
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1501
Capacitor,AL,Chip LGE EAE38362601 Contact Us For Availability
C1505
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C1526
Capacitor,Ceramic,Chip LGE EAE37992001 Contact Us For Availability
C1601
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1612
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C1728
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1729
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C1831
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1832
CAPACITOR,FIXED ELEC LGE 0CE476VH6DC Contact Us For Availability
C1833
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C1837
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
CA2
Harness,Single LGE EAD60958516 Contact Us For Availability
CA2
Harness,Single LGE EAD52821212 Contact Us For Availability
CA2
CONNECTOR ASSEMBLY LGE 6631T20020Q Contact Us For Availability
CA3
Harness,Single LGE EAD60676307 Contact Us For Availability
D2
JACK,MODULAR LGE 6612E00008A Contact Us For Availability
D400
Diode,Schottky LGE EAH39250401 Contact Us For Availability
D501
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D1400
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1408
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D1510
Diode,TVS LGE EAH33945901 Contact Us For Availability
D1808
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC101
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC102
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC200
IC,Analog Switch LGE EAN43489301 Contact Us For Availability
IC300
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC301
IC,Audio Amplifier LGE EAN60969601 Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC401
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC402
IC,POWER MANAGEMENT LGE 0IPMG00063A Contact Us For Availability
IC403
IC,Charge Pump LGE EAN61132201 Contact Us For Availability
IC404
IC,DC,DC Converter LGE EAN60660801 Contact Us For Availability
IC405
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC501
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC505
IC,FRAM LGE 0IMMRRA001A Contact Us For Availability
IC600
IC,DDR2 SDRAM LGE EAN60221201 Contact Us For Availability
IC800
DTV A/V SoC 1 LGE EAN38068401 Contact Us For Availability
IC900
IC,EEPROM LGE EAN43349002 Contact Us For Availability
IC901
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC903
IC,Reset LGE EAN60670101 Contact Us For Availability
IC1400
IC,Analog Switch LGE EAN43439401 Contact Us For Availability
IC1402
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC1501
IC,Video Decode LGE 0IPRP00630E Contact Us For Availability
IC1502
IC,Multiplexer LGE EAN61488101 Contact Us For Availability
IC1602
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC1603
IC,DC,DC Converter LGE EAN60911601 Contact Us For Availability
IC1604
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC1700
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1701
IC,Inverter LGE 0IPH741400C Contact Us For Availability
JK200
Jack,DIN LGE EAG59023303 Contact Us For Availability
JK300
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK500
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK1400
Jack,Modular LGE EAG35781003 Contact Us For Availability
JK1402
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1701
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK1801
Jack,Modular LGE 6612E00008C Contact Us For Availability
JK1803
Connector,BtoB LGE EAG60981201 Contact Us For Availability
L104
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L107
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L402
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
L404
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L408
Filter,Bead LGE EAM38769501 Contact Us For Availability
L416
Inductor,Wire Wound,Chip LGE EAP40632501 Contact Us For Availability
L808
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1011
Inductor,Wire Wound, LGE EAP37991401 Contact Us For Availability
L1201
Filter,Bead LGE EAM42557601 Contact Us For Availability
LD501
LED LGE 0DL233309AC Contact Us For Availability
LD502
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Cable,FFC LGE EAD60679337 Contact Us For Availability
LV2
Harness,Single LGE EAD60673304 Contact Us For Availability
M7
Gasket LGE MDS62110202 Contact Us For Availability
P101
Connector,BtoB LGE EAG61233801 Contact Us For Availability
P103
Connector,Wafer LGE 366-921K Contact Us For Availability
P300
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P400
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P501
Conector,BtoB LGE 6630V25002F Contact Us For Availability
P701
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P703
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P1000
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P1200
Connector,BtoB LGE EAG61233701 Contact Us For Availability
P1700
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P3000
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q302
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q304
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q404
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1806
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R100
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R104
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R106
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R108
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R110
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R112
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R117
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R128
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R129
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R355
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R359
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R360
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R410
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R412
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R418
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R444
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R445
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R454
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R973
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R996
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R1005
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R1014
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R1026
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1065
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1082
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1114
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R1120
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1124
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R1128
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R1141
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1150
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R1153
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1423
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1425
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1433
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R1444
Resistor,Chip LGE 0RJ0492D477 Contact Us For Availability
R1450
Resistor,Chip LGE EBC35172101 Contact Us For Availability
R1464
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R1524
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1600
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1601
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1604
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R1606
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1616
RESISTOR,METAL GLAZE LGE 0RJ0662D477 Contact Us For Availability
R1624
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R1626
Resistor,Chip LGE 0RJ9103C478 Contact Us For Availability
R1705
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1708
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1711
Resistor,Chip LGE 0RJ0342D477 Contact Us For Availability
R1719
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1743
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R1759
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1765
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1803
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1884
Resistor,Chip LGE EBC60973201 Contact Us For Availability
R1889
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1893
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R1894
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R2226
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R3006
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R5028
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R5096
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R5100
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R5128
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R5136
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R5178
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R9114
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R9115
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R9118
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R9122
Resistor,Chip LGE 0RJ0182D677 Contact Us For Availability
SW900
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW3006
Switch,Tact LGE EBF60693201 Contact Us For Availability
TU100
Tuner,Analog/Digital LGE EBL60720402 Contact Us For Availability
TU1800
Tuner,RF Modulator LGE EBL60659402 Contact Us For Availability
VA202
VARISTOR LGE 6102W5V016A Contact Us For Availability
VR2200
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
X100
Crystal LGE 6212AB2015C Contact Us For Availability
X500
Crystal LGE EAW39040101 Contact Us For Availability
X1001
Crystal LGE 6212AA2600E Contact Us For Availability
X1500
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
ZD500
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZD1068
Diode,Zener LGE EAH37908001 Contact Us For Availability
ZD1500
Diode,Zener LGE 0DZVH00348A Contact Us For Availability
× ![]()
Login and Registration Form
