Model LG 37LD452B – Common Parts & Diagrams
Diagram 0

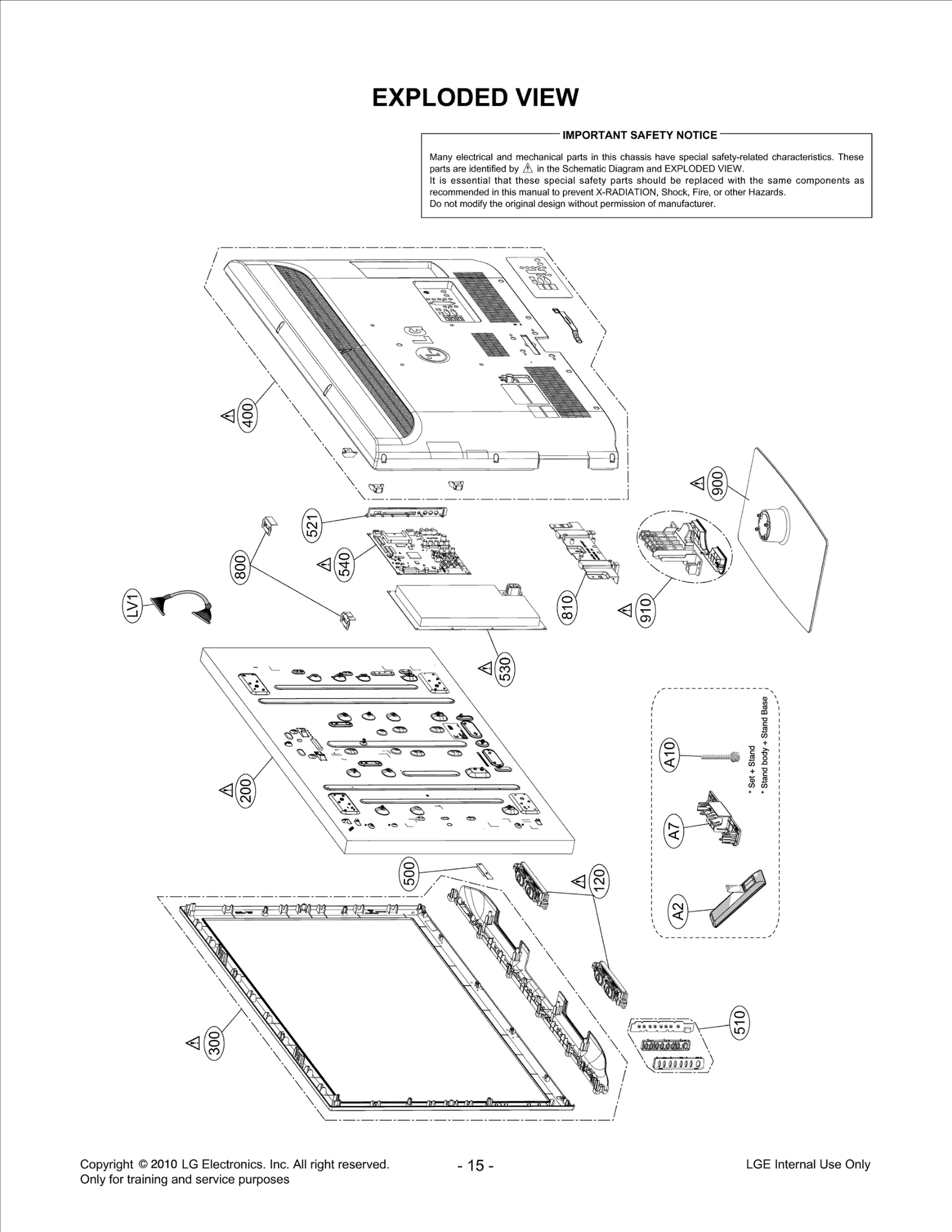

Diagram 1
Common parts from model LG 37LD452B
120
Speaker,Full Range LGE EAB60961403 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61768701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72925720 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75177025 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64965801 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR66050301 Contact Us For Availability
521
Bracket Assembly LGE ABA73009523 Contact Us For Availability
530
Power Supply Assembly LGE EAY60869307 Contact Us For Availability
540
PCB Assembly,Main LGE EBR72965419 Contact Us For Availability
800
Supporter LGE MJH61887403 Contact Us For Availability
810
Supporter LGE MJH61879503 Contact Us For Availability
910
Bracket Assembly LGE ABA73009212 Contact Us For Availability
A1
Manual,Owners LGE MFL62882708 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915266 Contact Us For Availability
AR102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
ASSS
Tape,Polyester LGE RAB33015603 Contact Us For Availability
C114
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C120
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C228
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C232
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C237
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C268
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C418
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C464
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C504
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C532
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C550
CAPACITOR,FIXED ELEC LGE 0CE226WJ6DC Contact Us For Availability
C559
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C565
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C1009
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C1101
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1109
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C1453
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C5013
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
CA7
Harness,Single LGE EAD35983003 Contact Us For Availability
CA11
Harness,Single LGE EAD60958518 Contact Us For Availability
CA12
Harness,Single LGE EAD35908415 Contact Us For Availability
D804
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1107
Diode,TVS LGE EAH33945901 Contact Us For Availability
D2402
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC502
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC1002
IC,Microcontrollers LGE EAN59750501 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN60968001 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN60970401 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1102
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1105
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK3302
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK3802
Jack,RCA LGE EAG61008003 Contact Us For Availability
L101
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L202
Filter,Bead LGE EAM32500903 Contact Us For Availability
L406
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L420
Filter,Bead LGE EAM58113401 Contact Us For Availability
L509
Filter,Bead LGE EAM58042501 Contact Us For Availability
LV1
Cable,FFC LGE EAD61807812 Contact Us For Availability
M1
Gasket LGE MDS61887705 Contact Us For Availability
P403
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P2401
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P3000
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
Q402
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q802
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q806
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R117
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R164
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R251
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R256
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R462
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R473
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R550
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R853
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R881
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1089
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1105
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1135
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1237
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R2414
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3006
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R3008
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R3819
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R4003
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R5003
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R5018
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
SW1001
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW3005
SWITCH TACT LGE 140-313B Contact Us For Availability
× ![]()
