Model LG 37LD320H – Common Parts & Diagrams
Diagram 0

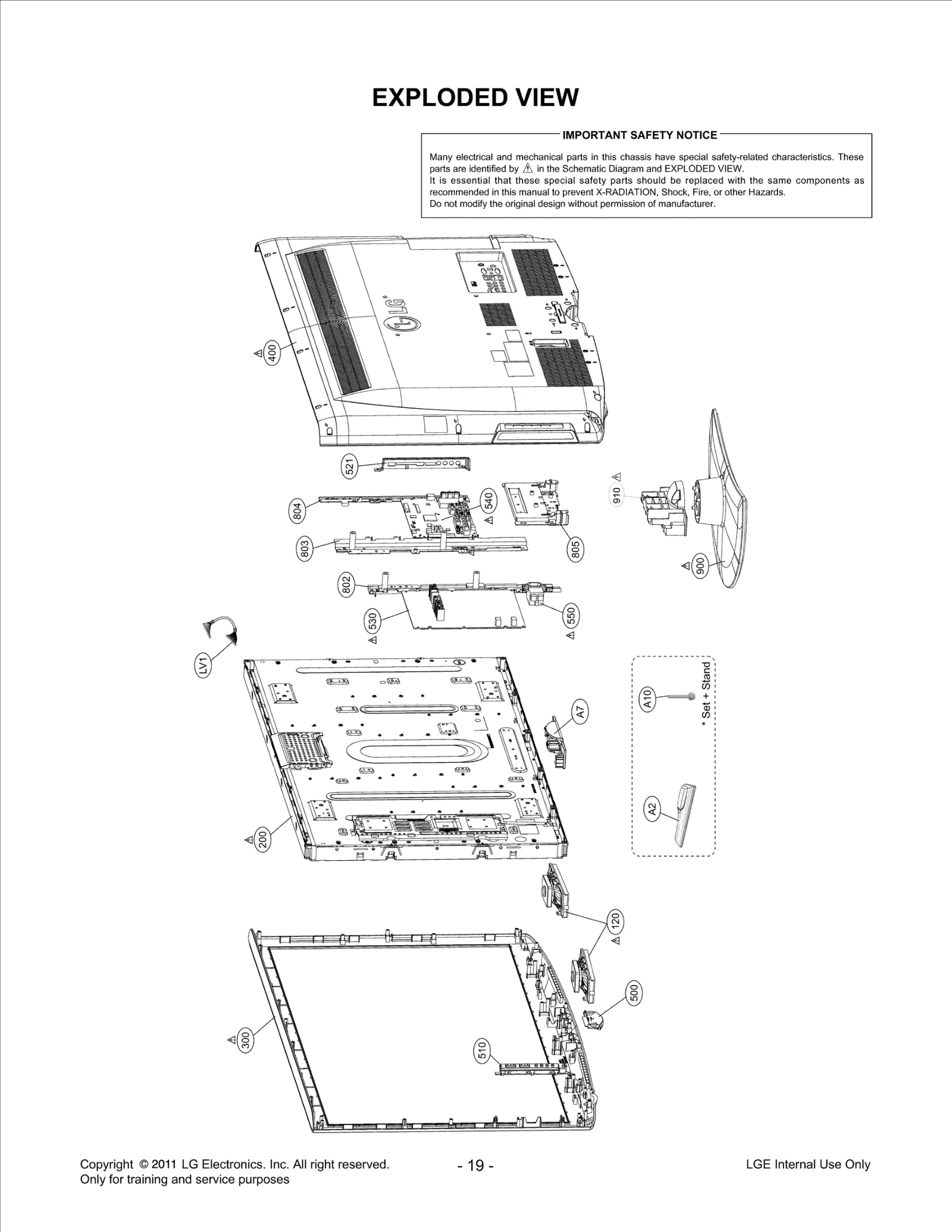

Diagram 1
Common parts from model LG 37LD320H
200
LCD,Module-TFT LGE EAJ60870201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ65853911 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83871307 Contact Us For Availability
500
Package Assembly LGE AGF73983705 Contact Us For Availability
510
Package Assembly LGE AGF73983606 Contact Us For Availability
521
Bracket Assembly LGE ABA73131909 Contact Us For Availability
530
SMPS,AC/DC LGE EAY61209401 Contact Us For Availability
540
PCB Assembly LGE EBR63424019 Contact Us For Availability
560
Package Assembly LGE AGF73983404 Contact Us For Availability
560
PCB Assembly LGE EBR66857103 Contact Us For Availability
560
Supporter LGE MJH32520901 Contact Us For Availability
610
Supporter LGE MJH59708302 Contact Us For Availability
800
Supporter LGE MJH56736706 Contact Us For Availability
802
Supporter LGE MJH55846513 Contact Us For Availability
803
Supporter LGE MJH61997702 Contact Us For Availability
804
Supporter LGE MJH61997802 Contact Us For Availability
900
Base Assembly LGE AAN73211204 Contact Us For Availability
910
Bracket Assembly LGE ABA73831202 Contact Us For Availability
A1
Manual,Owners LGE MFL62194612 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915231 Contact Us For Availability
A3
Power Cord LGE 6410VUH005F Contact Us For Availability
A4
Cover LGE MCK54408002 Contact Us For Availability
AR102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1217
Resistor,Array LGE EBC32260404 Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C218
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C225
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C237
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C284
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C405
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C444
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C464
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C522
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C530
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C612
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C621
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C630
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C633
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C636
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C641
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C705
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1002
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1009
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1012
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1127
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1131
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C1136
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C1222
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1413
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1470
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1481
CAPACITOR,FIXED ELEC LGE 0CE476VH6DC Contact Us For Availability
C1482
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C1484
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1601
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C1611
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1618
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C1620
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C1623
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C2001
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C2002
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C2176
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C2186
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2192
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C5019
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C5031
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C6004
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
CA1
CONNECTOR ASSEMBLY LGE 6631T20020Q Contact Us For Availability
CA3
Harness,Single LGE EAD35983006 Contact Us For Availability
CA4
Harness,Single LGE EAD60676304 Contact Us For Availability
CA6
Harness,Single LGE EAD39295756 Contact Us For Availability
CA7
Harness,Single LGE EAD35908414 Contact Us For Availability
D603
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D605
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D607
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D801
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1005
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC200
IC,Serial Flash Memory LGE EAN60970401 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC410
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC600
IC,DC,DC Converter LGE EAN60985901 Contact Us For Availability
IC601
IC,PMIC LGE EAN60985801 Contact Us For Availability
IC603
IC,PMIC LGE EAN60924401 Contact Us For Availability
IC802
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1001
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC1100
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN60899901 Contact Us For Availability
IC1209
DTV A/V SoC 1 LGE EAN38068401 Contact Us For Availability
IC1401
IC,Multiplexer LGE EAN61151201 Contact Us For Availability
IC1500
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC1600
IC,Charge Pump LGE EAN61132201 Contact Us For Availability
IC1601
IC,DC,DC Converter LGE EAN60660801 Contact Us For Availability
IC1607
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC1608
IC,FRAM LGE 0IMMRRA001A Contact Us For Availability
IC2000
Receiver Module LGE EAV59155102 Contact Us For Availability
IC5001
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
JK801
Jack,DIN LGE EAG59023303 Contact Us For Availability
JK1000
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK1401
Jack,Modular LGE 6612E00008C Contact Us For Availability
JK6000
Jack,Modular LGE 6612E00043A Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L406
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L413
Filter,Bead LGE EAM58113401 Contact Us For Availability
L600
Inductor,Wire Wound,Chip LGE EAP61006801 Contact Us For Availability
L1601
Inductor,Wire Wound,Chip LGE EAP40632501 Contact Us For Availability
L2000
Filter,Bead LGE EAM38769505 Contact Us For Availability
L6000
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L6005
Filter,Bead LGE EAM38769501 Contact Us For Availability
LD501
LED LGE 0DL233309AC Contact Us For Availability
LD503
LED,Chip LGE 0DL210009GC Contact Us For Availability
LED2000
LED,Chip LGE EAV44273501 Contact Us For Availability
LV1
Cable,FFC LGE EAD61514301 Contact Us For Availability
LV2
Cable,FFC LGE EAD61514601 Contact Us For Availability
M1
Gasket LGE MDS61887701 Contact Us For Availability
P101
Connector,BtoB LGE EAG61233801 Contact Us For Availability
P103
Connector,Wafer LGE 366-921K Contact Us For Availability
P502
WAFER LGE 6602T25009C Contact Us For Availability
P702
Connector,FFC/FPC/PIC LGE EAG61008601 Contact Us For Availability
P703
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P1000
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P1103
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P1200
Connector,BtoB LGE EAG61233701 Contact Us For Availability
P1400
Connector,BtoB LGE EAG60981201 Contact Us For Availability
P1601
Conector,BtoB LGE 6630V25002F Contact Us For Availability
P6000
Connector,Wafer LGE EAG58732902 Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q801
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1114
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1471
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q1603
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q2001
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
R100
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R101
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R104
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R106
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R108
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R109
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R112
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R218
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R280
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R459
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R474
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R493
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R607
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R610
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ0102E472 Contact Us For Availability
R620
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R630
Resistor,Chip LGE EBC32271301 Contact Us For Availability
R631
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ9103C478 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R643
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R644
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R647
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R651
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R652
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R656
Resistor,Chip LGE 0RJ3600D477 Contact Us For Availability
R658
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R668
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R896
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1033
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1117
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R1118
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R1135
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1143
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1226
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1237
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1471
Resistor,Chip LGE EBC60973201 Contact Us For Availability
R1523
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1601
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1609
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1612
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R1613
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R1617
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1651
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R1664
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1725
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1734
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1735
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1777
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R2002
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R2387
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R2564
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R3001
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R3005
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R3006
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R3008
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R3817
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R3823
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R4002
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4015
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R5011
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R5038
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R6010
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
SW3006
SWITCH TACT LGE 140-313B Contact Us For Availability
TH700
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
TU1002
Tuner,RF Modulator LGE EBL60659401 Contact Us For Availability
TU5001
Tuner,Analog/Digital LGE EBL60720402 Contact Us For Availability
X1600
Crystal LGE EAW39040101 Contact Us For Availability
ZD6009
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
Login and Registration Form
