Model LG 37LC7D – Common Parts & Diagrams

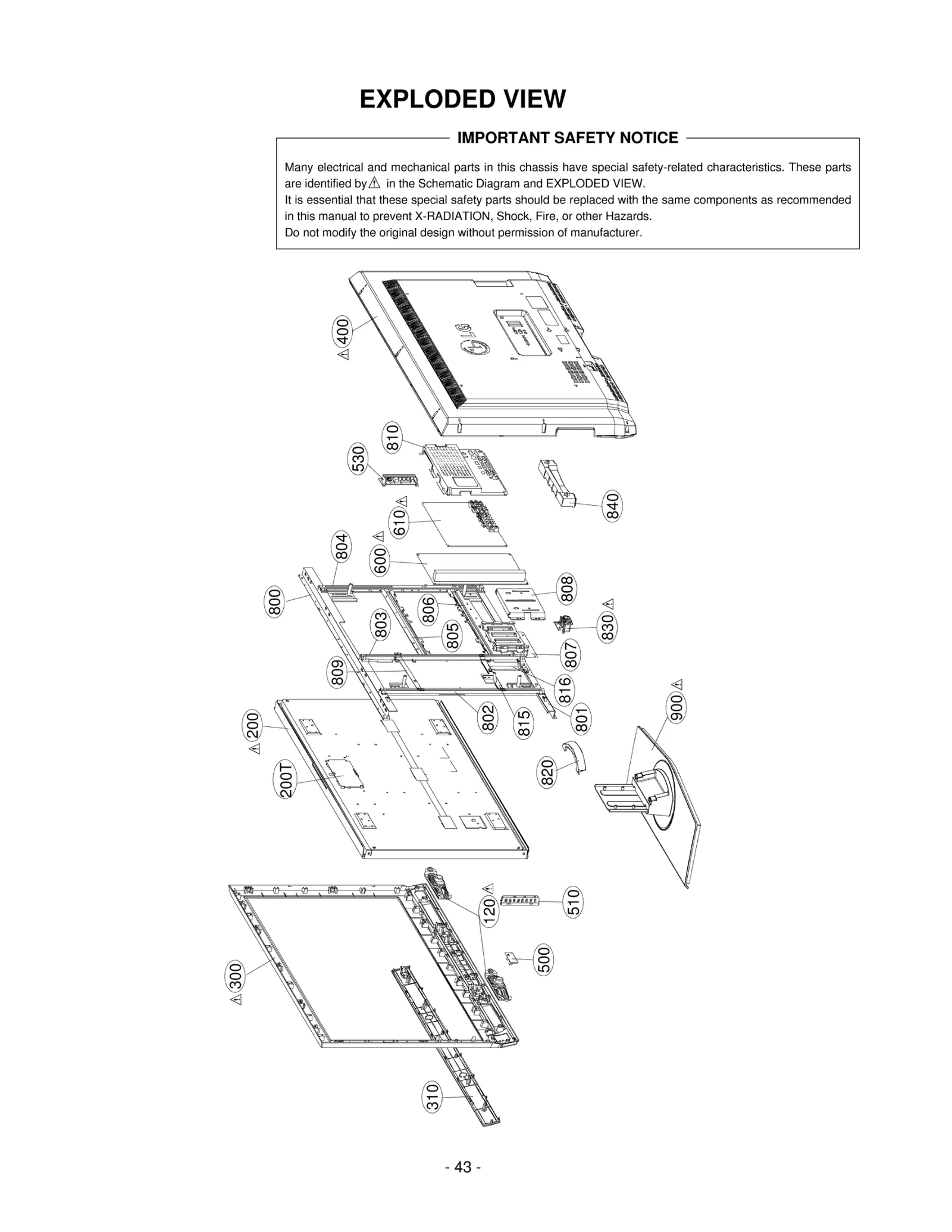

Diagram 0
Diagram 1
Common parts from model LG 37LC7D
120
Speaker,Full Range LGE EAB33775101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ36548001 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ38817301 Contact Us For Availability
200T
Time Control LGE EAT56802201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ32533612 Contact Us For Availability
310
Bracket Assembly LGE ABA32533803 Contact Us For Availability
400
Cover Assembly LGE ACQ32333518 Contact Us For Availability
500
PCB Assembly LGE EBR35527601 Contact Us For Availability
500
PCB Assembly LGE EBR37277801 Contact Us For Availability
510
PCB Assembly LGE EBR35527701 Contact Us For Availability
510
PCB Assembly LGE EBR37277301 Contact Us For Availability
530
PCB Assembly LGE EBR37278901 Contact Us For Availability
530
PCB Assembly LGE EBR35527001 Contact Us For Availability
600
PCB Assembly,Power LGE 68719PT298F Contact Us For Availability
600
Power Supply Assembly LGE EAY38669901 Contact Us For Availability
610
PCB Assembly LGE EBR40474801 Contact Us For Availability
610
PCB Assembly LGE EBR35606301 Contact Us For Availability
800
Plate LGE MGJ32901202 Contact Us For Availability
801
Plate LGE MGJ32901303 Contact Us For Availability
802
Plate LGE MGJ34306202 Contact Us For Availability
803
Plate LGE MGJ32901602 Contact Us For Availability
804
Plate LGE MGJ32901403 Contact Us For Availability
805
Plate LGE MGJ32901703 Contact Us For Availability
806
Plate LGE MGJ32901803 Contact Us For Availability
807
Plate LGE MGJ32901901 Contact Us For Availability
809
Plate LGE MGJ34305403 Contact Us For Availability
810
Plate,Shield LGE MGJ32918108 Contact Us For Availability
815
Plate LGE MGJ34305804 Contact Us For Availability
816
Plate LGE MGJ34306003 Contact Us For Availability
820
Bracket LGE MAZ32930601 Contact Us For Availability
830
Chassis Assembly LGE EBT36115601 Contact Us For Availability
840
Bracket LGE MAZ34234901 Contact Us For Availability
900
Base Assembly LGE AAN33023910 Contact Us For Availability
A1
Manual,Owners LGE MFL34797005 Contact Us For Availability
A2
Remote Controller LGE MKJ39927801 Contact Us For Availability
A4
Plate,Shield LGE MGJ38662503 Contact Us For Availability
AL7003
Filter,Bead LGE EAM38769509 Contact Us For Availability
AR2011
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR2209
Resistor,Array LGE EBC32260405 Contact Us For Availability
AR3021
Resistor,Array LGE 0RJ1001C687 Contact Us For Availability
BD102
Diode,Rectifier LGE 0DRSD00241A Contact Us For Availability
C1
CONNECTOR ASSEMBLY LGE 6631900012E Contact Us For Availability
C1
CORD,A/V LGE 6852TAZ010F Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631T25020L Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631900010F Contact Us For Availability
C5
Cable,Assembly LGE 68509A0004E Contact Us For Availability
C5
Harness,Single LGE 6631900018K Contact Us For Availability
C6
CONNECTOR ASSEMBLY LGE 6631900019Q Contact Us For Availability
C8
Harness,Single LGE EAD35983001 Contact Us For Availability
C8
Harness,Single High Power (6 inch) LGE EAD35908101 Contact Us For Availability
C12
Harness,Single LGE EAD35908302 Contact Us For Availability
C13
Harness,Single LGE 6631900094B Contact Us For Availability
C14
Harness,Single LGE 6631900048B Contact Us For Availability
C101
Capacitor,Film,Box LGE EAE36678201 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C111
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C112
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C113
Capacitor,AL,Radial LGE EAE38262201 Contact Us For Availability
C116
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C201
Capacitor,Ceramic,Ra LGE EAE38353601 Contact Us For Availability
C208
Capacitor,AL,Radial LGE EAE38259501 Contact Us For Availability
C210
Capacitor,AL,Radial LGE 0CZZTAB003V Contact Us For Availability
C213
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C215
Capacitor,AL,Radial LGE EAE38262601 Contact Us For Availability
C221
Capacitor,AL,Radial LGE 0CZZTAB003X Contact Us For Availability
C222
Capacitor,AL,Radial LGE EAE38261701 Contact Us For Availability
C226
Capacitor,AL,Radial LGE EAE38259801 Contact Us For Availability
C228
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C311
Capacitor,Ceramic,Ch LGE 0CK333DK56A Contact Us For Availability
C318
CAPACITOR,FIXED CERA LGE 0CK222DK4DA Contact Us For Availability
C319
Capacitor,Ceramic,Ch LGE EAE36882801 Contact Us For Availability
C323
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C406
Capacitor,Ceramic,Ra LGE EAE36702901 Contact Us For Availability
C501
Capacitor,Film,DIP LGE 0CZZ9ST009H Contact Us For Availability
C504
Capacitor,Film,DIP LGE 0CBZTBU006B Contact Us For Availability
C506
Capacitor,AL,Radial LGE EAE38261901 Contact Us For Availability
C507
Capacitor,AL,Radial LGE EAE38262501 Contact Us For Availability
C508
Capacitor,AL,Radial LGE EAE38262101 Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE EAE36711901 Contact Us For Availability
C510
Capacitor,AL,Radial LGE EAE38262401 Contact Us For Availability
C511
Capacitor,AL,Radial LGE EAE38261801 Contact Us For Availability
C604
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE 0CH5102K416 Contact Us For Availability
C608
Capacitor,AL,Radial LGE EAE36688101 Contact Us For Availability
C702
Capacitor,AL,Radial LGE EAE36687701 Contact Us For Availability
C708
Capacitor,Film,Box LGE EAE36678101 Contact Us For Availability
C710
Capacitor,Ceramic,Ra LGE 0CKZTTA002S Contact Us For Availability
C711
Capacitor,Ceramic,Radial LGE 0CKZTTA002A Contact Us For Availability
C1001
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1053
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1054
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1058
Capacitor,Ceramic,Chip LGE 0CH2122K516 Contact Us For Availability
C2031
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C3053
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C3066
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C4001
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C4011
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C4012
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C4015
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C4047
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C4063
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C4083
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C4100
Capacitor,Ceramic,Chip LGE 0CK153CK51A Contact Us For Availability
C4101
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C4102
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C4113
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C4905
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C5007
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C5030
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C5033
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C5056
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C5062
Capacitor,Ceramic,Chip LGE 0CH2474F566 Contact Us For Availability
C5071
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C6008
Capacitor,AL,Chip LGE 0CE227SC6DC Contact Us For Availability
C7003
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C7038
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C7043
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C7044
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C7045
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C7099
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C7154
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C7159
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
C47001
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
CX102
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
CX105
Capacitor,Film,Box LGE EAE36632401 Contact Us For Availability
CY107
Capacitor,Ceramic,Radial LGE 0CKZTBU004E Contact Us For Availability
CY115
Capacitor,Ceramic,Ra LGE 0CKZTBU004D Contact Us For Availability
D105
Diode,Rectifier LGE 0DD400709CC Contact Us For Availability
D201
Diode,Schottky LGE EAH36498201 Contact Us For Availability
D202
Diode,Rectifier LGE 0DRNH00170A Contact Us For Availability
D204
Diode,Rectifier LGE EAH36494601 Contact Us For Availability
D208
Diode,Switching LGE 0DSPT00029A Contact Us For Availability
D318
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D403
Diode,Switching LGE 0DSDI00038A Contact Us For Availability
D502
Diode,Rectifier LGE EAH36641301 Contact Us For Availability
D502
Diode,Rectifier LGE EAH36721901 Contact Us For Availability
D601
Diode,Rectifier LGE 0DRSD00278A Contact Us For Availability
D602
Diode,Rectifier LGE 0DRSD00281A Contact Us For Availability
D602
Diode,Rectifier LGE EAH37241501 Contact Us For Availability
D703
Diode,Rectifier LGE EAH36841301 Contact Us For Availability
D704
Diode,Rectifier LGE EAH36701701 Contact Us For Availability
D4002
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D4006
LED LGE 0DL233309AC Contact Us For Availability
D4007
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
D4008
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D5015
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
FB500
Filter,Bead LGE EAM37542501 Contact Us For Availability
IC1001
IC,Data Controller LGE 0IPRP00702A Contact Us For Availability
IC2001
S/W,Firmware LGE SAA30676209 Contact Us For Availability
IC2001
S/W,Firmware LGE SAA30676212 Contact Us For Availability
IC2002
IC,SDRAM LGE 0IMMRIH038B Contact Us For Availability
IC3001
IC,Analog Switch LGE EAN30267601 Contact Us For Availability
IC4001
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC4001
IC,Tx/Rx LGE EAN39038801 Contact Us For Availability
IC4006
IC,PERIPHERALS LGE 0IPRPFA015B Contact Us For Availability
IC4007
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC4008
IC,LDO Voltage Regul LGE 0IPMGS1006B Contact Us For Availability
IC4010
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC4011
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
IC4014
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC4015
S/W,Firmware LGE SAA30676307 Contact Us For Availability
IC4015
S/W,Firmware LGE SAA30676305 Contact Us For Availability
IC4016
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC4016
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC4017
IC,DC,DC Converter LGE EAN31513601 Contact Us For Availability
IC4500
IC,POWER MANAGEMENT LGE 0IPMG78391A Contact Us For Availability
IC4501
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC5001
IC,Analog Switch LGE EAN30744301 Contact Us For Availability
IC5002
IC,Analog Switch LGE EAN30744401 Contact Us For Availability
IC5003
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC5004
IC,PERIPHERALS LGE 0IPRPCI016A Contact Us For Availability
IC6004
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC7001
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC7004
IC,PERIPHERALS LGE 0IPRP00696A Contact Us For Availability
IC7004
IC,A/D Converter LGE 0IPRP00696D Contact Us For Availability
IC7005
IC,MEMORIES LGE 0IMMRCS012B Contact Us For Availability
IC7013
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC7016
IC,Receiver LGE 0IPRP00623A Contact Us For Availability
IC7017
IC,Audio Amplifier LGE 0IPRP00700A Contact Us For Availability
J4002
Jack,Complex LGE 6612J10024A Contact Us For Availability
J4003
JACK,PHONE LGE 6612F00099A Contact Us For Availability
J5005
Jack,RCA LGE 6612J10031C Contact Us For Availability
J5006
Jack,DIN LGE 6612F00024D Contact Us For Availability
J5007
Jack,RCA LGE 6612J10006K Contact Us For Availability
JK100
Jack,Fiber Optic LGE EAG32151101 Contact Us For Availability
JK101
JACK,RCA LGE 6612J10033A Contact Us For Availability
L201
Coil,Choke LGE EAP36784401 Contact Us For Availability
L203
Coil,Choke LGE EAP36784402 Contact Us For Availability
L600
Coil,Horizontal LGE EAP36780501 Contact Us For Availability
L2001
Filter,Bead LGE EAM38769502 Contact Us For Availability
L3001
Filter,Bead LGE EAM30764101 Contact Us For Availability
L3002
Inductor,Wire Wound, LGE EAP37991401 Contact Us For Availability
L3002
Inductor,Multilayer, LGE EAP35756201 Contact Us For Availability
L4007
FILTER(CIRC),EMC LGE 6200J000123 Contact Us For Availability
L4009
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L4021
Filter,Bead LGE EAM42641602 Contact Us For Availability
L4021
Filter,Bead LGE 6210TCE001E Contact Us For Availability
L4022
COIL,CHOKE LGE 6140TBZ047B Contact Us For Availability
L5003
Filter,Bead LGE EAM38769501 Contact Us For Availability
L7020
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L7020
INDUCTOR,CHIP LGE 0LC2000005J Contact Us For Availability
L7031
COIL,ENERGY RECOVERY LGE 6140VR0008A Contact Us For Availability
L7039
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L7039
Filter,Bead LGE EAM38769505 Contact Us For Availability
LED1
LED,DIP LGE EAV37115601 Contact Us For Availability
LV1
Harness,Single LGE EAD35683002 Contact Us For Availability
P100
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P201
Connector,Wafer LGE 6630V90209M Contact Us For Availability
P202
Connector,Wafer LGE 6630V90209J Contact Us For Availability
P203
Connector,Wafer LGE 6630V90209L Contact Us For Availability
P205
Connector,Wafer LGE 6630V90220C Contact Us For Availability
P402
Connector,Wafer LGE EAG36440901 Contact Us For Availability
P601
Connector,Wafer LGE EAG38502901 Contact Us For Availability
P4001
Connector,DSUB LGE 6630G00001A Contact Us For Availability
P4003
WAFER LGE 6602T25008J Contact Us For Availability
P4004
WAFER LGE 6602T25008M Contact Us For Availability
P4007
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
P6002
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P7003
PCB Assembly LGE EBR34869801 Contact Us For Availability
P7004
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
P7008
Jack,DIN LGE 6612B00015C Contact Us For Availability
P7010
Connector,Wafer LGE 6602T25008B Contact Us For Availability
PC200
Photo,Coupler LGE EAV32556601 Contact Us For Availability
Q103
TRANSISTOR,FETS LGE 0TFFN10005A Contact Us For Availability
Q204
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q205
FET LGE 0TFFC10028A Contact Us For Availability
Q206
TR,Bipolar LGE 0TR320000AB Contact Us For Availability
Q207
TR,Bipolar LGE 0TR222209AB Contact Us For Availability
Q208
FET LGE EBK36497901 Contact Us For Availability
Q317
TR,Bipolar LGE EBK36673501 Contact Us For Availability
Q323
FET LGE EBK36722001 Contact Us For Availability
Q609
TR,Bipolar LGE 0TRKE80078A Contact Us For Availability
Q708
TR,Bipolar LGE EBK36645601 Contact Us For Availability
Q5006
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q7002
TRANSISTOR,BIPOLARS LGE 0TRIH80003A Contact Us For Availability
Q7201
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R100
Resistor,Metal Film LGE 0RKZVTA001D Contact Us For Availability
R101
Resistor,Metal Film LGE 0RKZVTA001N Contact Us For Availability
R105
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R106
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R106
Resistor,Chip LGE 0RH7503D622 Contact Us For Availability
R112
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R116
Resistor,Metal Oxide LGE EBC01377802 Contact Us For Availability
R118
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R120
Resistor,Wire Wound LGE EBC36677701 Contact Us For Availability
R127
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ1000G683 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ1000G676 Contact Us For Availability
R207
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
R208
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R212
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R214
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R226
Resistor,Metal Oxide Film LGE 0RS2201K607 Contact Us For Availability
R228
Resistor,Chip LGE 0RJ1502E472 Contact Us For Availability
R229
Resistor,Chip LGE 0RH1501D422 Contact Us For Availability
R233
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R234
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R236
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R239
RESISTOR,METAL GLAZE LGE 0RJ6801E472 Contact Us For Availability
R246
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R248
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R310
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R311
Resistor,Chip LGE 0RH8202D422 Contact Us For Availability
R313
Resistor,Chip LGE 0RH3602D422 Contact Us For Availability
R314
Resistor,Chip LGE EBC00837802 Contact Us For Availability
R318
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ1503E472 Contact Us For Availability
R329
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
R330
Resistor,Chip LGE 0RJ3002E472 Contact Us For Availability
R332
Resistor,Chip LGE 0RH1000D422 Contact Us For Availability
R334
Resistor,Chip LGE 0RH1004D422 Contact Us For Availability
R345
RESISTOR,METAL GLAZED(CHIP) LGE 0RH5602D422 Contact Us For Availability
R347
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R348
Resistor,Chip LGE 0RH3902D422 Contact Us For Availability
R375
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R384
RESISTOR,METAL GLAZED(CHIP) LGE 0RJ1003E672 Contact Us For Availability
R407
Resistor,Metal Oxide LGE EBC01285802 Contact Us For Availability
R501
Resistor,Chip LGE EBC01875202 Contact Us For Availability
R508
Resistor,Metal Oxide LGE 0RX0221J609 Contact Us For Availability
R510
Resistor,Metal Oxide LGE EBC01414102 Contact Us For Availability
R512
Resistor,Wire Wound LGE EBC36677501 Contact Us For Availability
R513
Resistor,Chip LGE 0RH0202D622 Contact Us For Availability
R515
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R516
Resistor,Metal Oxide Film LGE 0RX4702K607 Contact Us For Availability
R602
RESISTOR,METAL GLAZE LGE 0RJ4703G676 Contact Us For Availability
R610
Resistor,Chip LGE 0RH0562D422 Contact Us For Availability
R611
Resistor,Chip LGE 0RH6203D622 Contact Us For Availability
R616
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R617
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R625
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R701
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R715
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R716
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R1006
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R1008
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R1016
Resistor,Chip LGE 0RJ0182D677 Contact Us For Availability
R1021
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R1032
Resistor,Chip LGE 0RH1504D622 Contact Us For Availability
R1046
RESISTOR,METAL GLAZE LGE 0RJ4990D477 Contact Us For Availability
R1141
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R1144
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1160
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R2608
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R3012
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R3016
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R3030
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R4015
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R4048
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R4084
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R4137
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R4186
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R5027
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R5034
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R5035
Resistor,Chip LGE 0RJ7500D677 Contact Us For Availability
R5053
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R5063
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R5068
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5073
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R5080
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R5107
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R5126
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R5128
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R7008
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R7030
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R7051
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R7056
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R7057
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R7088
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R7190
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R7202
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R7205
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R7225
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R26100
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R71001
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R71003
RESISTOR,METAL GLAZE LGE 0RJ5602D677 Contact Us For Availability
SW105
SWITCH TACT LGE 140-313B Contact Us For Availability
T101
Transformer,Switchin LGE EBJ36781401 Contact Us For Availability
T501
Transformer,Switchin LGE EBJ36781801 Contact Us For Availability
T701
Transformer,high vol LGE EBJ36780602 Contact Us For Availability
T702
Transformer,Linear LGE EBJ36780101 Contact Us For Availability
TU4001
Tuner,Analog/Digital LGE EBL32758001 Contact Us For Availability
U101
IC,PWM Controller LGE EAN36316301 Contact Us For Availability
U201
IC,Voltage Regulator LGE EAN36841801 Contact Us For Availability
U202
IC,PWM Controller LGE EAN36498101 Contact Us For Availability
U301
IC,Display Driver LGE EAN36498501 Contact Us For Availability
U303
IC,Voltage Regulator LGE 0IKE780500C Contact Us For Availability
U304
IC,Comparator LGE 0IKE393800A Contact Us For Availability
U501
IC,Voltage Regulator LGE EAN36675201 Contact Us For Availability
U502
IC,POWER MANAGEMENT LGE 0IPMG00047B Contact Us For Availability
U600
IC,MICRO CONTROLLER LGE 0IMCRFE001A Contact Us For Availability
U701
IC,Display Driver LGE EAN36495702 Contact Us For Availability
VA100
Varistor LGE EAF36905201 Contact Us For Availability
VR301
Variable Resistor,Semifixed LGE 180-F03L Contact Us For Availability
VR302
Variable Resistor,Semifixed LGE 180-F03D Contact Us For Availability
VR700
VARISTOR LGE 6102W5V016A Contact Us For Availability
X3001
Crystal LGE 6212AA2600B Contact Us For Availability
X7001
CRYSTAL LGE 6202TST001A Contact Us For Availability
ZD100
DIODE,ZENERS LGE 0DZPT36009A Contact Us For Availability
ZD240
Diode,Zener LGE EAH36634701 Contact Us For Availability
ZD500
Diode,Zener LGE EAH36633801 Contact Us For Availability
ZD502
Diode,Zener LGE EAH36664401 Contact Us For Availability
ZD702
Diode,Zener LGE EAH36663601 Contact Us For Availability
ZD1001
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
ZD5006
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
× ![]()
Login and Registration Form
