Model LG 37LC51 – Common Parts & Diagrams
Diagram 0

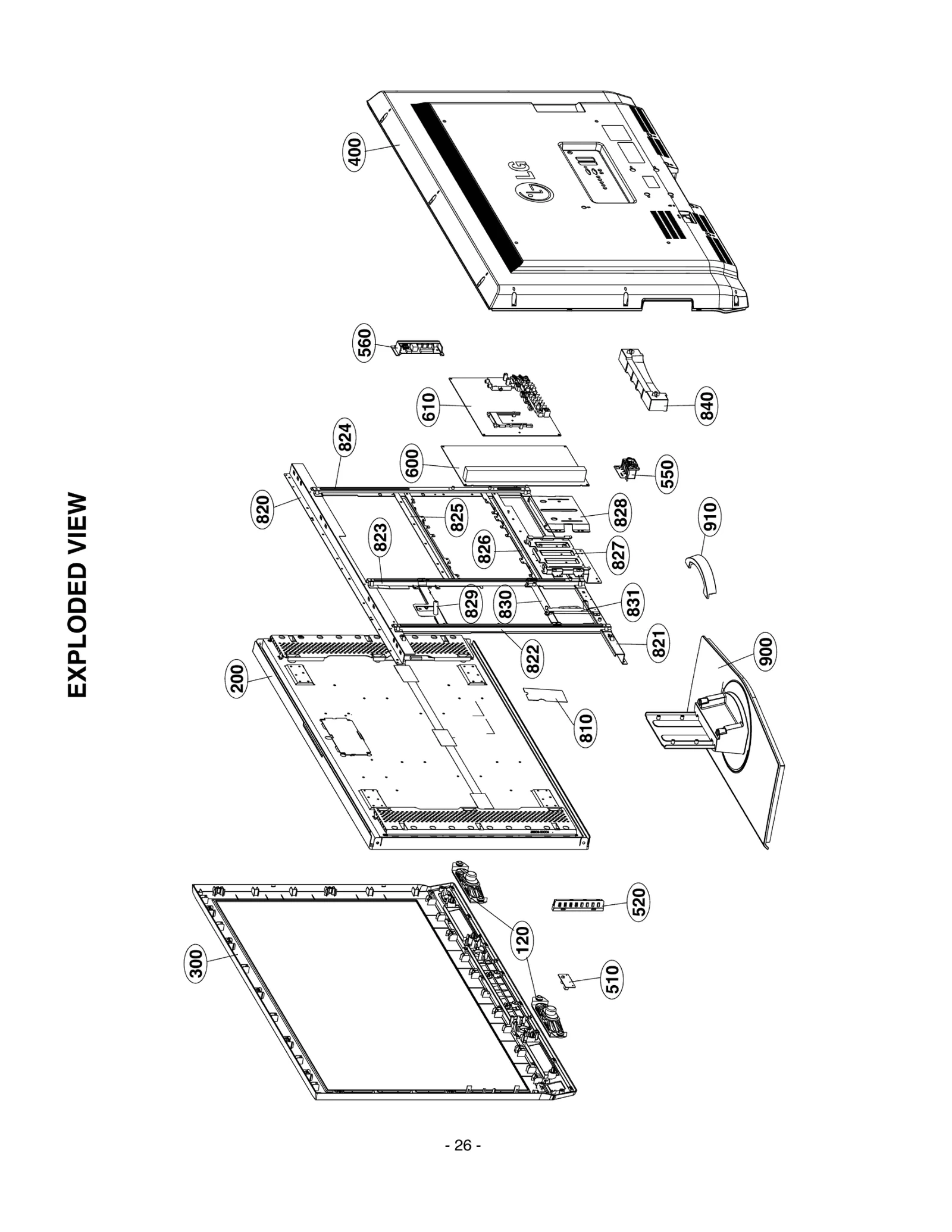

Diagram 1
Common parts from model LG 37LC51
120
Speaker,Full Range LGE EAB33775101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ36548001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ32533604 Contact Us For Availability
400
Cover Assembly LGE ACQ32333509 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR35670602 Contact Us For Availability
520
PCB Assembly,Sub LGE EBR36204702 Contact Us For Availability
560
PCB Assembly LGE EBR36575402 Contact Us For Availability
600
COMMERCIAL LC SERIES CAPACITOR LGE EAY34796801 Contact Us For Availability
610
PCB Assembly LGE EBR35843603 Contact Us For Availability
810
Plate,Metal LGE MGJ36863201 Contact Us For Availability
820
Plate LGE MGJ32901202 Contact Us For Availability
821
Plate LGE MGJ32901303 Contact Us For Availability
822
Plate LGE MGJ32901403 Contact Us For Availability
823
Plate LGE MGJ32901604 Contact Us For Availability
824
Plate LGE MGJ34306202 Contact Us For Availability
825
Plate LGE MGJ32901707 Contact Us For Availability
826
Plate LGE MGJ32901807 Contact Us For Availability
827
Plate LGE MGJ32901902 Contact Us For Availability
829
Plate LGE MGJ34305403 Contact Us For Availability
830
Plate LGE MGJ34305804 Contact Us For Availability
831
Plate LGE MGJ34306003 Contact Us For Availability
840
Bracket LGE MAZ34234901 Contact Us For Availability
900
Base Assembly LGE AAN33023904 Contact Us For Availability
910
Bracket LGE MAZ32930601 Contact Us For Availability
A1
Manual,Owners LGE MFL37396706 Contact Us For Availability
A2
Remote Controller LGE MKJ32022825 Contact Us For Availability
A3
Power Cord LGE 6410TPW003A Contact Us For Availability
A4
Holder LGE 341-746B Contact Us For Availability
A21
Cover LGE 3550V00590A Contact Us For Availability
C1
CONNECTOR ASSEMBLY LGE 6631900012E Contact Us For Availability
C2
Harness,Single LGE 6631900013N Contact Us For Availability
C3
Harness,Single LGE 6631900048B Contact Us For Availability
C4
CONNECTOR ASSEMBLY LGE 6631T25023X Contact Us For Availability
C5
Harness,Single LGE 6631T25026B Contact Us For Availability
C6
Harness,Single LGE EAD35683003 Contact Us For Availability
C7
Harness,Single LGE EAD35788001 Contact Us For Availability
C8
Harness,Single High Power (6 inch) LGE EAD35908101 Contact Us For Availability
C9
Harness,Single LGE EAD35908302 Contact Us For Availability
C10
Harness,Single LGE EAD35983001 Contact Us For Availability
C11
Harness,Single LGE EAD36105801 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C103
Capacitor,AL,Chip LGE 0CE476VF6DC Contact Us For Availability
C103
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C104
CAPACITOR,CHIP LGE 0CH5471K416 Contact Us For Availability
C111
Capacitor,Ceramic,Chip LGE 0CK682CK51A Contact Us For Availability
C206
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C220
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C221
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C227
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C312
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C318
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C402
CAPACITOR,FIXED CERA LGE 0CC390CK41A Contact Us For Availability
C408
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE 0CK273CK56A Contact Us For Availability
C500
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C518
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C525
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C529
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C533
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C535
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C539
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C611
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C620
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C623
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C628
Capacitor,AL,Chip LGE JCE8106J691 Contact Us For Availability
C634
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C641
Capacitor,AL,Radial LGE 0CE477BJ618 Contact Us For Availability
C708
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C801
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C807
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C821
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C824
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C828
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C829
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C832
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C836
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C838
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
CN501
Connector,Wafer LGE 6602T25009B Contact Us For Availability
CN600
Connector,Wafer LGE 6602T25008B Contact Us For Availability
CN700
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
CN702
Connector,Wafer LGE 6602T12004G Contact Us For Availability
CN800
Connector,Wafer LGE 6602T25008N Contact Us For Availability
CN801
WAFER LGE 6602T25008J Contact Us For Availability
D100
LED LGE 0DLBE0138AA Contact Us For Availability
D207
Diode,TVS LGE EAH33945901 Contact Us For Availability
D220
Diode,TVS LGE EAH33946001 Contact Us For Availability
D800
LED LGE 0DL233309AC Contact Us For Availability
D801
DIODE,ZENERS LGE 0DZKE00048A Contact Us For Availability
D803
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
IC202
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC203
IC,Multiplexer LGE 0IFA742530B Contact Us For Availability
IC303
IC,I/O Support Chip LGE 0IPRP00735A Contact Us For Availability
IC304
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC306
TRANSISTOR,FETS LGE 0TFTH80001A Contact Us For Availability
IC500
IC,Video Processors LGE EAN35336801 Contact Us For Availability
IC501
IC,MEMORIES LGE 0IMMRAL025A Contact Us For Availability
IC502
IC,Voltage Detector LGE 0IFA752700A Contact Us For Availability
IC600
IC,Bus Controller LGE 0IPRP00665A Contact Us For Availability
IC601
IC,Audio Amplifier LGE EAN35502001 Contact Us For Availability
IC800
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC801
IC,DC,DC Converter LGE EAN35520901 Contact Us For Availability
IC805
IC,LDO Voltage Regul LGE EAN34140401 Contact Us For Availability
J100
JACK,RCA LGE 6612J10033A Contact Us For Availability
JK101
Jack,Scart LGE 6612M00010A Contact Us For Availability
JK201
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK204
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK301
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK600
Jack,RCA LGE 6612J10043A Contact Us For Availability
L100
INDUCTOR,CHIP LGE 0LC1032101A Contact Us For Availability
L508
Filter,Bead LGE 6210TCE001B Contact Us For Availability
L600
INDUCTOR,CHIP LGE 0LCML00020C Contact Us For Availability
L605
Inductor,Wire Wound, LGE EAP32842807 Contact Us For Availability
L615
Filter,Bead LGE 6210TCE001P Contact Us For Availability
L810
Inductor,Wire Wound,Chip LGE 0LCTO00019A Contact Us For Availability
P100
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
Q500
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q602
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R102
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R103
RESISTOR CHIP 220K 1/10W 5 D. LGE 0RH2203D622 Contact Us For Availability
R103
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R108
Resistor,Chip LGE 0RH9101D622 Contact Us For Availability
R110
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R213
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R233
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R234
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R265
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R266
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R273
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R340
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R367
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R404
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R412
RESISTOR,METAL GLAZE LGE 0RJ0822D677 Contact Us For Availability
R509
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R522
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R535
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R558
Resistor,Chip LGE 0RJ8201D677 Contact Us For Availability
R573
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R614
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R625
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R634
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R718
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R719
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R814
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R828
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R833
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R834
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
SW1
S/W,Firmware LGE SAA30632024 Contact Us For Availability
SW103
SWITCH TACT LGE 140-313B Contact Us For Availability
TU400
Tuner,Tuner/Modulato LGE EBL35311207 Contact Us For Availability
X300
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X500
Crystal LGE 6202VDT002P Contact Us For Availability
× ![]()
