Model Electrolux 37-1022-00-03 RANGE – Common Parts & Diagrams

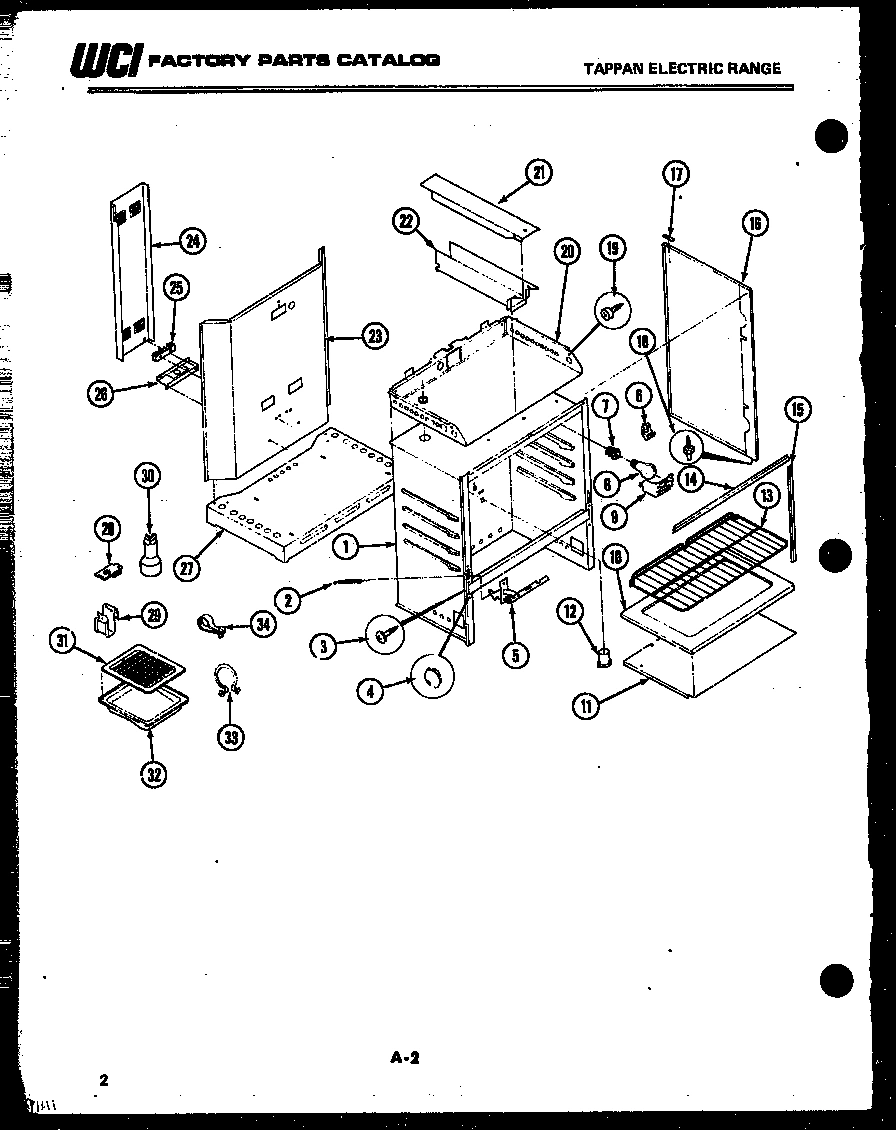

02 - BODY PARTS

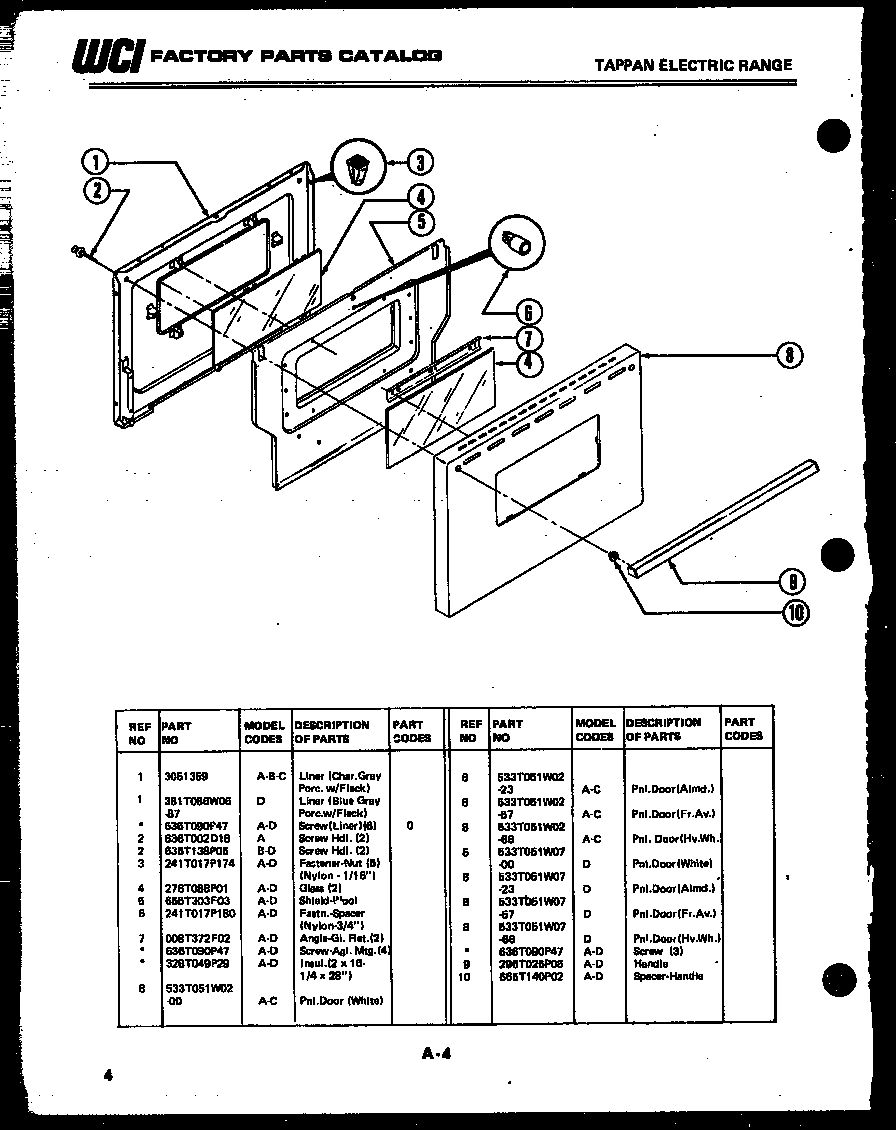

03 - DOOR PARTS

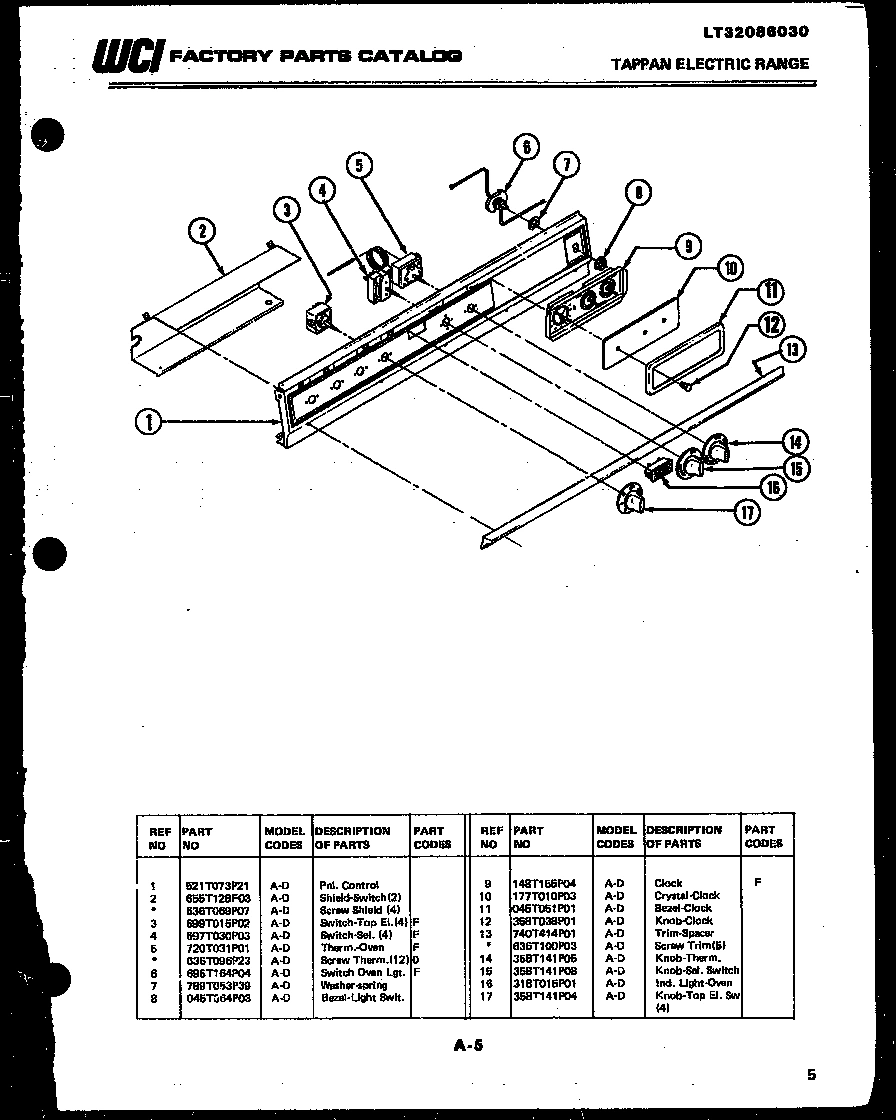

04 - CONSOLE AND CONTROL PARTS

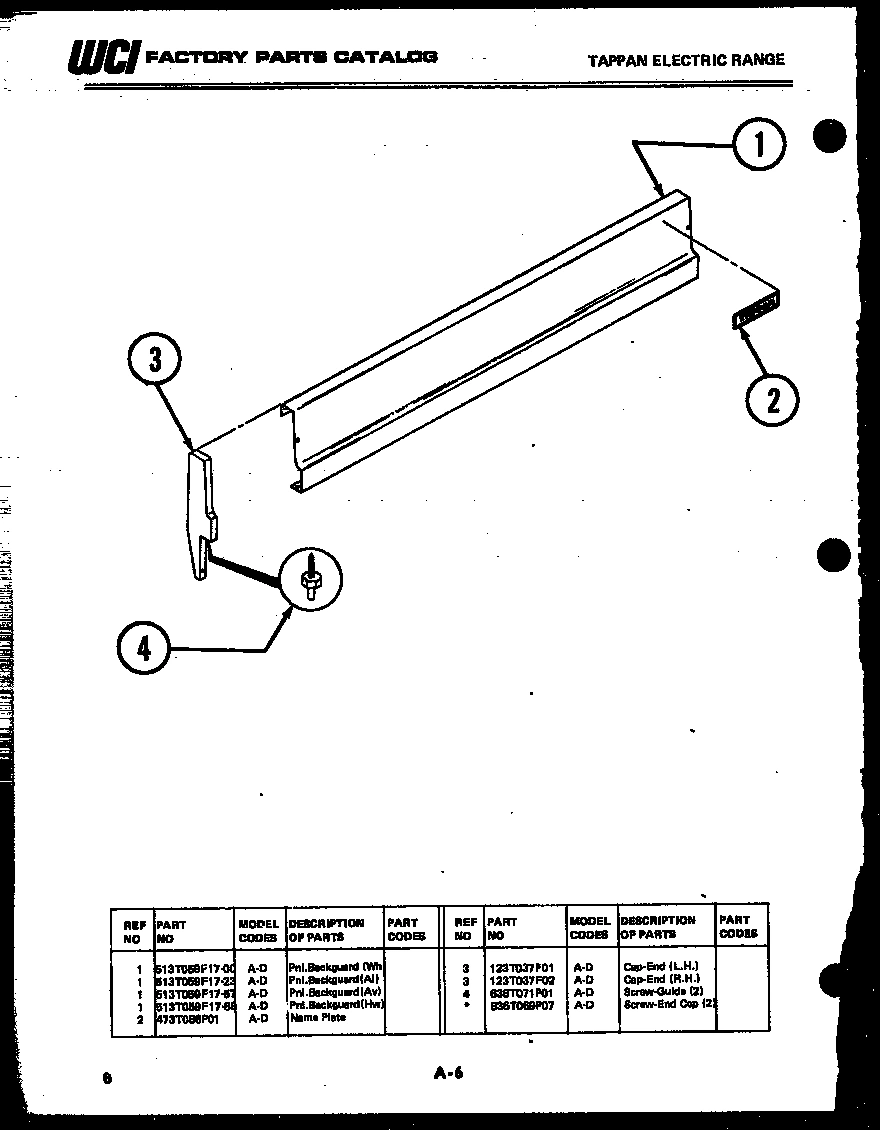

05 - BACKGUARD

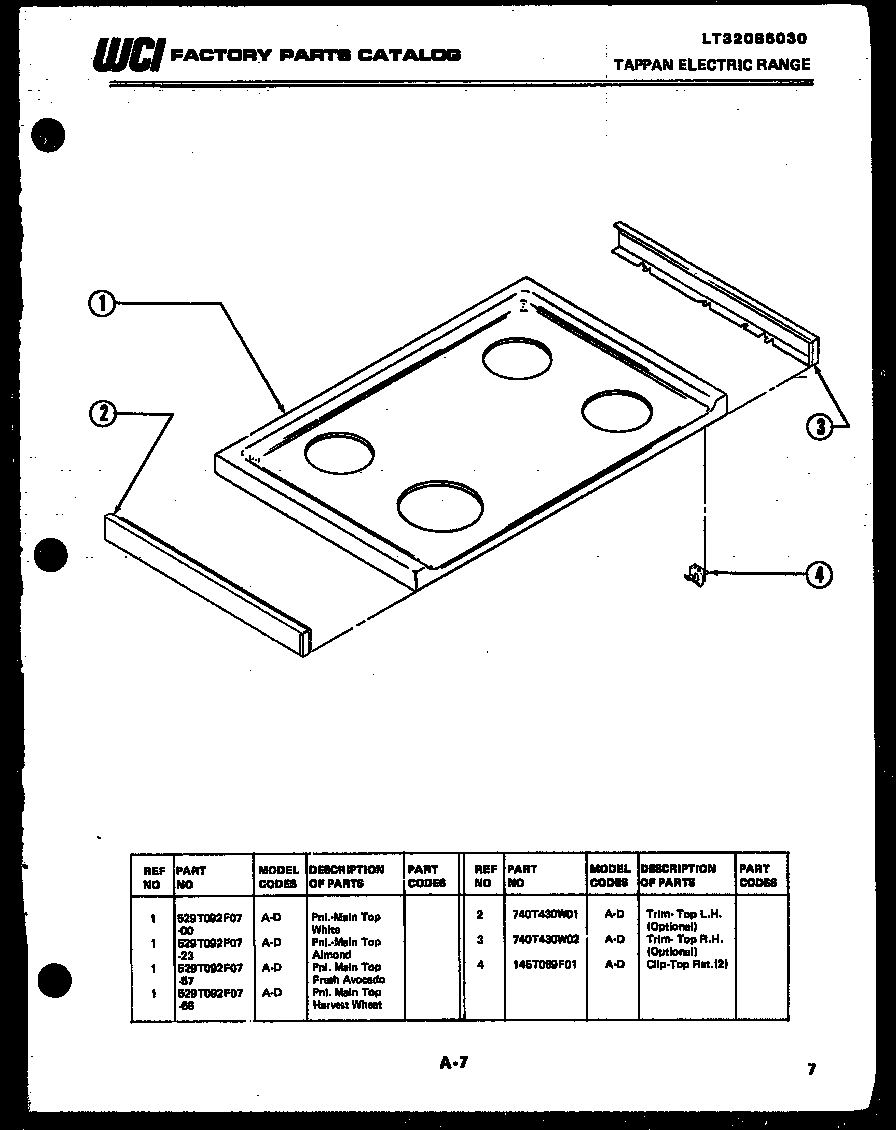

06 - COOKTOP PARTS

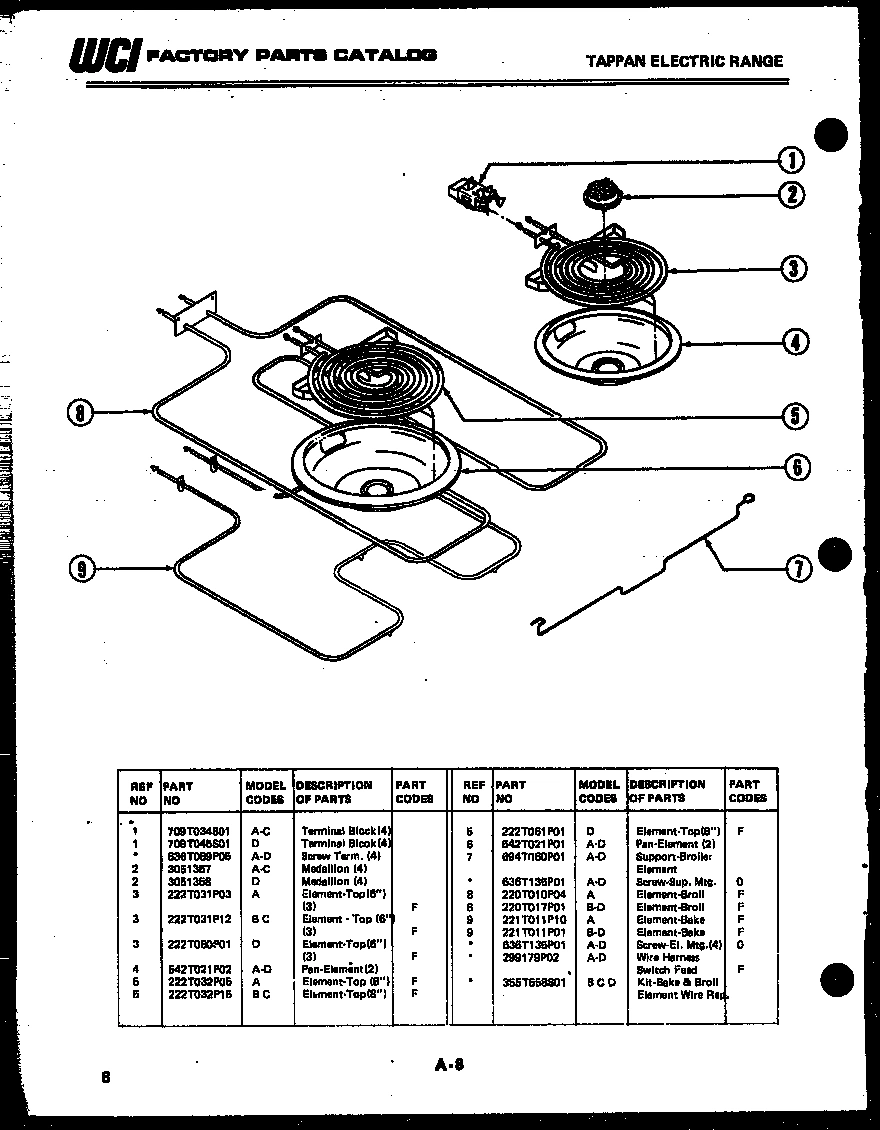

07 - BROILER PARTS

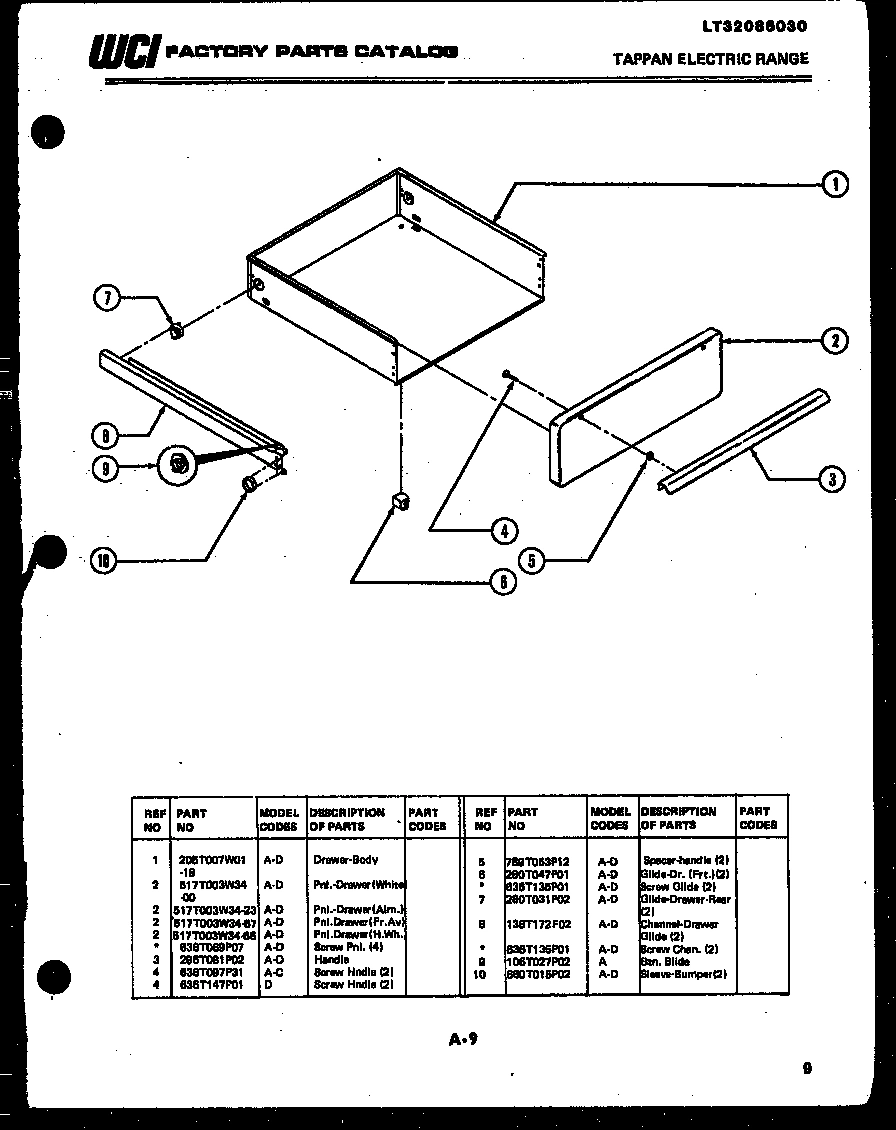

08 - DRAWER PARTS
Common parts from model Electrolux 37-1022-00-03 RANGE
*30943
SCREW-END COP (2) WCI 636T069P07 Contact Us For Availability
*31076
KIT-BAKE & BROIL ELEMENT WIRE REP. WCI 355T558S01 Contact Us For Availability
1
WCI 3051359 WCI 3051359 Contact Us For Availability
1
WCI 521T073P21 WCI 521T073P21 Contact Us For Availability
1
PNL. BACKGUARD (WH) WCI 513T059F17-00 Contact Us For Availability
1
PNL. BACKGUARD (AL) WCI 513T059F17-23 Contact Us For Availability
1
PNL. BACKGUARD (AV) WCI 513T059F17-57 Contact Us For Availability
1
PNL. BACKGUARD (HW) WCI 513T059F17-66 Contact Us For Availability
1
PNL.-MAIN TOP WHITE WCI 529T092F07-00 Contact Us For Availability
1
PNL.-MAIN TOP ALMOND WCI 529T092F07-23 Contact Us For Availability
1
PNL. MAIN TOP FRESH AVOCADO WCI 529T092F07-57 Contact Us For Availability
1
PNL. MAIN TOP HARVEST WHEAT WCI 529T092F07-66 Contact Us For Availability
2
SHIELD-SWITCH (2) WCI 655T128F03 Contact Us For Availability
2
NAME PLATE WCI 473T066P01 Contact Us For Availability
2
TRIM-TOP L.H. (OPTIONAL) WCI 740T430W01 Contact Us For Availability
2
WCI 3051357 WCI 3051357 Contact Us For Availability
3
SWITCH-TOP EL. (4) WCI 699T015P02 Contact Us For Availability
3
WCI 123T037F01 WCI 123T037F01 Contact Us For Availability
3
WCI 123T037F02 WCI 123T037F02 Contact Us For Availability
3
TRIM-TOP R.H. (OPTIONAL) WCI 740T430W02 Contact Us For Availability
4
SWITCH-SEL. (4) WCI 697T030P03 Contact Us For Availability
4
SCREW, GUIDE (2) WCI 636T071P01 Contact Us For Availability
4
CLIP-TOP RET. (2) WCI 145T069F01 Contact Us For Availability
5
CAM-OVEN DOOR L WCI 117T013S07 Contact Us For Availability
5
CAM-OVEN DOOR R WCI 117T013S08 Contact Us For Availability
5
THERM. -OVEN WCI 720T031P01 Contact Us For Availability
6
WCI 695T164P04 WCI 695T164P04 Contact Us For Availability
7
WASHER SPRING WCI 789T053P39 Contact Us For Availability
8
PNL. DOOR (WHITE) WCI 533T051W02-00 Contact Us For Availability
8
PNL. DOOR (ALMD.) WCI 533T051W02-23 Contact Us For Availability
8
PNL. DOOR (FR. AV.) WCI 533T051W02-57 Contact Us For Availability
8
PNL. DOOR (HV.WH.) WCI 533T051W02-66 Contact Us For Availability
8
WCI 045T064P03 WCI 045T064P03 Contact Us For Availability
9
WCI 655T327F03 WCI 655T327F03 Contact Us For Availability
9
WCI 148T155P04 WCI 148T155P04 Contact Us For Availability
10
WCI 058T035F02-89 WCI 058T035F02-89 Contact Us For Availability
10
WCI 177T010P03 WCI 177T010P03 Contact Us For Availability
11
WCI 045T051P01 WCI 045T051P01 Contact Us For Availability
12
WCI 750T208W06 WCI 750T208W06 Contact Us For Availability
12
WCI 358T038P01 WCI 358T038P01 Contact Us For Availability
13
SCREW TRIM (5) (NON-ILLUSTRATED) WCI 636T100P03 Contact Us For Availability
13
TRIM, SPACER WCI 740T414P01 Contact Us For Availability
14
SEAL-OVEN DOOR (BTM) WCI 647T068P02 Contact Us For Availability
14
KNOB-THERM. WCI 358T141P05 Contact Us For Availability
15
KNOB-SEL. SWITCH WCI 358T141P08 Contact Us For Availability
16
PNL. BODY (L&R) (WHITE) (2) WCI 515T032F06-00 Contact Us For Availability
16
PNL. BODY (L&R) (ALMOND) (2) WCI 515T032F06-23 Contact Us For Availability
16
PNL. BODY (L&R) (FR. AVOCADO) (2) WCI 515T032F06-57 Contact Us For Availability
16
PNL. BODY (L & R) (HARV. WHEAT) (2) WCI 515T032F06-66 Contact Us For Availability
16
IND. LIGHT-OVEN WCI 318T015P01 Contact Us For Availability
17
KNOB-TOP EL. SW (4) WCI 358T141P04 Contact Us For Availability
20
BURNER BOX (CHAR. GRAY PORC W/ FR.) WCI 095T029W02-89 Contact Us For Availability
25B
(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLU WCI 479T069P34 Contact Us For Availability
31
INSERT-BROILER PAN (CHAR. GRAY W/ F) WCI 319T011F03-89 Contact Us For Availability
32
PAN-BROILER (CHAR. GRAY W/ F) WCI 539T010F01-89 Contact Us For Availability
× ![]()
