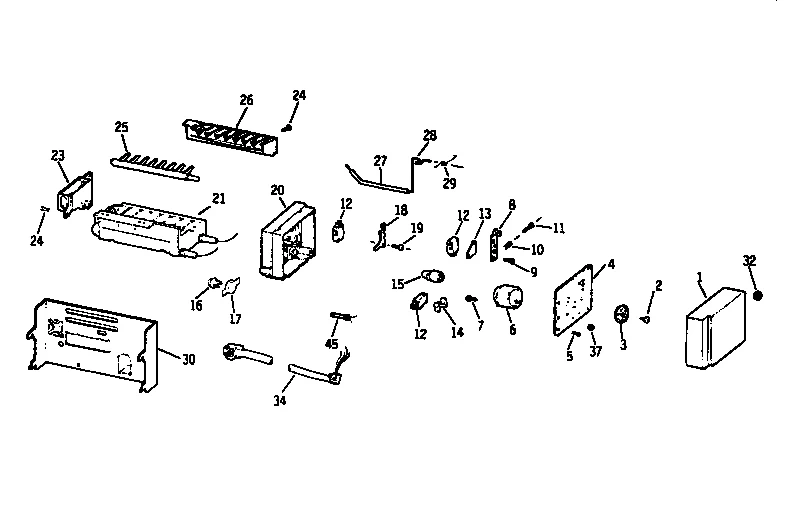

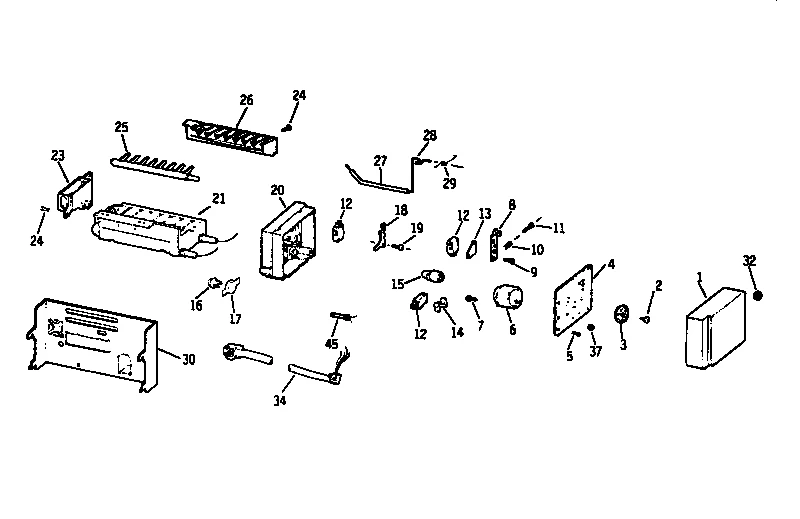

Model GE 363WR30X0315 Ice Maker Subassembly (Kenmore 363WR30X0315) – Common Parts & Diagrams

4
Refrigerator Mounting Plate
Refrigerator Mounting Plate GEN WR29X5163 Contact Us For Availability
View on Model
5
Refrigerator Screw
Refrigerator Screw GEN WR29X5191 Contact Us For Availability
View on Model
6
Refrigerator Motor
Refrigerator Motor GEN WR29X5113 Contact Us For Availability
View on Model
7
Refrigerator Screw
Refrigerator Screw GEN WR29X5165 Contact Us For Availability
View on Model
9
Refrigerator Screw
Refrigerator Screw GEN WR29X5140 Contact Us For Availability
View on Model
11
Refrigerator Screw Spring
Refrigerator Screw Spring GEN WR29X5139 Contact Us For Availability
View on Model
12
Refrigerator Ice Maker On/Off Switch
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
View on Model
13
Insulator
Insulator GEN WR29X5188 Contact Us For Availability
View on Model
14
Refrigerator Spacer
Refrigerator Spacer GEN WR29X5186 Contact Us For Availability
View on Model
15
Cam
Cam GEN WR29X5167 Contact Us For Availability
View on Model
18
Lever
Lever GEN WR29X5183 Contact Us For Availability
View on Model
19
Refrigerator Screw
Refrigerator Screw GEN WR29X5184 Contact Us For Availability
View on Model
21
Mold Body
Mold Body GEN WR29X0204 Contact Us For Availability
View on Model
23
Refrigerator Fill Cup
Refrigerator Fill Cup GEN WR29X0208 Contact Us For Availability
View on Model
24
Refrigerator Screw Bearing
Refrigerator Screw Bearing GEN WR29X5138 Contact Us For Availability
View on Model
25
Ejector
Ejector GEN WR29X5174 Contact Us For Availability
View on Model
27
Refrigerator Sleeve
Refrigerator Sleeve GEN WR29X5178 Contact Us For Availability
View on Model
28
Refrigerator Feeler Arm
Refrigerator Feeler Arm GEN WR29X5179 Contact Us For Availability
View on Model
30
Mounting Bracket Icemaker
Mounting Bracket Icemaker GEN WR02X9346 Contact Us For Availability
View on Model
32
Refrigerator Button Plug
Refrigerator Button Plug GEN WR02X8483 Contact Us For Availability
View on Model
34
Wire Harness
Wire Harness GEN WR29X0186 Contact Us For Availability
View on Model
37
Refrigerator Ice Maker Motor Gear
Refrigerator Ice Maker Motor Gear GEN WR29X5153 Contact Us For Availability
View on Model
