Model GE 363.78857899 Refrigerator (Kenmore 36378857899) – Common Parts & Diagrams

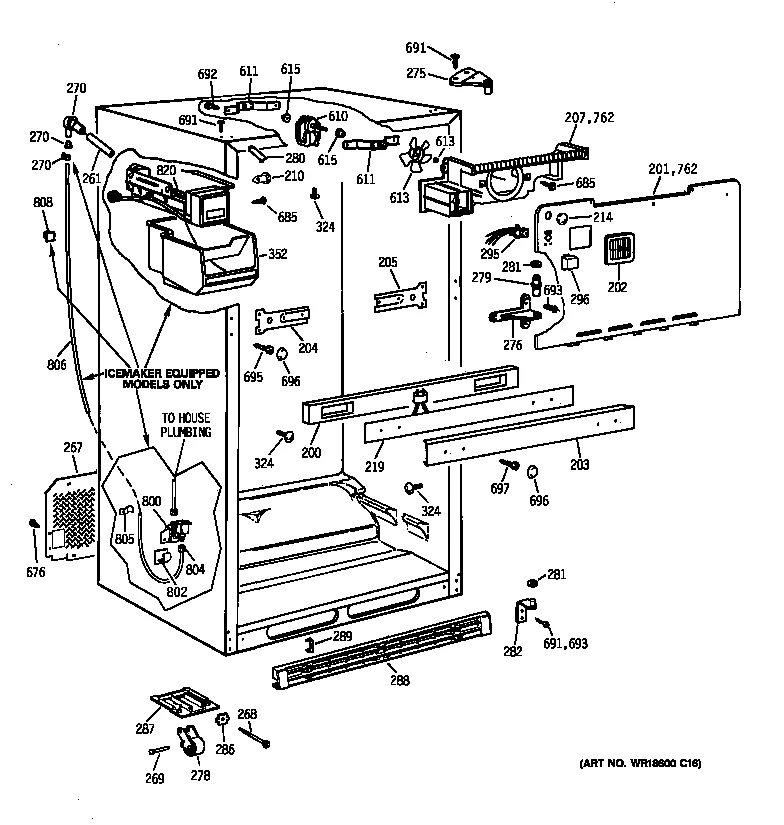

CABINET

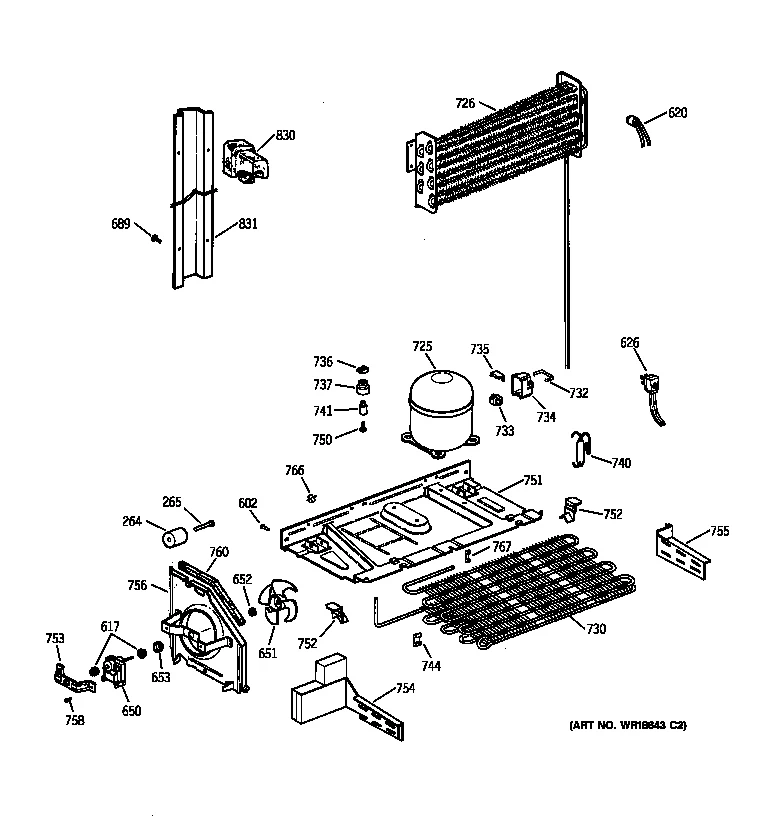

UNIT PARTS

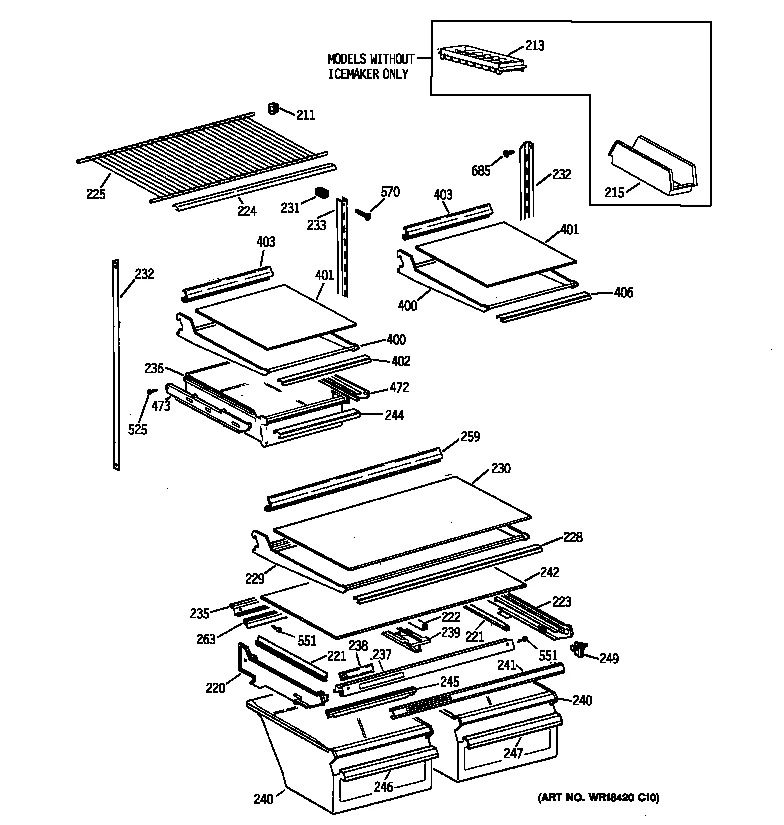

SHELVES
FRESH FOOD DOOR

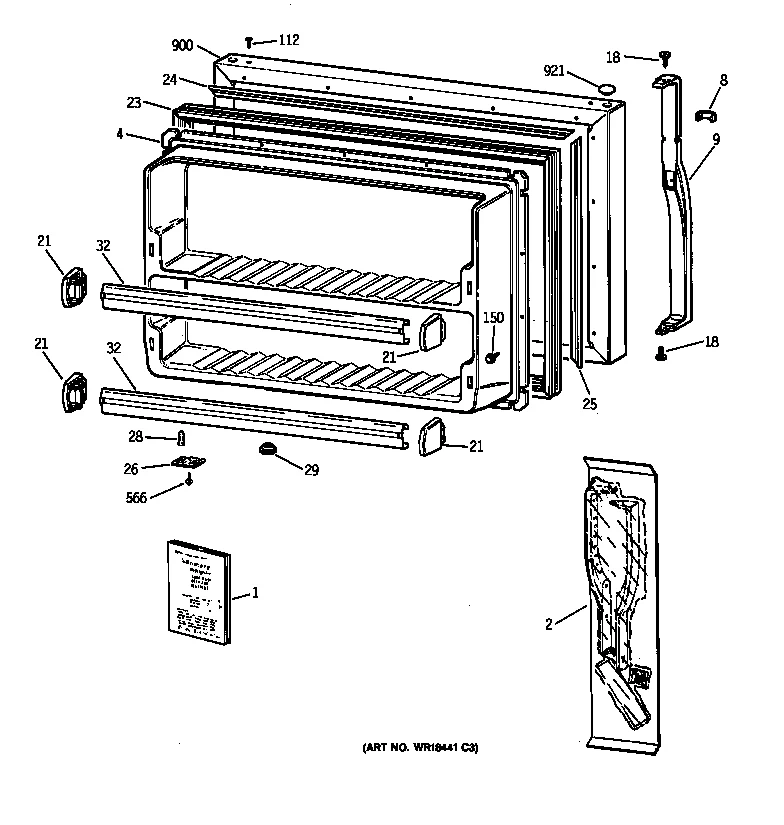

FREEZER DOOR

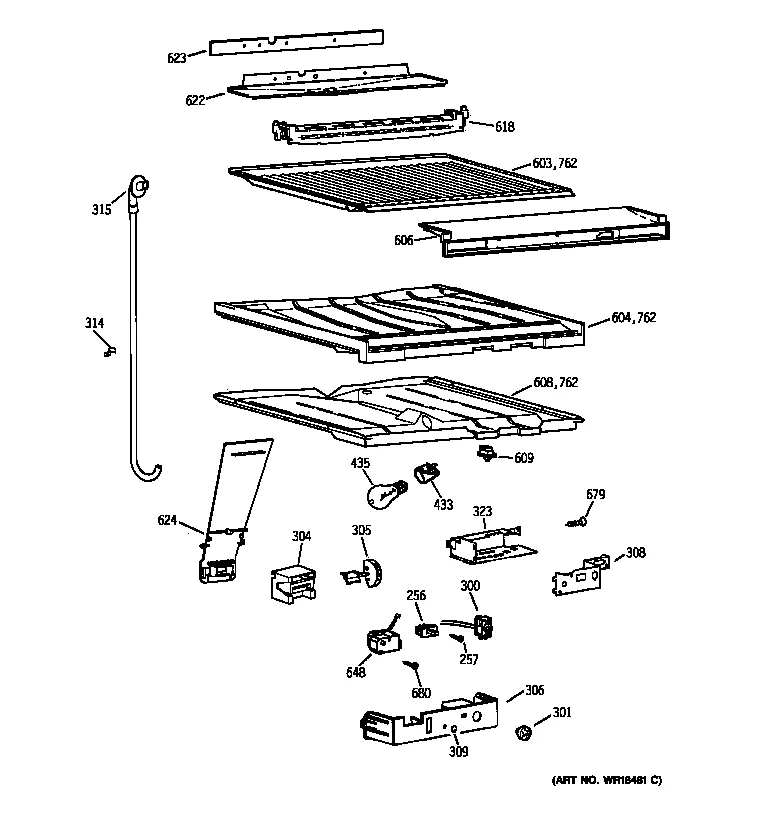

COMPARTMENT SEPARATOR PARTS

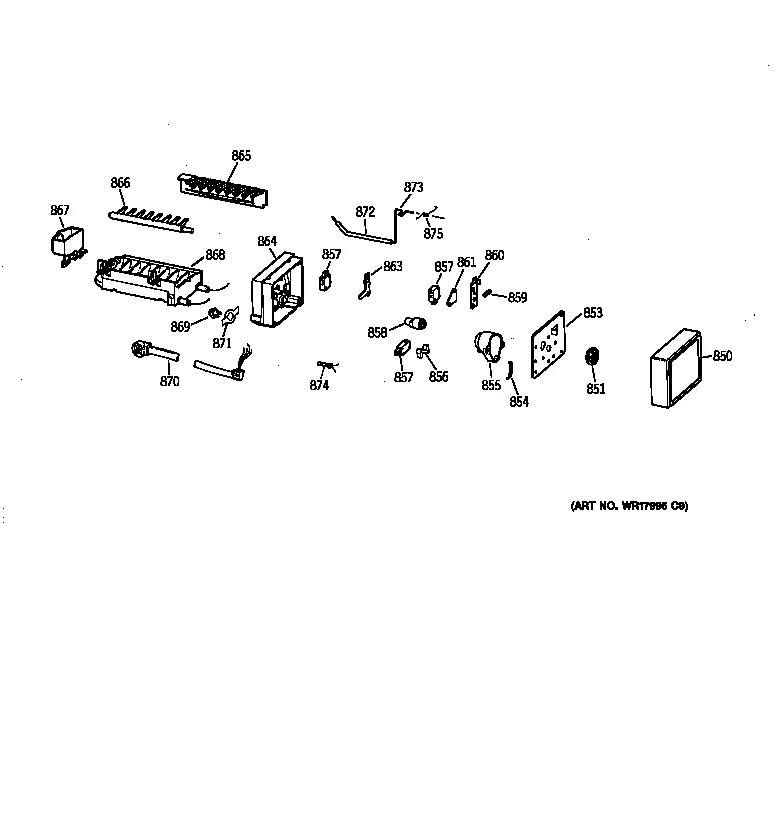

ICEMAKER WR30X0327
Common parts from model GE 363.78857899 Refrigerator (Kenmore 36378857899)
1A
PM LABEL ENERGY GUIDE GEN 31-51228 Contact Us For Availability
1E
Refrigerator Parts List GEN 31-5065 Contact Us For Availability
2
Refrigerator Pack Handle GEN WR12X10209 Contact Us For Availability
2
Refrigerator Pack Handle GEN WR12X10210 Contact Us For Availability
4
Refrigerator Freezer Inner Door Panel GEN WR77X610 Contact Us For Availability
8
Name Clip GEN WR4X10010 Contact Us For Availability
8
Name Clip GEN WR4X10011 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10031 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10032 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10018 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10022 Contact Us For Availability
16
Refrigerator Handle Trim GEN WR12X10024 Contact Us For Availability
16
Refrigerator Handle Trim GEN WR12X10025 Contact Us For Availability
24
Refrigerator Retainer Strip GEN WR17X2279 Contact Us For Availability
25
Refrigerator Freezer Door Gasket Retainer GEN WR17X2281 Contact Us For Availability
26
Refrigerator Door Stop GEN WR2X7628 Contact Us For Availability
28
Thimble D GEN WR2X10111 Contact Us For Availability
29
Refrigerator Door Inner Liner Button Plug (Wh GEN WR2X8087 Contact Us For Availability
29
Refrigerator Freezer Door Liner Plug Button ( GEN WR2X8088 Contact Us For Availability
101A
Refrigerator Door Shelf Rail End Cap GEN WR2X9295 Contact Us For Availability
101B
Refrigerator Freezer Door Shelf Rail GEN WR2X9296 Contact Us For Availability
103
Refrigerator Door Inner Liner GEN WR77X609 Contact Us For Availability
106
Bright Trim GEN WR38X10016 Contact Us For Availability
107
Refrigerator Dairy Door GEN WR22X511 Contact Us For Availability
112
Refrigerator Door Reversal Plug GEN WR2X8697 Contact Us For Availability
115
Refrigerator Door Gasket Retainer GEN WR17X2280 Contact Us For Availability
118
Refrigerator Butter Dish GEN WR19X29 Contact Us For Availability
127
Refrigerator Shelf GEN WR71X10034 Contact Us For Availability
202
Grille I/ GEN WR2X8629 Contact Us For Availability
211
Refrigerator Shelf Support GEN WR2X7973 Contact Us For Availability
215
Refrigerator Freezer Utility Bin GEN WR32X1560 Contact Us For Availability
220
Refrigerator Crisper Drawer Slide Rail GEN WR17X2770 Contact Us For Availability
221
Gasket GEN WR14X384 Contact Us For Availability
222
Refrigerator Crisper Shelf Seal GEN WR14X366 Contact Us For Availability
223
Refrigerator Drawer Slide Rail GEN WR17X2769 Contact Us For Availability
224
Refrigerator Shelf Trim GEN WR38X10033 Contact Us For Availability
225
Refrigerator Freezer Shelf GEN WR71X1955 Contact Us For Availability
228
Glass Shelf Trim GEN WR38X10030 Contact Us For Availability
229
Refrigerator Cantilever Shelf GEN WR71X2179 Contact Us For Availability
230
Refrigerator Cantilever Shelf GEN WR32X10017 Contact Us For Availability
231
Spacer Track GEN WR2X7018 Contact Us For Availability
232
Shelf Track GEN WR72X96 Contact Us For Availability
233
Shelf Track GEN WR72X97 Contact Us For Availability
235
Refrigerator Crisper Drawer Shelf Rail GEN WR17X3182 Contact Us For Availability
236
Refrigerator Deli Drawer, 4-in GEN WR32X1073 Contact Us For Availability
237
Refrigerator Crisper Drawer Shelf Rail GEN WR17X2779 Contact Us For Availability
238
Refrigerator Slide GEN WR17X4011 Contact Us For Availability
239
Refrigerator Crisper Drawer Slide Rail, Cente GEN WR17X2768 Contact Us For Availability
240
Refrigerator Crisper Drawer GEN WR32X1132 Contact Us For Availability
241
Refrigerator Vegetable Pan Frame Trim GEN WR38X10028 Contact Us For Availability
242
Refrigerator Cantilever Shelf GEN WR32X10018 Contact Us For Availability
244
Refrigerator Pan Handle GEN WR38X10031 Contact Us For Availability
245
Pan Cover Gasket GEN WR14X371 Contact Us For Availability
246
Vegetable Pan Handle GEN WR38X10027 Contact Us For Availability
247
Vegetable Pan Handle GEN WR38X10026 Contact Us For Availability
249
Refrigerator Vegetable Pan Cover Support GEN WR2X8695 Contact Us For Availability
256
Refrigerator Power Saver Switch GEN WR23X309 Contact Us For Availability
259
Refrigerator Glass Reflector GEN WR38X10025 Contact Us For Availability
263
Refrigerator Cover Gasket GEN WR14X399 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X712 Contact Us For Availability
279
Hinge Pin GEN WR13X587 Contact Us For Availability
289
Grille Clip GEN WR2X7646 Contact Us For Availability
300A
Refrigerator Temperature Control GEN WR9X559 Contact Us For Availability
301
Refrigerator Temperature Knob GEN WR2X8692 Contact Us For Availability
304
Foam Nozzle GEN WR2X8363 Contact Us For Availability
305
Shaft/kno GEN WR2X9298 Contact Us For Availability
306
Hsg C &l Asm GEN WR17X2783 Contact Us For Availability
308
Control Bracket GEN WR2X7768 Contact Us For Availability
309
Refrigerator Control Panel Plug Button GEN WR2X7652 Contact Us For Availability
314
Refrigerator Drain Clip GEN WR2X8503 Contact Us For Availability
315
Tube Drai GEN WR2X10134 Contact Us For Availability
323
Refrigerator Control Bracket GEN WR2X7767 Contact Us For Availability
324A
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
400
Refrigerator Cantilever Shelf GEN WR71X2177 Contact Us For Availability
401
Refrigerator Cantilever Shelf GEN WR32X10016 Contact Us For Availability
402
Glass Shelf Trim GEN WR38X10032 Contact Us For Availability
403
Refrigerator Glass Reflector GEN WR38X10034 Contact Us For Availability
406
Glass Shelf Trim GEN WR38X10029 Contact Us For Availability
472
Refrigerator Deli Drawer Slide Rail GEN WR72X273 Contact Us For Availability
473
Slide, Left GEN WR72X274 Contact Us For Availability
525
Refrigerator Screw GEN WR1X1763 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
602
Screw GEN WR1X1591 Contact Us For Availability
603
Refrigerator Freezer Floor Panel GEN WR17X2275 Contact Us For Availability
604
Insul Dividr GEN WR17X3494 Contact Us For Availability
606
Freezer Front Liner GEN WR17X2385 Contact Us For Availability
608
Liner Top Ff GEN WR17X10028 Contact Us For Availability
610
Refrigerator Evaporator Fan Motor GEN WR60X190 Contact Us For Availability
615
Grommet GEN WR2X7391 Contact Us For Availability
622
Refrigerator Drain Trough GEN WR17X2283 Contact Us For Availability
623
Refrigerator Evaporator Drip Pan Gasket GEN WR14X357 Contact Us For Availability
624
Cover Ff Sup GEN WR17X3883 Contact Us For Availability
679
Screw&was GEN WZ6X133 Contact Us For Availability
693
Refrigerator Screw GEN WR1X2136 Contact Us For Availability
730
Cond Asm Fin GEN WR84X10009 Contact Us For Availability
732
Refrigerator Compressor Start Relay Cover GEN WR2X8976 Contact Us For Availability
733
Relay GEN WR7X10015 Contact Us For Availability
734
Release Cover GEN WR2X9169 Contact Us For Availability
735
Refrigerator Overload GEN WR8X10015 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Grommet GEN WR2X7238 Contact Us For Availability
751
Baseplate Hi GEN WR17X10313 Contact Us For Availability
752
High Support GEN WR17X10317 Contact Us For Availability
753
Bracket GEN WR2X10321 Contact Us For Availability
754
Baffle Asm L GEN WR17X10316 Contact Us For Availability
755
Air Condenser Baffle GEN WR17X10314 Contact Us For Availability
756
Refrigerator Condenser Fan Housing GEN WR17X10425 Contact Us For Availability
760
Refrigerator Foam Strip GEN WR14X10008 Contact Us For Availability
762
Refrigerator Evaporator Cover Seal GEN WR14X313 Contact Us For Availability
767
Clip Condenser GEN WR2X10135 Contact Us For Availability
804
Refrigerator Water Tube Nut, 1/4-in GEN WR57X57 Contact Us For Availability
830
Refrigerator Foam Plug GEN WR82X360 Contact Us For Availability
831
Refrigerator Cover GEN WR17X3056 Contact Us For Availability
850
Refrigerator Ice Maker Cover GEN WR29X182 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
867
Inlet Bearing GEN WR29X153 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
870
Refrigerator Ice Maker Wire Harness GEN WR29X186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
900
Refrigerator Freezer Outer Door GEN WR78X8725 Contact Us For Availability
900
Fz O Dr Wh GEN WR78X8727 Contact Us For Availability
910
Ff O Dr GEN WR78X8724 Contact Us For Availability
910
Ff O Dr Wh GEN WR78X8726 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7624 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7625 Contact Us For Availability
× ![]()
