Model GE 363.69667991 Refrigerator (Kenmore 36369667991) – Common Parts & Diagrams
All Parts
UNIT PARTS

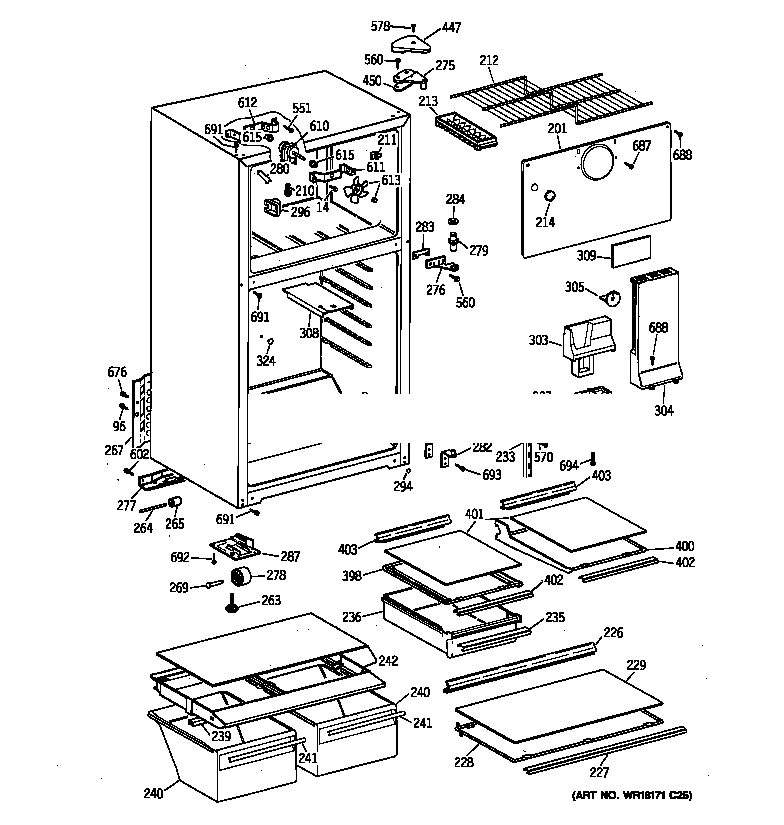

CABINET

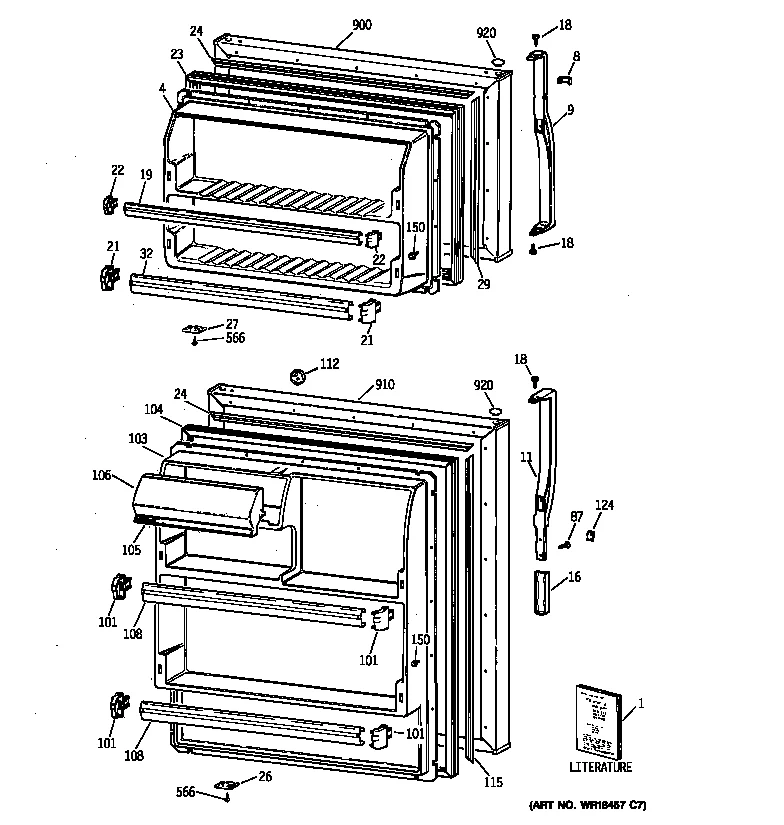

DOORS
Common parts from model GE 363.69667991 Refrigerator (Kenmore 36369667991)
1
Screw GEN WD2X425 Contact Us For Availability
4
Inner Freezer Door GEN WR77X550 Contact Us For Availability
8
Name Clip GEN WR4X10010 Contact Us For Availability
8
Name Clip GEN WR4X10011 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10049 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10050 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10018 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10022 Contact Us For Availability
16
Refrigerator Handle Trim GEN WR12X10024 Contact Us For Availability
16
Refrigerator Handle Trim GEN WR12X10025 Contact Us For Availability
19
Refrigerator Freezer Door Shelf Rail GEN WR17X10097 Contact Us For Availability
21
Refrigerator Door Shelf End Cap GEN WR2X8797 Contact Us For Availability
22
Refrigerator Door Shelf Rail End Cap GEN WR2X8221 Contact Us For Availability
24
Refrigerator Door Gasket Retainer GEN WR2X8235 Contact Us For Availability
26
Refrigerator Door Stop GEN WR2X8241 Contact Us For Availability
27
Refrigerator Door Stop GEN WR2X8264 Contact Us For Availability
29
Refrigerator Door Gasket Retainer GEN WR2X8236 Contact Us For Availability
101A
Refrigerator Door Shelf Rail End Cap GEN WR2X9295 Contact Us For Availability
101B
Refrigerator Freezer Door Shelf Rail GEN WR2X9296 Contact Us For Availability
103
Dr Inner Ff GEN WR77X644 Contact Us For Availability
105
Bright Trim GEN WR38X10051 Contact Us For Availability
106
Refrigerator Dairy Door GEN WR22X475 Contact Us For Availability
108
Refrigerator Shelf GEN WR17X10216 Contact Us For Availability
112
Refrigerator Door Reversal Plug GEN WR2X8697 Contact Us For Availability
115
Refrigerator Retainer GEN WR2X8250 Contact Us For Availability
124
Refrigerator Door Handle Screw Cover (White) GEN WR12X721 Contact Us For Availability
210
Refrigerator Freezer Liner Ice Maker Cover Mo GEN WR2X8999 Contact Us For Availability
211
Refrigerator Support GEN WR2X8429 Contact Us For Availability
239
Refrigerator Crisper Drawer Frame Support GEN WR17X3164 Contact Us For Availability
264
Refrigerator Wheel Axle GEN WR2X8214 Contact Us For Availability
265
Refrigerator Roller GEN WR2X8245 Contact Us For Availability
269
Refrigerator Wheel Axle GEN WR2X8949 Contact Us For Availability
278
Refrigerator Roller GEN WR2X8244 Contact Us For Availability
279
Hngasm Chrme GEN WR2X8232 Contact Us For Availability
282
Refrigerator Hinge GEN WR13X596 Contact Us For Availability
287A
Gusset Rh GEN WR2X8708 Contact Us For Availability
287B
Gusset Lh GEN WR2X8709 Contact Us For Availability
294
Refrigerator Door Hinge Screw Cover, Lower GEN WR2X9148 Contact Us For Availability
301
Refrigerator Temperature Control Knob GEN WR2X8231 Contact Us For Availability
307
Refrigerator Diffuser GEN WR2X8463 Contact Us For Availability
308
Insulation Element GEN WR2X8248 Contact Us For Availability
313
Drn Tube Kit GEN WR17X2647 Contact Us For Availability
324
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
398
Refrigerator Glass Shelf GEN WR71X10088 Contact Us For Availability
400
Refrigerator Shelf GEN WR71X10089 Contact Us For Availability
427
Refrigerator Harness Control Module GEN WR23X358 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR2X8870 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
560
Screw GEN WR1X1249 Contact Us For Availability
602
Screw GEN WR1X1591 Contact Us For Availability
603
Refrigerator Freezer Bottom Panel GEN WR17X2630 Contact Us For Availability
610
Refrigerator Evaporator Fan Motor GEN WR60X203 Contact Us For Availability
615
Grommet GEN WR2X7391 Contact Us For Availability
651
Refrigerator Condenser Fan Blade GEN WR60X10030 Contact Us For Availability
690
Refrigerator Screw GEN WR1X1790 Contact Us For Availability
691
Refrigerator Screw GEN WR1X1753 Contact Us For Availability
732
Refrigerator Compressor Start Relay Cover Cli GEN WR2X7928 Contact Us For Availability
737
Grommet GEN WR2X7238 Contact Us For Availability
746
Plate Comp M GEN WR17X10195 Contact Us For Availability
762
Refrigerator Evaporator Cover Seal GEN WR14X313 Contact Us For Availability
900
Frz O Dr Ad GEN WR78X8669 Contact Us For Availability
900
Refrigerator Freezer Outer Door GEN WR78X8680 Contact Us For Availability
910
Ff O Dr Ad GEN WR78X8668 Contact Us For Availability
910
Ff O Dr (wh) GEN WR78X8681 Contact Us For Availability
920
Refrigerator Button Plug GEN WR2X8234 Contact Us For Availability
× ![]()
