Model GE 363.68842893 Refrigerator (Kenmore 36368842893) – Common Parts & Diagrams
DOORS
CABINET

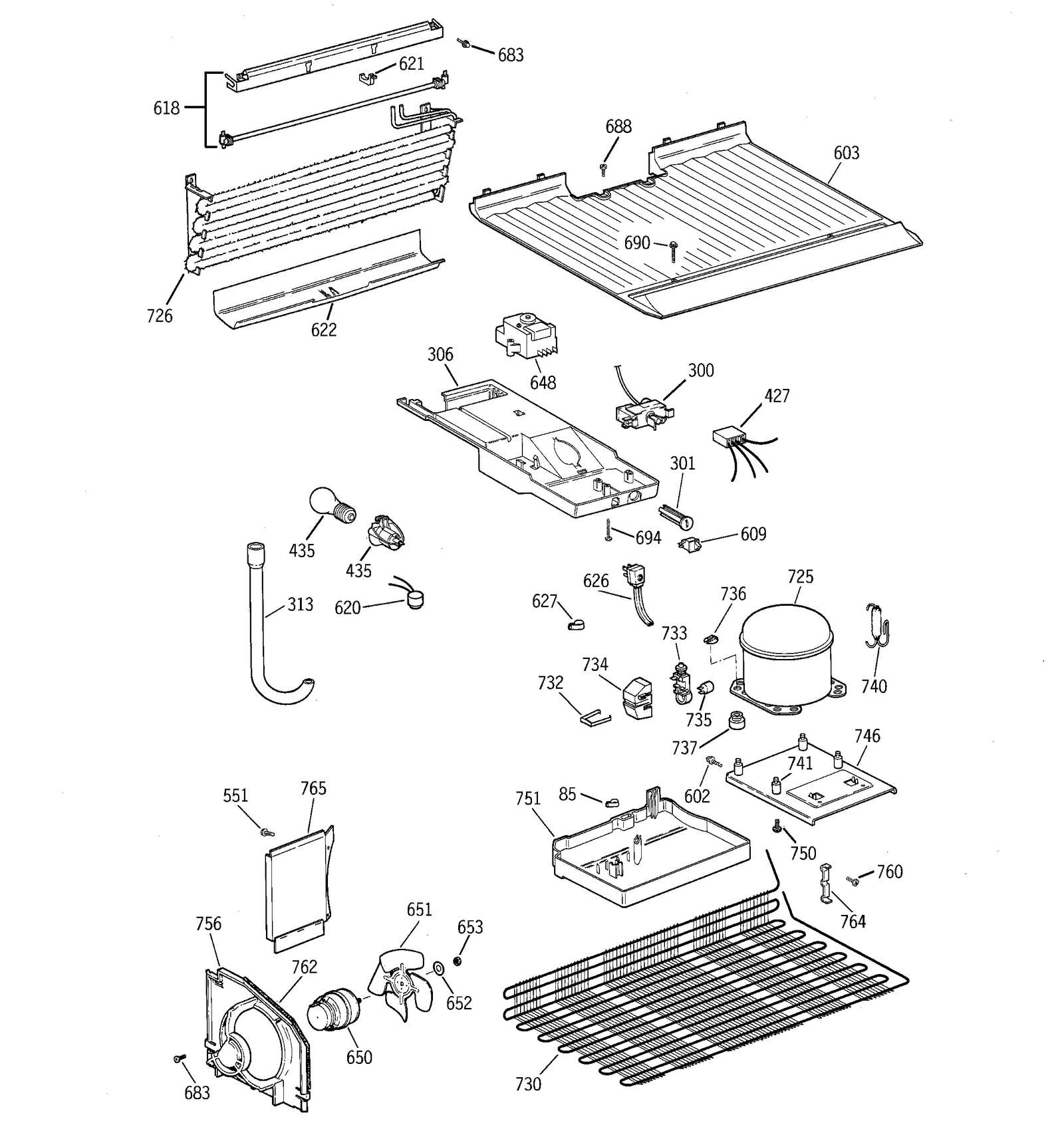

UNIT PARTS
Common parts from model GE 363.68842893 Refrigerator (Kenmore 36368842893)
14
Refrigerator Screw GEN WZ05X0164 Contact Us For Availability
19
Door Front GEN WR17X10099 Contact Us For Availability
22
Refrigerator Shelf Cap GEN WR02X8221 Contact Us For Availability
24
Refrigerator Retainer GEN WR02X8235 Contact Us For Availability
26
Door Stop GEN WR02X9219 Contact Us For Availability
27
Freezer Door Stop GEN WR02X9220 Contact Us For Availability
29
Refrigerator Retainer GEN WR02X8236 Contact Us For Availability
32
Door Front GEN WR17X10098 Contact Us For Availability
85
Refrigerator Wire Clamp GEN WR01X2008 Contact Us For Availability
96
Refrigerator Screw Assembly GEN WR01X2009 Contact Us For Availability
101
Cap Shlf Lh GEN WR02X9295 Contact Us For Availability
101
Cap Shlf Rh GEN WR02X9296 Contact Us For Availability
103
Dr Inner Ff GEN WR77X0651 Contact Us For Availability
105
Bright Trim GEN WR38X10051 Contact Us For Availability
106
Refrigerator Dairy Door GEN WR22X0475 Contact Us For Availability
108
Refrigerator Shelf GEN WR17X10100 Contact Us For Availability
115
Ret Strip V GEN WR02X9221 Contact Us For Availability
201
Refrigerator Cover GEN WR17X2628 Contact Us For Availability
210
Mounting Plug Button GEN WR02X8999 Contact Us For Availability
211
Refrigerator Support GEN WR02X8429 Contact Us For Availability
215
Refrigerator Freezer Utility Bin GEN WR32X1560 Contact Us For Availability
221
Refrigerator Trim Shelf Wire GEN WR38X10058 Contact Us For Availability
229
Refrigerator Cantilever Half Shelf GEN WR71X2519 Contact Us For Availability
229
Refrigerator Shelf GEN WR71X2520 Contact Us For Availability
230
Refrigerator Trim Shelf Wire GEN WR38X10057 Contact Us For Availability
231
Spac Ct Trac GEN WR02X7018 Contact Us For Availability
233
Refrigerator Shelf Track GEN WR72X0142 Contact Us For Availability
235
Trim Hndl Mt GEN WR38X2074 Contact Us For Availability
239
Refrigerator Crisper Drawer Frame Support GEN WR17X3164 Contact Us For Availability
241
Refrigerator Vegetable Pan Handle GEN WR38X2071 Contact Us For Availability
242
Refrigerator Glass Shelf GEN WR32X10026 Contact Us For Availability
252
Refrigerator Meat Pan Cover GEN WR32X1433 Contact Us For Availability
264
Refrigerator Wheel Axle GEN WR02X8214 Contact Us For Availability
265
Refrigerator Rear Wheel GEN WR02X8245 Contact Us For Availability
267
Access Cover Assembly GEN WR82X0322 Contact Us For Availability
269
Refrigerator Wheel Axle GEN WR02X8949 Contact Us For Availability
275
Refrigerator Hinge GEN WR13X0694 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X0693 Contact Us For Availability
277
Refrigerator Rear Cabinet Support Brace GEN WR17X3188 Contact Us For Availability
278
Refrigerator Wheel GEN WR02X8244 Contact Us For Availability
279
Refrigerator Hinge GEN WR02X8232 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR02X8465 Contact Us For Availability
282
Refrigerator Hinge GEN WR13X0690 Contact Us For Availability
283
Refrigerator Hinge Shim GEN WR02X9212 Contact Us For Availability
287
Gusset Rh GEN WR02X9210 Contact Us For Availability
287
Gusset Lh GEN WR02X9211 Contact Us For Availability
294
Refrigerator Button Plug GEN WR02X9148 Contact Us For Availability
296
Cvr Un Recep GEN WR02X9159 Contact Us For Availability
301
Refrigerator Control Knob GEN WR02X8231 Contact Us For Availability
304
Air Duct GEN WR17X2629 Contact Us For Availability
305
Refrigerator Air Actuator GEN WR02X9158 Contact Us For Availability
307
Diffuser Ff GEN WR02X8463 Contact Us For Availability
308
Electronic Insulation GEN WR02X8248 Contact Us For Availability
309
Duct Gasket GEN WR02X8246 Contact Us For Availability
313
Drn Tube Kit GEN WR17X2647 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7051 Contact Us For Availability
427
Refrigerator Harness Control Module GEN WR23X0358 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X8870 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
560
Refrigerator Screw GEN WR01X1249 Contact Us For Availability
602
Refrigerator Screw GEN WR01X1591 Contact Us For Availability
603
Refrigerator Freezer Bottom Panel GEN WR17X2630 Contact Us For Availability
610
Refrigerator Evaporator Fan Motor GEN WR60X203 Contact Us For Availability
611
Refrigerator Bracket Evaporator GEN WR02X8216 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X8217 Contact Us For Availability
615
Grommet GEN WR02X7391 Contact Us For Availability
620
Refrigerator Defrost Bi-Metal Thermostat GEN WR50X10005 Contact Us For Availability
621
Element Holder GEN WR02X8536 Contact Us For Availability
622
Refrigerator Drain Trough GEN WR17X2635 Contact Us For Availability
651
Fan Bld Cnds GEN WR60X0275 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
653
Nut GEN WR01X1715 Contact Us For Availability
683
Screw GEN WR01X1716 Contact Us For Availability
687
Refrigerator Screw GEN WZ05X0194 Contact Us For Availability
690
Refrigerator Screw GEN WR01X1790 Contact Us For Availability
691
Refrigerator Screw GEN WR01X1753 Contact Us For Availability
692
Refrigerator Screw GEN WZ04X0416 Contact Us For Availability
694
Refrigerator Screw GEN WR01X1792 Contact Us For Availability
730
Cond Tube Wi GEN WR84X10002 Contact Us For Availability
732
Refrigerator Cover Clip Relay GEN WR02X7928 Contact Us For Availability
733
Refrigerator Compressor Start Relay GEN WR07X10011 Contact Us For Availability
734
Cover Relay GEN WR02X7929 Contact Us For Availability
737
Mounting Grommet GEN WR02X7238 Contact Us For Availability
746
Plate Comp M GEN WR17X10195 Contact Us For Availability
751
Pan Water Diode GEN WR32X10037 Contact Us For Availability
756
Refrigerator Fan Housing GEN WR17X2632 Contact Us For Availability
760
Refrigerator Screw GEN WR01X1717 Contact Us For Availability
762
Refrigerator Cover Gasket GEN WR14X0313 Contact Us For Availability
765
BAFFLE FAN GEN WR17X10112 Contact Us For Availability
900
Frz O Dr Wh GEN WR78X8717 Contact Us For Availability
910
Ff O Dr Wh GEN WR78X8716 Contact Us For Availability
× ![]()
