Model GE 362.91218000 Range (Kenmore 36291218000) – Common Parts & Diagrams

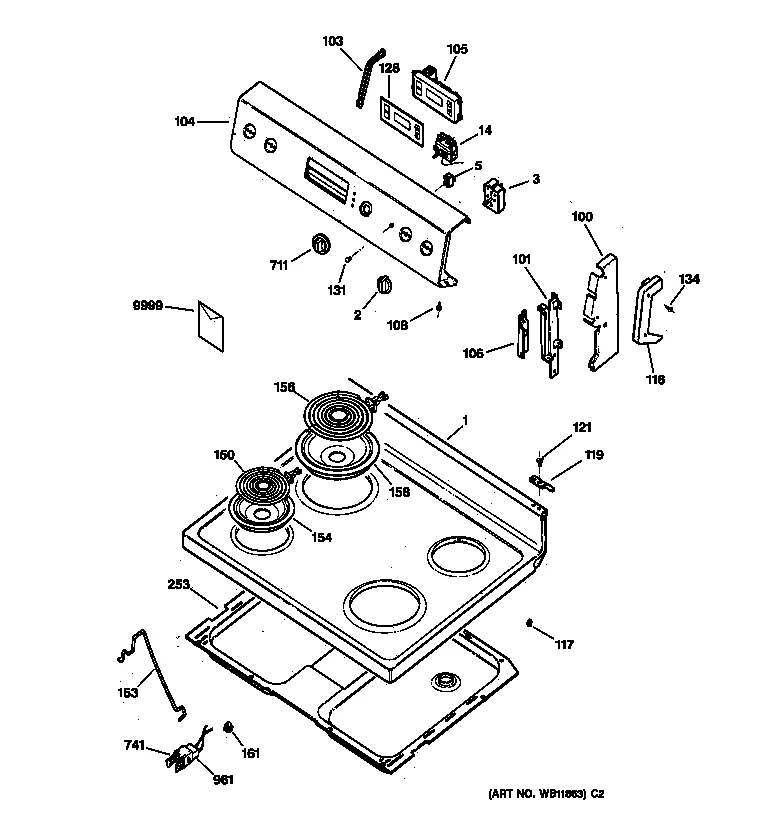

CONTROL PANEL & COOKTOP

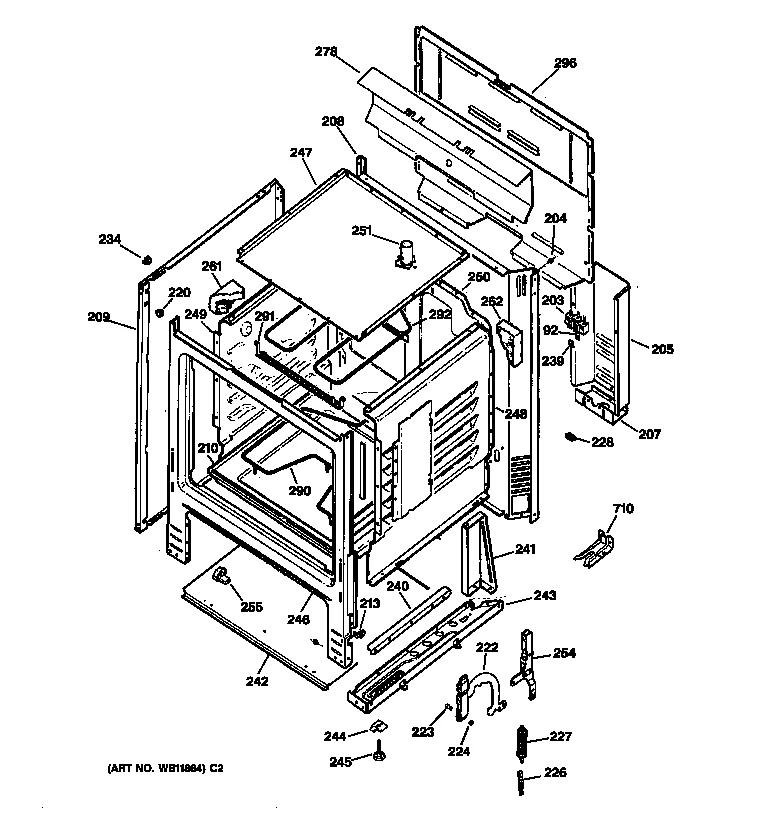

BODY PARTS

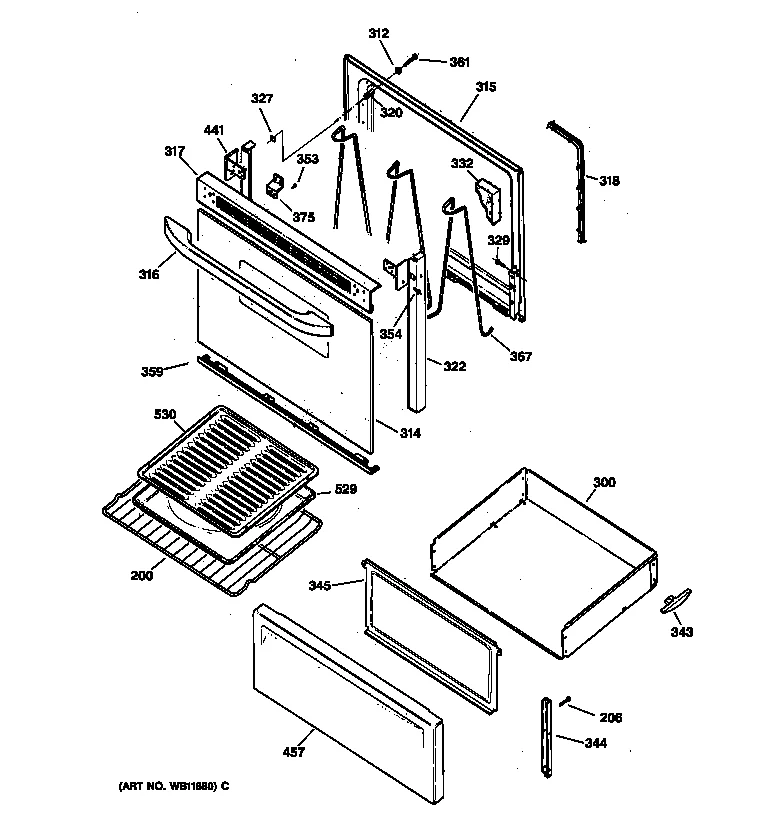

DOOR & DRAWER PARTS
Common parts from model GE 362.91218000 Range (Kenmore 36291218000)
14B
Thermostat Clip GEN WB2X8441 Contact Us For Availability
108C
Screw GEN WB1X5716 Contact Us For Availability
117
Range Main Top Guide Pin GEN WB2K17 Contact Us For Availability
208
Oven Cover GEN WB63K10005 Contact Us For Availability
222
Range Oven Door Hinge Roller GEN WB10K12 Contact Us For Availability
223
Hinge Pin GEN WB2X6195 Contact Us For Availability
224
Range Oven Door Hinge Retainer GEN WB2X1082 Contact Us For Availability
234
Gd Supt R GEN WB2K66 Contact Us For Availability
239A
Nut 10-32 GEN WB1X5968 Contact Us For Availability
239B
Ground Pl GEN WB2X646 Contact Us For Availability
242
Guard Insulation GEN WB63K10009 Contact Us For Availability
243A
BASE SUPPORT RIGHT GEN WB63K06 Contact Us For Availability
243B
BASE SUPPORT LEFT GEN WB63K07 Contact Us For Availability
244
BRACKET GLIDER GEN WB2K01 Contact Us For Availability
245
Level Leg GEN WB2X7701 Contact Us For Availability
246
Frame GEN WB63K10012 Contact Us For Availability
247
Oven GEN WB63K10008 Contact Us For Availability
248
Panel GEN WB63K10010 Contact Us For Availability
249
Oven Side Lh GEN WB63K10011 Contact Us For Availability
250
Oven GEN WB63K10016 Contact Us For Availability
253
Bx Cook Top GEN WB64K10002 Contact Us For Availability
254A
Range Oven Door Hinge Screw GEN WB1K53 Contact Us For Availability
254B
Range Oven Door Hinge Support Bracket, Right GEN WB10K13 Contact Us For Availability
254C
Range Oven Door Hinge Support Bracket, Left GEN WB10K14 Contact Us For Availability
262
Range Oven Insulation, Rear GEN WB35K17 Contact Us For Availability
278
Divider Wiri GEN WB34K10032 Contact Us For Availability
291
SUPPORT BROIL GEN WB2K10028 Contact Us For Availability
296
Cover GEN WB34K10031 Contact Us For Availability
300
Drawer Body GEN WB58K10004 Contact Us For Availability
314
Range Oven Door Outer Panel (Black) GEN WB56K31 Contact Us For Availability
315
Liner GEN WB55K28 Contact Us For Availability
316
Handle GEN WB15K10018 Contact Us For Availability
317
Trim-vent Do GEN WB36K10029 Contact Us For Availability
318
Gasket Door Assembly GEN WB32K03 Contact Us For Availability
322A
TRIM DOOR LT (BLK) GEN WB7K10121 Contact Us For Availability
322B
TRIM DOOR RT (BLK) GEN WB7K10120 Contact Us For Availability
327
Screw GEN WB1X5736 Contact Us For Availability
332
INSULATION DOOR GEN WB35K04 Contact Us For Availability
344
BRACKET MOUNTING DRAWER GEN WB2K10025 Contact Us For Availability
345
Drawer Cover GEN WB34K10033 Contact Us For Availability
353
Scr 8-22 GEN WB1K10012 Contact Us For Availability
367
RETAINER WIRE INSULATION GEN WB33K01 Contact Us For Availability
375
Door Bracket GEN NOT-STOCKED Contact Us For Availability
457
Drawer GEN WB56K10005 Contact Us For Availability
710
Bracket A GEN WB2K10020 Contact Us For Availability
× ![]()
