Model GE 362.75208891 Gas Range (Kenmore 36275208891) – Common Parts & Diagrams
BURNER PARTS
CONTROL PANEL & COOKTOP

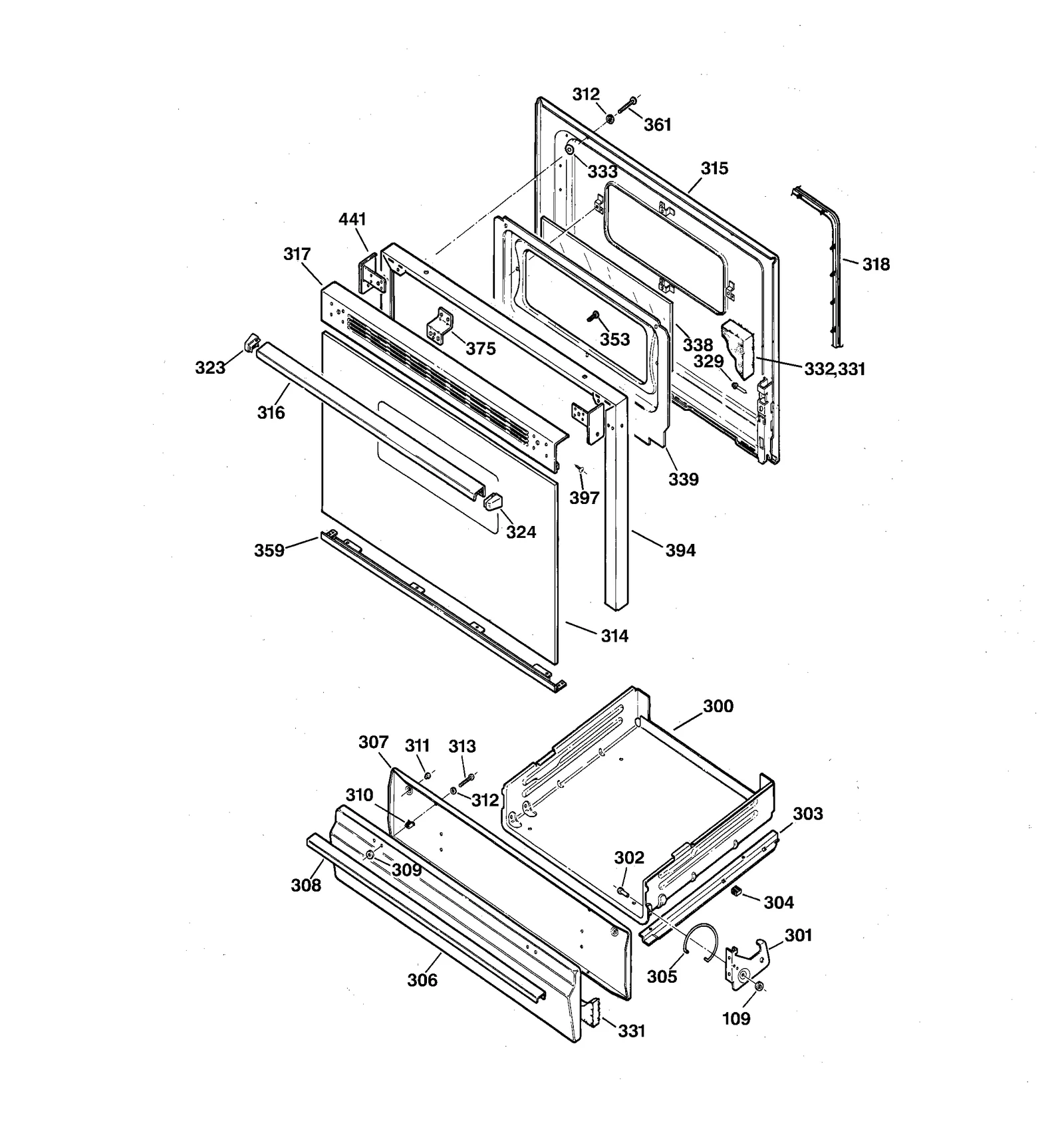

DOOR & DRAWER PARTS
BODY PARTS
Common parts from model GE 362.75208891 Gas Range (Kenmore 36275208891)
1
Range LP Conversion Kit GEN WB28K10045 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10021 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
13
Range Surface Burner Support GEN WB02K10008 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10018 Contact Us For Availability
113
Grate Finger GEN WB31K0081 Contact Us For Availability
114
Cooktop (wh) GEN WB62K10027 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
115
Range Support GEN WB06K0008 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
116
Cap-end Rt A GEN WB07K10011 Contact Us For Availability
116
Cap-end Lf A GEN WB07K10012 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
124
Range Drip Pan GEN WB34K10012 Contact Us For Availability
124
Pan Unit GEN WB32K0016 Contact Us For Availability
125
Pan Unit GEN WB32K0015 Contact Us For Availability
125
Pan Unit GEN WB34K10011 Contact Us For Availability
134
Range Screw GEN WB01K10004 Contact Us For Availability
134
Screw-mtg En GEN WB01K10003 Contact Us For Availability
134
Screw, #8-18 GEN WB01K10010 Contact Us For Availability
140
Range Oven Control Overlay GEN WB11K10002 Contact Us For Availability
140
Overlay (wh) GEN WB11K10003 Contact Us For Availability
140
Overlay (al) GEN WB11K10004 Contact Us For Availability
151
Range Surface Burner Cap GEN WB29K10003 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
155
Range Surface Burner Head GEN WB16K10006 Contact Us For Availability
156
Range Burner Head GEN WB16K10005 Contact Us For Availability
157
Range Burner Head GEN WB16K10007 Contact Us For Availability
169
Clear Washer GEN WB01K0057 Contact Us For Availability
170
Screw End Cap GEN WB01X5874 Contact Us For Availability
170
Screw, #8-18 GEN WB01X5902 Contact Us For Availability
170
Screw GEN WB01X5716 Contact Us For Availability
201
Range Broil Pan Insert GEN WB48K2 Contact Us For Availability
202
Range Broil Pan GEN WB49K2 Contact Us For Availability
209
Panel GEN WB63K0050 Contact Us For Availability
209
Panel GEN WB63K0051 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0001 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
232
Range Hinge Bushing GEN WB34K0003 Contact Us For Availability
232
Hnge Grd Lft GEN WB34K0004 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
239
Pnl Rr Broil GEN WB63K0025 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
241
Range Bottom GEN WB63K0004 Contact Us For Availability
242
Brace GEN WB63K0005 Contact Us For Availability
243
Support Base GEN WB63K0006 Contact Us For Availability
243
Base Supp Lf GEN WB63K0007 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0031 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Ov Back 24" GEN WB53K0004 Contact Us For Availability
254
Hinge Screw GEN WB01K0053 Contact Us For Availability
254
Support Rivet GEN WB10K0014 Contact Us For Availability
254
Support Rivet GEN WB10K0013 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
259
Slide GEN WB39K0001 Contact Us For Availability
259
Slide Bot Lf GEN WB39K0002 Contact Us For Availability
261
Insert Oven Wrap GEN WB35K0001 Contact Us For Availability
301
Hnge Broil L GEN WB10K0006 Contact Us For Availability
302
Broiler Pin GEN WB01K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0008 Contact Us For Availability
304
Broiler Slide GEN WB39K0009 Contact Us For Availability
305
Sprg Broil R GEN WB09K0002 Contact Us For Availability
306
Pnl Drwr Ad GEN WB39K0004 Contact Us For Availability
306
Pnl Drwr Blk GEN WB39K0010 Contact Us For Availability
307
Drawer Liner GEN WB39K0005 Contact Us For Availability
308
Broiler Handle GEN WB15K0015 Contact Us For Availability
308
Broiler Handle GEN WB15K0017 Contact Us For Availability
308
Broiler Handle GEN WB15K0018 Contact Us For Availability
309
Washer GEN WB01X0560 Contact Us For Availability
314
Door Glass GEN WB57K10009 Contact Us For Availability
314
Door Glass GEN WB57K10011 Contact Us For Availability
315
Liner Asm Wd GEN WB55K0006 Contact Us For Availability
316
Handle (blk) GEN WB15K0023 Contact Us For Availability
316
Handle (wht) GEN WB15K0025 Contact Us For Availability
316
Hdl-door Alm GEN WB15K0043 Contact Us For Availability
317
Trim Top Dr GEN WB07K0239 Contact Us For Availability
317
Dr Trim Al GEN WB07K0338 Contact Us For Availability
317
Door Trim GEN WB07K0406 Contact Us For Availability
323
Cap Handle L GEN WB07K0087 Contact Us For Availability
323
Handle Cap GEN WB07K5339 Contact Us For Availability
323
Handle Cap-l GEN WB07T10003 Contact Us For Availability
324
Cap Handle R GEN WB07K0088 Contact Us For Availability
324
Handle Cap GEN WB07K5338 Contact Us For Availability
324
Handle Cap GEN WB07T10002 Contact Us For Availability
331
Drawer Insert GEN WB35K0003 Contact Us For Availability
332
Door Insulation GEN WB35K0005 Contact Us For Availability
359
Door Trim GEN WB07K0385 Contact Us For Availability
375
Door Bracket GEN WB02K0067 Contact Us For Availability
394
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
394
Trim Dr (wh) GEN WB07K0268 Contact Us For Availability
394
Door Trim Al GEN WB07K0337 Contact Us For Availability
397
Mounting Screw GEN WB01K0071 Contact Us For Availability
441
End Cap GEN WB07K0261 Contact Us For Availability
441
End Cap Lft GEN WB07K0262 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10009 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10011 Contact Us For Availability
× ![]()
