Model GE 362.71088990 Gas Range (Kenmore 36271088990) – Common Parts & Diagrams
BODY PARTS
All Parts

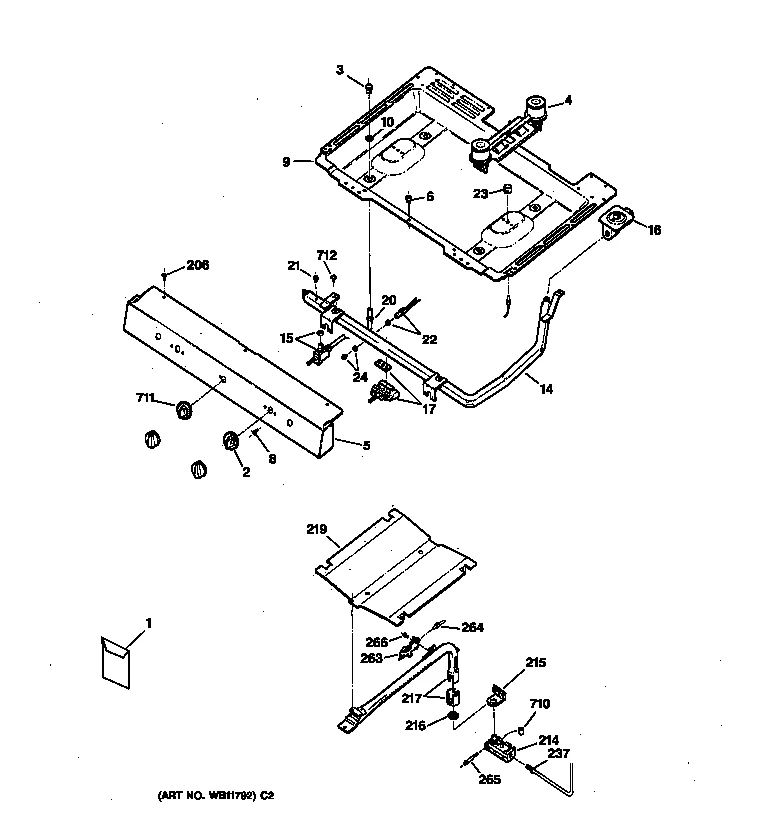

GAS & BURNER PARTS

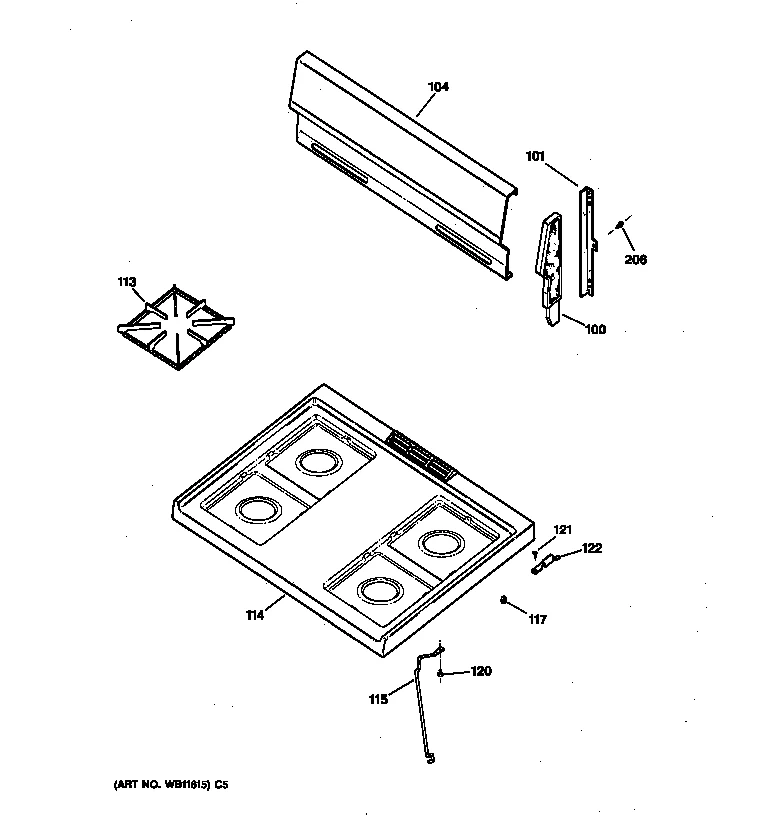

COOKTOP

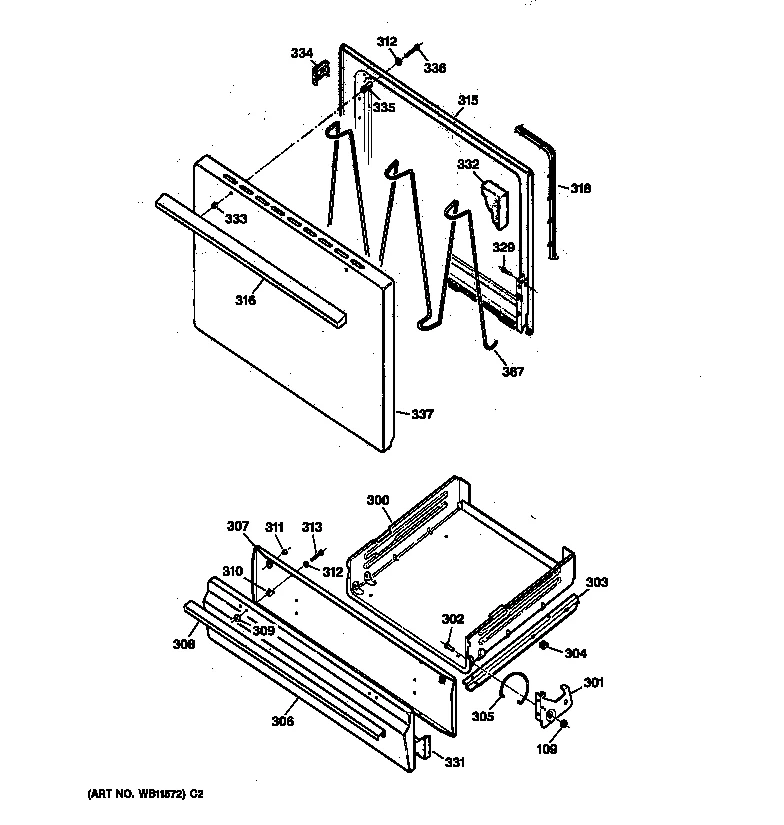

DOOR & DRAWER PARTS
Common parts from model GE 362.71088990 Gas Range (Kenmore 36271088990)
1A
Range LP Conversion Kit GEN WB28K10041 Contact Us For Availability
1C
Range Anti-Tip Bracket GEN WB2K20 Contact Us For Availability
16
Pressure GEN WB19K26 Contact Us For Availability
17
THERMOSTAT STNG PILOT GEN WB20K02 Contact Us For Availability
21B
SCREW-MTG-VALVE GEN WB1K10001 Contact Us For Availability
22
PILOT HARNESS ASM GEN WB19K05 Contact Us For Availability
23
Pilot Cap GEN WB2K21 Contact Us For Availability
24
Screw GEN WB1K11 Contact Us For Availability
100A
End Cover GEN WB7K381 Contact Us For Availability
100B
End Cover GEN WB7K380 Contact Us For Availability
101
Brace GEN WB2K95 Contact Us For Availability
104
Range Backsplash GEN WB36K10013 Contact Us For Availability
109
Speed Nut GEN WB1X5743 Contact Us For Availability
115
SUPPORT RANGE TOP GEN WB6K08 Contact Us For Availability
117
Range Main Top Guide Pin GEN WB2K17 Contact Us For Availability
121
Range Screw GEN WB1K78 Contact Us For Availability
122B
Hinge Guide GEN WB10K19 Contact Us For Availability
210
Range Oven Bottom Liner GEN WB53K35 Contact Us For Availability
214
Range Oven Gas Valve GEN WB19K12 Contact Us For Availability
216
Lock Nut GEN WB1K06 Contact Us For Availability
217
Oven Burner GEN WB16K17 Contact Us For Availability
219
Flame Spreader GEN WB49K44 Contact Us For Availability
222
Range Oven Door Hinge Roller GEN WB10K12 Contact Us For Availability
223
Hinge Pin GEN WB2X6195 Contact Us For Availability
224
Range Oven Door Hinge Retainer GEN WB2X1082 Contact Us For Availability
226
Range Oven Door Spring Retainer GEN WB2K11 Contact Us For Availability
231
Anti-Tip Arm GEN WB2K12 Contact Us For Availability
234
Gd Supt R GEN WB2K66 Contact Us For Availability
237
Tube Valve GEN WB28K51 Contact Us For Availability
254A
Range Oven Door Hinge Support Bracket, Left GEN WB10K14 Contact Us For Availability
254B
Range Oven Door Hinge Support Bracket, Right GEN WB10K13 Contact Us For Availability
254C
Range Oven Door Hinge Screw GEN WB1K53 Contact Us For Availability
263
PILOT OVEN BURNER GEN WB19K06 Contact Us For Availability
264
Range Oven Burner Pilot Tube GEN WB28K50 Contact Us For Availability
265
Screw GEN WB4X366 Contact Us For Availability
300
BROILER WELD ASM GEN WB39K06 Contact Us For Availability
301A
HINGE BROILER LEFT GEN WB10K06 Contact Us For Availability
301B
HINGE BROILER RIGHT GEN WB10K05 Contact Us For Availability
302
PIN BROILER CR GEN WB1K07 Contact Us For Availability
303A
SLIDE BROILER PAN RIGHT GEN WB39K07 Contact Us For Availability
303B
SLIDE BROILER PAN LEFT GEN WB39K08 Contact Us For Availability
304
SLIDE BROILER GEN WB39K09 Contact Us For Availability
305A
SPRING BROILER RIGHT GEN WB9K02 Contact Us For Availability
305B
SPRING BROILER LEFT GEN WB9K03 Contact Us For Availability
306
PANEL DRAWER ALMOND GEN WB39K04 Contact Us For Availability
306
Drawer Panel GEN WB39K10 Contact Us For Availability
307
LINER DRAWER GEN WB39K05 Contact Us For Availability
308
Handle Broil GEN WB15K03 Contact Us For Availability
309
Washer GEN WB1X560 Contact Us For Availability
315
Liner Assembly Weld Door GEN WB55K02 Contact Us For Availability
316
Handle Broil GEN WB15K01 Contact Us For Availability
318
Gasket Door Assembly GEN WB32K03 Contact Us For Availability
331
Drawer Insert GEN WB35K3 Contact Us For Availability
331
INSULATION DRAWER GEN WB35K03 Contact Us For Availability
332
INSULATION DOOR GEN WB35K04 Contact Us For Availability
334
Spacer Do GEN WB2K13 Contact Us For Availability
335
Spacer GEN WB2K02 Contact Us For Availability
336
Screw GEN WZ4X423 Contact Us For Availability
337
Drive Panel GEN WB56K35 Contact Us For Availability
367
RETAINER WIRE INSULATION GEN WB33K01 Contact Us For Availability
710
Spacer Tube GEN WB2K51 Contact Us For Availability
711
Thermostat Knob GEN WB3K10006 Contact Us For Availability
× ![]()
