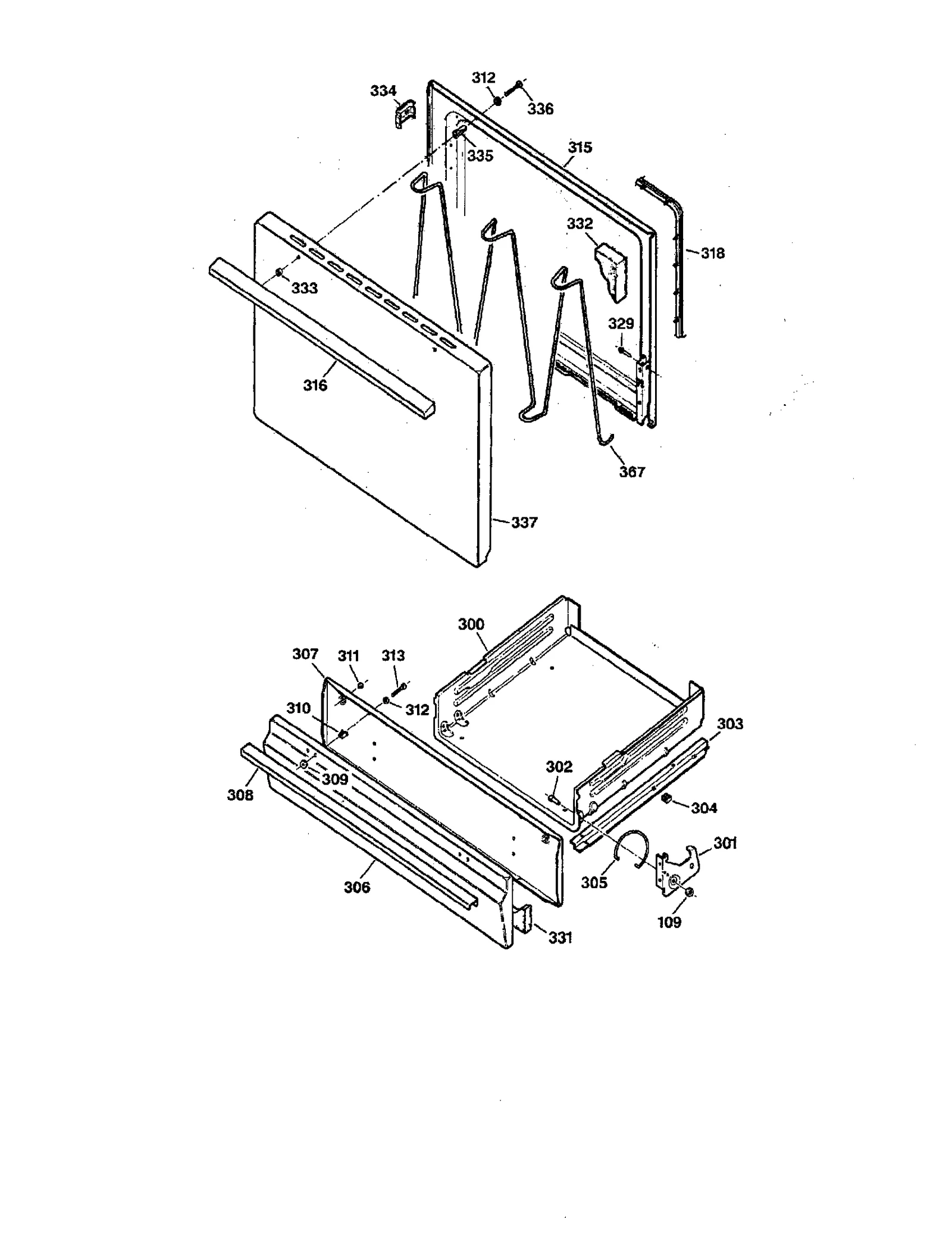

DOOR AND DRAWER

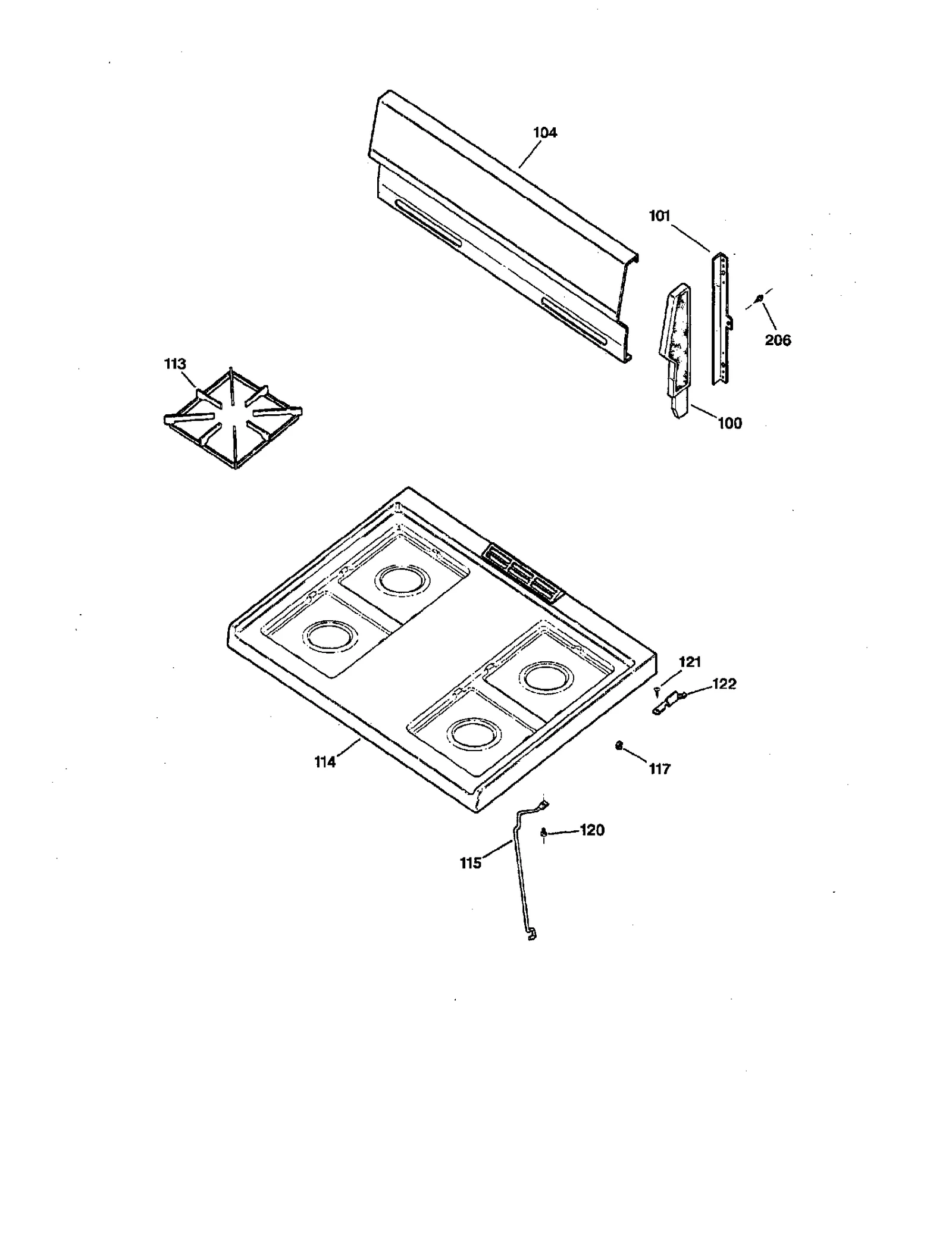

GAS AND BURNER
Common parts from model GE 362.71071890 Gas Range (Kenmore 36271071890)
1
Range LP Conversion Kit GEN WB28K10041 Contact Us For Availability
1A
Uc/install S GEN SR4248 Contact Us For Availability
1B
Kenmore Range Parts GEN SR4513 Contact Us For Availability
1C
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10007 Contact Us For Availability
3
ORIFICE LP GAS (4) GEN WB28K008 Contact Us For Availability
5
Manifold Panel GEN WB36K10014 Contact Us For Availability
6
Grommet GEN WB02K0009 Contact Us For Availability
9
Cooktop Burner Box GEN WB63K10001 Contact Us For Availability
10
Nut GEN WB01K0004 Contact Us For Availability
14
Manifold GEN WB28K10008 Contact Us For Availability
16
Pressure Regulator GEN WB19K0026 Contact Us For Availability
17
Thermostat Starting Pilot GEN WB20K0002 Contact Us For Availability
22
Pilot Harn A GEN WB19K0005 Contact Us For Availability
23
Pilot Cap GEN WB02K0021 Contact Us For Availability
24
Pilot Screw GEN WB01K0011 Contact Us For Availability
100
Cover End Ring GEN WB07K0380 Contact Us For Availability
100A
Cover End Le GEN WB07K0381 Contact Us For Availability
101
Brace GEN WB02K0095 Contact Us For Availability
104
Range Backsplash GEN WB36K10013 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
115
Range Support GEN WB06K0008 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
121
Screw 12-14 GEN WB01K0078 Contact Us For Availability
122A
Hinge Guide GEN WB10K0019 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
214
Vlv Safe Asm GEN WB19K0012 Contact Us For Availability
217
Oven Burner GEN WB16K0017 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0001 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
232
Range Hinge Bushing GEN WB34K0003 Contact Us For Availability
232A
Hnge Grd Lft GEN WB34K0004 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
237
Tube Valve Support GEN WB28K0051 Contact Us For Availability
239
Rear Broiler Panel GEN WB63K0001 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
241
Range Bottom GEN WB63K0004 Contact Us For Availability
242
Brace GEN WB63K0005 Contact Us For Availability
243
Support Base GEN WB63K0006 Contact Us For Availability
243A
Base Supp Lf GEN WB63K0007 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0031 Contact Us For Availability
247
Oven GEN WB53K0001 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Ov Back 24" GEN WB53K0010 Contact Us For Availability
254
Support Rivet GEN WB10K0013 Contact Us For Availability
254A
Support Rivet GEN WB10K0014 Contact Us For Availability
254B
Hinge Screw GEN WB01K0053 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
257
Vent GEN WB38K0004 Contact Us For Availability
258
Brace Vent GEN WB38K0003 Contact Us For Availability
259
Vent GEN WB38K0001 Contact Us For Availability
259A
Slide Bot Lf GEN WB39K0002 Contact Us For Availability
261
Insert Oven Wrap GEN WB35K0001 Contact Us For Availability
263
Oven Burner Pilot GEN WB19K0006 Contact Us For Availability
264
Tube Pilot Support GEN WB28K0050 Contact Us For Availability
265
Screw GEN WB04X0366 Contact Us For Availability
267
Counterweight GEN WB06K0002 Contact Us For Availability
301A
Lock Nut GEN WB01K0006 Contact Us For Availability
302
Broiler Pin GEN WB01K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0007 Contact Us For Availability
303A
Slide Brlr P GEN WB39K0008 Contact Us For Availability
305
Sprg Broil R GEN WB09K0002 Contact Us For Availability
307
Drawer Liner GEN WB39K0005 Contact Us For Availability
308
Broiler Handle GEN WB15K0003 Contact Us For Availability
309
Washer GEN WB01X0560 Contact Us For Availability
315
Liner Asm Wd GEN WB55K0002 Contact Us For Availability
331
Drawer Insert GEN WB35K0003 Contact Us For Availability
332
Door Insulation GEN WB35K0004 Contact Us For Availability
334
Door Spacer GEN WB02K0013 Contact Us For Availability
335
Spacer GEN WB02K0002 Contact Us For Availability
336
SCREW HANDLE (2) GEN WZ04K0423 Contact Us For Availability
337
Panel Dr Bk GEN WB56K0035 Contact Us For Availability
367
Retaining Wire Insulation GEN WB33K0001 Contact Us For Availability
420
Cover GEN WB34K0016 Contact Us For Availability
710
Spacer Tube GEN WB02K0051 Contact Us For Availability
711
Range Thermostat Knob GEN WB03K10006 Contact Us For Availability
× ![]()
