Model Electrolux 36-6262-23-09 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - CONTROL PANEL

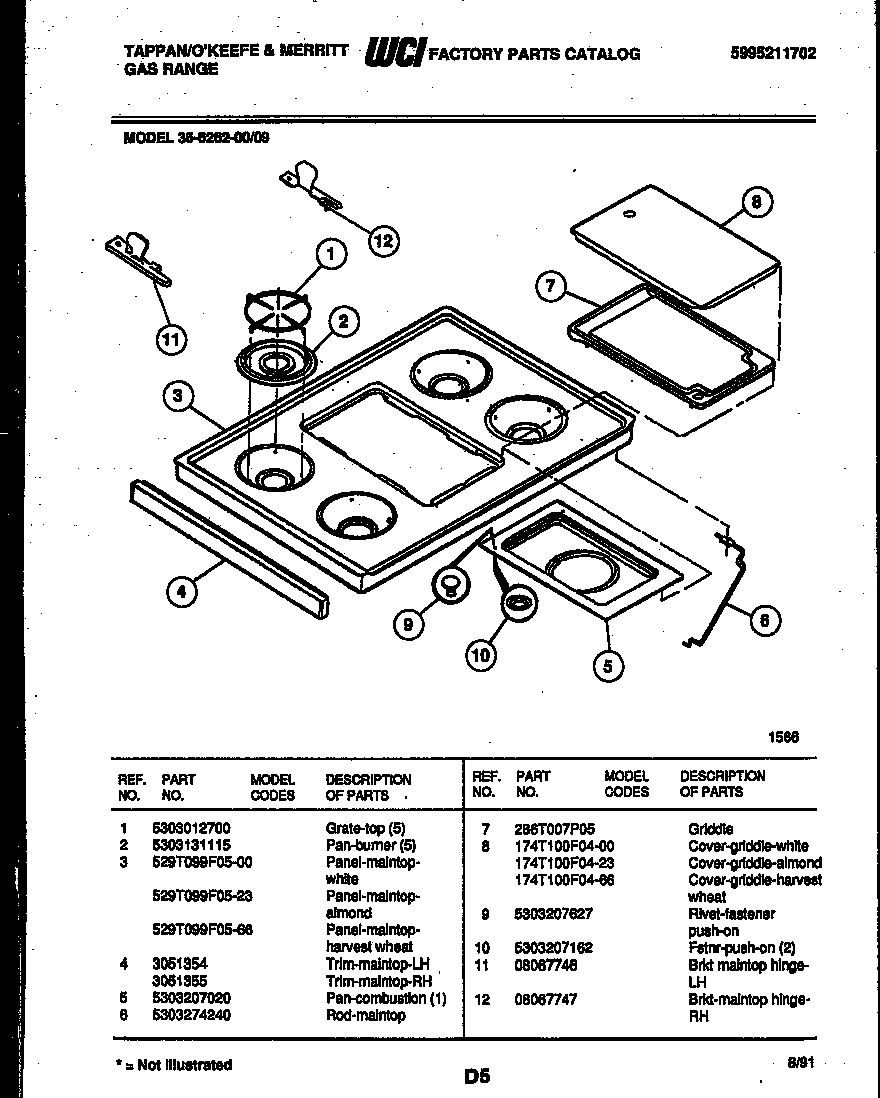

04 - COOKTOP PARTS

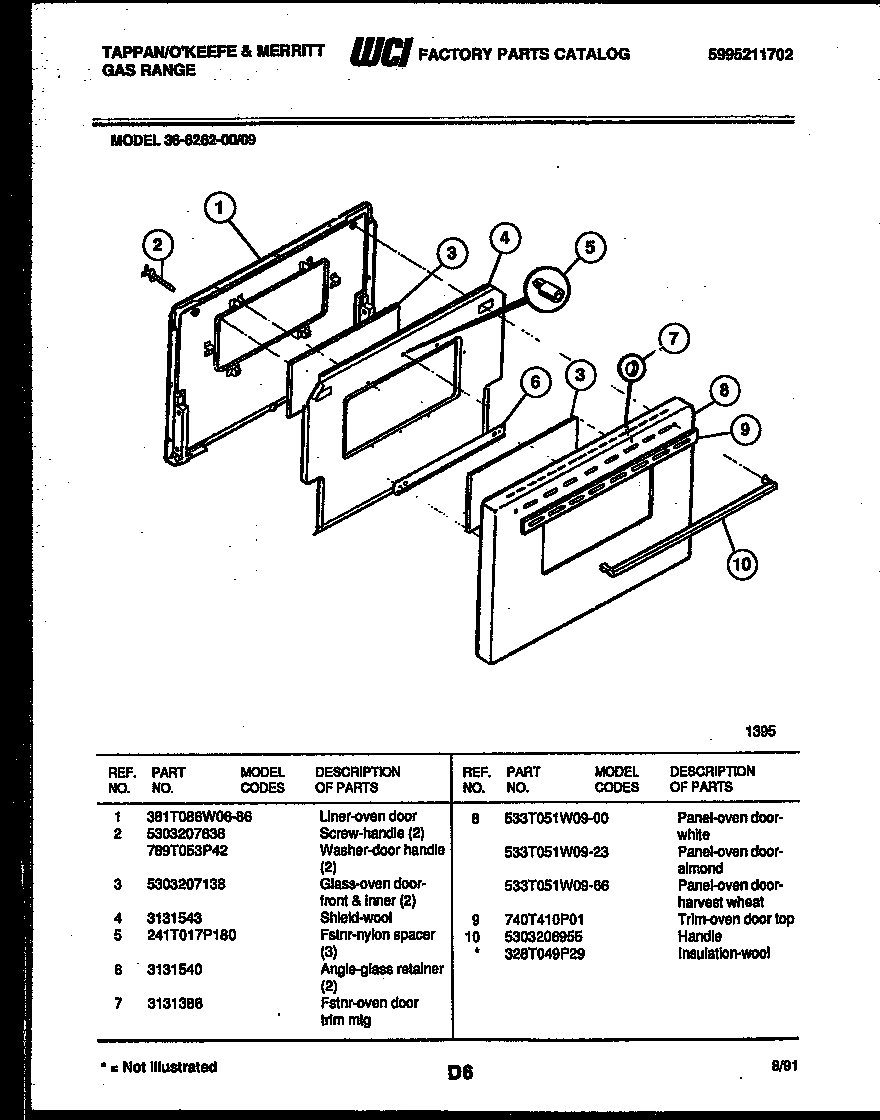

05 - DOOR PARTS

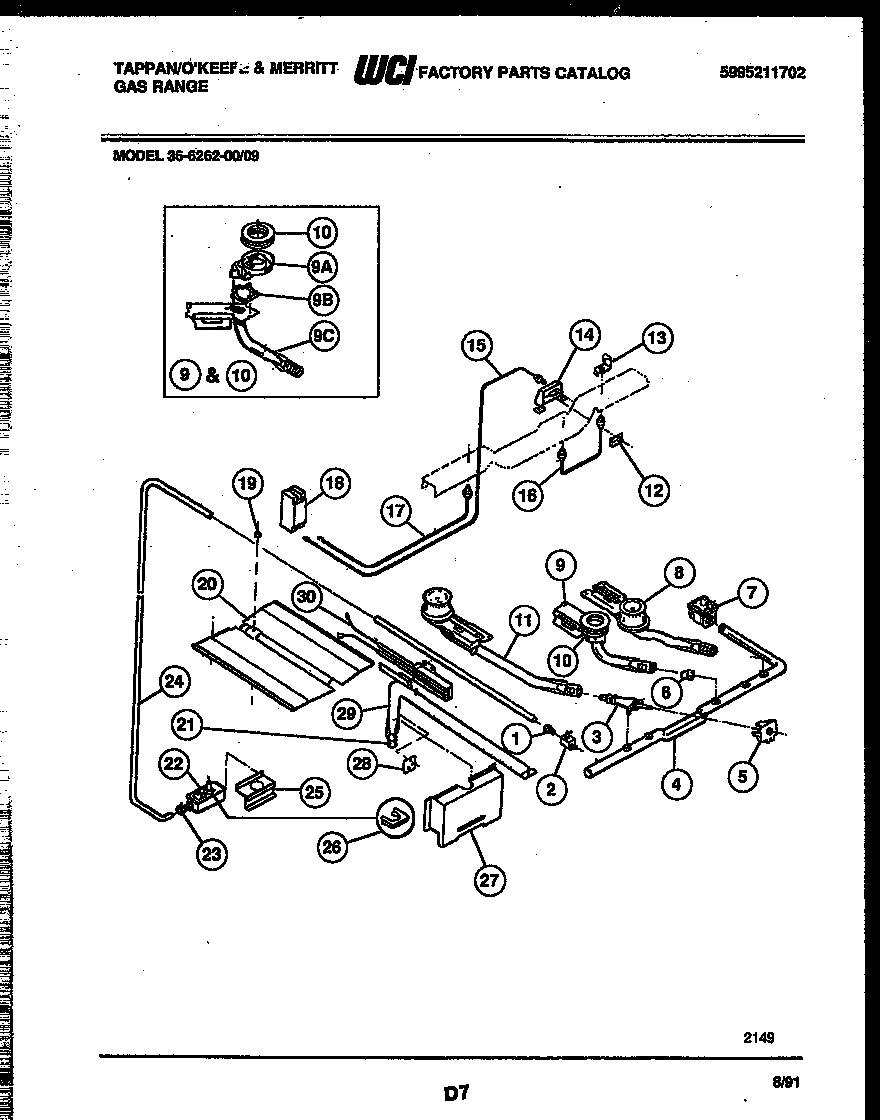

06 - BURNER, MANIFOLD AND GAS CONTROL

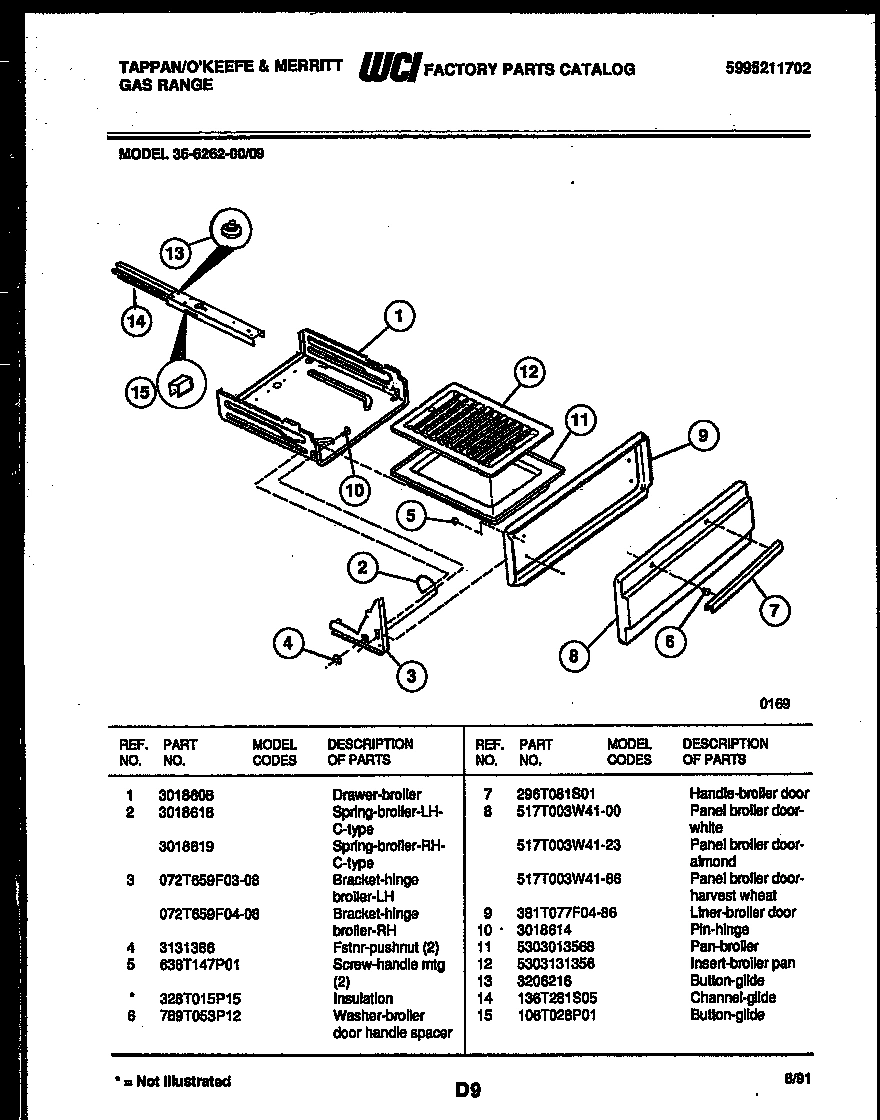

07 - BROILER DRAWER PARTS

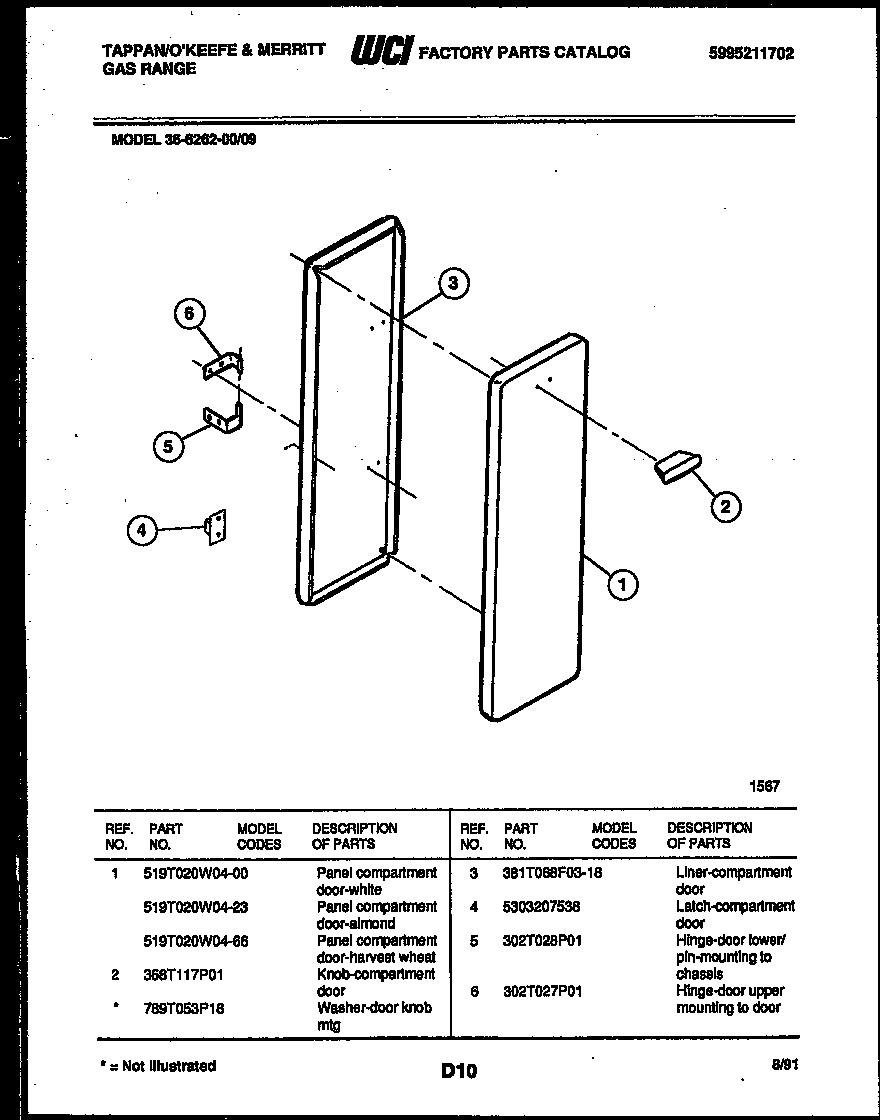

08 - PANEL COMPARTMENT

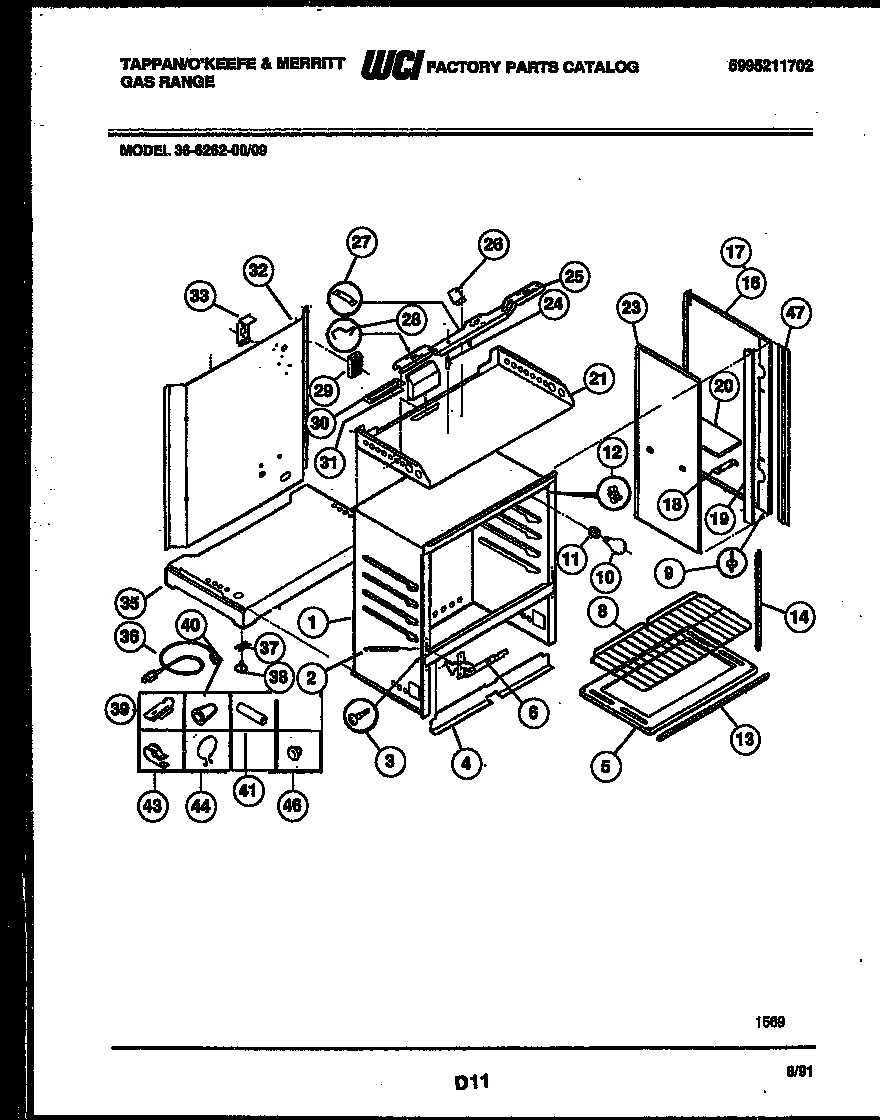

09 - BODY PARTS
Common parts from model Electrolux 36-6262-23-09 RANGE
*57510
WCI 328T049P29 WCI 328T049P29 Contact Us For Availability
*57515
PLATE-BURNER MTG WCI 3131535 Contact Us For Availability
*57523
INSULATION, CHANNEL WCI 328T015P15 Contact Us For Availability
*57523
INSULATION-WOOL TOP & SIDES WCI 3200323 Contact Us For Availability
*57523
WCI 3203575 WCI 3203575 Contact Us For Availability
*57523
INSULATION-WOOL BACK WCI 5303200320 Contact Us For Availability
*57524
WCI 191S020F04 WCI 191S020F04 Contact Us For Availability
*57524
WCI 3203576 WCI 3203576 Contact Us For Availability
1
DIAL-INDICATOR-TOP BURNER & GRIDDLE(S) WCI 5303207150 Contact Us For Availability
1
LINER, OVEN DOOR WCI 381T086W06-86 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
1
PANEL COMPARTMENT DOOR-ALMOND WCI 519T020W04-23 Contact Us For Availability
2
SPRING-OVEN DOOR CAM (2) WCI 5303207650 Contact Us For Availability
2
WCI 5303912665 WCI 5303912665 Contact Us For Availability
2
SCREW-HANDLE (2) WCI 5303207638 Contact Us For Availability
2
VALVE, SHUT OFF WCI 774T121P01 Contact Us For Availability
2
WCI 3018618 WCI 3018618 Contact Us For Availability
2
KNOB-COMPARTMENT DOOR WCI 358T117P01 Contact Us For Availability
2A
WASHER, DOOR HANDLE (2) WCI 789T053P42 Contact Us For Availability
2A
WCI 3018619 WCI 3018619 Contact Us For Availability
2A
WASHER-DOOR KNOB MTG (NON-ILLUSTRATED) WCI 789T053P18 Contact Us For Availability
3
CAP-CONTROL PNL TRIM-LH WCI 123T086P01 Contact Us For Availability
3
PANEL-MAINTOP-ALMOND WCI 529T099F05-23 Contact Us For Availability
3
GLASS-OVEN DOOR-FRONT & INNER (2) WCI 5303207138 Contact Us For Availability
3
VALVE-TOP BURNERS & GRIDDLE WCI 5303208062 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
LINER, COMPARTMENT DOOR WCI 381T068F03-18 Contact Us For Availability
3
SCREW, SHOULDER (2) WCI 636T066P06 Contact Us For Availability
3A
CAP-CONTROL PNL TRIM-RH WCI 123T086P02 Contact Us For Availability
3A
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
4
WCI 08013193 WCI 08013193 Contact Us For Availability
4
WCI 3051354 WCI 3051354 Contact Us For Availability
4
WCI 3131543 WCI 3131543 Contact Us For Availability
4
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
4
WCI 439T053P02 WCI 439T053P02 Contact Us For Availability
4
LATCH-COMPARTMENT DOOR WCI 5303207538 Contact Us For Availability
4
SHIELD, WOOL WCI 655T308F02 Contact Us For Availability
4A
WCI 3051355 WCI 3051355 Contact Us For Availability
4A
WCI 008T276F05-18 WCI 008T276F05-18 Contact Us For Availability
5
WASHER-SPRING (2) WCI 3131627 Contact Us For Availability
5
PAN-COMBUSTION (1) WCI 5303207020 Contact Us For Availability
5
FSTNR-NYLON SPACER (3) WCI 241T017P180 Contact Us For Availability
5
HINGE-DOOR LOWER/PIN-MOUNTING TO CHASSIS WCI 302T028P01 Contact Us For Availability
5
WCI 5303206950 WCI 5303206950 Contact Us For Availability
5A
SCREW-OVEN BOTTOM (2) (NON-ILLUSTRATED) WCI 636T134P01 Contact Us For Availability
6
WCI 5303205939 WCI 5303205939 Contact Us For Availability
6
GLASS-MANIFOLD CONTROL PNL WCI 277T194P02 Contact Us For Availability
6
ROD-MAINTOP WCI 5303274240 Contact Us For Availability
6
ANGLE-GLASS RETAINER (2) WCI 3131540 Contact Us For Availability
6
MIXER-AIR-TOP BURNERS (5) WCI 451R001P01 Contact Us For Availability
6
WASHER-BROILER DOOR HANDLE/SPACER WCI 789T053P12 Contact Us For Availability
6
HINGE-DOOR UPPER MOUNTING TO DOOR WCI 302T027P01 Contact Us For Availability
6A
WCI 5303205940 WCI 5303205940 Contact Us For Availability
6B
WCI 355T588S01 WCI 355T588S01 Contact Us For Availability
7
CONTROL REGUL WCI 5303016997 Contact Us For Availability
7
EXTRUSION-MANIFOLD CNTR PNL WCI 233T063P01 Contact Us For Availability
7
GRIDDLE WCI 286T007P05 Contact Us For Availability
7
HANDLE-BROILER DOOR WCI 296T081S01 Contact Us For Availability
8
BURNER-TOP FRONT (2) WCI 5303204154 Contact Us For Availability
8
WCI 319T015P03 WCI 319T015P03 Contact Us For Availability
8
COVER, GRIDDLE (ALMOND) WCI 174T100F04-23 Contact Us For Availability
8
WCI 533T051W09-23 WCI 533T051W09-23 Contact Us For Availability
8
WCI 517T003W41-23 WCI 517T003W41-23 Contact Us For Availability
8
RACK, OVEN (2) WCI 591T073P02 Contact Us For Availability
9
WCI 5308012857 WCI 5308012857 Contact Us For Availability
9
RIVET-FASTENER PUSH-ON WCI 5303207627 Contact Us For Availability
9
TRIM-OVEN DOOR TOP WCI 740T410P01 Contact Us For Availability
9
BURNER-TOP GRIDDLE (1) WCI 750T141S05 Contact Us For Availability
9
WCI 381T077F04-86 WCI 381T077F04-86 Contact Us For Availability
9
PIN-BODY PANEL GUIDE WCI 08010603 Contact Us For Availability
9A
WCI 5303912578 WCI 5303912578 Contact Us For Availability
9B
WCI 5303207135 WCI 5303207135 Contact Us For Availability
9C
WCI 750T141P04 WCI 750T141P04 Contact Us For Availability
10
KNOB-VALVE TOP BURNER & GRIDDLE (5) WCI 358T142P100 Contact Us For Availability
10
WCI 5303207162 WCI 5303207162 Contact Us For Availability
10
HANDLE WCI 5303206955 Contact Us For Availability
10
BURNER RING-GRIDDLE WCI 5300007473 Contact Us For Availability
10
WCI 3018614 WCI 3018614 Contact Us For Availability
11
BRKT-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
11
WCI 5303204155 WCI 5303204155 Contact Us For Availability
11
PAN-BROILER WCI 5303013568 Contact Us For Availability
11
WCI 662T012P11 WCI 662T012P11 Contact Us For Availability
12
BRKT-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
12
RETAINER-IGNITER (2) WCI 612T110F01 Contact Us For Availability
12
WCI 5303131356 WCI 5303131356 Contact Us For Availability
13
WCI 3206216 WCI 3206216 Contact Us For Availability
13
SEAL-DOOR-TOP & BOTTOM WCI 647T068P02 Contact Us For Availability
14
SEAL-DOOR-SIDE WCI 5303207593 Contact Us For Availability
14
WCI 072T781F01 WCI 072T781F01 Contact Us For Availability
14
CHANNEL-GLIDE WCI 136T281S05 Contact Us For Availability
15
WCI 5303271828 WCI 5303271828 Contact Us For Availability
15
WCI 5303207566 WCI 5303207566 Contact Us For Availability
15
BUTTON, GLIDE WCI 106T028P01 Contact Us For Availability
16
WCI 5303271829 WCI 5303271829 Contact Us For Availability
16
WCI 5303206944 WCI 5303206944 Contact Us For Availability
16
WCI 08010600 WCI 08010600 Contact Us For Availability
17
WCI 277T139P41 WCI 277T139P41 Contact Us For Availability
17
WCI 5303206942 WCI 5303206942 Contact Us For Availability
17
PANEL-BODYSIDE-RH-ALMOND WCI 515T047F13-23 Contact Us For Availability
18
WCI 358T155P63 WCI 358T155P63 Contact Us For Availability
18
WCI 072T552F01-18 WCI 072T552F01-18 Contact Us For Availability
19
WCI 358T175S12 WCI 358T175S12 Contact Us For Availability
19
CHANNEL, STIFFENER WCI 136T216F01-18 Contact Us For Availability
20
WCI 148T169P09 WCI 148T169P09 Contact Us For Availability
20
WCI 5303131517 WCI 5303131517 Contact Us For Availability
20
WCI 5303207975 WCI 5303207975 Contact Us For Availability
21
BALLAST-FLUOR LIGHT WCI 5308010397 Contact Us For Availability
21
MIXER-AIR (OVEN BURNER) WCI 451T005R01 Contact Us For Availability
21
WCI 5303269825 WCI 5303269825 Contact Us For Availability
22
WCI 5303276601 WCI 5303276601 Contact Us For Availability
22
WCI 142T035P01 WCI 142T035P01 Contact Us For Availability
23
WCI 08067733 WCI 08067733 Contact Us For Availability
23
LOXIT NUT - SHUT OFF & SAFETY VALVE WCI 247T079P01 Contact Us For Availability
23
WCI 048T010F02-18 WCI 048T010F02-18 Contact Us For Availability
23A
WCI 08008980 WCI 08008980 Contact Us For Availability
24
KNOB-CLOCK (3) WCI 358T038P01 Contact Us For Availability
24
TUBE, OVEN SUPPLY WCI 750T095P12 Contact Us For Availability
24
SPACER-BURNER SUPPORT CHANNEL WCI 665T072P06 Contact Us For Availability
25
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
25
CHANNEL, BURNER SUPPORT WCI 136T300F03-18 Contact Us For Availability
26
FSTNR OVEN SAFETY VALVE WCI 241T017P216 Contact Us For Availability
26
REFLECTOR, GRIDDLE BURNER WCI 600T014F01 Contact Us For Availability
27
COVER, SAFETY VALVE WCI 174T300F01 Contact Us For Availability
28
TERMINAL BLOCK IGN CONN WCI 709T041P01 Contact Us For Availability
28
RETAINER, OVEN BURNER WCI 612T094P01 Contact Us For Availability
29
WCI 5303208304 WCI 5303208304 Contact Us For Availability
29
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
30
WCI 3131536 WCI 3131536 Contact Us For Availability
31
FLUE BOX-LOWER WCI 252T047W01-18 Contact Us For Availability
32
WCI 3131516 WCI 3131516 Contact Us For Availability
33
WCI 072T612F02 WCI 072T612F02 Contact Us For Availability
35
WCI 036T052W05-18 WCI 036T052W05-18 Contact Us For Availability
36
WCI 171T021P07 WCI 171T021P07 Contact Us For Availability
37
WCI 241T017P10 WCI 241T017P10 Contact Us For Availability
38
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
40
COVER, SCREW TIP PROTECTOR WCI 174T133P02 Contact Us For Availability
41
SLEEVE-INSULATION WCI 660T032P01 Contact Us For Availability
43
FSTNR-CLAMP-POWER CORD WCI 241T017P128 Contact Us For Availability
44
FSTNR PURSE LOCK (4) WCI 08067944 Contact Us For Availability
46
WCI 5308010594 WCI 5308010594 Contact Us For Availability
47
TRIM B/SIDE-VERTICAL WCI 08010602 Contact Us For Availability
× ![]()
