Model Electrolux 36-3690-00-03 RANGE – Common Parts & Diagrams

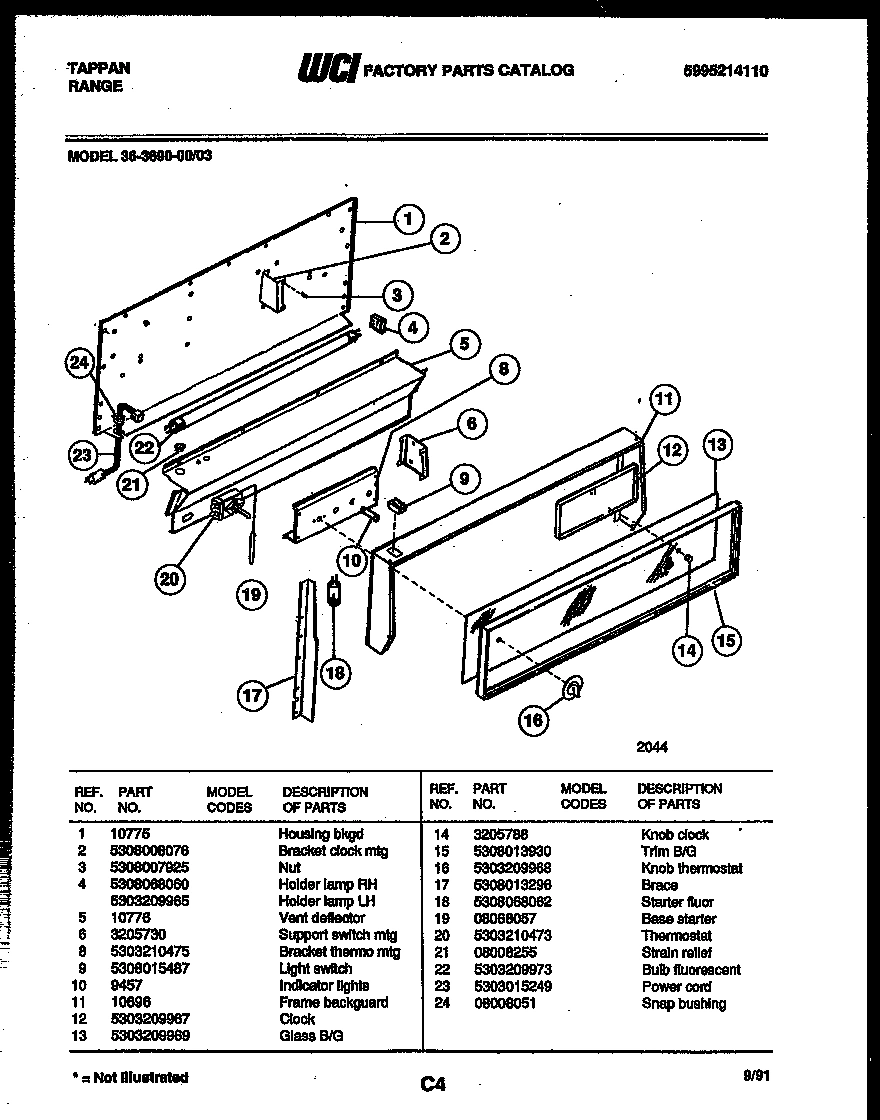

02 - BACKGUARD

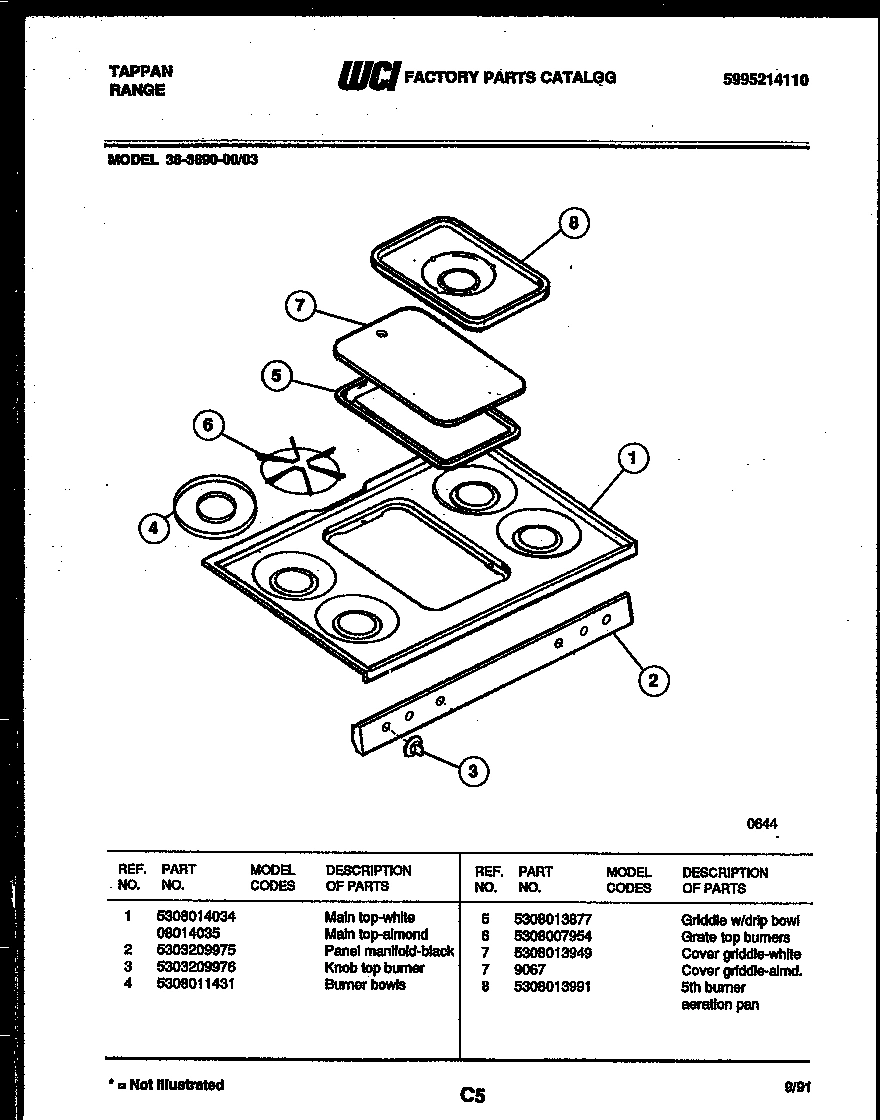

03 - COOKTOP PARTS

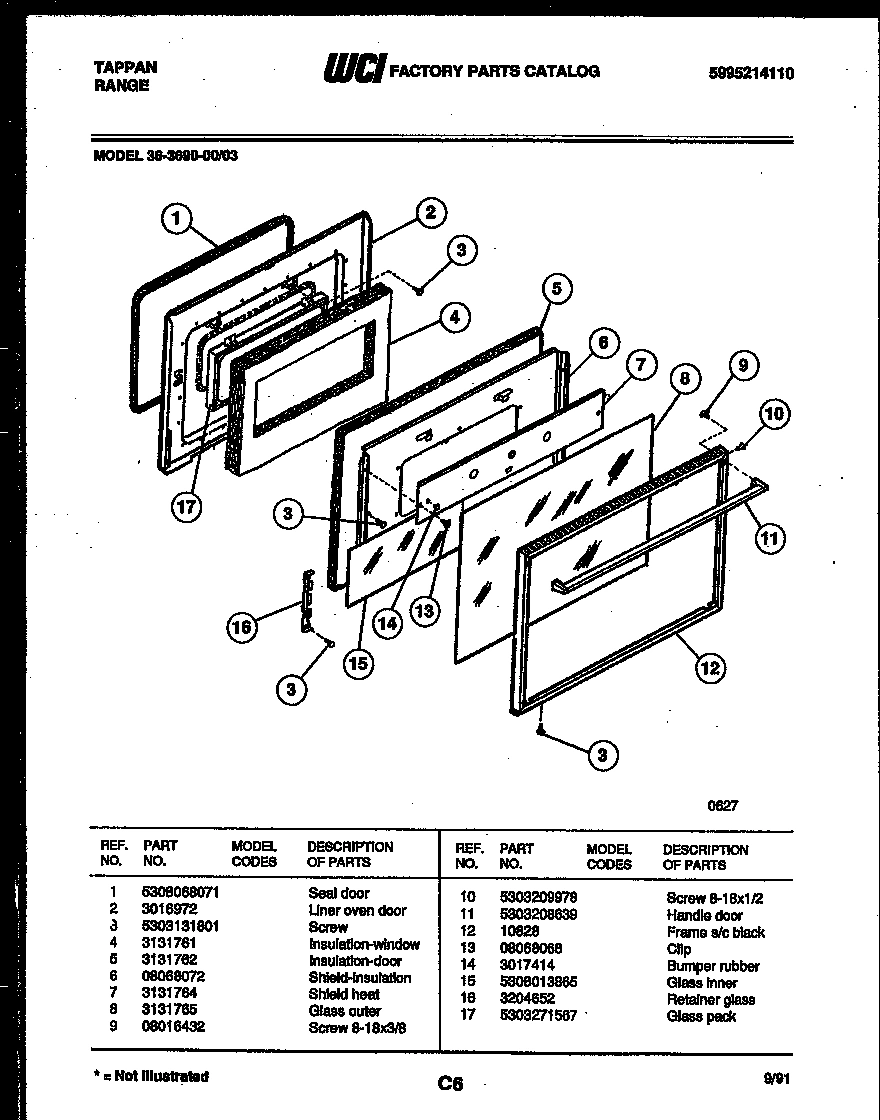

04 - DOOR PARTS

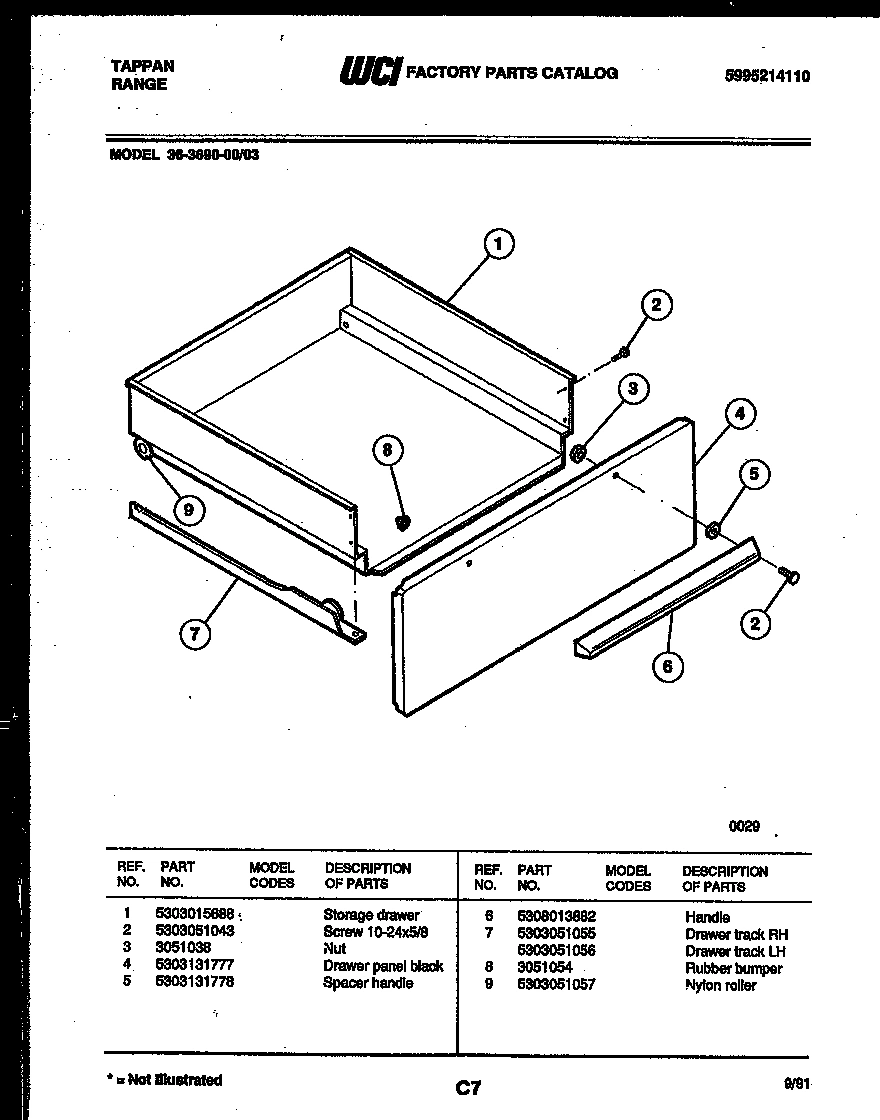

05 - DRAWER PARTS

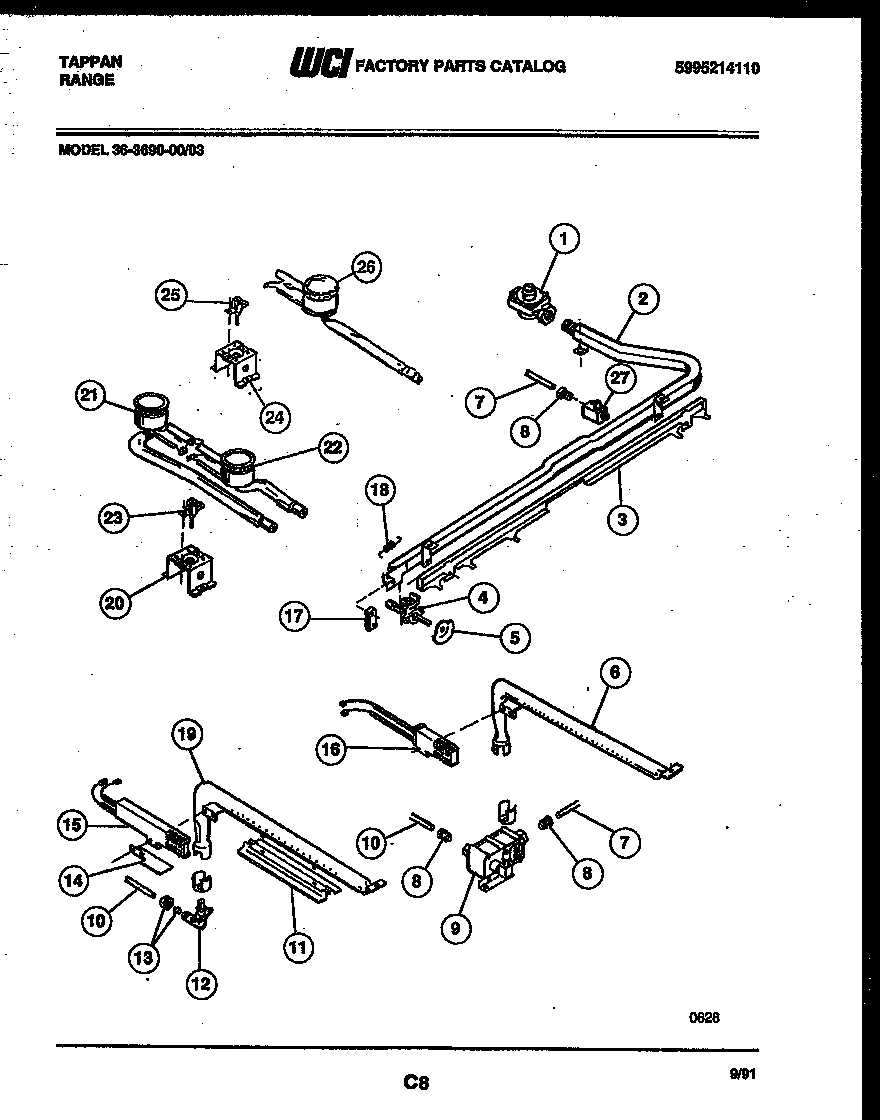

06 - BURNER, MANIFOLD AND GAS CONTROL

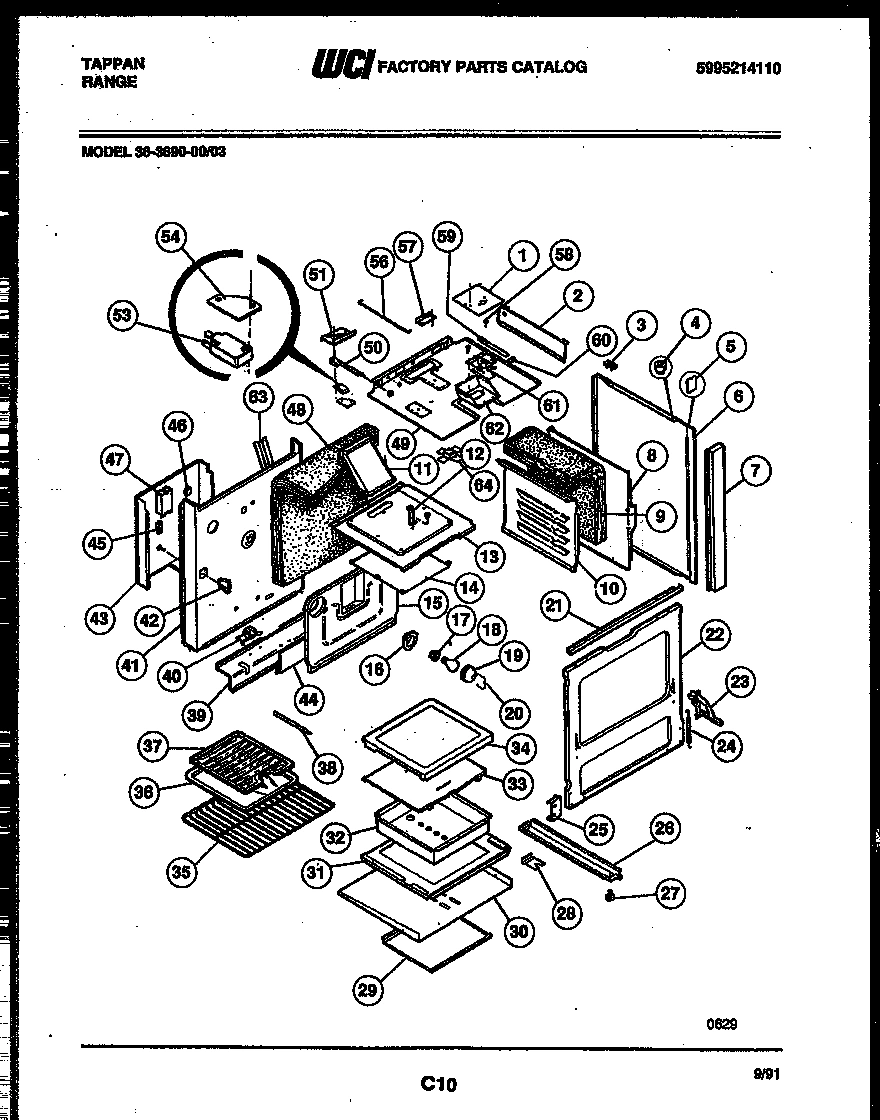

07 - BODY PARTS
Common parts from model Electrolux 36-3690-00-03 RANGE
*60211
WCI 5300009126 WCI 5300009126 Contact Us For Availability
*60211
WCI 5308007985 WCI 5308007985 Contact Us For Availability
*60216
WCI 19100200021 WCI 19100200021 Contact Us For Availability
1
WCI 08014035 WCI 08014035 Contact Us For Availability
1
WCI 5308014034 WCI 5308014034 Contact Us For Availability
1
SEAL DOOR WCI 5308068071 Contact Us For Availability
1
STORAGE DRAWER WCI 5303015688 Contact Us For Availability
1
COVER-DOOR LOCK WCI 3016970 Contact Us For Availability
2
PANEL MANIFOLD-BLACK WCI 5303209975 Contact Us For Availability
2
LINER OVEN DOOR WCI 3016972 Contact Us For Availability
2
MANIFOLD PIPE WCI 10867 Contact Us For Availability
2
SHIELD B/B RH WCI 5303131053 Contact Us For Availability
2A
SHIELD B/B LH WCI 5303131054 Contact Us For Availability
3
KNOB TOP BURNER WCI 5303209976 Contact Us For Availability
3
SCREW WCI 5303131801 Contact Us For Availability
3
BAR SLIDE WCI 10806 Contact Us For Availability
3
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
4
BURNER BOWLS WCI 5308011431 Contact Us For Availability
4
INSULATION-WINDOW WCI 3131761 Contact Us For Availability
4
DRAWER PANEL BLACK WCI 5303131777 Contact Us For Availability
4
TOP BURNER VALVES (5) WCI 3205761 Contact Us For Availability
4
GROMMET WCI 3051063 Contact Us For Availability
5
GRIDDLE W/DRIP BOWL WCI 5308013877 Contact Us For Availability
5
WCI 3131762 WCI 3131762 Contact Us For Availability
5
SPACER HANDLE WCI 5303131778 Contact Us For Availability
5
CAM TOP BURNER WCI 5303131859 Contact Us For Availability
5
CLIP-B/S CORNER WCI 3131791 Contact Us For Availability
6
GRATE TOP BURNERS WCI 5308007954 Contact Us For Availability
6
WCI 08068072 WCI 08068072 Contact Us For Availability
6
WCI 5308013882 WCI 5308013882 Contact Us For Availability
6
BODYSIDE PANEL-WHITE WCI 5303051061 Contact Us For Availability
6
BODYSIDE PANEL-ALMOND WCI 5308014019 Contact Us For Availability
7
COVER-GRIDDLE, WHITE WCI 5308013949 Contact Us For Availability
7
COVER GRIDDLE-ALMD WCI 9067 Contact Us For Availability
7
WCI 3131764 WCI 3131764 Contact Us For Availability
7
DRAWER TRACK RH WCI 5303051055 Contact Us For Availability
7
WCI 08068028 WCI 08068028 Contact Us For Availability
7
WCI 10835 WCI 10835 Contact Us For Availability
7A
DRAWER TRACK LH WCI 5303051056 Contact Us For Availability
8
5TH BURNER AERATION PAN WCI 5308013991 Contact Us For Availability
8
WCI 3131765 WCI 3131765 Contact Us For Availability
8
RUBBER BUMPER WCI 3051054 Contact Us For Availability
8
WCI 08011469 WCI 08011469 Contact Us For Availability
8
SHIELD HEAT B/S WCI 3131794 Contact Us For Availability
9
SCREW,8-18 X 3/8 WCI 08016432 Contact Us For Availability
9
NYLON ROLLER WCI 5303051057 Contact Us For Availability
9
SAFETY VALVE WCI 5303017415 Contact Us For Availability
9
INSULATION-OVEN WRAP WCI 3131795 Contact Us For Availability
10
BROIL FEED TUBE WCI 3131866 Contact Us For Availability
10
LINER SIDE RH WCI 3016533 Contact Us For Availability
10A
LINER SIDE LH WCI 3016534 Contact Us For Availability
11
HANDLE DOOR WCI 5303208639 Contact Us For Availability
11
WCI 5308011508 WCI 5308011508 Contact Us For Availability
11
WCI 3016877 WCI 3016877 Contact Us For Availability
12
WCI 10828 WCI 10828 Contact Us For Availability
12
PIN-ELBOW MIXER WCI 5308011470 Contact Us For Availability
12
BRACKET B/B WCI 3131800 Contact Us For Availability
13
WCI 5303209969 WCI 5303209969 Contact Us For Availability
13
CLIP WCI 08068068 Contact Us For Availability
13
NUT & SLEEVE WCI 3131072 Contact Us For Availability
13
WCI 3131802 WCI 3131802 Contact Us For Availability
14
KNOB CLOCK WCI 3205788 Contact Us For Availability
14
WCI 3017414 WCI 3017414 Contact Us For Availability
14
SHIELD OVEN IGNITOR WCI 3131871 Contact Us For Availability
14
BAFFLE BROIL BURNER WCI 3131803 Contact Us For Availability
15
TRIM B/G WCI 5308013930 Contact Us For Availability
15
GLASS INNER WCI 5308013865 Contact Us For Availability
15
LINER OVEN BACK WCI 3200915 Contact Us For Availability
16
OVEN LIGHT CUP WCI 3051511 Contact Us For Availability
16
WCI 5303209968 WCI 5303209968 Contact Us For Availability
16
WCI 3204652 WCI 3204652 Contact Us For Availability
17
WCI 5303271567 WCI 5303271567 Contact Us For Availability
17
BRACE WCI 5308013296 Contact Us For Availability
17
MICRO SWITCH WCI 5303131094 Contact Us For Availability
18
STARTER FLUOR WCI 5308068062 Contact Us For Availability
18
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
19
WCI 08068057 WCI 08068057 Contact Us For Availability
19
WCI 5303210389 WCI 5303210389 Contact Us For Availability
20
WCI 5303210473 WCI 5303210473 Contact Us For Availability
20
TOP BURNER SUPPORT WCI 5303210471 Contact Us For Availability
20
OVEN LIGHT LENS RETAINER WCI 5303205904 Contact Us For Availability
21
TOP BURNER-REAR WCI 5303131079 No Longer Available
21
WCI 08008255 WCI 08008255 Contact Us For Availability
21
SUPPORT-CONTROL PANEL WCI 3205765 Contact Us For Availability
22
TOP BURNER-FRONT WCI 5303131080 Contact Us For Availability
22
BULB FLUORESCENT WCI 5303209973 Contact Us For Availability
22
WCI 3205905 WCI 3205905 Contact Us For Availability
23
WCI 5303015249 WCI 5303015249 Contact Us For Availability
23
IGNITOR-LH BURNER WCI 3203968 Contact Us For Availability
23A
IGNITOR-RH BURNER WCI 5303210548 Contact Us For Availability
23A
OVEN DOOR HINGE LH WCI 3205894 Contact Us For Availability
24
WCI 08008051 WCI 08008051 Contact Us For Availability
24
GRIDDLE BURNER SUPPORT WCI 5303210472 Contact Us For Availability
25
IGNITOR-GRIDDLE WCI 5303210549 Contact Us For Availability
25
WCI 08014023 WCI 08014023 Contact Us For Availability
26
GRIDDLE BURNER WCI 3205792 Contact Us For Availability
26
Rail,base ,RH WCI 5303210255 Contact Us For Availability
26
RAIL-BASE, LH WCI 5303210256 Contact Us For Availability
27
LEVELING LEG WCI 318175510 No Longer Available
27
SHUTOFF VALVE WCI 5303131099 Contact Us For Availability
28
ANTI-TIP KIT WCI 3934059 Contact Us For Availability
29
WCI 5303210390 WCI 5303210390 Contact Us For Availability
30
RETAINER-BOTTOM INSULATION WCI 3131820 Contact Us For Availability
31
LINER OVEN BOTTOM WCI 12055 Contact Us For Availability
32
PAN-OVEN BURNER WCI 5308068046 Contact Us For Availability
33
BAFFLE OVEN BOTTOM WCI 3131823 Contact Us For Availability
34
PLATE OVEN BOTTOM WCI 3016975 Contact Us For Availability
35
OVEN RACK (2) WCI 5303015714 Contact Us For Availability
36
BROILER-PAN WCI 5303016973 Contact Us For Availability
37
GRID-BROILER PAN WCI 5303017712 Contact Us For Availability
38
WCI 3201170 WCI 3201170 Contact Us For Availability
39
WCI 10852 WCI 10852 Contact Us For Availability
40
WCI 5303131832 WCI 5303131832 Contact Us For Availability
41
WCI 10853 WCI 10853 Contact Us For Availability
42
Support,oven rear WCI 3051096 Contact Us For Availability
43
COVER BK WIRE WCI 08068038 Contact Us For Availability
44
COVER CONTROL VALVE WCI 08068039 Contact Us For Availability
45
WCI 5308008071 WCI 5308008071 Contact Us For Availability
46
SWITCH-THERMO CUT OUT WCI 5303131839 Contact Us For Availability
48
WCI 3131840 WCI 3131840 Contact Us For Availability
49
WCI 5303210469 WCI 5303210469 Contact Us For Availability
50
WCI 08068030 WCI 08068030 Contact Us For Availability
51
WCI 5303131843 WCI 5303131843 Contact Us For Availability
53
MICRO SWITCH (2) WCI 5303131846 Contact Us For Availability
54
INSULATOR SWITCH (2) WCI 3017411 Contact Us For Availability
56
SUPPORT ROD MAIN TOP WCI 3051554 Contact Us For Availability
57
BRACKET ROD SUPPORT WCI 6743 Contact Us For Availability
58
WCI 9332 WCI 9332 Contact Us For Availability
59
WCI 5308068040 WCI 5308068040 Contact Us For Availability
60
KNOB LATCH HANDLE WCI 3131851 Contact Us For Availability
61
OVEN DOOR LOCK WCI 5308068025 Contact Us For Availability
62
WCI 3131853 WCI 3131853 Contact Us For Availability
63
CHANNEL - WIRE WCI 3131046 Contact Us For Availability
64
SHIELD DOOR LOCK WCI 08068049 Contact Us For Availability
× ![]()
