Model Electrolux 36-3272-66-10 RANGE – Common Parts & Diagrams

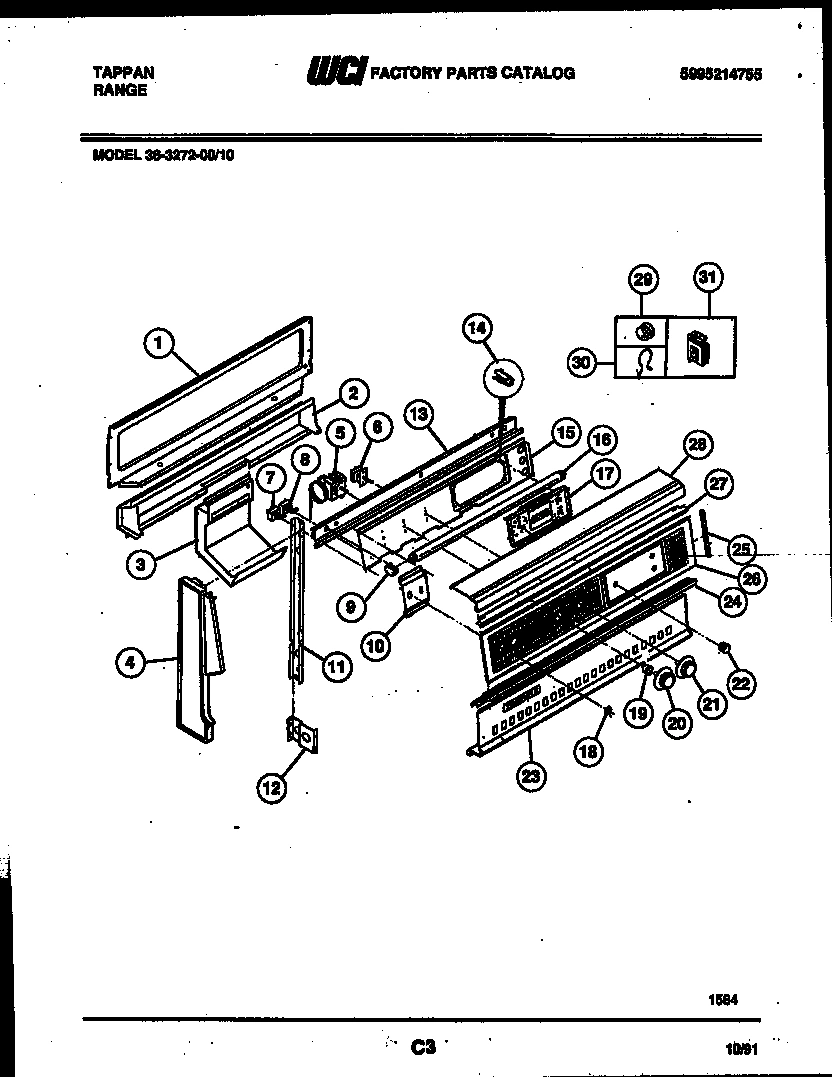

02 - BACKGUARD

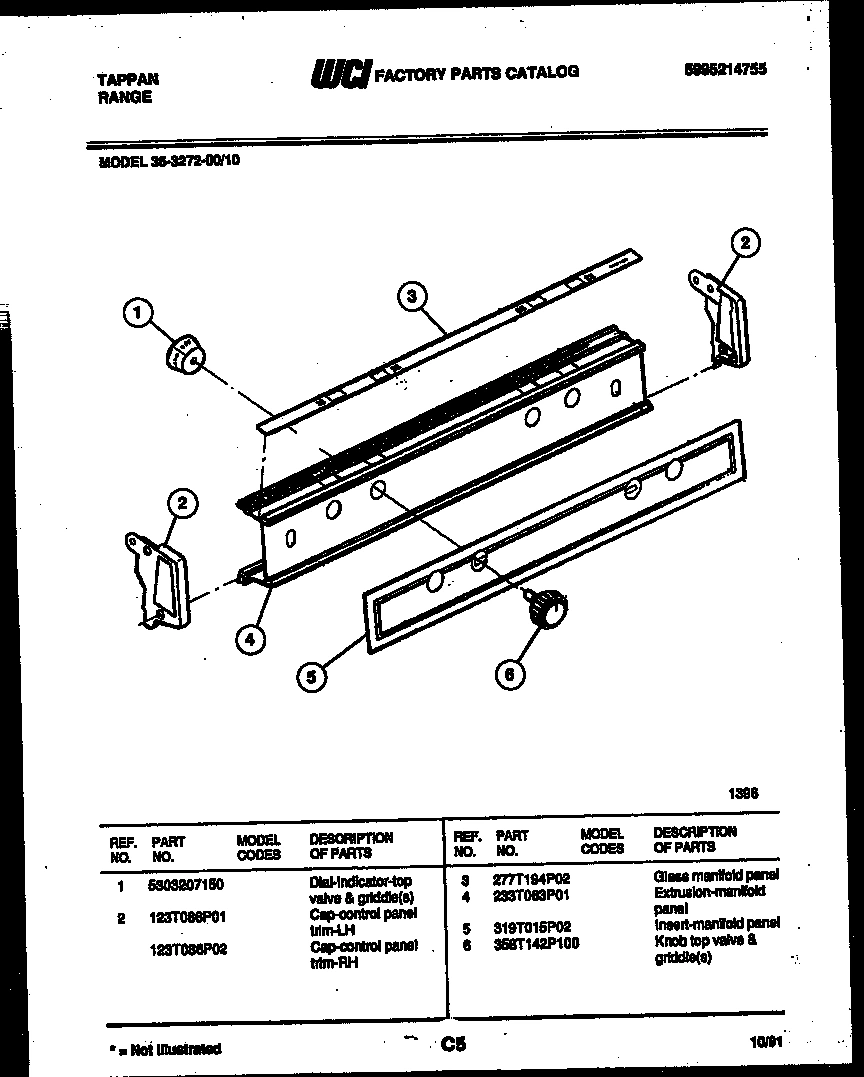

03 - CONTROL PANEL

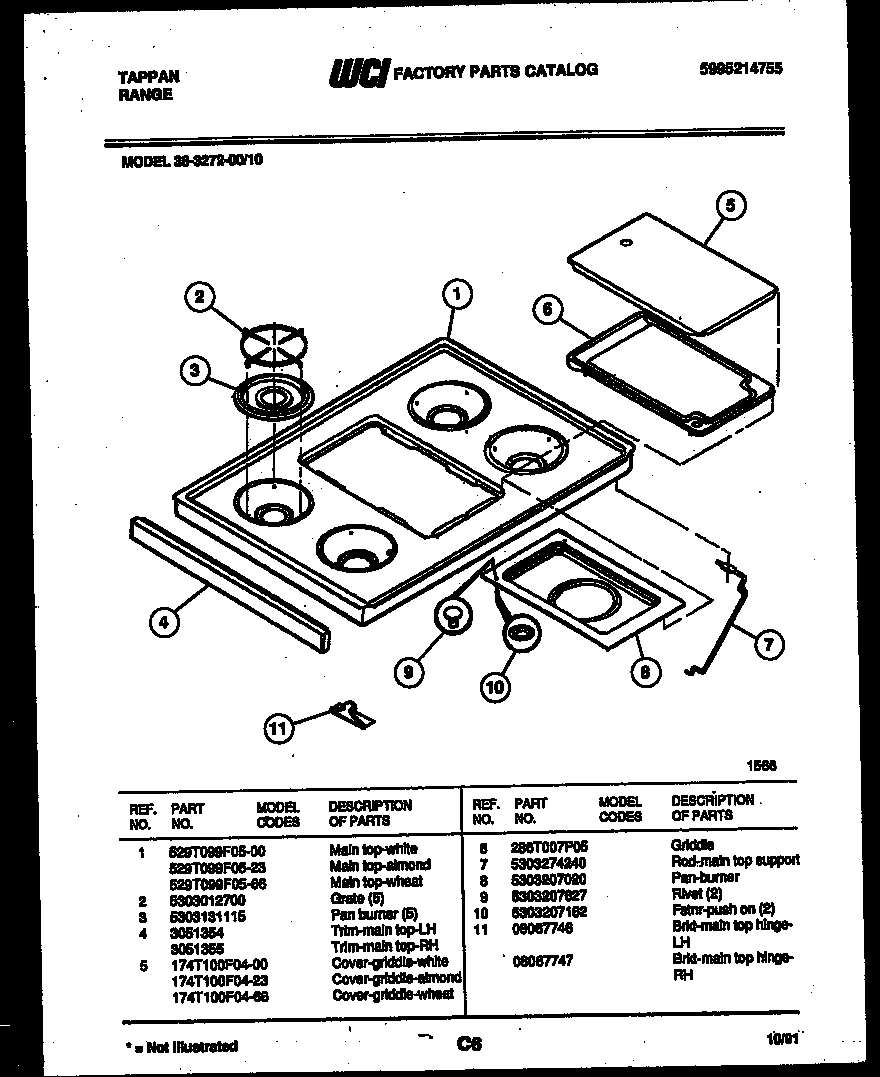

04 - COOKTOP PARTS

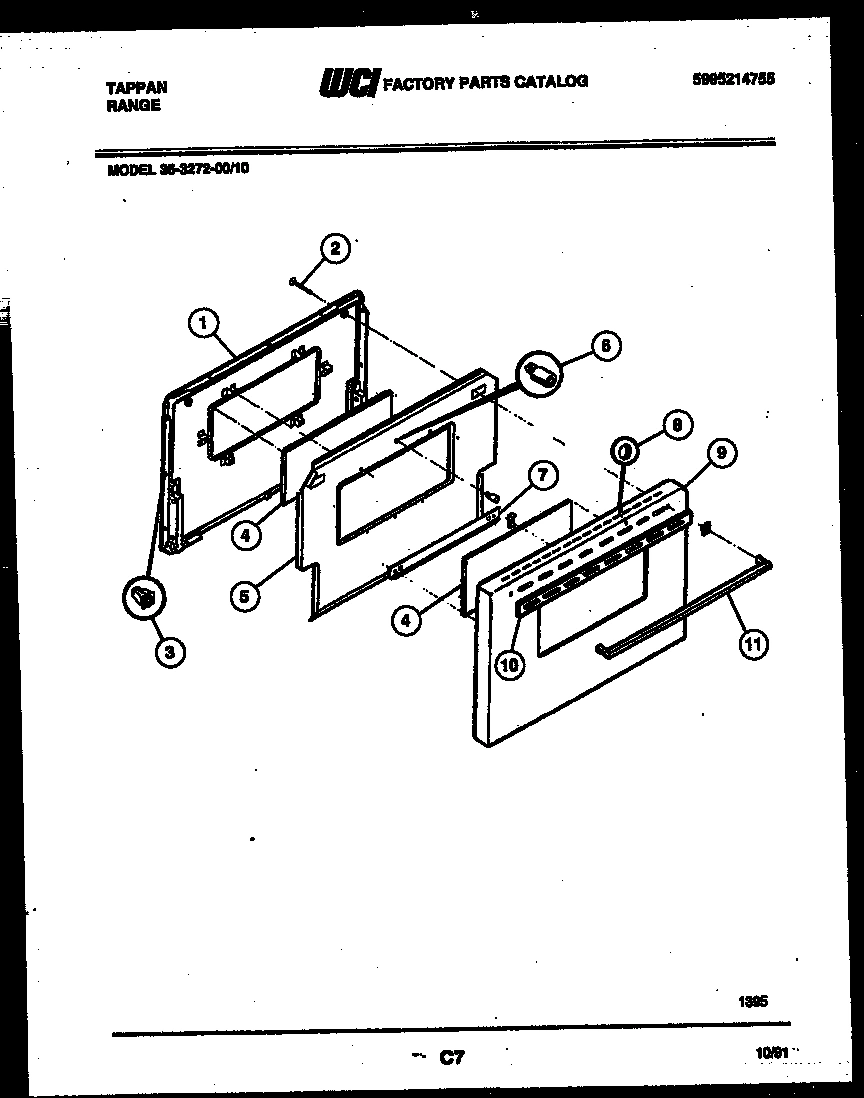

05 - DOOR PARTS

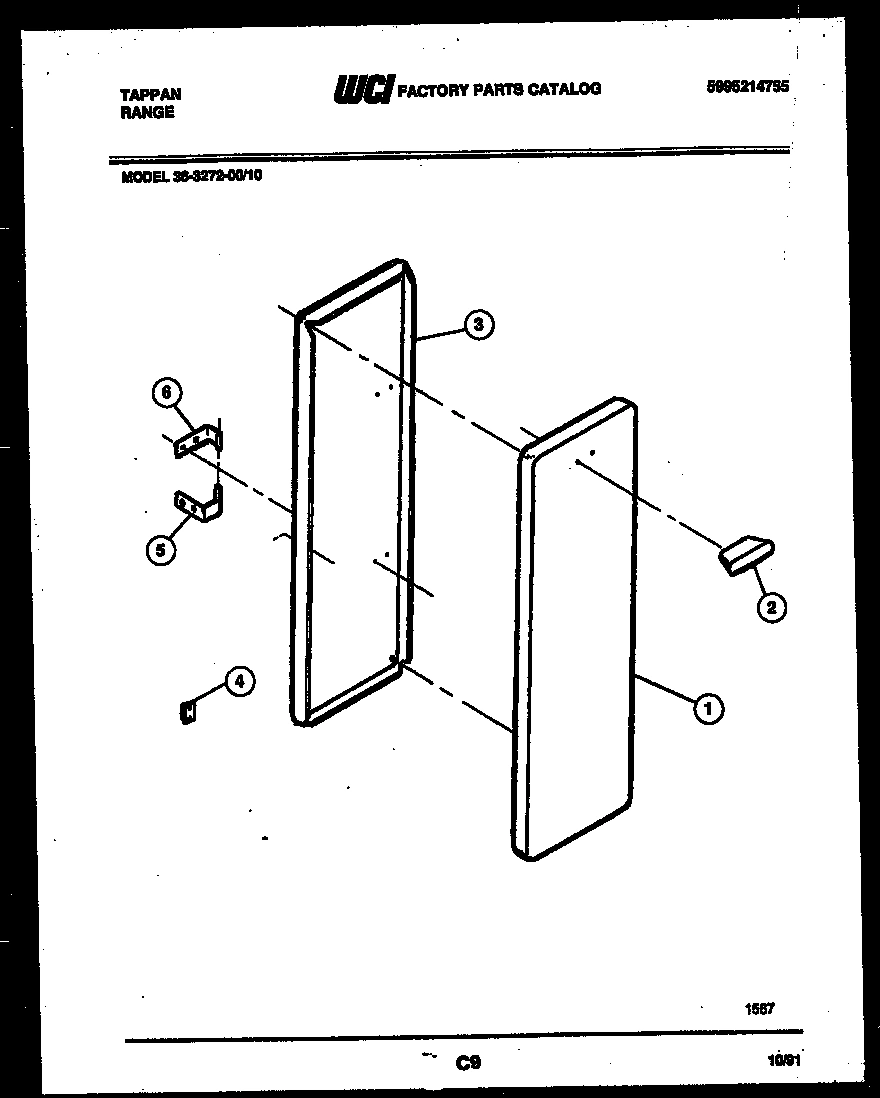

06 - PANEL COMPARTMENT

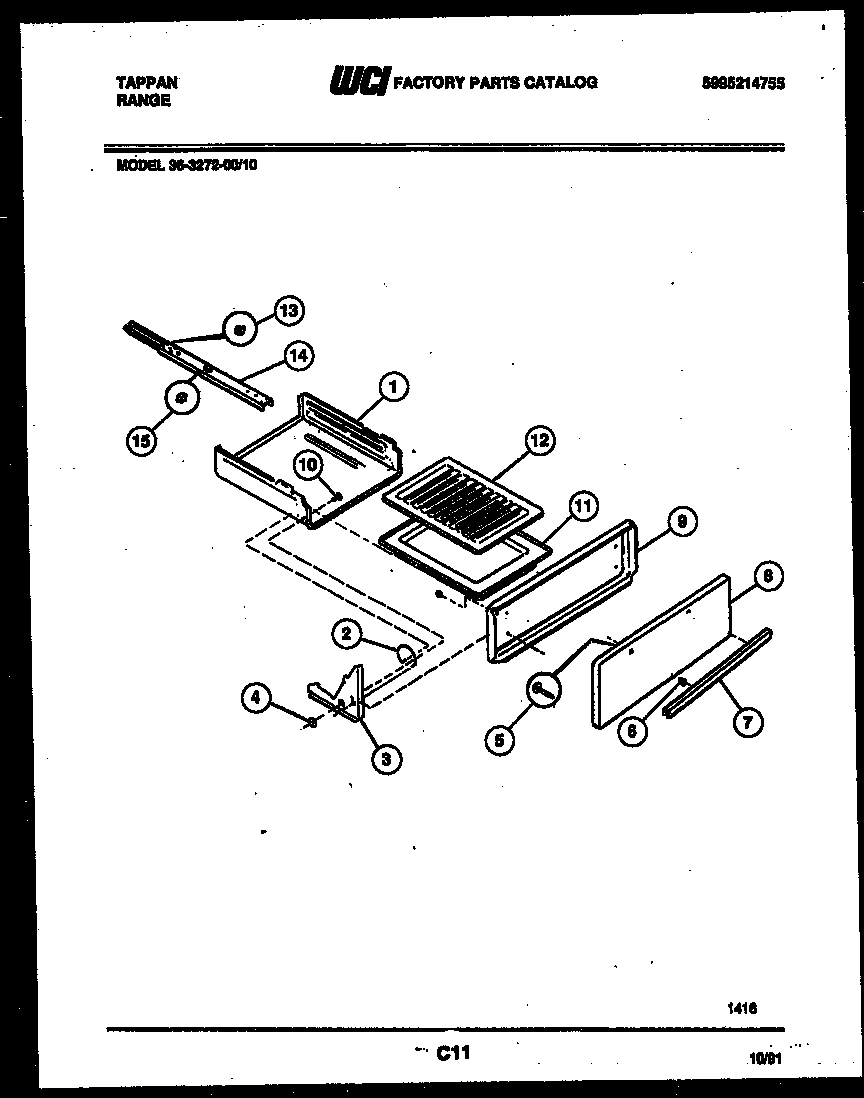

07 - BROILER DRAWER PARTS

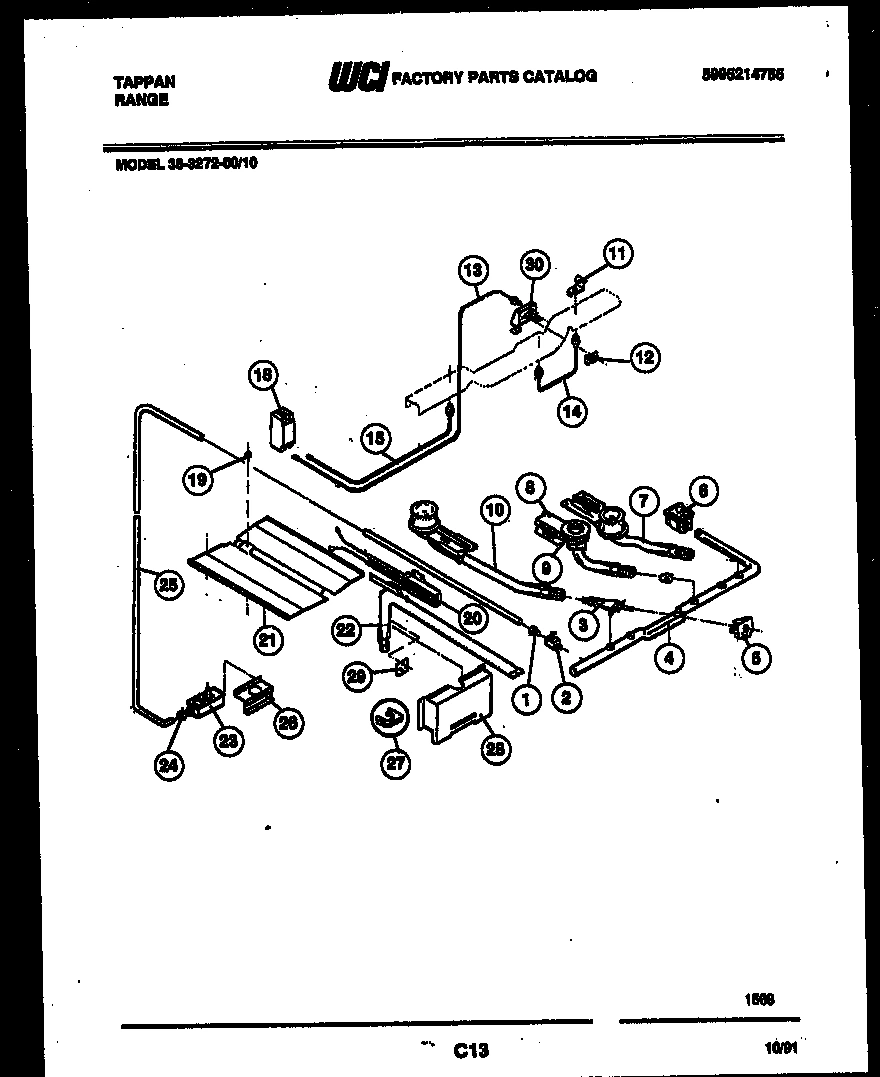

08 - BURNER, MANIFOLD AND GAS CONTROL

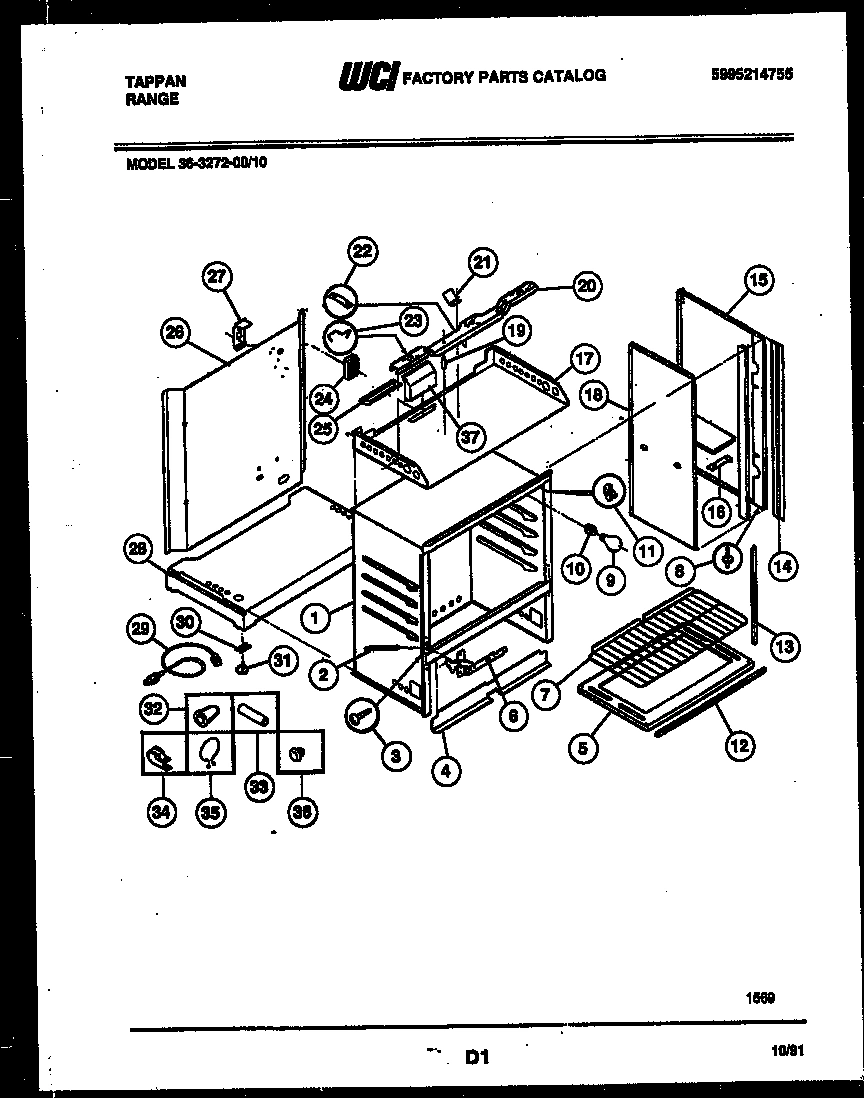

09 - BODY PARTS
Common parts from model Electrolux 36-3272-66-10 RANGE
*60988
BRKT-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
*60991
INSULATION WCI 328T049P29 Contact Us For Availability
*60992
WASHER, DOOR HANDLE (2) WCI 789T053P42 Contact Us For Availability
*61004
WCI 191S020F04 WCI 191S020F04 Contact Us For Availability
1
WCI 5303207150 WCI 5303207150 Contact Us For Availability
1
WCI 529T099F05-66 WCI 529T099F05-66 Contact Us For Availability
1
LINER, OVEN DOOR WCI 381T086W06-86 Contact Us For Availability
1
PNL COMPARTMENT-WHEAT WCI 519T020W04-66 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
SPRING-OVEN DOOR CAM (2) WCI 5303207650 Contact Us For Availability
2
WCI 123T086P01 WCI 123T086P01 Contact Us For Availability
2
WCI 5303207638 WCI 5303207638 Contact Us For Availability
2
WCI 3587117P01 WCI 3587117P01 Contact Us For Availability
2
WCI 3018618 WCI 3018618 Contact Us For Availability
2
VALVE, SHUT OFF WCI 774T121P01 Contact Us For Availability
2A
WCI 123T086P02 WCI 123T086P02 Contact Us For Availability
2A
WCI 789T053P18 WCI 789T053P18 Contact Us For Availability
2A
WCI 3018619 WCI 3018619 Contact Us For Availability
3
PAN-BURNER (5) WCI 5303131115 No Longer Available
3
WCI 277T194P02 WCI 277T194P02 Contact Us For Availability
3
FSTNR PUSH-NUT WCI 5303131254 Contact Us For Availability
3
LINER, COMPARTMENT DOOR WCI 381T068F03-18 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
WCI 5303208062 WCI 5303208062 Contact Us For Availability
3
SCREW, SHOULDER (2) WCI 636T066P06 Contact Us For Availability
3A
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
4
WCI 233T063P01 WCI 233T063P01 Contact Us For Availability
4
WCI 3051354 WCI 3051354 Contact Us For Availability
4
GLASS-OVEN DOOR-FRONT AND BACK WCI 5303207138 Contact Us For Availability
4
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
4
LATCH-COMPARTMENT DOOR WCI 5303207538 Contact Us For Availability
4
WCI 439T053P02 WCI 439T053P02 Contact Us For Availability
4
SHIELD, WOOL WCI 655T308F02 Contact Us For Availability
4A
WCI 3051355 WCI 3051355 Contact Us For Availability
5
WCI 319T015P02 WCI 319T015P02 Contact Us For Availability
5
WCI 174T100F04-66 WCI 174T100F04-66 Contact Us For Availability
5
WCI 3131543 WCI 3131543 Contact Us For Availability
5
HINGE DOOR-LOWER/PIN-MOUNT TO CHASS WCI 302T028P01 Contact Us For Availability
5
WCI 5303206950 WCI 5303206950 Contact Us For Availability
5A
SCREW, BOTTOM (NON-ILLUSTRATED) WCI 636T134P01 Contact Us For Availability
6
CAM-OVEN DOOR-LH WCI 5303205939 Contact Us For Availability
6
CONTROL REGUL WCI 5303016997 Contact Us For Availability
6
KNOB TOP VALVE & GRIDDLE(S) WCI 358T142P100 Contact Us For Availability
6
GRIDDLE WCI 286T007P05 Contact Us For Availability
6
FSTNR - NYLON SPACER WCI 241T017P180 Contact Us For Availability
6
HINGE (MOUNT TO DOOR) WCI 302T027P01 Contact Us For Availability
6
WASHER (2) WCI 789T053P12 Contact Us For Availability
6A
CAM-OVEN DOOR-RH WCI 5303205940 Contact Us For Availability
6B
WCI 355T588S01 WCI 355T588S01 Contact Us For Availability
7
WCI 5303204154 WCI 5303204154 Contact Us For Availability
7
WCI 5303274240 WCI 5303274240 Contact Us For Availability
7
WCI 3131540 WCI 3131540 Contact Us For Availability
7
WCI 296T081S01 WCI 296T081S01 Contact Us For Availability
7
RACK, OVEN (2) WCI 591T073P02 Contact Us For Availability
8
WCI 5303207020 WCI 5303207020 Contact Us For Availability
8
PNL BROILER DRWR-WHEAT WCI 517T003W41-66 Contact Us For Availability
8
BURNER-TOP GRIDDLE COMPL WCI 750T141S05 Contact Us For Availability
8
WCI 08010603 WCI 08010603 Contact Us For Availability
9
WCI 5303207627 WCI 5303207627 Contact Us For Availability
9
PNL-OVEN DOOR-WHEAT WCI 533T051W09-66 Contact Us For Availability
9
LINER BROILER DRWR WCI 381T077F04-86 Contact Us For Availability
9
WCI 5300007473 WCI 5300007473 Contact Us For Availability
10
WCI 5303207162 WCI 5303207162 Contact Us For Availability
10
WCI 740T410P01 WCI 740T410P01 Contact Us For Availability
10
WCI 3018614 WCI 3018614 Contact Us For Availability
10
WCI 5303204155 WCI 5303204155 Contact Us For Availability
10
WCI 662T012P11 WCI 662T012P11 Contact Us For Availability
11
BRKT-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
11
WCI 3012727 WCI 3012727 Contact Us For Availability
11
PAN-BROILER WCI 5303013568 Contact Us For Availability
12
WCI 5303131356 WCI 5303131356 Contact Us For Availability
12
RETAINER-IGNITOR WCI 5303281925 Contact Us For Availability
12
SEAL-DOOR TOP & BOTTOM (2) WCI 647T068P02 Contact Us For Availability
13
WCI 5303207593 WCI 5303207593 Contact Us For Availability
13
WCI 106T027P02 WCI 106T027P02 Contact Us For Availability
13
WCI 5303207566 WCI 5303207566 Contact Us For Availability
14
CHANNEL, GLIDE (2) WCI 136T281S05 Contact Us For Availability
14
WCI 5303206944 WCI 5303206944 Contact Us For Availability
14
WCI 08010602 WCI 08010602 Contact Us For Availability
15
WCI 554T359F02 WCI 554T359F02 Contact Us For Availability
15
BUTTON, GLIDE WCI 106T028P01 Contact Us For Availability
15
WCI 5303206942 WCI 5303206942 Contact Us For Availability
15
WCI 515T047F14-66 WCI 515T047F14-66 Contact Us For Availability
15A
WCI 515T047F15-66 WCI 515T047F15-66 Contact Us For Availability
16
LAMP FLUOR WCI 3131275 Contact Us For Availability
16
CHANNEL, STIFFENER WCI 136T216F01-18 Contact Us For Availability
17
CLOCK-DIGITAL WCI 5303207810 Contact Us For Availability
17
WCI 5303269825 WCI 5303269825 Contact Us For Availability
18
WCI 045T064P02 WCI 045T064P02 Contact Us For Availability
18
WCI 048T010F02-18 WCI 048T010F02-18 Contact Us For Availability
19
BUSHING-C/P GLASS WCI 5308010401 Contact Us For Availability
19
SPACER, SUPPORT CHANNEL WCI 665T072P06 Contact Us For Availability
20
WCI 358T169S08 WCI 358T169S08 Contact Us For Availability
20
CHANNEL, BURNER SUPPORT WCI 136T300F03-18 Contact Us For Availability
21
WCI 358T142P107 WCI 358T142P107 Contact Us For Availability
21
BAFFLE-OVEN BTTM WCI 5303131517 Contact Us For Availability
21
REFLECTOR, GRIDDLE BURNER WCI 600T014F01 Contact Us For Availability
22
WCI 08010404 WCI 08010404 Contact Us For Availability
22
WCI 5303208304 WCI 5303208304 Contact Us For Availability
23
WCI 5303912679 No Longer Available
23
WCI 740T484P02 WCI 740T484P02 Contact Us For Availability
23
RETAINER, OVEN BURNER WCI 612T094P01 Contact Us For Availability
24
WCI 233T088P02 WCI 233T088P02 Contact Us For Availability
24
LOXIT FITTING WCI 247T079P01 Contact Us For Availability
24
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
25
TRIM-END CONTROL PNL GLASS (2) WCI 740T097F13 Contact Us For Availability
25
TUBE, OVEN SUPPLY WCI 750T095P12 Contact Us For Availability
25
SHIELD, WOOL WCI 3131536 Contact Us For Availability
26
WCI 277T207P01 WCI 277T207P01 Contact Us For Availability
26
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
26
WCI 3131516 WCI 3131516 Contact Us For Availability
27
WCI 612T105F04 WCI 612T105F04 Contact Us For Availability
27
FSTNR OVEN SAFETY VALVE WCI 241T017P216 Contact Us For Availability
27
WCI 072T612F02 WCI 072T612F02 Contact Us For Availability
28
WCI 740T481P02 WCI 740T481P02 Contact Us For Availability
28
COVER, SAFETY VALVE WCI 174T300F01 Contact Us For Availability
28
WCI 036T052W05-18 WCI 036T052W05-18 Contact Us For Availability
29
WCI 287T003P09 WCI 287T003P09 Contact Us For Availability
29
TERMINAL, BLOCK WCI 709T041P01 Contact Us For Availability
29
WCI 171T021P07 WCI 171T021P07 Contact Us For Availability
29A
WCI 008T276F05-18 WCI 008T276F05-18 Contact Us For Availability
29B
PLATE - BURNER MTG (NON-ILLUSTRATED) WCI 3131535 Contact Us For Availability
30
WCI 142T033P01 WCI 142T033P01 Contact Us For Availability
30
BRKT IGNITER WCI 5303281926 Contact Us For Availability
30
FSTNR-TEE NUT LEVELING LEG WCI 241T017P10 Contact Us For Availability
31
WCI 5303203397 WCI 5303203397 Contact Us For Availability
31
WCI 5308010397 WCI 5308010397 Contact Us For Availability
32
COVER, SCREW TIP WCI 174T133P02 Contact Us For Availability
33
WCI 3200523 WCI 3200523 Contact Us For Availability
34
FSTNR - CLAMP WCI 241T017P128 Contact Us For Availability
35
FSTNR WCI 241T017P238 Contact Us For Availability
36
WCI 5308010594 WCI 5308010594 Contact Us For Availability
36A
INSULATION (TOP & SIDE) (NON-ILLUSTRATED) WCI 3200323 Contact Us For Availability
36B
INSULATION-BACK (NON-ILLUSTRATED) WCI 5303200320 Contact Us For Availability
36C
INSULATION CHANNEL (NON-ILLUSTRATED) WCI 328T015P15 Contact Us For Availability
36D
ANTI-TIP BRKT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
37
WCI 3016789 WCI 3016789 Contact Us For Availability
× ![]()
