Model Electrolux 36-3272-66-08 RANGE – Common Parts & Diagrams

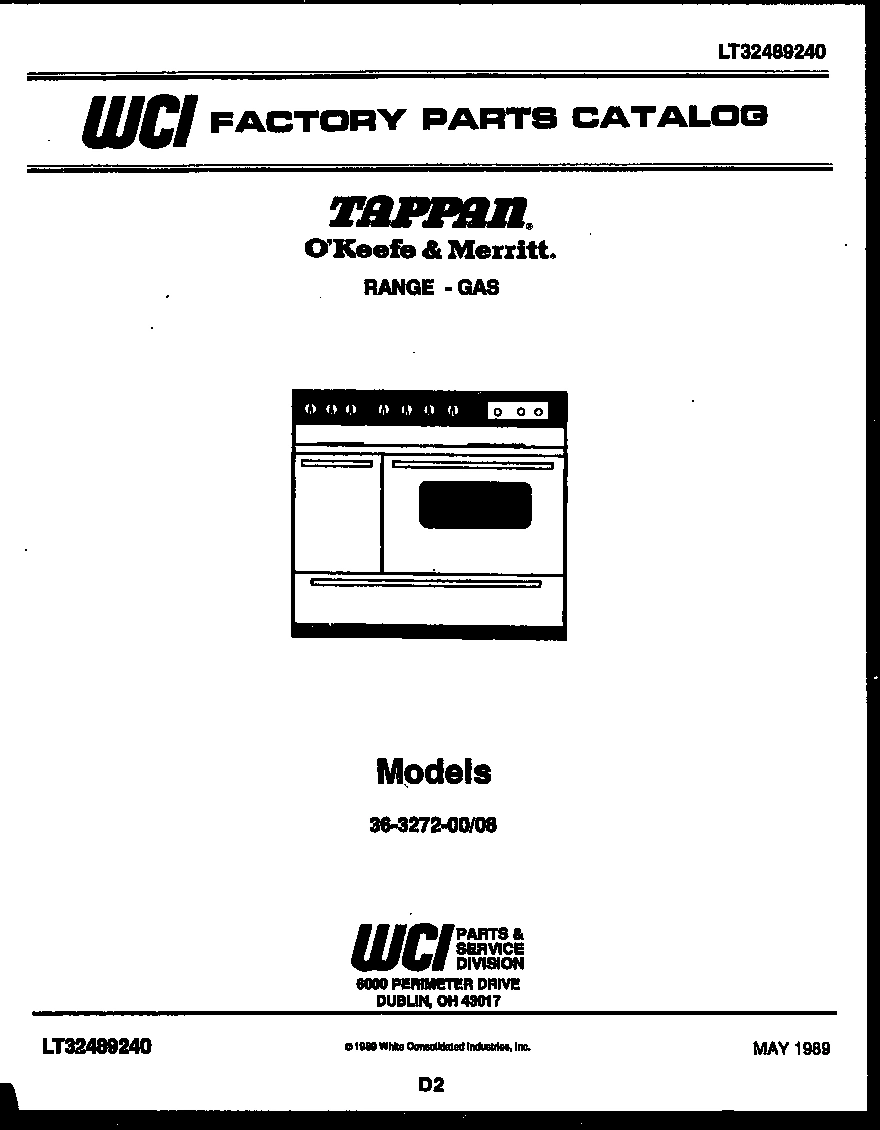

01 - COVER

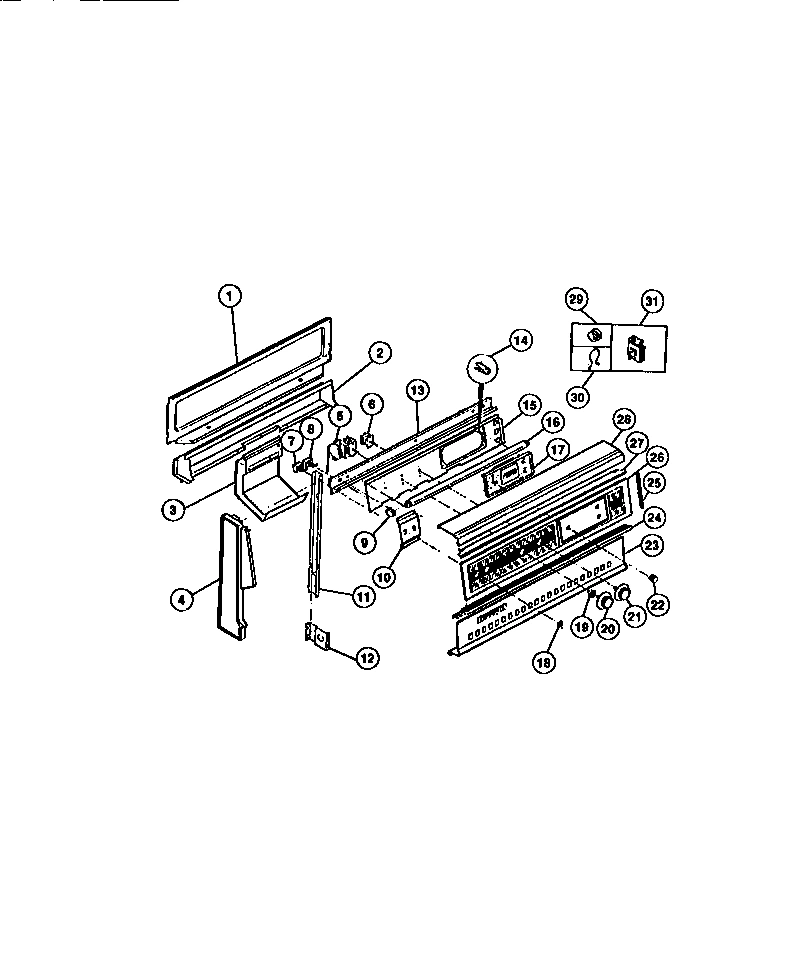

02 - BACKGUARD

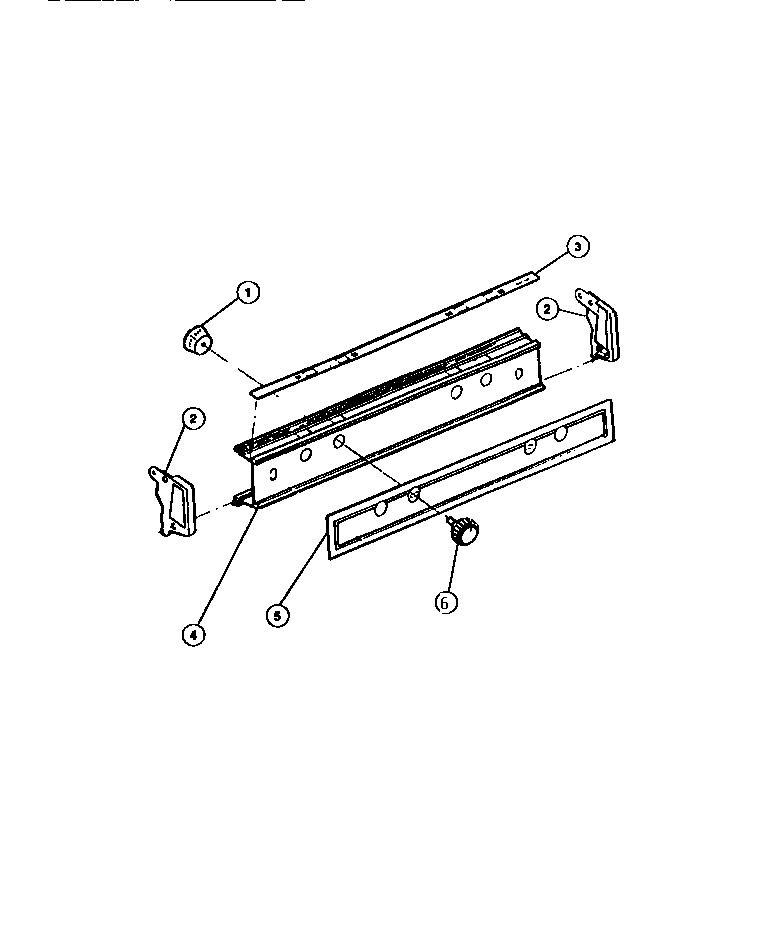

03 - CONTROL PANEL

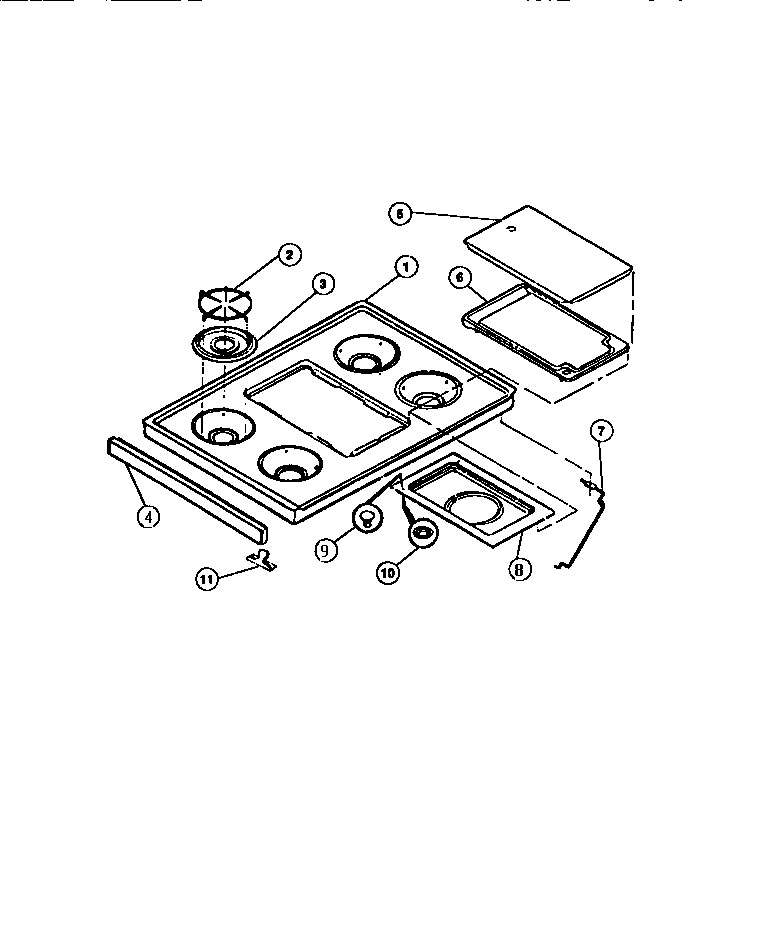

04 - COOKTOP PARTS

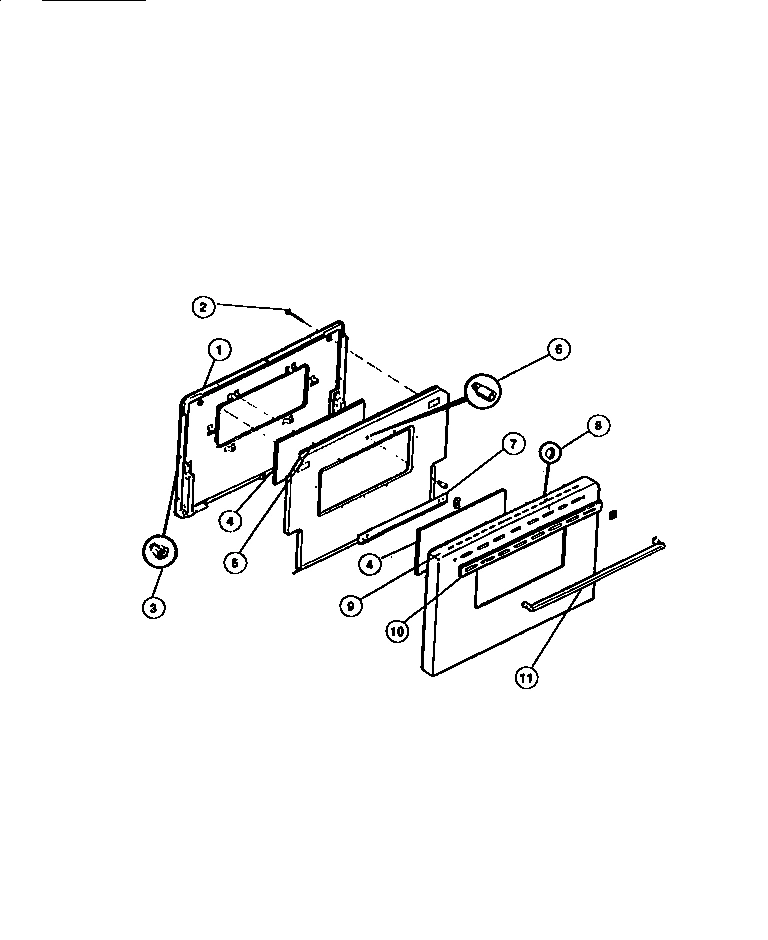

05 - DOOR PARTS

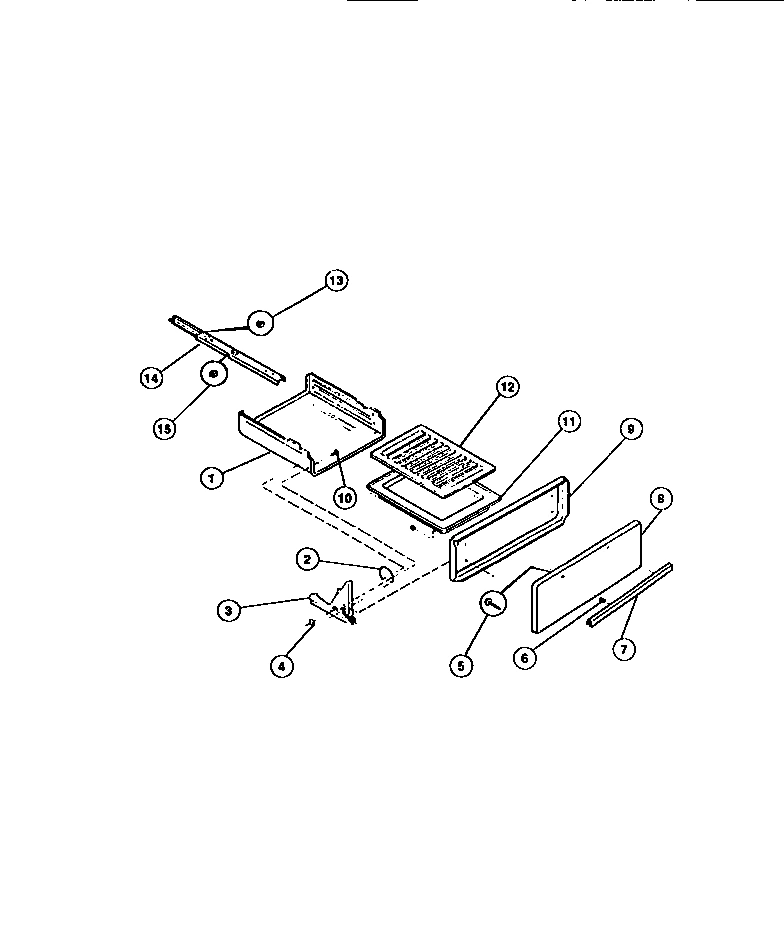

06 - BROILER DRAWER PARTS

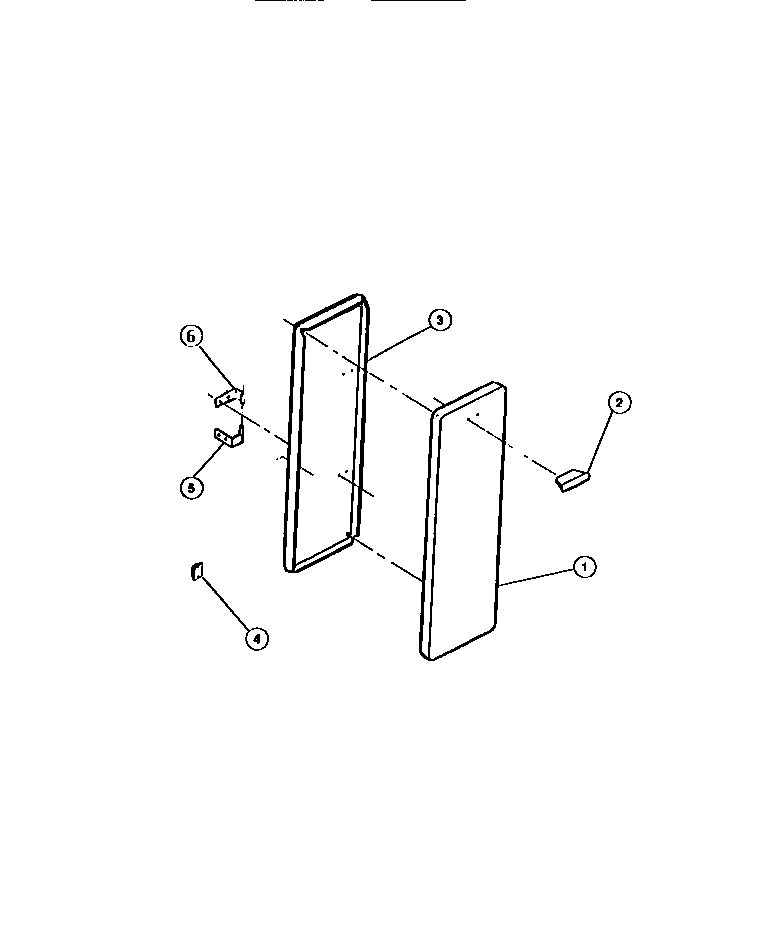

07 - PANEL COMPARTMENT

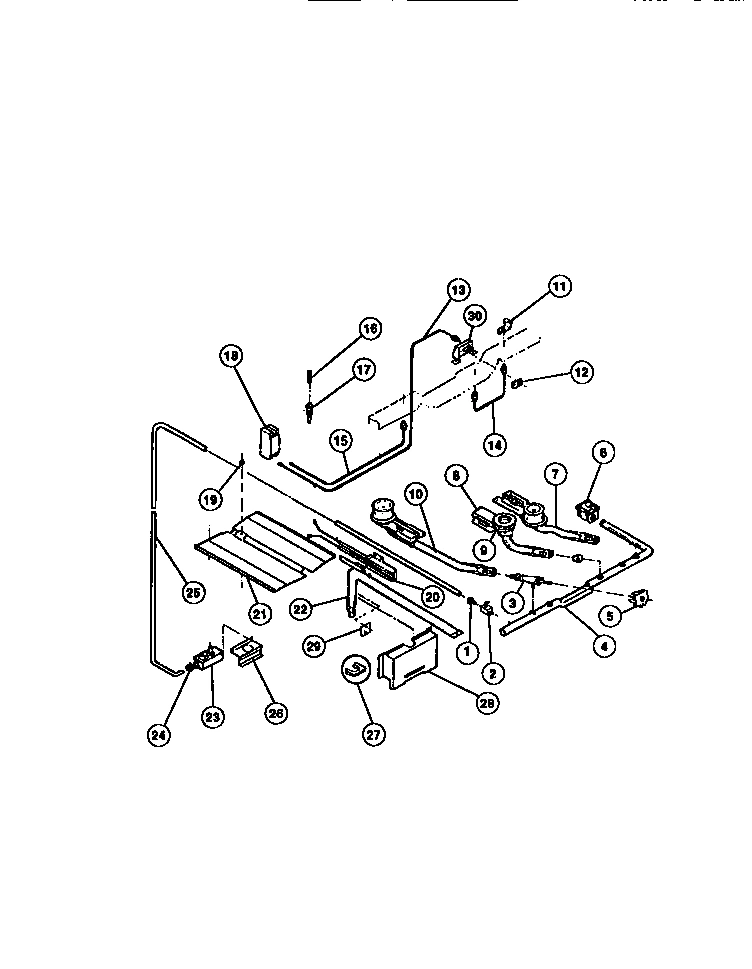

08 - BURNER, MANIFOLD AND GAS CONTROL

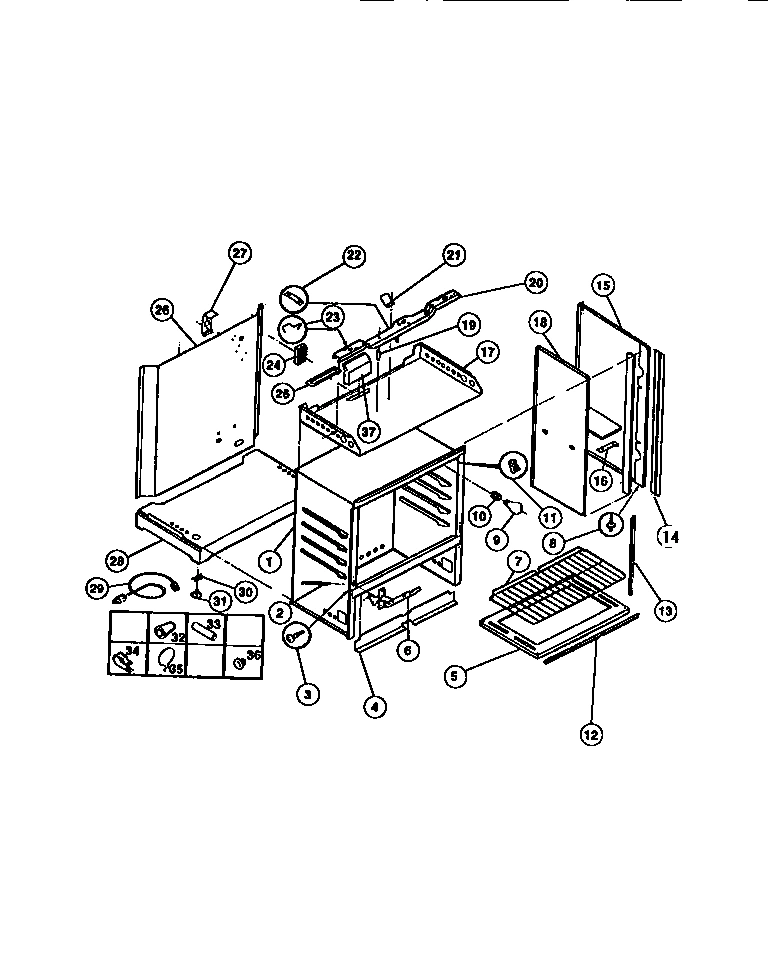

09 - BODY PARTS
Common parts from model Electrolux 36-3272-66-08 RANGE
*23254
BRKT MAIN TOP HINGE-LH WCI 3131286 Contact Us For Availability
*23254
BRKT MAIN TOP HINGE-RH WCI 3131287 Contact Us For Availability
*23257
WCI 328T049P29 WCI 328T049P29 Contact Us For Availability
1
DIAL-INDICATOR TOP & GRIDDLE BURNER (5) WCI 196T034P02 Contact Us For Availability
1
LINER, OVEN DOOR WCI 381T086W06-86 Contact Us For Availability
1
DRAWER-BROILER WCI 205T004W01-86 Contact Us For Availability
1
WCI 519T020W04-66 WCI 519T020W04-66 Contact Us For Availability
2
WCI 358T117P01 No Longer Available
2
WCI 123T086P01 WCI 123T086P01 Contact Us For Availability
2
SCREW-HANDLE (2) WCI 636T138P03 Contact Us For Availability
2
WCI 3018618 WCI 3018618 Contact Us For Availability
2
VALVE, SHUT OFF WCI 774T121P01 Contact Us For Availability
2
SPRING, OVEN DOOR CAM (2) WCI 675T041P01 Contact Us For Availability
2A
WCI 123T086P02 WCI 123T086P02 Contact Us For Availability
2A
WASHER-HANDLE SCREW (2) WCI 789T053P42 Contact Us For Availability
2A
WCI 3018619 WCI 3018619 Contact Us For Availability
2A
WCI 789T053P18 WCI 789T053P18 Contact Us For Availability
2B
SCREW HANDLE (2) (NON-ILLUSTRATED) WCI 636T140P01 Contact Us For Availability
3
WCI 277T194P01 WCI 277T194P01 Contact Us For Availability
3
WCI 529T099F05-66 WCI 529T099F05-66 Contact Us For Availability
3
FSTNR. PUSH-IN SPACER WCI 241T017P174 Contact Us For Availability
3
WCI 072T695F03-08 WCI 072T695F03-08 Contact Us For Availability
3
WCI 381T068F03-18 WCI 381T068F03-18 Contact Us For Availability
3
WCI 744T099P05 WCI 744T099P05 Contact Us For Availability
3
SCREW, SHOULDER (2) WCI 636T066P06 Contact Us For Availability
3A
WCI 072T695F04-08 WCI 072T695F04-08 Contact Us For Availability
3A
LATCH-COMPARTMENT DOOR (NON-ILLUSTRATED) WCI 368T028P02 Contact Us For Availability
4
WCI 655T389W03-18 WCI 655T389W03-18 Contact Us For Availability
4
EXTRUSION-MANIFOLD CONTROL PNL. WCI 233T063P01 Contact Us For Availability
4
WCI 3051354 WCI 3051354 Contact Us For Availability
4
WCI 276T088P01 WCI 276T088P01 Contact Us For Availability
4
FSNTR. PUSH NUT (2) WCI 3131386 Contact Us For Availability
4
WCI 439T053P02 WCI 439T053P02 Contact Us For Availability
4
SHIELD, WOOL WCI 655T308F02 Contact Us For Availability
4A
WCI 3051355 WCI 3051355 Contact Us For Availability
4A
WCI 008T276F05-18 WCI 008T276F05-18 Contact Us For Availability
5
THERMOSTAT WCI 722T038P03 Contact Us For Availability
5
INSERT-MANIFOLD CONTROL PANEL WCI 319T015P02 Contact Us For Availability
5
WCI 174T100F04-66 WCI 174T100F04-66 Contact Us For Availability
5
SHIELD-WOOL-BLACK WCI 3131543 Contact Us For Availability
5
HINGE DR. LOWER WCI 302T028P01 Contact Us For Availability
5
WCI 058T035F01-86 WCI 058T035F01-86 Contact Us For Availability
5A
SCREW-OVEN BTTM. (NON-ILLUSTRATED) WCI 636T134P01 Contact Us For Availability
6
KNOB-TOP VALVE & GRIDDLE (5) WCI 358T142P100 Contact Us For Availability
6
WCI 697T032P09 WCI 697T032P09 Contact Us For Availability
6
WCI 286T007P05 WCI 286T007P05 Contact Us For Availability
6
FSTNR.-PUSH NUT WCI 241T017P180 Contact Us For Availability
6
WASHER (2) WCI 789T053P12 Contact Us For Availability
6
HINGE DR. UPPER WCI 302T027P01 Contact Us For Availability
6
MIXER-AIR-TOP BURNER WCI 451R001P01 Contact Us For Availability
6
CAM, OVEN DOOR, LH WCI 117T013S13 Contact Us For Availability
6A
CAM, OVEN DOOR, RH WCI 117T013S14 Contact Us For Availability
6B
WCI 355T588S01 WCI 355T588S01 Contact Us For Availability
7
SWITCH-PANEL LIGHT TOGGLE WCI 695T167P01 Contact Us For Availability
7
ROD, MAIN TOP SUPPORT WCI 3013818 Contact Us For Availability
7
WCI 3131540 WCI 3131540 Contact Us For Availability
7
WCI 296T081P01 WCI 296T081P01 Contact Us For Availability
7
CONTROL REGUL. WCI 3016997 Contact Us For Availability
8
SWITCH-OVEN LIGHT TOGGLE WCI 695T165P01 Contact Us For Availability
8
PAN-GRIDDLE (COMB.) WCI 540T015F01-08 Contact Us For Availability
8
WCI 517T003T41-66 WCI 517T003T41-66 Contact Us For Availability
8
WCI 080T015P01 WCI 080T015P01 Contact Us For Availability
8
RACK, OVEN (2) WCI 591T073P02 Contact Us For Availability
9
RECEPT. FLUOR. RT WCI 597T037P20 Contact Us For Availability
9
RIVET-FSTNR. PUSH-ON WCI 615T034P04 Contact Us For Availability
9
PANEL, OVEN DOOR (WHEAT) WCI 533T051W09-66 Contact Us For Availability
9
LINER BROILER DRWR WCI 381T077F04-86 Contact Us For Availability
9
BURNER-TOP GRIDDLE WCI 750T141S05 Contact Us For Availability
9
WCI 550T034P01 WCI 550T034P01 Contact Us For Availability
9A
RECEPT. FLUOR. LT WCI 3204169 Contact Us For Availability
10
PLATE-INSTR MTG WCI 554T359F04 Contact Us For Availability
10
FSTNR. PUSH-ON WCI 241T017P210 Contact Us For Availability
10
TRIM-OVEN DOOR WCI 740T410P01 Contact Us For Availability
10
WCI 3018614 WCI 3018614 Contact Us For Availability
10
WCI 077T001P01 WCI 077T001P01 Contact Us For Availability
11
CHANNEL-BACKGUARD MTG. (2) WCI 136T319F01 Contact Us For Availability
11
HANDLE WCI 3012727 Contact Us For Availability
11
WCI 3013568 WCI 3013568 Contact Us For Availability
11
BURNER,TOP REAR (2) WCI 080T013P02 Contact Us For Availability
11
WCI 662T012P11 WCI 662T012P11 Contact Us For Availability
12
WCI 072T637F01 WCI 072T637F01 Contact Us For Availability
12
WCI 3131356 WCI 3131356 Contact Us For Availability
12
WCI 612T110F01 WCI 612T110F01 Contact Us For Availability
13
WCI 008T474F02 WCI 008T474F02 Contact Us For Availability
13
WCI 106T027P02 WCI 106T027P02 Contact Us For Availability
13
SEAL-DOOR-TOP & BOTTOM WCI 647T068P02 Contact Us For Availability
14
WCI 08012029 WCI 08012029 Contact Us For Availability
14
CHANNEL-GLIDE (LOWER) WCI 136T281F05 Contact Us For Availability
14
WCI 072T781F01 WCI 072T781F01 Contact Us For Availability
14
WCI 115T647P03 WCI 115T647P03 Contact Us For Availability
15
PLATE-INSTRUMENT MTG. WCI 554T359F03 Contact Us For Availability
15
CHANNEL GLIDE (UPPER) WCI 136T282F04 Contact Us For Availability
15
WCI 036T049S10 WCI 036T049S10 Contact Us For Availability
15
TRIM-BODY PANEL (VERTICAL) WCI 740T431F01 Contact Us For Availability
16
LAMP FLUOR WCI 3131275 Contact Us For Availability
16
BUTTON PLUG WCI 106T028P01 Contact Us For Availability
16
WCI 036T049S14 WCI 036T049S14 Contact Us For Availability
16
PANEL BODYSIDE (LH)-WHEAT WCI 515T047F14-66 Contact Us For Availability
16A
PANEL BODYSIDE (RH)-WHEAT WCI 515T047F15-66 Contact Us For Availability
17
CLOCK, DIGITAL WCI 148T149P15 Contact Us For Availability
17
WCI 036T049S11 WCI 036T049S11 Contact Us For Availability
18
WCI 045T064P02 WCI 045T064P02 Contact Us For Availability
18
FUSE WCI 3131297 Contact Us For Availability
19
WCI 102T019P01 WCI 102T019P01 Contact Us For Availability
19
WCI 597T034P03 WCI 597T034P03 Contact Us For Availability
19
CHANNEL-STIFFENER (MAINBACK) WCI 136T216F01-18 Contact Us For Availability
19A
CAP-FUSE RECEPT. (NON-ILLUSTRATED) WCI 123T126P01 Contact Us For Availability
19B
SEAL-``0`` RING (NON-ILLUSTRATED) WCI 3018863 Contact Us For Availability
20
KNOB-THERMOSTAT WCI 358T169S08 Contact Us For Availability
20
WCI 653T013F03-18 WCI 653T013F03-18 Contact Us For Availability
21
WCI 358T142P107 WCI 358T142P107 Contact Us For Availability
21
WCI 095T025W04-86 WCI 095T025W04-86 Contact Us For Availability
22
KNOB-CLOCK WCI 358T146P01 Contact Us For Availability
23
WCI 740T484P02 WCI 740T484P02 Contact Us For Availability
23
WCI 3131517 WCI 3131517 Contact Us For Availability
23
WCI 048T010F02-18 WCI 048T010F02-18 Contact Us For Availability
24
WCI 233T088P02 WCI 233T088P02 Contact Us For Availability
24
WCI 774T117P04 WCI 774T117P04 Contact Us For Availability
24
SPACER-BURNER SUPPORT CHANNEL WCI 665T072P06 Contact Us For Availability
25
TRIM-END CONTROL PANEL GLASS WCI 740T097F13 Contact Us For Availability
25
LOXIT NUT - SHUT OFF & SAFETY VALVE WCI 247T079P01 Contact Us For Availability
25
WCI 136T300F01-18 WCI 136T300F01-18 Contact Us For Availability
26
WCI 277T207P01 WCI 277T207P01 Contact Us For Availability
26
TUBE, OVEN SUPPLY WCI 750T095P12 Contact Us For Availability
26
REFLECTOR, GRIDDLE BURNER WCI 600T014F01 Contact Us For Availability
27
WCI 612T105F04 WCI 612T105F04 Contact Us For Availability
27
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
28
WCI 740T481P02 WCI 740T481P02 Contact Us For Availability
28
FSTNR OVEN SAFETY VALVE WCI 241T017P216 Contact Us For Availability
28
RETAINER, OVEN BURNER WCI 612T094P01 Contact Us For Availability
29
WCI 287T003P09 WCI 287T003P09 Contact Us For Availability
29
COVER, SAFETY VALVE WCI 174T300F01 Contact Us For Availability
29
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
30
CLAMP-CABLE WCI 142T033P01 Contact Us For Availability
30
TERMINAL BLOCK-IGN. WCI 709T041P01 Contact Us For Availability
30
WCI 3131536 WCI 3131536 Contact Us For Availability
31
WCI 030T012P01 WCI 030T012P01 Contact Us For Availability
31
WCI 079T025P13 WCI 079T025P13 Contact Us For Availability
31
FLUE WCI 3016789 Contact Us For Availability
32
WCI 3131516 WCI 3131516 Contact Us For Availability
33
WCI 072T612F02 WCI 072T612F02 Contact Us For Availability
34
WCI 036T052W05-18 WCI 036T052W05-18 Contact Us For Availability
36
CORD, POWER WCI 171T021P03 Contact Us For Availability
37
FSTNR. LEVELING LEG (4) WCI 241T017P10 Contact Us For Availability
38
WCI 08010569 WCI 08010569 Contact Us For Availability
40
COVER, SCREW TIP WCI 174T133P02 Contact Us For Availability
41
SLEEVE, INSULATOR WCI 660T032P01 Contact Us For Availability
43
FSTNR - CLAMP WCI 241T017P128 Contact Us For Availability
44
FSTNR.-PURSE LOCK WCI 241T017P238 Contact Us For Availability
44A
FSTNR.-WIRE CLAMPS (NON-ILLUSTRATED) WCI 241T017P203 Contact Us For Availability
46
PLUG, BUTTON WCI 557T021P31 Contact Us For Availability
46A
INSUL. WOOL TOP & SIDES (NON-ILLUSTRATED) WCI 3200323 Contact Us For Availability
46B
INSUL. WOOL BACK (NON-ILLUSTRATED) WCI 328T015P37 Contact Us For Availability
46C
INSUL. WOOL CHANNEL (NON-ILLUSTRATED) WCI 328T015P15 Contact Us For Availability
46D
NUT-FUSE (NON-ILLUSTRATED) WCI 479T085P03 Contact Us For Availability
47
WCI 072T552F01 WCI 072T552F01 Contact Us For Availability
× ![]()
