Model Electrolux 36-3272-57-09 RANGE – Common Parts & Diagrams
01 - COVER

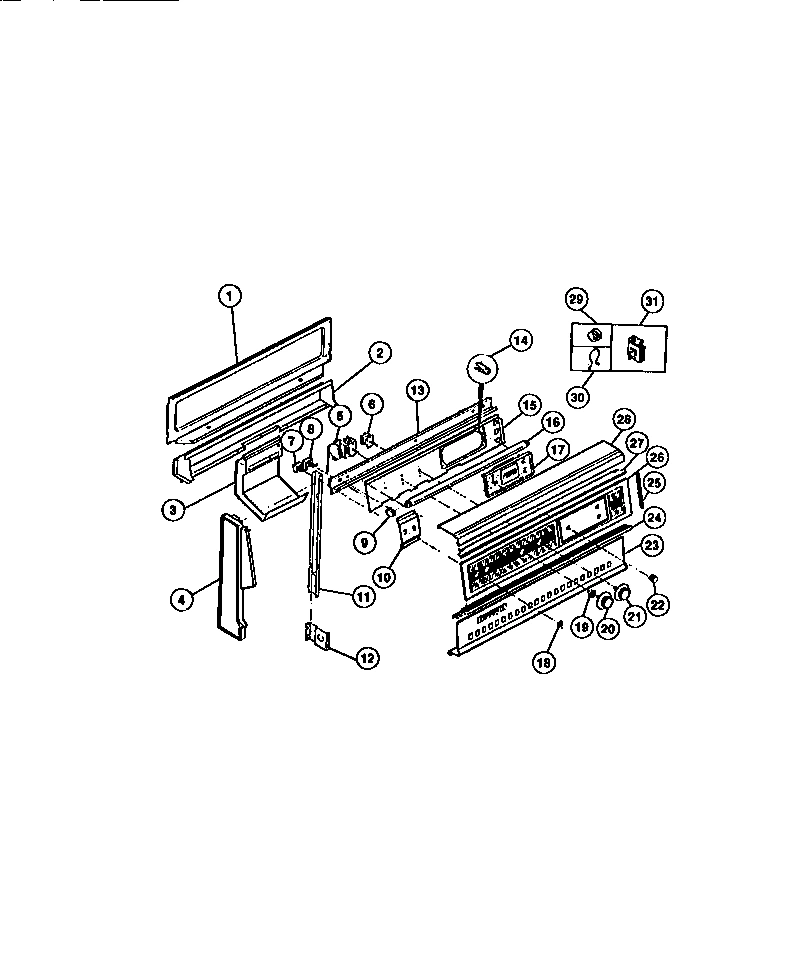

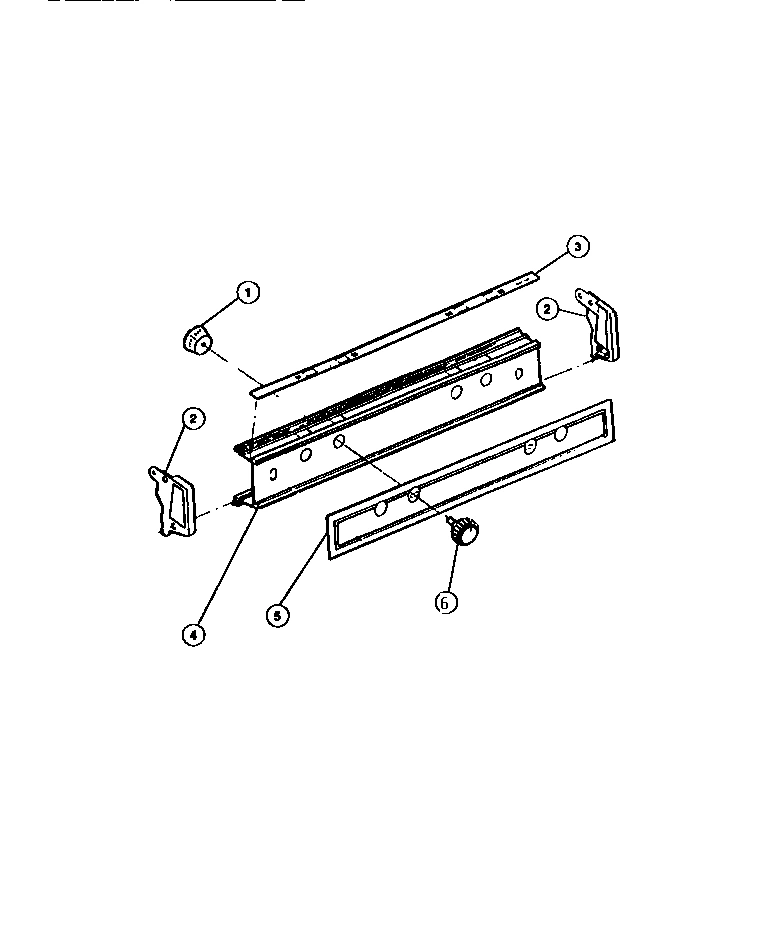

02 - BACKGUARD
03 - CONTROL PANEL

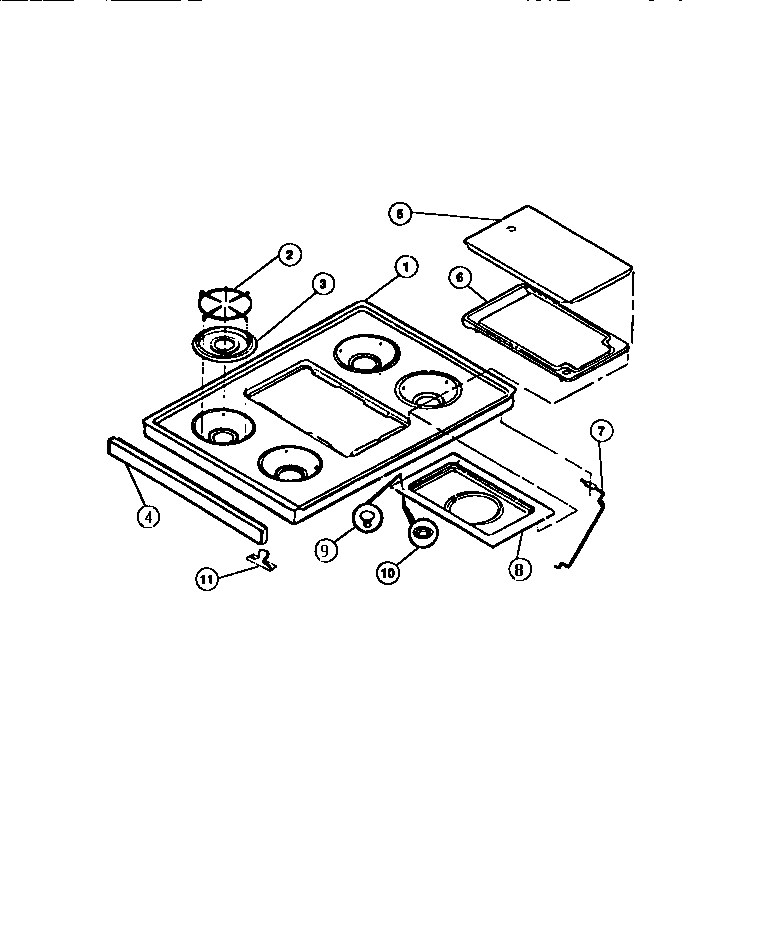

04 - MAIN TOP

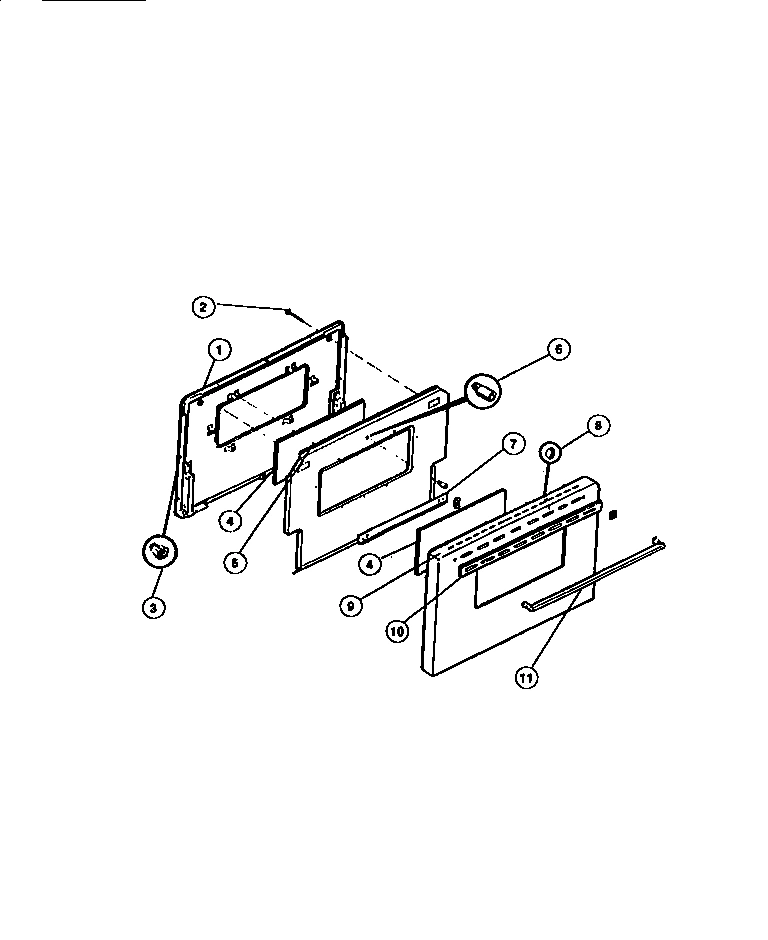

05 - OVEN DOOR

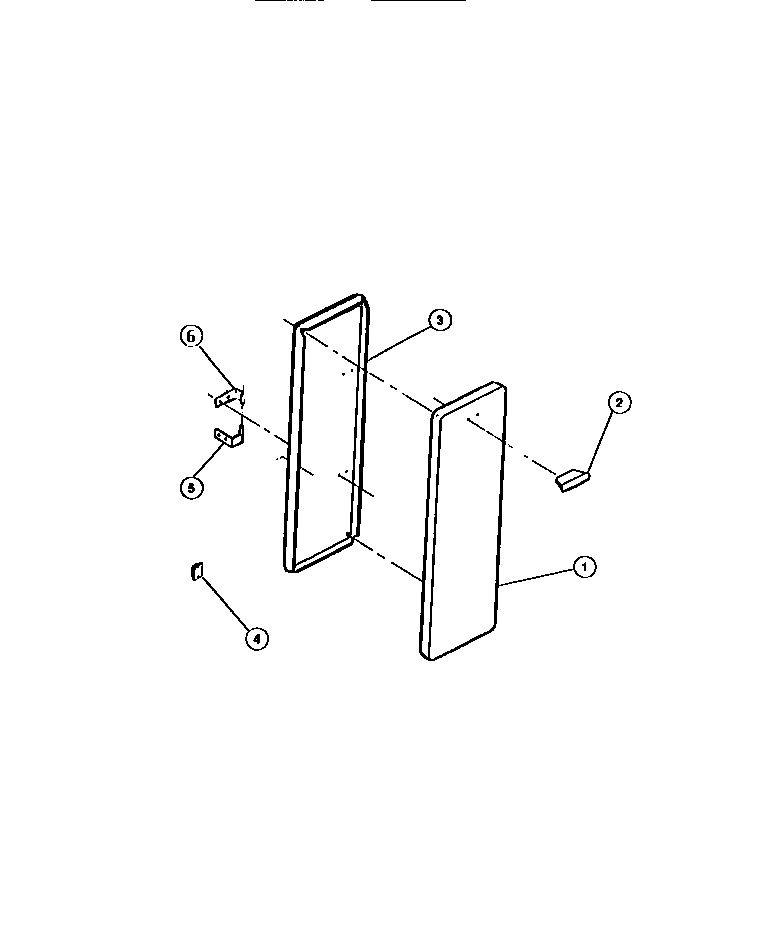

06 - PANEL

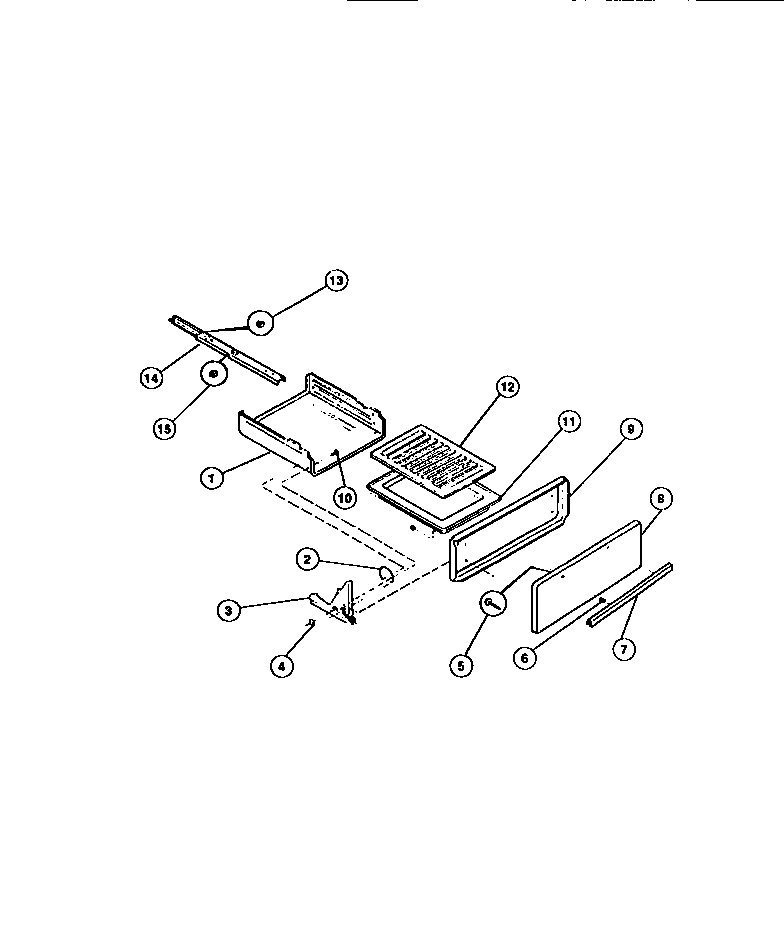

07 - BROILER INCL. DOOR

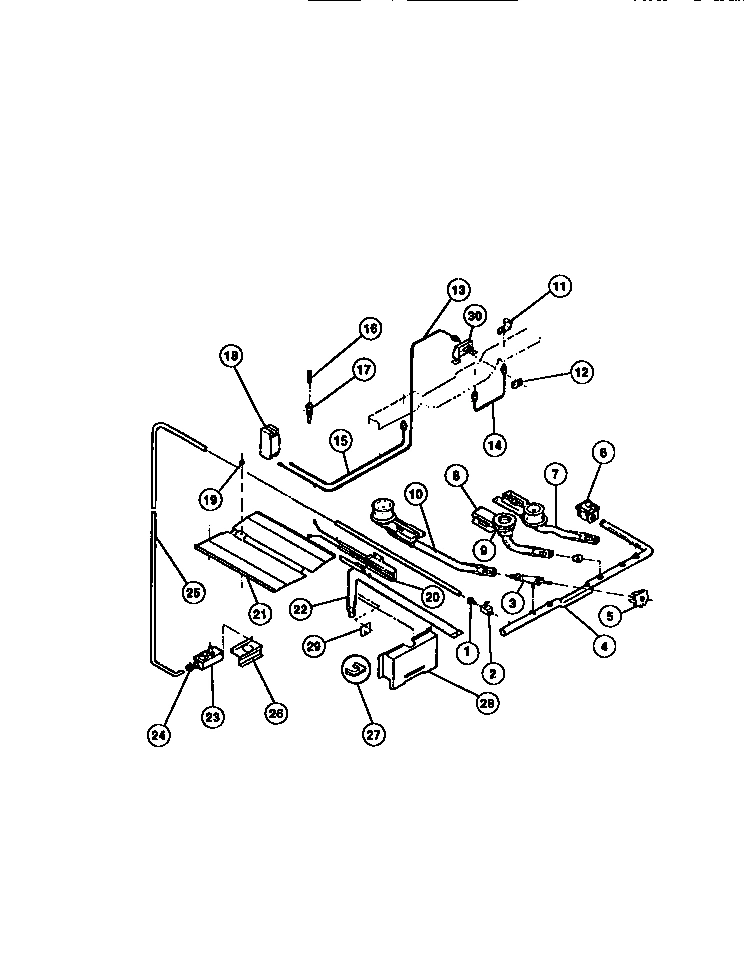

08 - BURNERS, MANIFOLD, GAS CONTROL

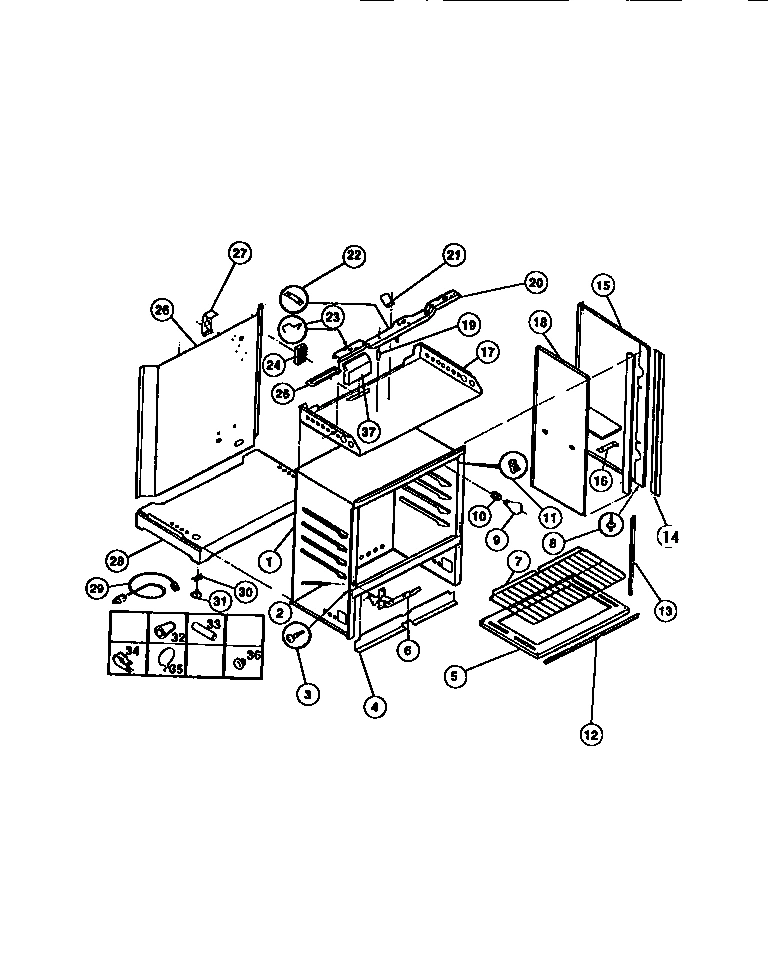

09 - BASIC BODY
Common parts from model Electrolux 36-3272-57-09 RANGE
*19120
WCI 008T276F05-18 WCI 008T276F05-18 Contact Us For Availability
*19121
PLATE, BURNER MOUNTING WCI 3131535 Contact Us For Availability
*19122
KIT, DOOR ADJUSTMENT WCI 355T588S01 Contact Us For Availability
*19123
INSULATION (TOP SIDE) WCI 3200323 Contact Us For Availability
*19124
INSULATION (BACK) WCI 328T015P37 Contact Us For Availability
*19125
INSULATION, CHANNEL WCI 328T015P15 Contact Us For Availability
*19126
WCI 3934056 WCI 3934056 Contact Us For Availability
*19127
INSULATION WCI 328T049P29 Contact Us For Availability
*19128
WASHER, DOOR HANDLE (2) WCI 789T053P42 Contact Us For Availability
1
WCI 196T034P02 WCI 196T034P02 Contact Us For Availability
1
WCI 529T099F05-57 WCI 529T099F05-57 Contact Us For Availability
1
LINER, OVEN DOOR WCI 381T086W06-86 Contact Us For Availability
1
PANEL, COMPARTMENT (AVOCADO) WCI 519T020W04-57 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
WCI 123T086P01 WCI 123T086P01 Contact Us For Availability
2
WCI 036T138P03 WCI 036T138P03 Contact Us For Availability
2
WCI 3587117P01 WCI 3587117P01 Contact Us For Availability
2
WCI 3018618 WCI 3018618 Contact Us For Availability
2
VALVE, SHUT OFF WCI 774T121P01 Contact Us For Availability
2
SPRING, OVEN DOOR CAM (2) WCI 675T041P01 Contact Us For Availability
2A
WCI 123T086P02 WCI 123T086P02 Contact Us For Availability
2A
WASHER WITH PADDED INSERT (NON-ILLUSTRATED) WCI 789T053P18 Contact Us For Availability
2A
WCI 3018619 WCI 3018619 Contact Us For Availability
3
PAN, BURNER (5) WCI 5303131115 No Longer Available
3
WCI 277T194P02 WCI 277T194P02 Contact Us For Availability
3
FASTENER, PUSH NUT WCI 241T017P174 Contact Us For Availability
3
LINER, COMPARTMENT DOOR WCI 381T068F03-18 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
VALVE, TOP BURNER AND GRIDDLE (3 POSITION) WCI 774T099P05 Contact Us For Availability
3
SCREW, SHOULDER (2) WCI 636T066P06 Contact Us For Availability
3A
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
4
WCI 233T063P01 WCI 233T063P01 Contact Us For Availability
4
WCI 3051354 WCI 3051354 Contact Us For Availability
4
GLASS, OVEN DOOR (FRONT AND BACK) WCI 276T088P01 Contact Us For Availability
4
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
4
LATCH, COMPARTMENT DOOR WCI 368T028P02 Contact Us For Availability
4
WCI 439T053P02 WCI 439T053P02 Contact Us For Availability
4
SHIELD, WOOL WCI 655T308F02 Contact Us For Availability
4A
WCI 123T103P02 WCI 123T103P02 Contact Us For Availability
4A
WCI 3051355 WCI 3051355 Contact Us For Availability
5
WCI 722T038P03 WCI 722T038P03 Contact Us For Availability
5
WCI 319T015P02 WCI 319T015P02 Contact Us For Availability
5
COVER, GRIDDLE (AVOCADO) WCI 174T100F04-57 Contact Us For Availability
5
WCI 3131543 WCI 3131543 Contact Us For Availability
5
HINGE, DOOR, LOWER (PIN-MOUNT TO CHASSIS) WCI 302T028P01 Contact Us For Availability
5
WCI 058T035F01-86 WCI 058T035F01-86 Contact Us For Availability
5A
SCREW, BOTTOM (NON-ILLUSTRATED) WCI 636T134P01 Contact Us For Availability
6
WCI 358T142P100 WCI 358T142P100 Contact Us For Availability
6
WCI 697T032P09 WCI 697T032P09 Contact Us For Availability
6
GRIDDLE WCI 286T007P05 Contact Us For Availability
6
FASTENER, NYLON SPACER WCI 241T017P180 Contact Us For Availability
6
HINGE (MOUNT TO DOOR) WCI 302T027P01 Contact Us For Availability
6
WASHER (2) WCI 789T053P12 Contact Us For Availability
6
WCI 3016997 WCI 3016997 Contact Us For Availability
6
WCI 3205939 WCI 3205939 Contact Us For Availability
6A
WCI 3205940 WCI 3205940 Contact Us For Availability
7
WCI 695T167P01 WCI 695T167P01 Contact Us For Availability
7
ROD, MAIN TOP SUPPORT WCI 3013818 Contact Us For Availability
7
WCI 3131540 WCI 3131540 Contact Us For Availability
7
WCI 296T081S01 WCI 296T081S01 Contact Us For Availability
7
BURNER, TOP FRONT WCI 3204154 Contact Us For Availability
7
RACK, OVEN (2) WCI 591T073P02 Contact Us For Availability
8
WCI 695T165P01 WCI 695T165P01 Contact Us For Availability
8
WCI 540T015F01-08 WCI 540T015F01-08 Contact Us For Availability
8
PANEL, BROILER DRAWER (AVOCADO) WCI 517T003W41-57 Contact Us For Availability
8
BURNER, TOP GRIDDLE, COMPLETE WCI 750T141S05 Contact Us For Availability
8
WCI 550T034P01 WCI 550T034P01 Contact Us For Availability
9
WCI 3204169 WCI 3204169 Contact Us For Availability
9
WCI 615T034P04 WCI 615T034P04 Contact Us For Availability
9
PANEL, OVEN DOOR (FRESH AVOCADO) WCI 533T051W09-57 Contact Us For Availability
9
LINER, BROILER DRAWER WCI 381T077F04-86 Contact Us For Availability
9
WCI 077T001P01 WCI 077T001P01 Contact Us For Availability
9A
WCI 597T037P20 WCI 597T037P20 Contact Us For Availability
10
WCI 554T359F04 WCI 554T359F04 Contact Us For Availability
10
WCI 241T017P210 WCI 241T017P210 Contact Us For Availability
10
WCI 740T410P01 WCI 740T410P01 Contact Us For Availability
10
WCI 3018614 WCI 3018614 Contact Us For Availability
10
WCI 3204155 WCI 3204155 Contact Us For Availability
10
WCI 662T012P11 WCI 662T012P11 Contact Us For Availability
11
WCI 136T319F01 WCI 136T319F01 Contact Us For Availability
11
BRACKET, MAIN TOP HINGE (LH) WCI 3131286 Contact Us For Availability
11
WCI 3012727 WCI 3012727 Contact Us For Availability
11
WCI 3013568 WCI 3013568 Contact Us For Availability
11A
BRACKET, MAIN TOP HINGE (RH) WCI 3131287 Contact Us For Availability
12
WCI 072T637F01 WCI 072T637F01 Contact Us For Availability
12
WCI 3131356 WCI 3131356 Contact Us For Availability
12
RETAINER, IGNITOR WCI 612T110F01 Contact Us For Availability
12
SEAL, DOOR TOP AND BOTTOM (2) WCI 647T068P02 Contact Us For Availability
13
WCI 008T474F02 WCI 008T474F02 Contact Us For Availability
13
WCI 106T027P02 WCI 106T027P02 Contact Us For Availability
13
WCI 036T049S10 WCI 036T049S10 Contact Us For Availability
13
SEAL, DOOR SIDES (2) WCI 115T647P03 Contact Us For Availability
14
FASTENER, CLOCK TUBULAR WCI 241T017P44 Contact Us For Availability
14
CHANNEL, GLIDE (2) WCI 136T281S05 Contact Us For Availability
14
WCI 036T049S14 WCI 036T049S14 Contact Us For Availability
14
TRIM, BODY PANEL, VERTICAL (IF EQUIPPED) WCI 740T431F01 Contact Us For Availability
15
WCI 554T359F03 WCI 554T359F03 Contact Us For Availability
15
BUTTON, GLIDE WCI 106T028P01 Contact Us For Availability
15
WCI 036T049S11 WCI 036T049S11 Contact Us For Availability
15
BODYSIDE PANEL (LH, AVOCADO) WCI 515T047F14-57 Contact Us For Availability
15A
BODYSIDE PANEL (RH, AVOCADO) WCI 515T047F15-57 Contact Us For Availability
16
LAMP, FLUORESCENT WCI 3131275 Contact Us For Availability
16
FUSE WCI 3131297 Contact Us For Availability
16
CHANNEL, STIFFENER WCI 136T216F01-18 Contact Us For Availability
17
CLOCK, DIGITAL WCI 148T149P15 Contact Us For Availability
17
WCI 597T034S01 WCI 597T034S01 Contact Us For Availability
17
WCI 095T025W05-86 WCI 095T025W05-86 Contact Us For Availability
18
WCI 045T064P02 WCI 045T064P02 Contact Us For Availability
18
WCI 048T010F02-18 WCI 048T010F02-18 Contact Us For Availability
19
WCI 08010401 WCI 08010401 Contact Us For Availability
19
SPACER, SUPPORT CHANNEL WCI 665T072P06 Contact Us For Availability
20
WCI 358T169S08 WCI 358T169S08 Contact Us For Availability
20
CHANNEL, BURNER SUPPORT WCI 136T300F03-18 Contact Us For Availability
21
WCI 358T142P107 WCI 358T142P107 Contact Us For Availability
21
BAFFLE, OVEN BOTTOM WCI 3131517 Contact Us For Availability
21
REFLECTOR, GRIDDLE BURNER WCI 600T014F01 Contact Us For Availability
22
WCI 358T146P01 WCI 358T146P01 Contact Us For Availability
22
WCI 079T025P13 WCI 079T025P13 Contact Us For Availability
23
WCI 740T484P02 WCI 740T484P02 Contact Us For Availability
23
VALVE, SAFETY WCI 774T117P04 Contact Us For Availability
23
RETAINER, OVEN BURNER WCI 612T094P01 Contact Us For Availability
24
WCI 233T088P02 WCI 233T088P02 Contact Us For Availability
24
LOXIT FITTING WCI 247T079P01 Contact Us For Availability
24
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
25
WCI 740T097F13 WCI 740T097F13 Contact Us For Availability
25
TUBE, OVEN SUPPLY WCI 750T095P12 Contact Us For Availability
25
SHIELD, WOOL WCI 3131536 Contact Us For Availability
26
WCI 277T207P01 WCI 277T207P01 Contact Us For Availability
26
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
26
WCI 3131516 WCI 3131516 Contact Us For Availability
27
WCI 612T105F04 WCI 612T105F04 Contact Us For Availability
27
FASTENER, OVEN SAFETY VALVE WCI 241T017P216 Contact Us For Availability
27
WCI 072T612F02 WCI 072T612F02 Contact Us For Availability
28
WCI 740T481P02 WCI 740T481P02 Contact Us For Availability
28
COVER, SAFETY VALVE WCI 174T300F01 Contact Us For Availability
28
WCI 036T052W05-18 WCI 036T052W05-18 Contact Us For Availability
29
WCI 287T003P09 WCI 287T003P09 Contact Us For Availability
29
TERMINAL, BLOCK WCI 709T041P01 Contact Us For Availability
29
CORD, POWER WCI 171T021P03 Contact Us For Availability
30
WCI 142T033P01 WCI 142T033P01 Contact Us For Availability
30
WCI 072T781F01 WCI 072T781F01 Contact Us For Availability
30
FASTENER, TEE NUT LEVELING LEG WCI 241T017P10 Contact Us For Availability
31
WCI 030T012P01 WCI 030T012P01 Contact Us For Availability
31
WCI 32003397 WCI 32003397 Contact Us For Availability
32
COVER, SCREW TIP WCI 174T133P02 Contact Us For Availability
33
SLEEVE, INSULATOR WCI 660T032P01 Contact Us For Availability
34
FASTENER, CLAMP WCI 241T017P128 Contact Us For Availability
35
FASTENER WCI 241T017P238 Contact Us For Availability
36
PLUG, BUTTON WCI 557T021P31 Contact Us For Availability
37
WCI 3016789 WCI 3016789 Contact Us For Availability
× ![]()
