Model Electrolux 36-3052-45-07 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - CONTROL PANEL

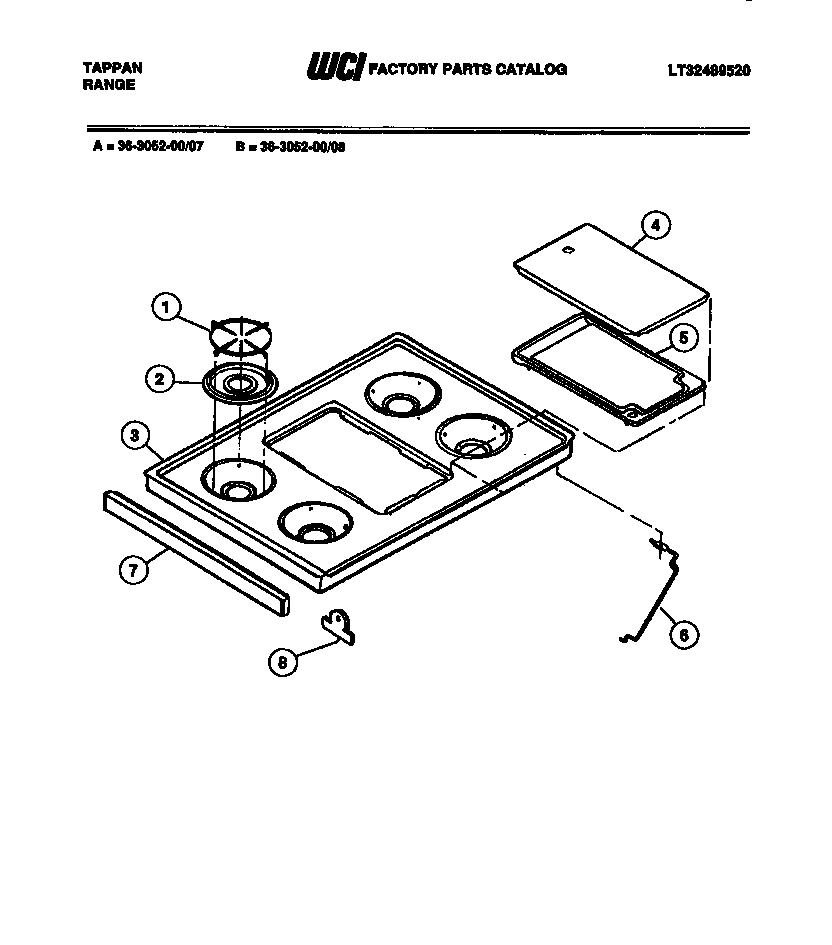

04 - COOKTOP PARTS

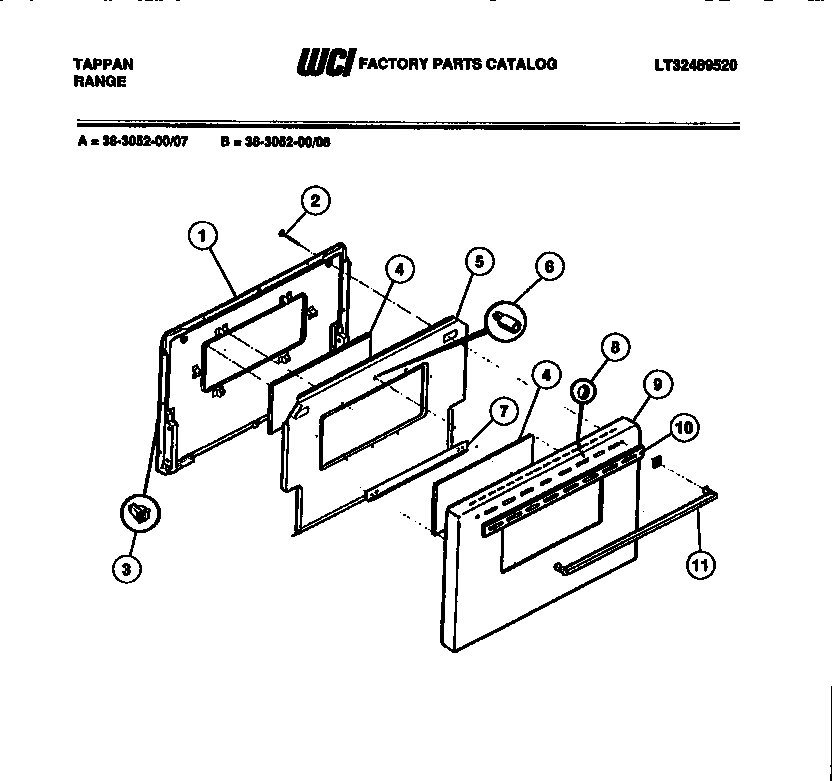

05 - DOOR PARTS

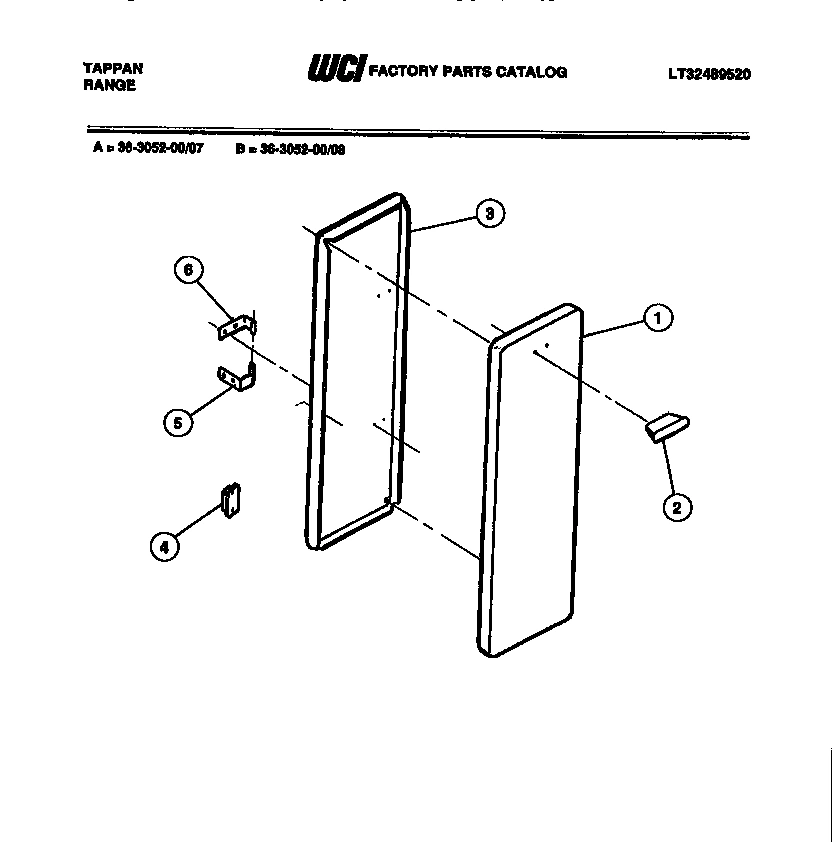

06 - PANEL COMPARTMENT

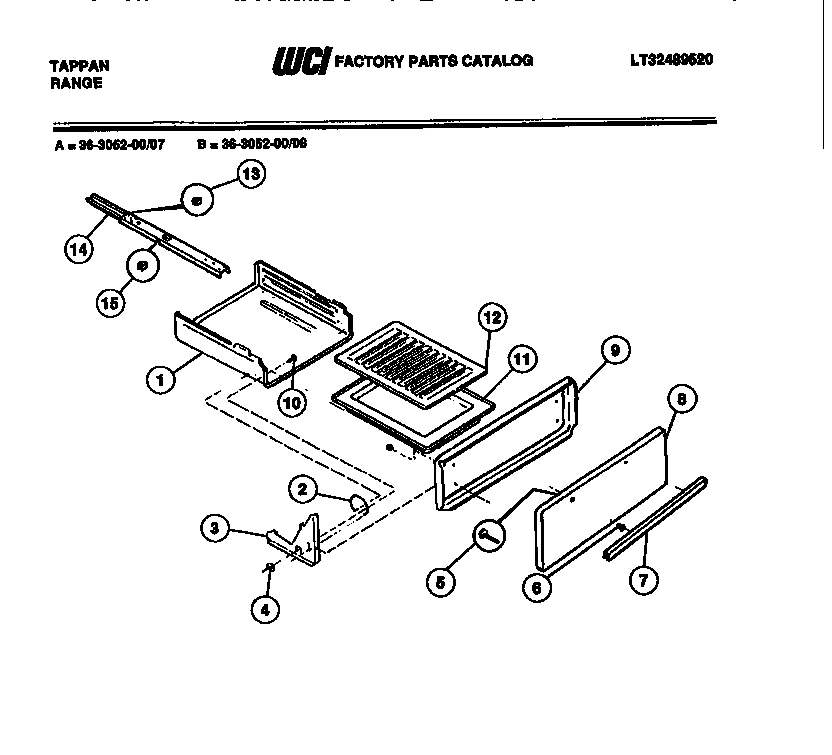

07 - BROILER DRAWER PARTS

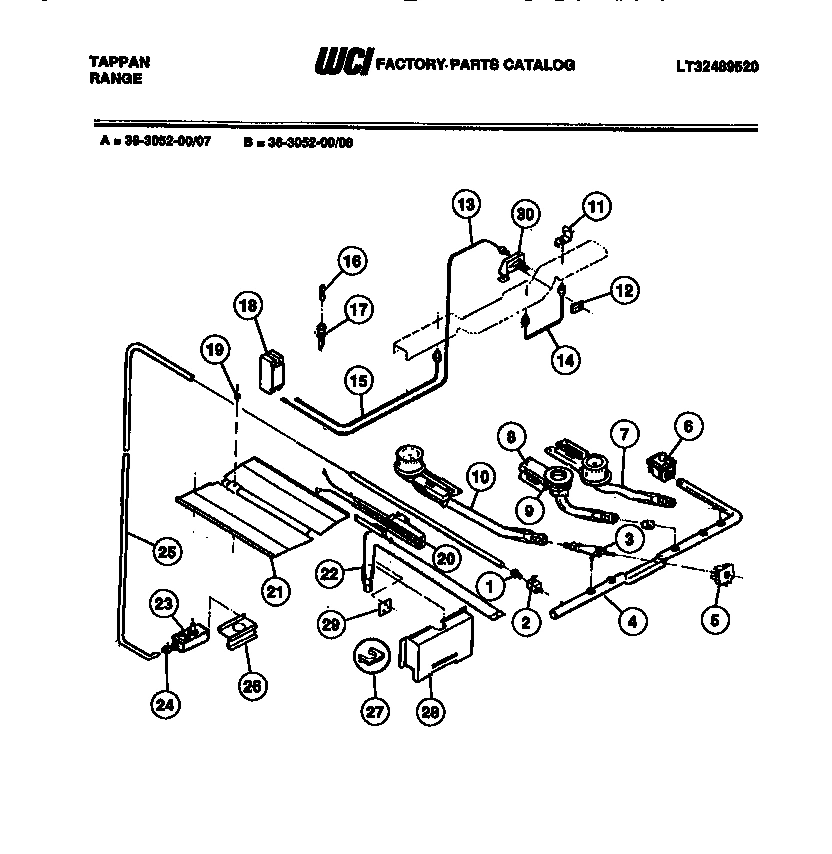

08 - BURNER, MANIFOLD AND GAS CONTROL

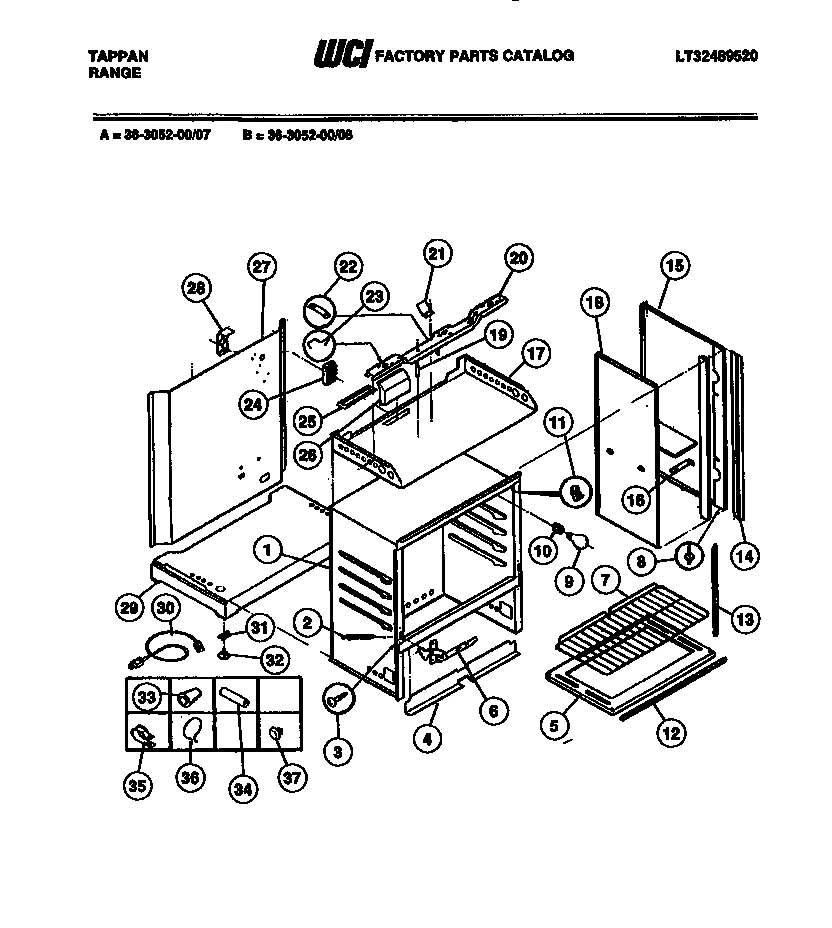

09 - BODY PARTS
Common parts from model Electrolux 36-3052-45-07 RANGE
*31337
INSULATION WCI 328T049P29 Contact Us For Availability
*31337
WASHER - DOOR HANDLE WCI 789T053P42 Contact Us For Availability
*31351
INSULATION, CHANNEL WCI 328T015P15 Contact Us For Availability
*31351
INSULATION (TOP SIDE) WCI 3200323 Contact Us For Availability
*31351
INSULATION (BACK) WCI 328T015P37 Contact Us For Availability
1
WCI 695T166P09 WCI 695T166P09 Contact Us For Availability
1
LINER, OVEN DOOR WCI 381T086W06-86 Contact Us For Availability
1
WCI 519T020W04-45 WCI 519T020W04-45 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
KNOB - COMPT DOOR WCI 358T117P01 No Longer Available
2
WCI 740T234F09 WCI 740T234F09 Contact Us For Availability
2
SHIELD - THERMO WCI 3131940 Contact Us For Availability
2
WCI 636T138P03 WCI 636T138P03 Contact Us For Availability
2
WCI 3018618 WCI 3018618 Contact Us For Availability
2
VALVE, SHUT OFF WCI 774T121P01 Contact Us For Availability
2
SPRING-OV DR CAM (2) WCI 675T041P01 Contact Us For Availability
2A
WCI 789T053P18 WCI 789T053P18 Contact Us For Availability
2A
WCI 3018619 WCI 3018619 Contact Us For Availability
3
CHANNEL - BACK GUARD MOUNTING (2) WCI 136T270F02 Contact Us For Availability
3
WCI 722T038P02 WCI 722T038P02 Contact Us For Availability
3
WCI 529T099F05-45 WCI 529T099F05-45 Contact Us For Availability
3
FSTNR - PUSH NUT WCI 241T017P174 Contact Us For Availability
3
LINER - COMPT DOOR WCI 381T068F03-18 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
VALVE - TOP BURNER (3 POS) & GRIDDLE WCI 774T099P05 Contact Us For Availability
3
SCREW, SHOULDER (2) WCI 636T066P06 Contact Us For Availability
3A
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
4
WCI 072T635F02 WCI 072T635F02 Contact Us For Availability
4
INSULATOR - THERMOSTAT WCI 331T093P02 Contact Us For Availability
4
WCI 174T100F04-45 WCI 174T100F04-45 Contact Us For Availability
4
GLASS - OVEN DOOR (2) WCI 276T088P01 Contact Us For Availability
4
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
4
LATCH - COMPT DOOR WCI 368T028P02 Contact Us For Availability
4
WCI 439T053P02 WCI 439T053P02 Contact Us For Availability
4
SHIELD, WOOL WCI 655T308F02 Contact Us For Availability
5
INSUL - FLUOR LIGHT (2) WCI 331T052P02 Contact Us For Availability
5
WCI 695T164S02 WCI 695T164S02 Contact Us For Availability
5
WCI 286T007P05 WCI 286T007P05 Contact Us For Availability
5
WCI 3131543 WCI 3131543 Contact Us For Availability
5
HINGE DOOR (LWR / PIN-MOUNT TO CHASSIS) WCI 302T028P01 Contact Us For Availability
5
WCI 058T035F01-86 WCI 058T035F01-86 Contact Us For Availability
5A
SCREW, BOTTOM (NON-ILLUSTRATED) WCI 636T134P01 Contact Us For Availability
6
WCI 597T047S01 WCI 597T047S01 Contact Us For Availability
6
WCI 3131627 WCI 3131627 Contact Us For Availability
6
ROD, MAIN TOP SUPPORT WCI 3013818 Contact Us For Availability
6
FSTNR - NYLON SPACER WCI 241T017P180 Contact Us For Availability
6
WCI 302T027P01 WCI 302T027P01 Contact Us For Availability
6
WASHER (2) WCI 789T053P12 Contact Us For Availability
6
WCI 3016997 WCI 3016997 Contact Us For Availability
6
WCI 3205939 WCI 3205939 Contact Us For Availability
6A
WCI 3205940 WCI 3205940 Contact Us For Availability
6B
WCI 355T588S01 WCI 355T588S01 Contact Us For Availability
7
WCI 374T005P07 WCI 374T005P07 Contact Us For Availability
7
WCI 045T064P03 WCI 045T064P03 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7
WCI 3131540 WCI 3131540 Contact Us For Availability
7
WCI 296T081S01 WCI 296T081S01 Contact Us For Availability
7
BURNER, TOP FRONT WCI 3204154 Contact Us For Availability
7
RACK, OVEN (2) WCI 591T073P02 Contact Us For Availability
7A
WCI 3051355 WCI 3051355 Contact Us For Availability
8
CAP - END (2) WCI 123T076P02 Contact Us For Availability
8
WCI 358T169S07 WCI 358T169S07 Contact Us For Availability
8
BRKT MAIN TOP LH WCI 3131286 Contact Us For Availability
8
PNL-BRLR DRWR (COFFEE) WCI 517T003W41-45 Contact Us For Availability
8
WCI 750T141S05 WCI 750T141S05 Contact Us For Availability
8
PIN - BODY PNL GUIDE WCI 550T034P01 Contact Us For Availability
8A
BRKT MAIN TOP RH WCI 3131287 Contact Us For Availability
9
PANEL - BACKGUARD (SPLASHER) WCI 513T080P05 Contact Us For Availability
9
WCI 358T142P117 WCI 358T142P117 Contact Us For Availability
9
PNL-OVEN DR (COFFEE) WCI 533T051W09-45 Contact Us For Availability
9
LINER, BROILER DRAWER WCI 381T077F04-86 Contact Us For Availability
9
WCI 007T001P01 WCI 007T001P01 Contact Us For Availability
10
WCI 250T022W05-18 WCI 250T022W05-18 Contact Us For Availability
10
WCI 521T114P03 WCI 521T114P03 Contact Us For Availability
10
TRIM-OV DR TOP (BLACK) WCI 740T410P01 Contact Us For Availability
10
WCI 3018614 WCI 3018614 Contact Us For Availability
10
WCI 3204155 WCI 3204155 Contact Us For Availability
10
WCI 662T012P11 WCI 662T012P11 Contact Us For Availability
11
GSKT-BACKGUARD VENT WCI 269T089P02 Contact Us For Availability
11
WCI 296T088P01 WCI 296T088P01 Contact Us For Availability
11
WCI 3013568 WCI 3013568 Contact Us For Availability
12
WCI 072T630F05 WCI 072T630F05 Contact Us For Availability
12
WCI 3131356 WCI 3131356 Contact Us For Availability
12
WCI 612T110F01 WCI 612T110F01 Contact Us For Availability
12
SEAL - DOOR (TOP & BTTM) WCI 647T068P02 Contact Us For Availability
13
WCI 3205952 WCI 3205952 Contact Us For Availability
13
WCI 106T027P02 WCI 106T027P02 Contact Us For Availability
13
WCI 036T049S10 WCI 036T049S10 Contact Us For Availability
13
SEAL, DOOR SIDES (2) WCI 115T647P03 Contact Us For Availability
14
WCI 277T139P42 WCI 277T139P42 Contact Us For Availability
14
CHANNEL, GLIDE (2) WCI 136T281S05 Contact Us For Availability
14
WCI 036T049S14 WCI 036T049S14 Contact Us For Availability
14
TRIM-BADY PNL VERTICAL (IF EQUIPPED) WCI 740T431F01 Contact Us For Availability
15
TRIM-GLASS RETAINER WCI 740T239F01 Contact Us For Availability
15
BUTTON, GLIDE WCI 106T028P01 Contact Us For Availability
15
WCI 036T049S11 WCI 036T049S11 Contact Us For Availability
15
WCI 515T047F16-45 WCI 515T047F16-45 Contact Us For Availability
15A
WCI 515T047F13-45 WCI 515T047F13-45 Contact Us For Availability
16
WCI 358T038P01 WCI 358T038P01 Contact Us For Availability
16
FUSE WCI 3131297 Contact Us For Availability
16
CHANNEL, STIFFENER WCI 136T216F01-18 Contact Us For Availability
17
WCI 030T011P01 WCI 030T011P01 Contact Us For Availability
17
WCI 597T034S01 WCI 597T034S01 Contact Us For Availability
17
WCI 095T025W05-86 WCI 095T025W05-86 Contact Us For Availability
18
WCI 142T035P01 WCI 142T035P01 Contact Us For Availability
18
WCI 048T010F02-18 WCI 048T010F02-18 Contact Us For Availability
19
WCI 241T003P001 WCI 241T003P001 Contact Us For Availability
19
SPACR - SUPPORT SHANNEL WCI 665T072P06 Contact Us For Availability
20
WCI 136T300F03-18 WCI 136T300F03-18 Contact Us For Availability
21
BAFFLE, OVEN BOTTOM WCI 3131517 Contact Us For Availability
21
WCI 600T014F01 WCI 600T014F01 Contact Us For Availability
22
WCI 079T025P13 WCI 079T025P13 Contact Us For Availability
23
VALVE, SAFETY WCI 774T117P04 Contact Us For Availability
23
RETAINER, OVEN BURNER WCI 612T094P01 Contact Us For Availability
24
LOXIT FITTING WCI 247T079P01 Contact Us For Availability
24
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
25
TUBE, OVEN SUPPLY WCI 750T095P12 Contact Us For Availability
25
SHIELD, WOOL WCI 3131536 Contact Us For Availability
26
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
26
WCI 252T047W01-18 WCI 252T047W01-18 Contact Us For Availability
27
FSTNR-OV & SAFETY VALVE WCI 241T017P216 Contact Us For Availability
27
WCI 3131516 WCI 3131516 Contact Us For Availability
28
COVER, SAFETY VALVE WCI 174T300F01 Contact Us For Availability
28
WCI 072T612F02 WCI 072T612F02 Contact Us For Availability
29
TERMINAL, BLOCK WCI 709T041P01 Contact Us For Availability
29
WCI 036T052W05-18 WCI 036T052W05-18 Contact Us For Availability
29A
WCI 008T276F05-18 WCI 008T276F05-18 Contact Us For Availability
29B
PLATE - BURNER MTG (NON-ILLUSTRATED) WCI 3131535 Contact Us For Availability
30
WCI 072T781F01 WCI 072T781F01 Contact Us For Availability
30
CORD, POWER WCI 171T021P03 Contact Us For Availability
31
FASTENER, TEE NUT LEVELING LEG WCI 241T017P10 Contact Us For Availability
32
SCREW-LEVELING (4) WCI 3203397 Contact Us For Availability
33
WCI 174T133P01 WCI 174T133P01 Contact Us For Availability
34
SLEEVE, INSULATOR WCI 660T032P01 Contact Us For Availability
35
FSTNR - CLAMP WCI 241T017P128 Contact Us For Availability
36
FASTENER WCI 241T017P238 Contact Us For Availability
37
PLUG, BUTTON WCI 557T021P31 Contact Us For Availability
× ![]()
