Model Electrolux 36-3052-32-09 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - CONTROL PANEL

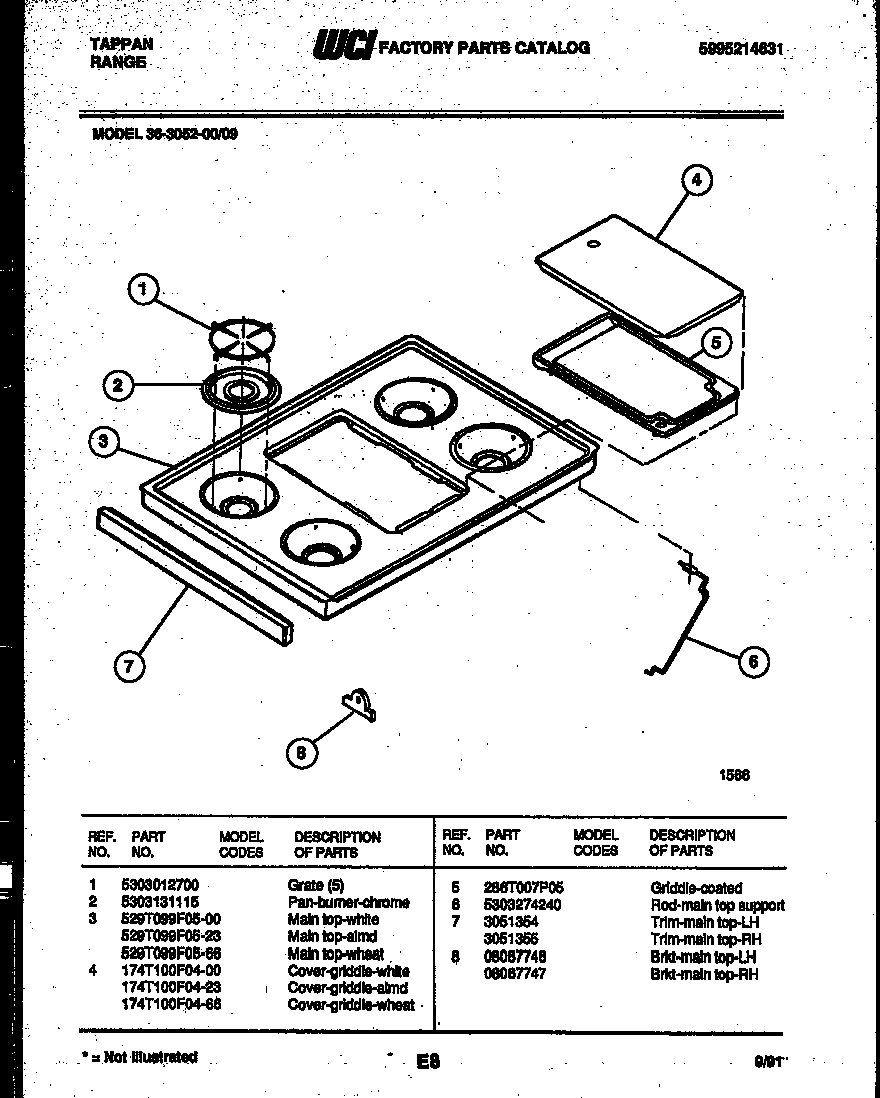

04 - COOKTOP PARTS

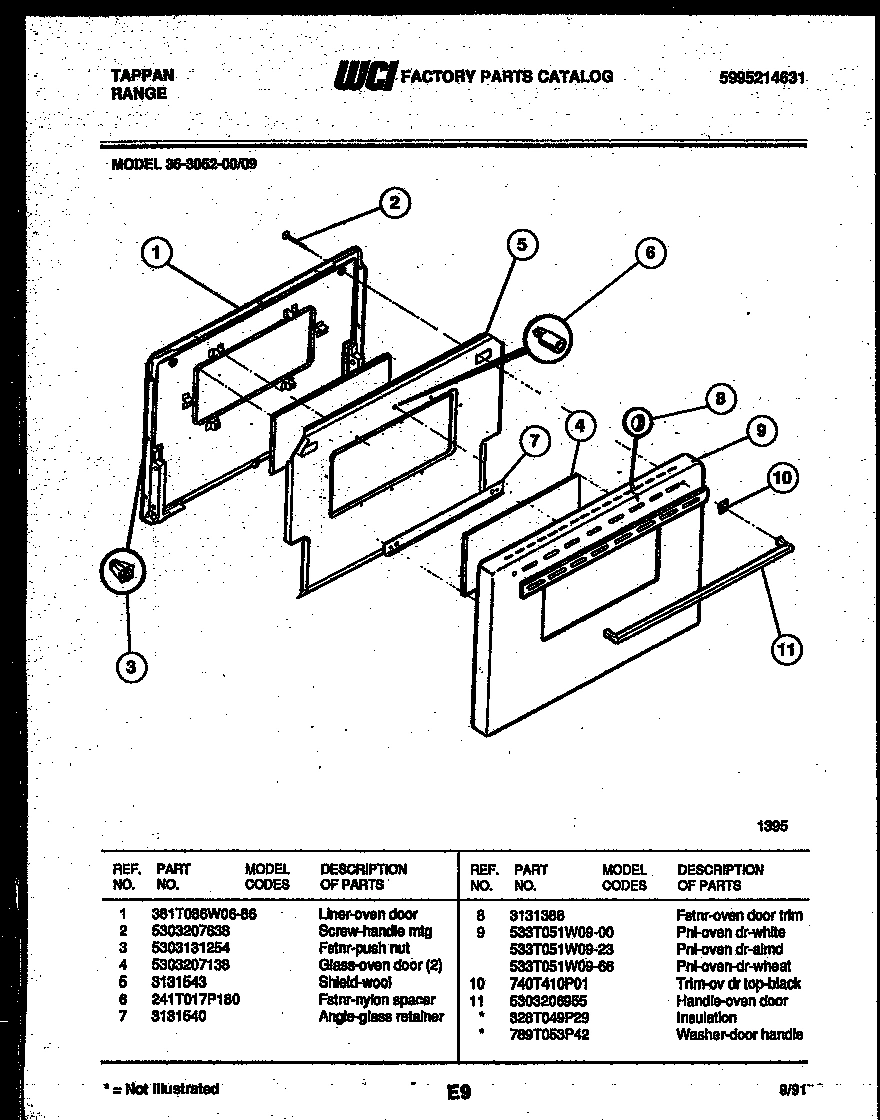

05 - DOOR PARTS

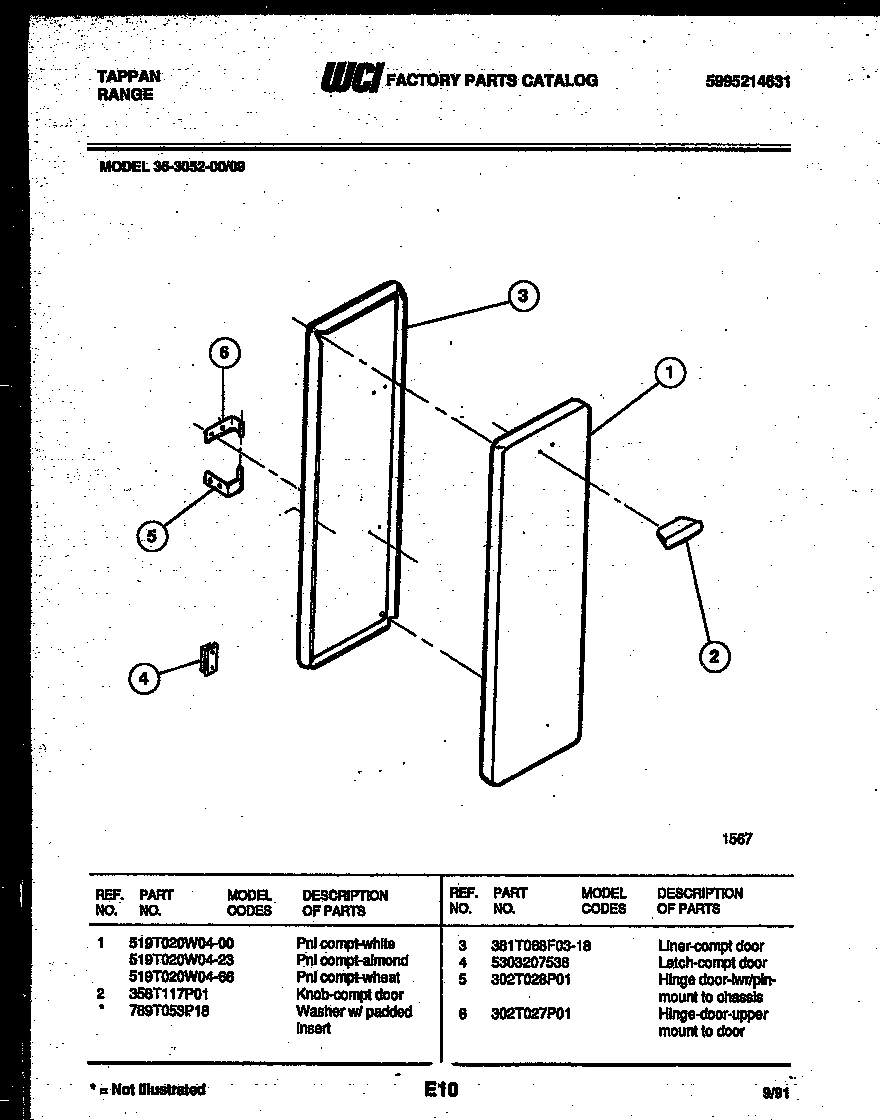

06 - PANEL COMPARTMENT

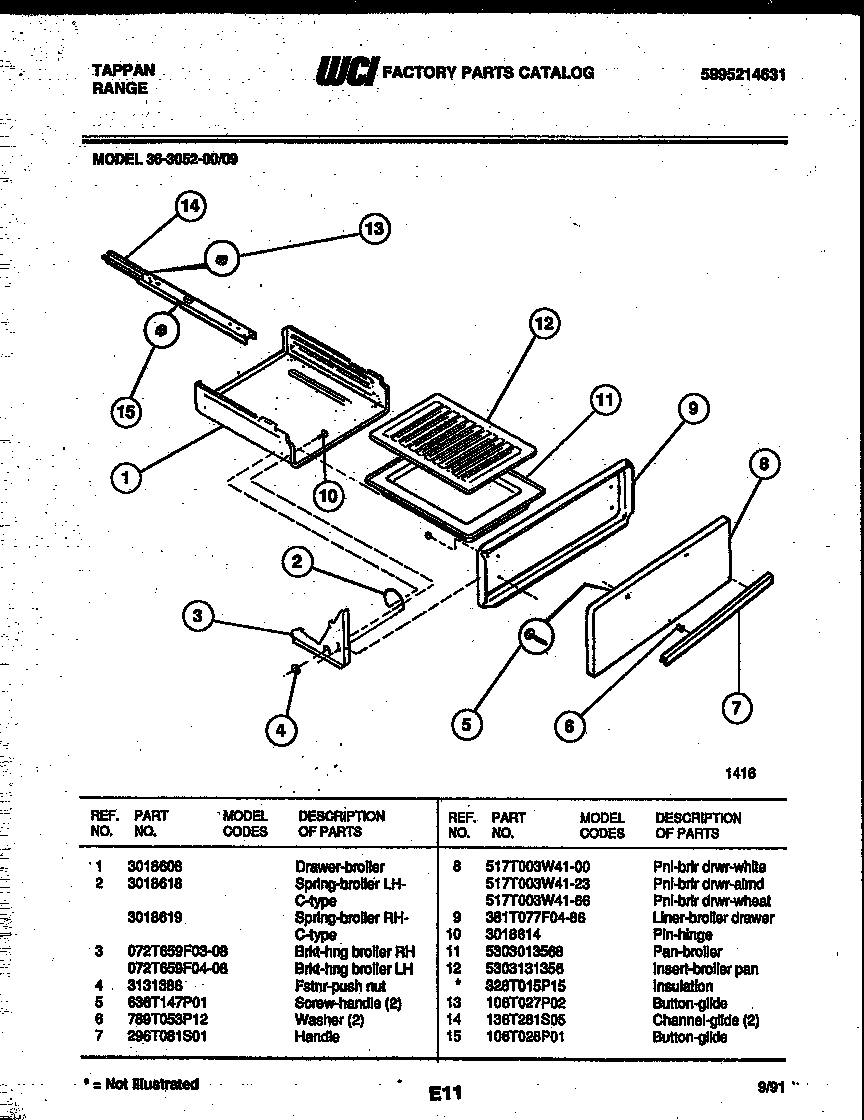

07 - BROILER DRAWER PARTS

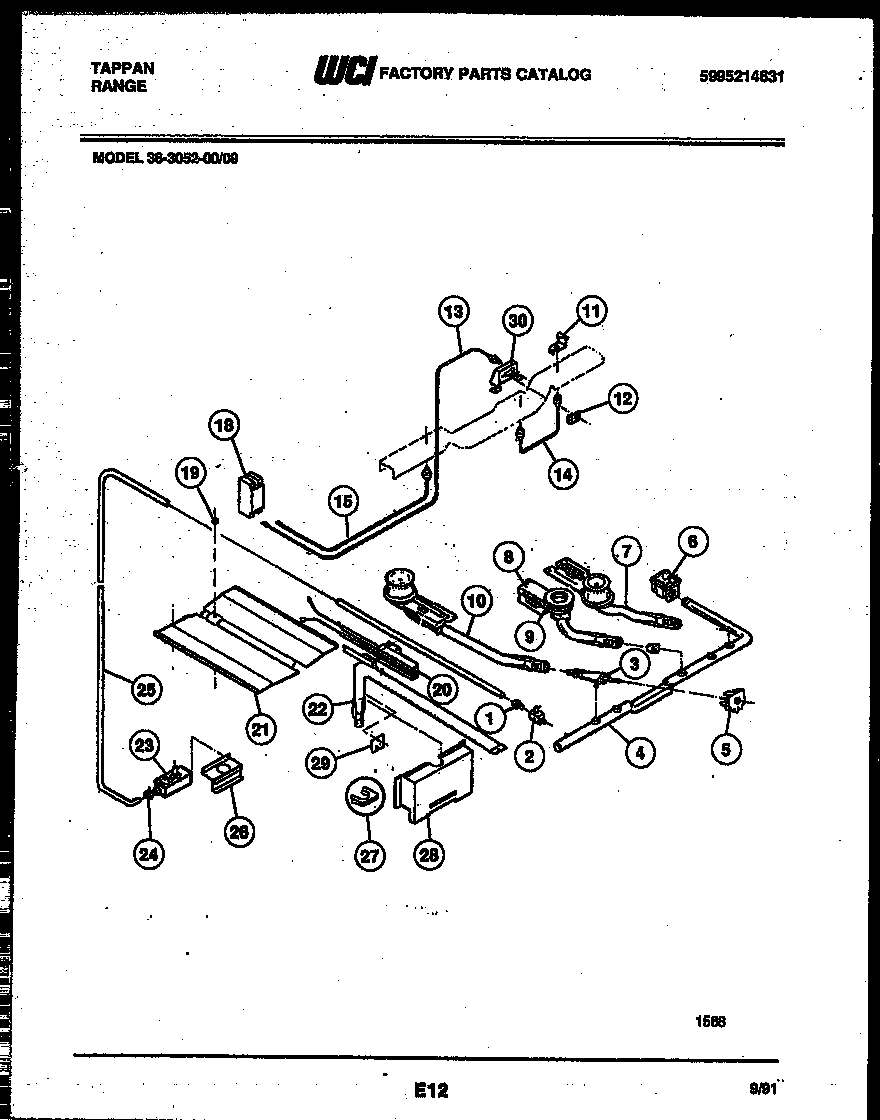

08 - BURNER, MANIFOLD AND GAS CONTROL

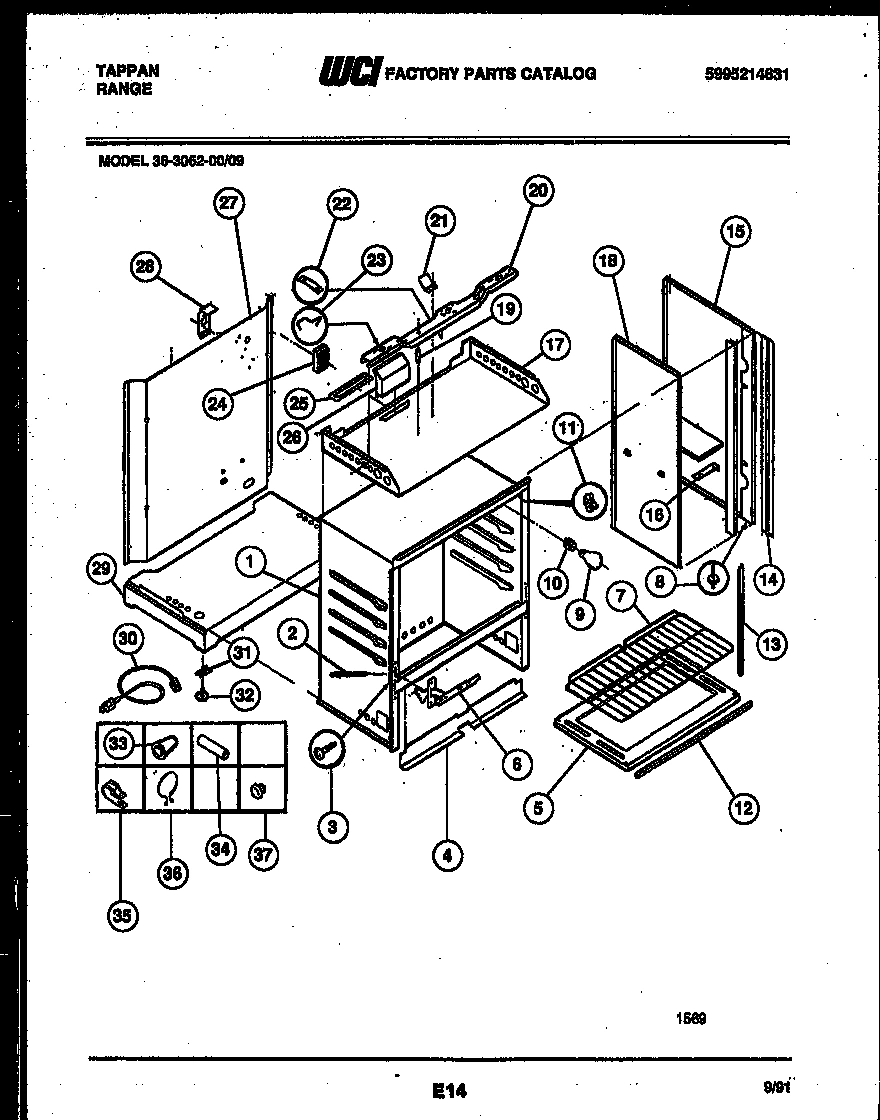

09 - BODY PARTS
Common parts from model Electrolux 36-3052-32-09 RANGE
*62166
INSULATION WCI 328T049P29 Contact Us For Availability
*62166
WASHER - DOOR HANDLE WCI 789T053P42 Contact Us For Availability
*62179
INSULATION, CHANNEL WCI 328T015P15 Contact Us For Availability
*62179
INSULATION (TOP SIDE) WCI 3200323 Contact Us For Availability
*62179
WCI 5303200320 WCI 5303200320 Contact Us For Availability
*62180
WCI 191S020F03 WCI 191S020F03 Contact Us For Availability
*62180
WCI 3934056 WCI 3934056 Contact Us For Availability
1
WCI 08013193 WCI 08013193 Contact Us For Availability
1
LINER, OVEN DOOR WCI 381T086W06-86 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
KNOB - COMPT DOOR WCI 358T117P01 No Longer Available
2
PAN-BURNER-CHROME WCI 5303131115 No Longer Available
2
WCI 5303207650 WCI 5303207650 Contact Us For Availability
2
SHIELD - THERMO WCI 3131940 Contact Us For Availability
2
WCI 5303207638 WCI 5303207638 Contact Us For Availability
2
WCI 3018618 WCI 3018618 Contact Us For Availability
2
VALVE, SHUT OFF WCI 774T121P01 Contact Us For Availability
2A
WCI 789T053P18 WCI 789T053P18 Contact Us For Availability
2A
WCI 3018619 WCI 3018619 Contact Us For Availability
3
WCI 5303271828 WCI 5303271828 Contact Us For Availability
3
FSTNR PUSH-NUT WCI 5303131254 Contact Us For Availability
3
LINER - COMPT DOOR WCI 381T068F03-18 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
WCI 5303208062 WCI 5303208062 Contact Us For Availability
3
SCREW, SHOULDER (2) WCI 636T066P06 Contact Us For Availability
3A
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
4
INSULATOR - THERMOSTAT WCI 331T093P02 Contact Us For Availability
4
WCI 5303207138 WCI 5303207138 Contact Us For Availability
4
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
4
WCI 5303207538 WCI 5303207538 Contact Us For Availability
4
WCI 439T053P02 WCI 439T053P02 Contact Us For Availability
4
SHIELD, WOOL WCI 655T308F02 Contact Us For Availability
5
WCI 5303912665 WCI 5303912665 Contact Us For Availability
5
WCI 286T007P05 WCI 286T007P05 Contact Us For Availability
5
WCI 3131543 WCI 3131543 Contact Us For Availability
5
HINGE DOOR (LWR / PIN-MOUNT TO CHASSIS) WCI 302T028P01 Contact Us For Availability
5
WCI 5303206950 WCI 5303206950 Contact Us For Availability
5A
SCREW, BOTTOM (NON-ILLUSTRATED) WCI 636T134P01 Contact Us For Availability
6
CAM-OVEN DOOR-LH WCI 5303205939 Contact Us For Availability
6
WCI 5303016997 WCI 5303016997 Contact Us For Availability
6
WCI 3131627 WCI 3131627 Contact Us For Availability
6
WCI 5303274240 WCI 5303274240 Contact Us For Availability
6
FSTNR - NYLON SPACER WCI 241T017P180 Contact Us For Availability
6
WCI 302T027P01 WCI 302T027P01 Contact Us For Availability
6
WASHER (2) WCI 789T053P12 Contact Us For Availability
6A
CAM-OVEN DOOR-RH WCI 5303205940 Contact Us For Availability
6B
WCI 355T588S01 WCI 355T588S01 Contact Us For Availability
7
WCI 5303204154 WCI 5303204154 Contact Us For Availability
7
WCI 5308012857 WCI 5308012857 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7
WCI 3131540 WCI 3131540 Contact Us For Availability
7
WCI 296T081S01 WCI 296T081S01 Contact Us For Availability
7
RACK, OVEN (2) WCI 591T073P02 Contact Us For Availability
7A
WCI 3051355 WCI 3051355 Contact Us For Availability
8
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
8
WCI 5303912633 WCI 5303912633 Contact Us For Availability
8
WCI 750T141S05 WCI 750T141S05 Contact Us For Availability
8
WCI 08010603 WCI 08010603 Contact Us For Availability
8A
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
9
WCI 358T142P117 WCI 358T142P117 Contact Us For Availability
9
LINER, BROILER DRAWER WCI 381T077F04-86 Contact Us For Availability
9
WCI 5300007473 WCI 5300007473 Contact Us For Availability
10
WCI 521T114P03 WCI 521T114P03 Contact Us For Availability
10
TRIM-OV DR TOP (BLACK) WCI 740T410P01 Contact Us For Availability
10
WCI 3018614 WCI 3018614 Contact Us For Availability
10
WCI 5303204455 WCI 5303204455 Contact Us For Availability
10
WCI 662T012P11 WCI 662T012P11 Contact Us For Availability
11
WCI 5303206955 WCI 5303206955 Contact Us For Availability
11
PAN-BROILER WCI 5303013568 Contact Us For Availability
12
WCI 5303131356 WCI 5303131356 Contact Us For Availability
12
WCI 5303281925 WCI 5303281925 Contact Us For Availability
12
SEAL - DOOR (TOP & BTTM) WCI 647T068P02 Contact Us For Availability
13
WCI 5303207593 WCI 5303207593 Contact Us For Availability
13
WCI 3205952 WCI 3205952 Contact Us For Availability
13
WCI 106T027P02 WCI 106T027P02 Contact Us For Availability
13
WCI 5303207566 WCI 5303207566 Contact Us For Availability
14
WCI 277T139P42 WCI 277T139P42 Contact Us For Availability
14
CHANNEL, GLIDE (2) WCI 136T281S05 Contact Us For Availability
14
WCI 5303206944 WCI 5303206944 Contact Us For Availability
14
WCI 08010602 WCI 08010602 Contact Us For Availability
15
TRIM-GLASS RETAINER WCI 740T239F01 Contact Us For Availability
15
BUTTON, GLIDE WCI 106T028P01 Contact Us For Availability
15
WCI 5303206942 WCI 5303206942 Contact Us For Availability
16
WCI 358T038P01 WCI 358T038P01 Contact Us For Availability
16
CHANNEL, STIFFENER WCI 136T216F01-18 Contact Us For Availability
17
WCI 030T011P01 WCI 030T011P01 Contact Us For Availability
17
WCI 5303269825 WCI 5303269825 Contact Us For Availability
18
WCI 142T035P01 WCI 142T035P01 Contact Us For Availability
18
WCI 048T010F02-18 WCI 048T010F02-18 Contact Us For Availability
19
FSTNR., CABLE CLAMP WCI 08067733 Contact Us For Availability
19
SPACER, SUPPORT CHANNEL WCI 665T072P06 Contact Us For Availability
20
WCI 136T300F03-18 WCI 136T300F03-18 Contact Us For Availability
21
BAFFLE-OVEN BOTTOM WCI 5303131517 Contact Us For Availability
21
WCI 600T014F01 WCI 600T014F01 Contact Us For Availability
22
WCI 5303208304 WCI 5303208304 Contact Us For Availability
23
WCI 5303912679 No Longer Available
23
RETAINER, OVEN BURNER WCI 612T094P01 Contact Us For Availability
24
LOXIT FITTING WCI 247T079P01 Contact Us For Availability
24
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
25
TUBE, OVEN SUPPLY WCI 750T095P12 Contact Us For Availability
25
SHIELD, WOOL WCI 3131536 Contact Us For Availability
26
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
26
WCI 252T047W01-18 WCI 252T047W01-18 Contact Us For Availability
27
FSTNR-OV & SAFETY VALVE WCI 241T017P216 Contact Us For Availability
27
WCI 3131516 WCI 3131516 Contact Us For Availability
28
COVER, SAFETY VALVE WCI 174T300F01 Contact Us For Availability
28
WCI 072T612F02 WCI 072T612F02 Contact Us For Availability
29
TERMINAL, BLOCK WCI 709T041P01 Contact Us For Availability
29
WCI 036T052W05-18 WCI 036T052W05-18 Contact Us For Availability
29A
WCI 008T276F05-18 WCI 008T276F05-18 Contact Us For Availability
29B
PLATE - BURNER MTG (NON-ILLUSTRATED) WCI 3131535 Contact Us For Availability
30
WCI 072T781F01 WCI 072T781F01 Contact Us For Availability
30
WCI 171T021P07 WCI 171T021P07 Contact Us For Availability
31
FASTENER, TEE NUT LEVELING LEG WCI 241T017P10 Contact Us For Availability
32
WCI 5303203397 WCI 5303203397 Contact Us For Availability
33
COVER, SCREW TIP WCI 174T133P02 Contact Us For Availability
34
WCI 3200523 WCI 3200523 Contact Us For Availability
35
FSTNR - CLAMP WCI 241T017P128 Contact Us For Availability
36
FASTENER WCI 241T017P238 Contact Us For Availability
37
WCI 5308010594 WCI 5308010594 Contact Us For Availability
× ![]()
