Model Electrolux 36-3032-00-05 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

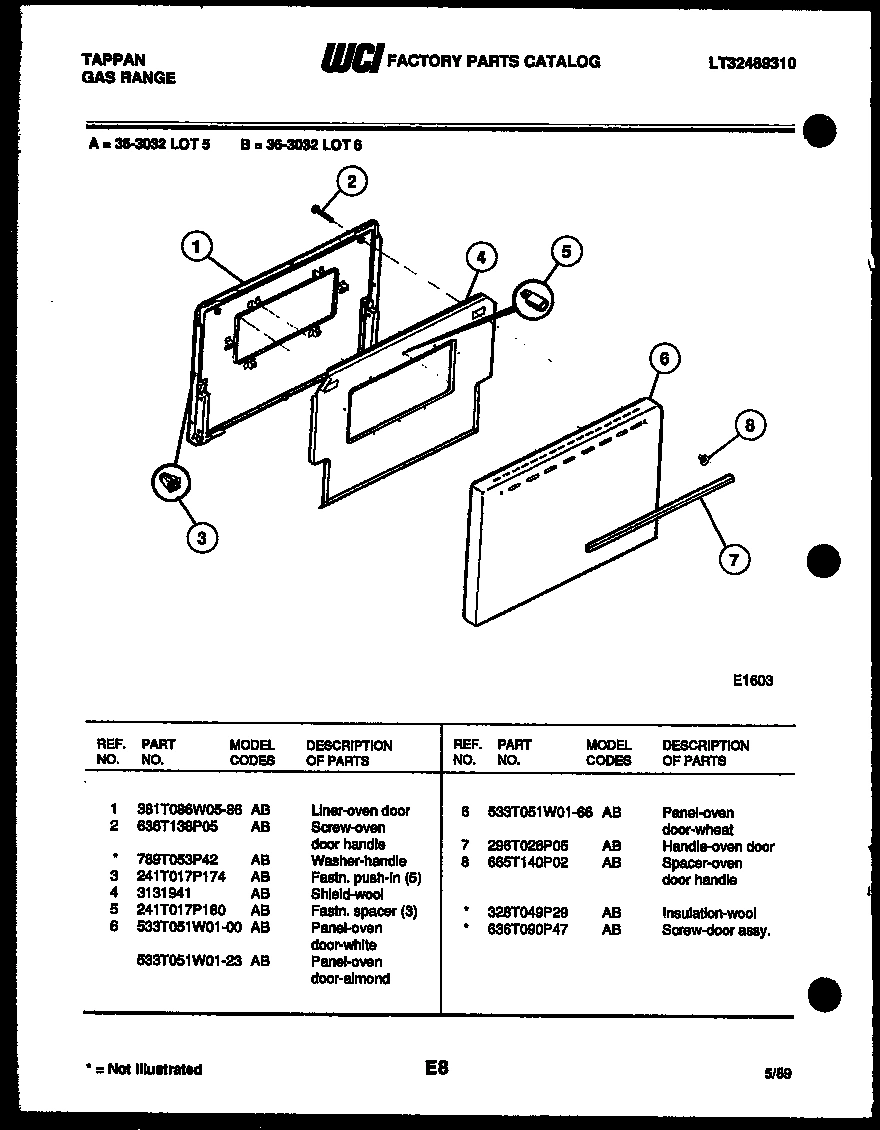

04 - DOOR PARTS

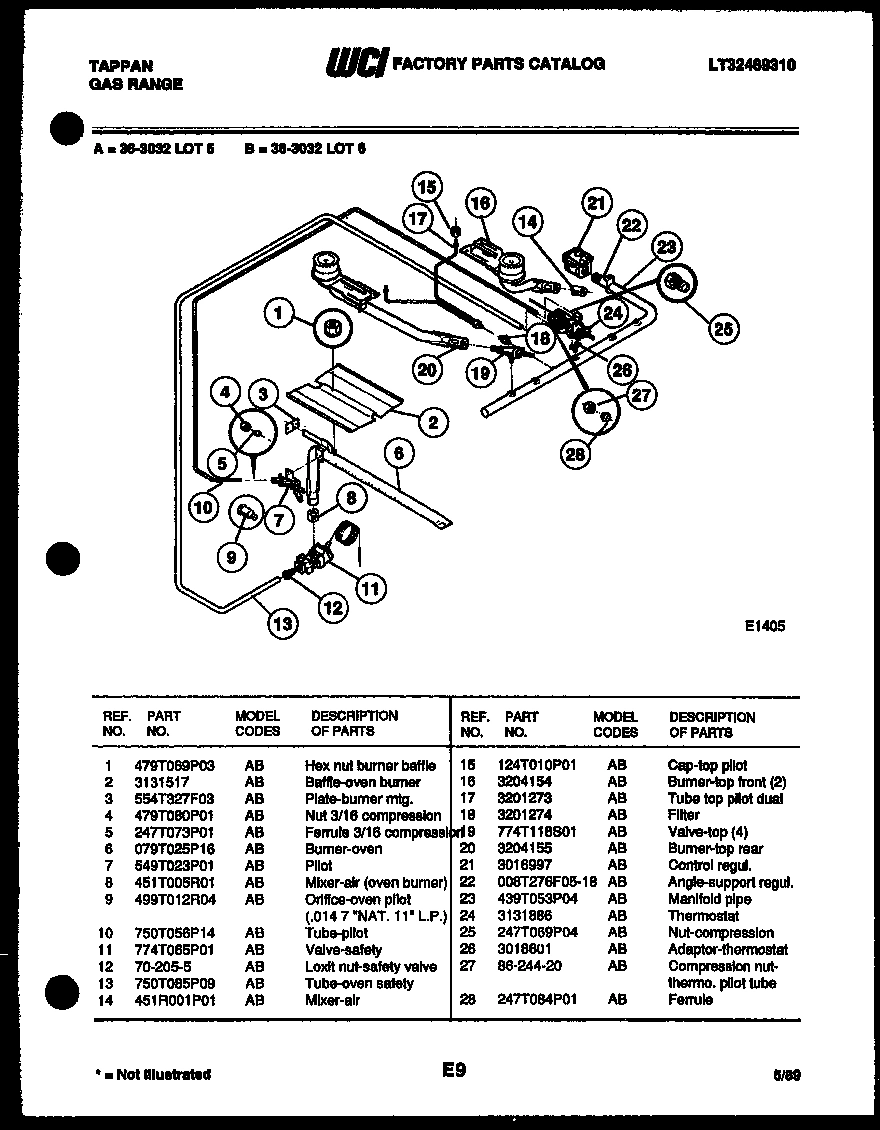

05 - BURNER, MANIFOLD AND GAS CONTROL

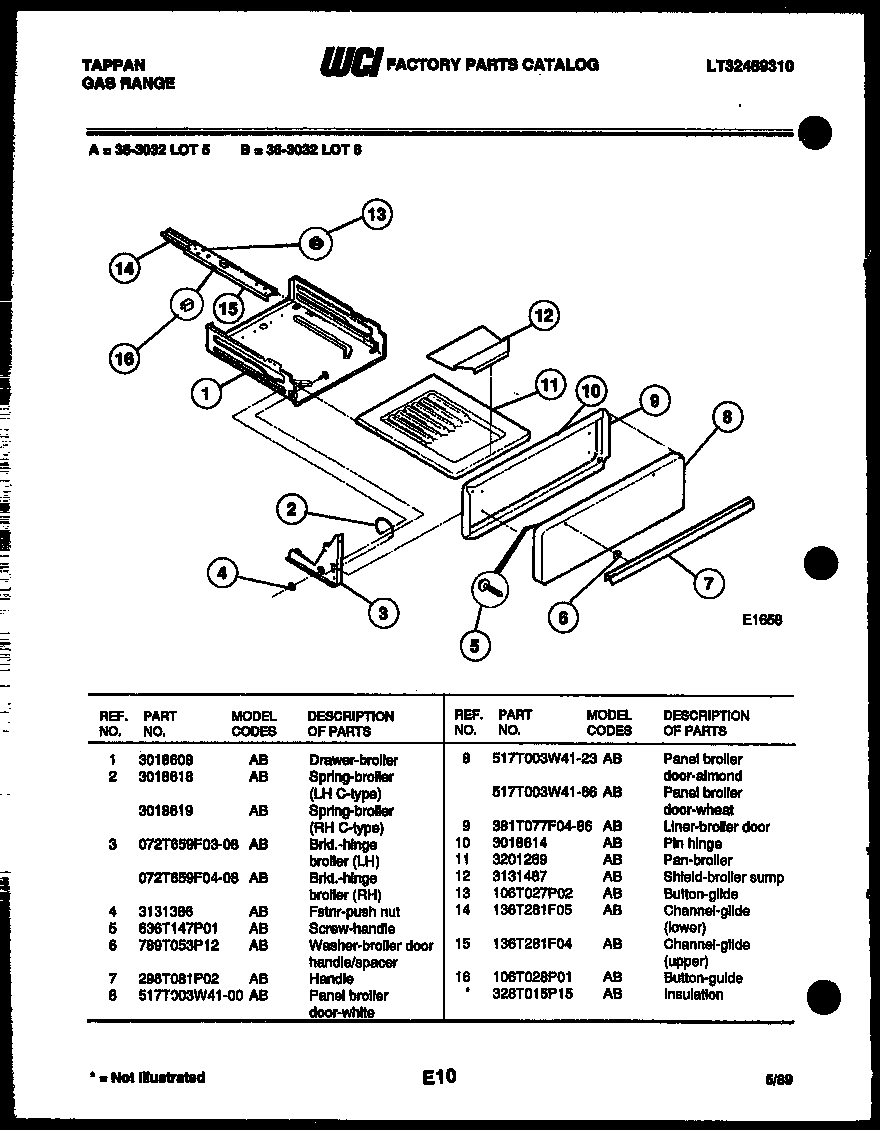

06 - BROILER DRAWER PARTS

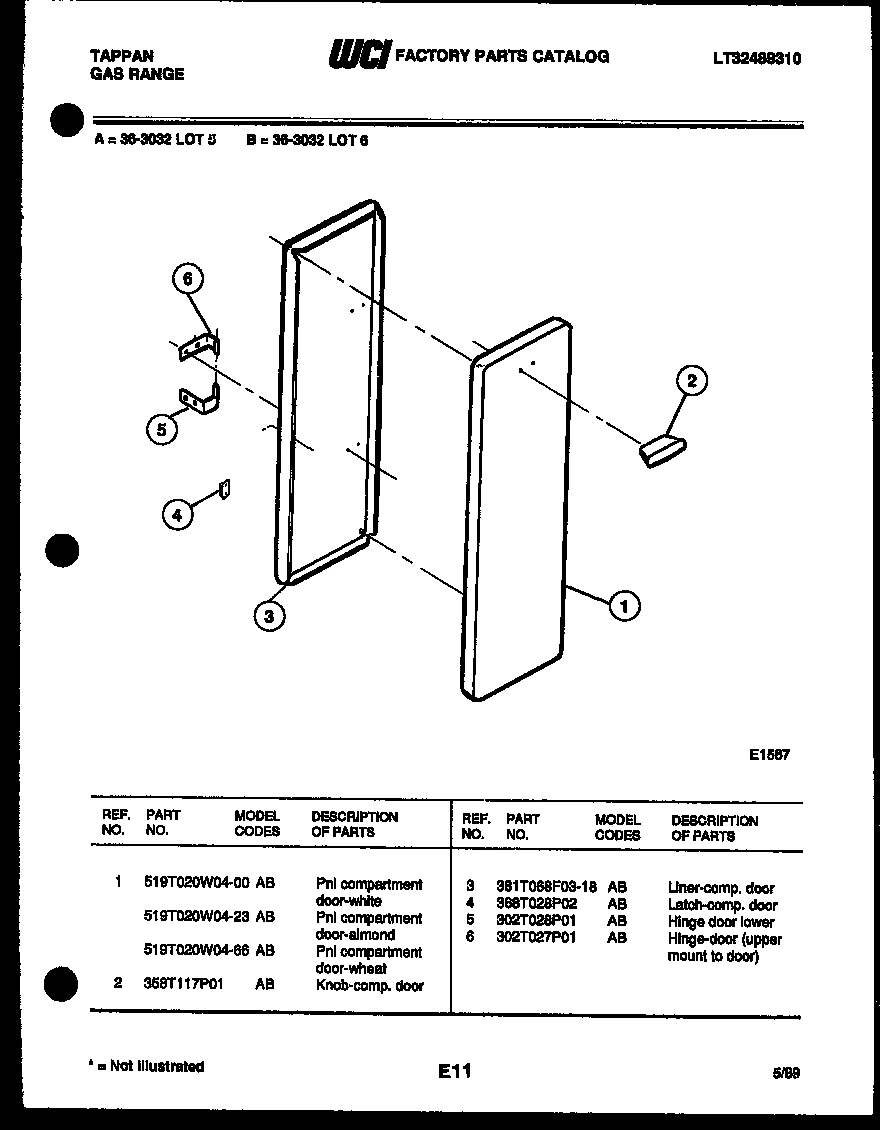

07 - PANEL COMPARTMENT

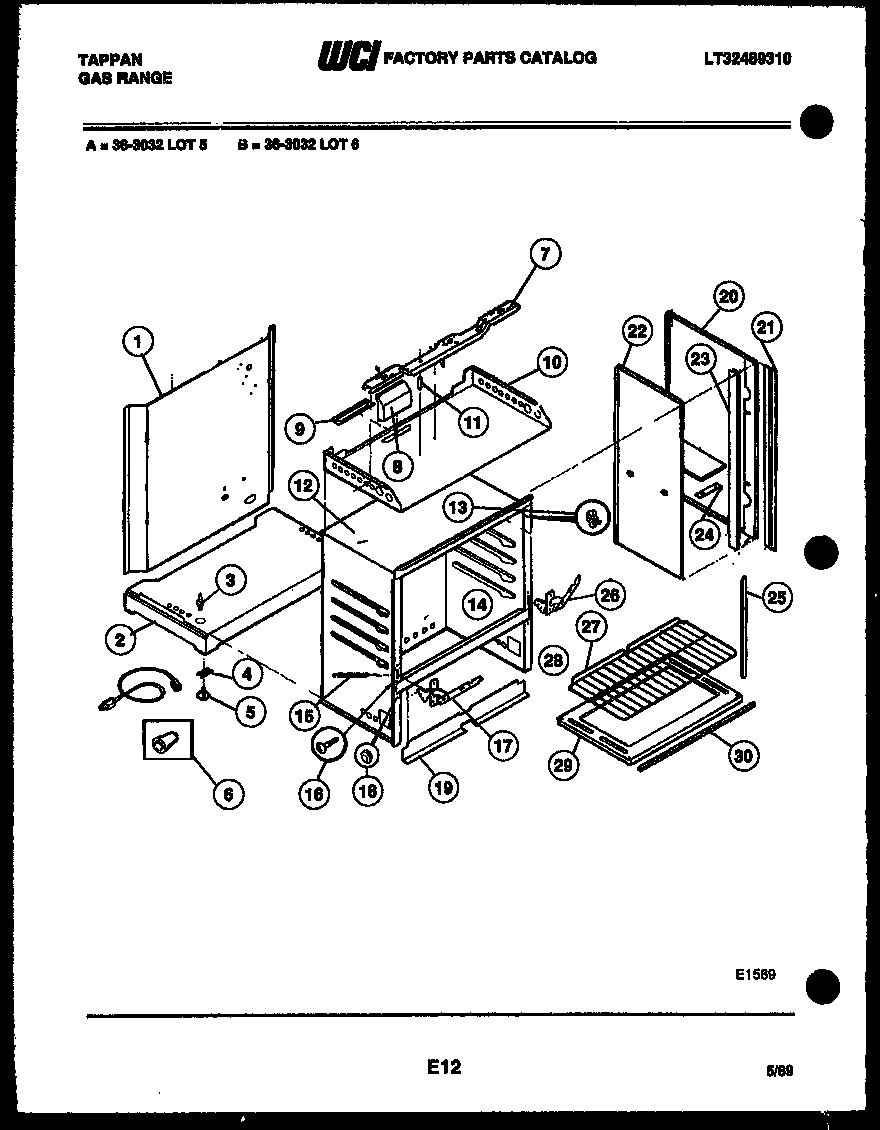

08 - BODY PARTS
Common parts from model Electrolux 36-3032-00-05 RANGE
*24327
WCI 328T049P29 WCI 328T049P29 Contact Us For Availability
*24327
SCREW-DOOR ASSY. WCI 636T090P47 Contact Us For Availability
*24333
INSULATION WCI 328T015P15 Contact Us For Availability
1
WCI 511T040F13-18 WCI 511T040F13-18 Contact Us For Availability
1
WCI 521T106P02 WCI 521T106P02 Contact Us For Availability
1
LINER-OVEN DOOR WCI 381T086W05-86 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
1
WCI 519T020W04-00 WCI 519T020W04-00 Contact Us For Availability
1
WCI 3131516 WCI 3131516 Contact Us For Availability
2
WCI 358T117P01 No Longer Available
2
WCI 740T234F09 WCI 740T234F09 Contact Us For Availability
2
KNOB TOP VALVE (4) WCI 358T141P21 Contact Us For Availability
2
SCREW-OVEN DOOR HANDLE WCI 636T138P05 Contact Us For Availability
2
WCI 3131517 WCI 3131517 Contact Us For Availability
2
WCI 3018618 WCI 3018618 Contact Us For Availability
2
WCI 036T052W05-18 WCI 036T052W05-18 Contact Us For Availability
2A
WASHER-HANDLE (NON-ILLUSTRATED) WCI 789T053P42 Contact Us For Availability
2A
WCI 3018619 WCI 3018619 Contact Us For Availability
3
WCI 513T080P05 WCI 513T080P05 Contact Us For Availability
3
WCI 358T141P03 WCI 358T141P03 Contact Us For Availability
3
FASTN. PUSH-IN (5) WCI 241T017P174 Contact Us For Availability
3
WCI 554T327F03 WCI 554T327F03 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
WCI 381T068F03-18 WCI 381T068F03-18 Contact Us For Availability
3
WCI 550T034P01 WCI 550T034P01 Contact Us For Availability
3A
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
4
WCI 136T270F02 WCI 136T270F02 Contact Us For Availability
4
ROD, MAIN TOP SUPPORT WCI 3013818 Contact Us For Availability
4
SHIELD-WOOL WCI 3131941 Contact Us For Availability
4
NUT 3/16 COMPRESSION WCI 479T080P01 Contact Us For Availability
4
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
4
WCI 368T028P02 WCI 368T028P02 Contact Us For Availability
4
FSTNR. LEVELING LEG (4) WCI 241T017P10 Contact Us For Availability
5
WCI 123T076P02 WCI 123T076P02 Contact Us For Availability
5
WCI 3131892 WCI 3131892 Contact Us For Availability
5
FASTN. SPACER (3) WCI 241T017P180 Contact Us For Availability
5
FERRULE 3/16 COMPRESSION WCI 247T073P01 Contact Us For Availability
5
WCI 302T028P01 WCI 302T028P01 Contact Us For Availability
5
LEVELING LEG (4) WCI 636M004P01 Contact Us For Availability
6
WCI 250T022W05-18 WCI 250T022W05-18 Contact Us For Availability
6
TRIM-MAIN TOP (LH) WCI 740T430W01 Contact Us For Availability
6
TRIM-MAIN TOP (RH) WCI 740T430W02 Contact Us For Availability
6
PANEL-OVEN DOOR-WHITE WCI 533T051W01-00 Contact Us For Availability
6
BURNER-OVEN WCI 079T025P16 Contact Us For Availability
6
WASHER-BROILER DOOR HANDLE/SPACER WCI 789T053P12 Contact Us For Availability
6
WCI 302T027P01 WCI 302T027P01 Contact Us For Availability
6
COVER, SCREW TIP PROTECTOR WCI 174T133P02 Contact Us For Availability
7
GASKET-BACKGUARD WCI 269T089P02 Contact Us For Availability
7
WCI 296T026P05 WCI 296T026P05 Contact Us For Availability
7
PILOT WCI 549T023P01 Contact Us For Availability
7
HANDLE WCI 296T081P02 Contact Us For Availability
7
WCI 136T300F02-18 WCI 136T300F02-18 Contact Us For Availability
8
WCI 277T139P34 WCI 277T139P34 Contact Us For Availability
8
WCI 577T021P08 WCI 577T021P08 Contact Us For Availability
8
SPACER-OVEN DOOR HANDLE WCI 665T140P02 Contact Us For Availability
8
MIXER-AIR (OVEN BURNER) WCI 451T005R01 Contact Us For Availability
8
PANEL-BROILER DOOR-WHITE WCI 517T003W41-00 Contact Us For Availability
8
WCI 252T047W01-18 WCI 252T047W01-18 Contact Us For Availability
9
TRIM-GLASS RETAINER WCI 740T239F01 Contact Us For Availability
9
WCI 124T014P01 WCI 124T014P01 Contact Us For Availability
9
ORIFICE-OVEN PILOT (.014 7``NAT. 11`` L.P.) WCI 499T012R04 Contact Us For Availability
9
WCI 381T077F04-86 WCI 381T077F04-86 Contact Us For Availability
9
WCI 3131536 WCI 3131536 Contact Us For Availability
10
BRKT MAIN TOP HINGE-LH WCI 3131286 Contact Us For Availability
10
TUBE-PILOT WCI 750T056P14 Contact Us For Availability
10
WCI 3018614 WCI 3018614 Contact Us For Availability
10
WCI 095T025W05-86 WCI 095T025W05-86 Contact Us For Availability
11
BRKT MAIN TOP HINGE-RH WCI 3131287 Contact Us For Availability
11
VALVE-SAFETY WCI 774T065P01 Contact Us For Availability
11
WCI 3201269 WCI 3201269 Contact Us For Availability
11
WCI 665T072P06 WCI 665T072P06 Contact Us For Availability
12
LOXIT NUT-SAFETY VALVE WCI 70-205-5 Contact Us For Availability
12
SHIELD-BROILER SUMP WCI 3131487 Contact Us For Availability
13
WCI 750T085P09 WCI 750T085P09 Contact Us For Availability
13
WCI 106T027P02 WCI 106T027P02 Contact Us For Availability
14
MIXER-AIR WCI 451R001P01 Contact Us For Availability
14
CHANNEL-GLIDE (LOWER) WCI 136T281F05 Contact Us For Availability
14
PLUG BUTTON WCI 557T021P12 Contact Us For Availability
15
WCI 124T010P01 WCI 124T010P01 Contact Us For Availability
15
WCI 136T281F04 WCI 136T281F04 Contact Us For Availability
15
SPRING-OVEN DOOR CAM WCI 675T041P01 Contact Us For Availability
16
WCI 3204154 WCI 3204154 Contact Us For Availability
16
BUTTON-GUIDE WCI 106T028P01 Contact Us For Availability
16
SCREW, SHOULDER (2) WCI 636T066P06 Contact Us For Availability
17
WCI 3201273 WCI 3201273 Contact Us For Availability
17
CAM-OVEN L/H WCI 117T013S13 Contact Us For Availability
18
WCI 3201274 WCI 3201274 Contact Us For Availability
18
PLUG, BUTTON WCI 557T021P31 Contact Us For Availability
19
WCI 774T118S01 WCI 774T118S01 Contact Us For Availability
19
SHIELD, WOOL (LOWER FRONT) WCI 655T308F02 Contact Us For Availability
19A
INSULATION (TOP & SIDE) (NON-ILLUSTRATED) WCI 3200323 Contact Us For Availability
19B
INSULATION (BACK) (NON-ILLUSTRATED) WCI 328T015P103 Contact Us For Availability
19C
INSULATION (CHANNEL) (NON-ILLUSTRATED) WCI 328T015P99 Contact Us For Availability
20
WCI 3204155 WCI 3204155 Contact Us For Availability
20
WCI 515T047F16-00 WCI 515T047F16-00 Contact Us For Availability
20A
WCI 515T047F13-00 WCI 515T047F13-00 Contact Us For Availability
21
CONTROL REGUL. WCI 3016997 Contact Us For Availability
21
TRIM-BODY PNL. (VERTICAL) IF EQUIPPED WCI 740T431F01 Contact Us For Availability
22
WCI 008T276F05-18 WCI 008T276F05-18 Contact Us For Availability
22
WCI 048T010F01-18 WCI 048T010F01-18 Contact Us For Availability
23
WCI 439T053P04 WCI 439T053P04 Contact Us For Availability
23
WCI 136T216F01-18 WCI 136T216F01-18 Contact Us For Availability
24
WCI 3131886 WCI 3131886 Contact Us For Availability
24
WCI 072T552F01-08 WCI 072T552F01-08 Contact Us For Availability
25
NUT-COMPRESSION WCI 247T069P04 Contact Us For Availability
25
SEAL-DOOR SIDES WCI 115T647P03 Contact Us For Availability
26
ADAPTOR-THERMOSTAT WCI 3018601 Contact Us For Availability
26
CAM, OVEN DOOR, RH WCI 117T013S14 Contact Us For Availability
26A
WCI 355T588S01 WCI 355T588S01 Contact Us For Availability
27
COMPRESSION NUT-THERMO. PILOT TUBE WCI 86-244-20 Contact Us For Availability
27
WCI 591T073P02 WCI 591T073P02 Contact Us For Availability
28
FERRULE WCI 247T084P01 Contact Us For Availability
28
WCI 008T479F01 WCI 008T479F01 Contact Us For Availability
29
WCI 058T035F01-86 WCI 058T035F01-86 Contact Us For Availability
30
SEAL-DOOR (2) WCI 647T068P02 Contact Us For Availability
× ![]()
