Model Whirlpool 35HA-3ELX-BO ELECTRIC RANGE – Common Parts & Diagrams

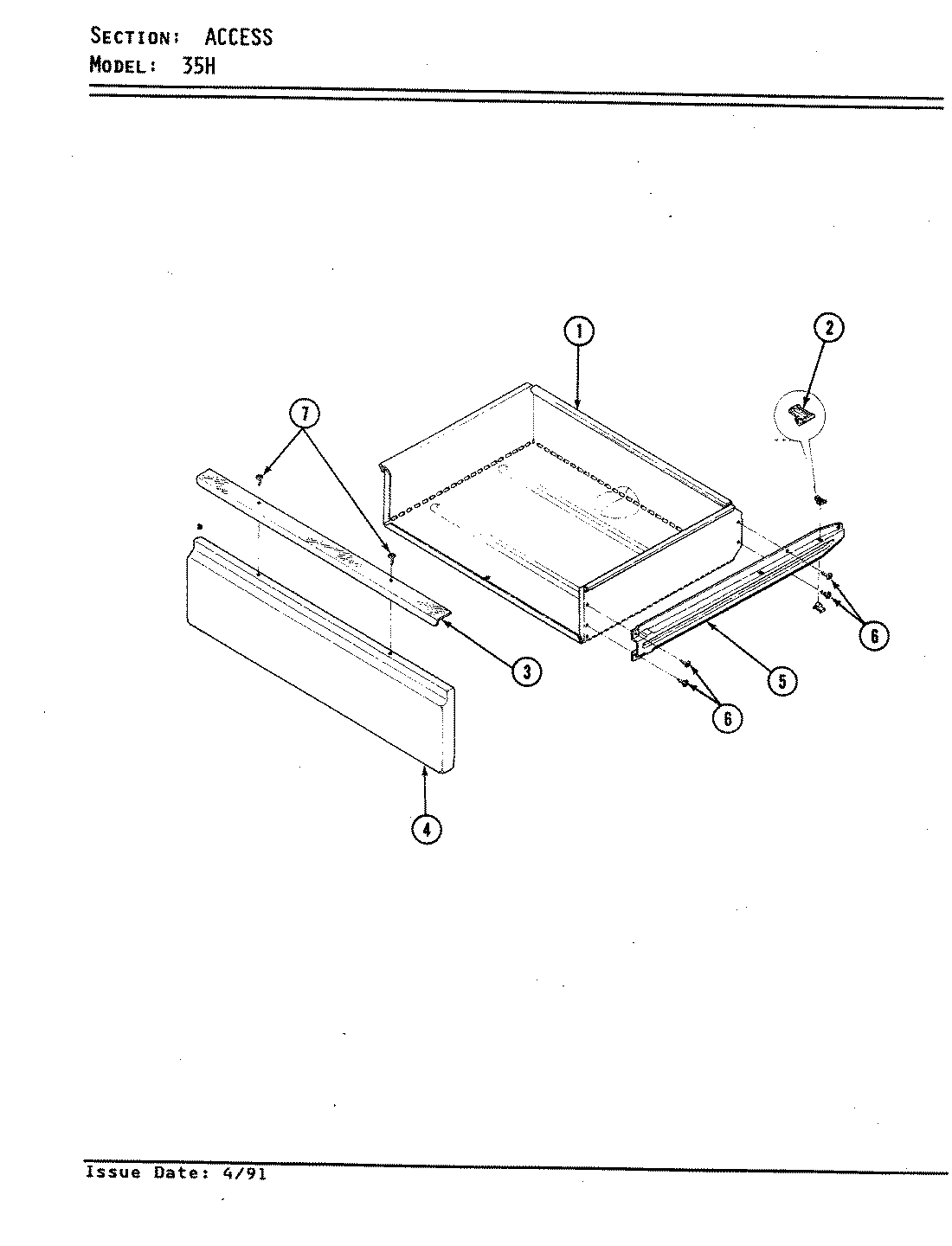

03 - DRAWER
02 - DOOR

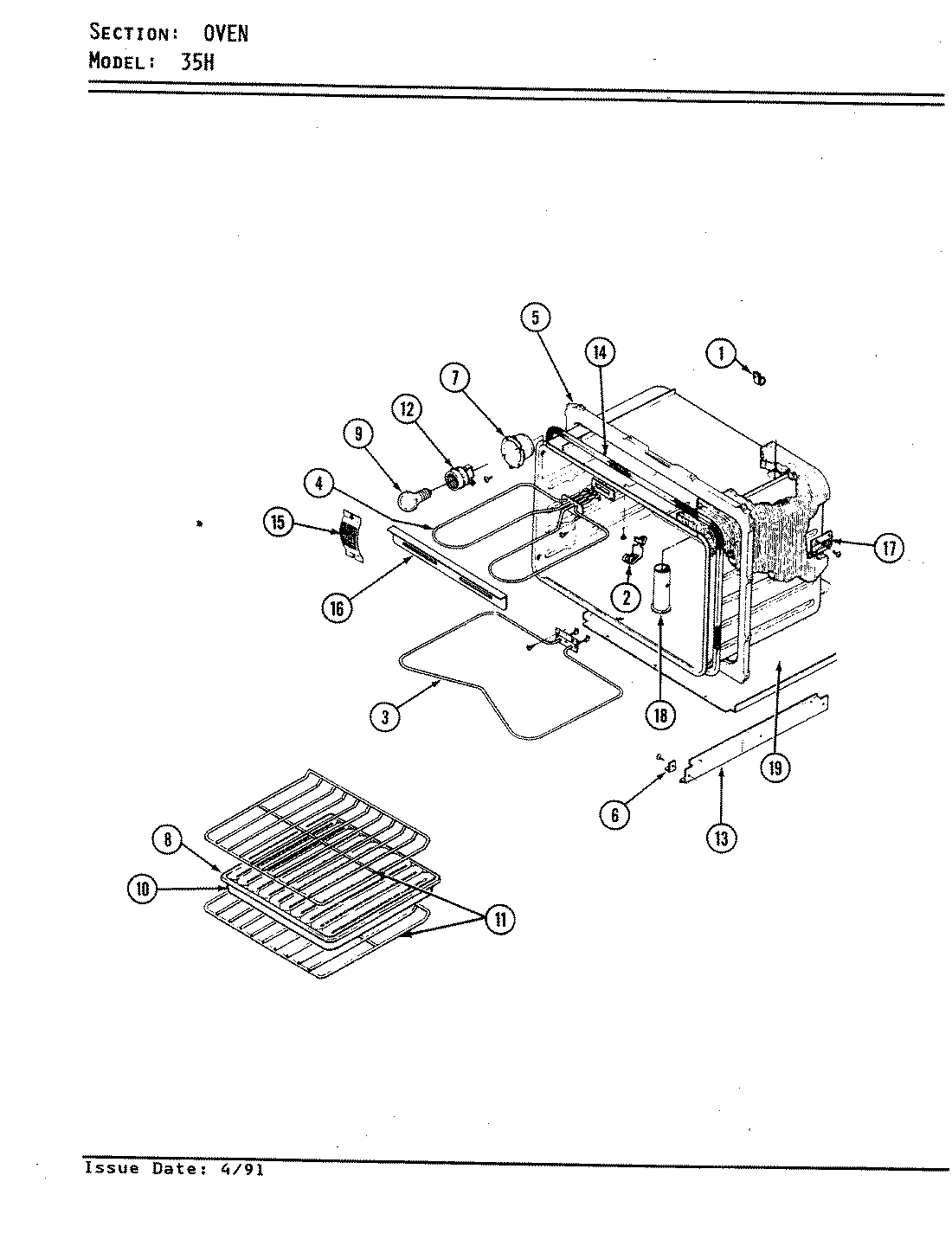

04 - OVEN

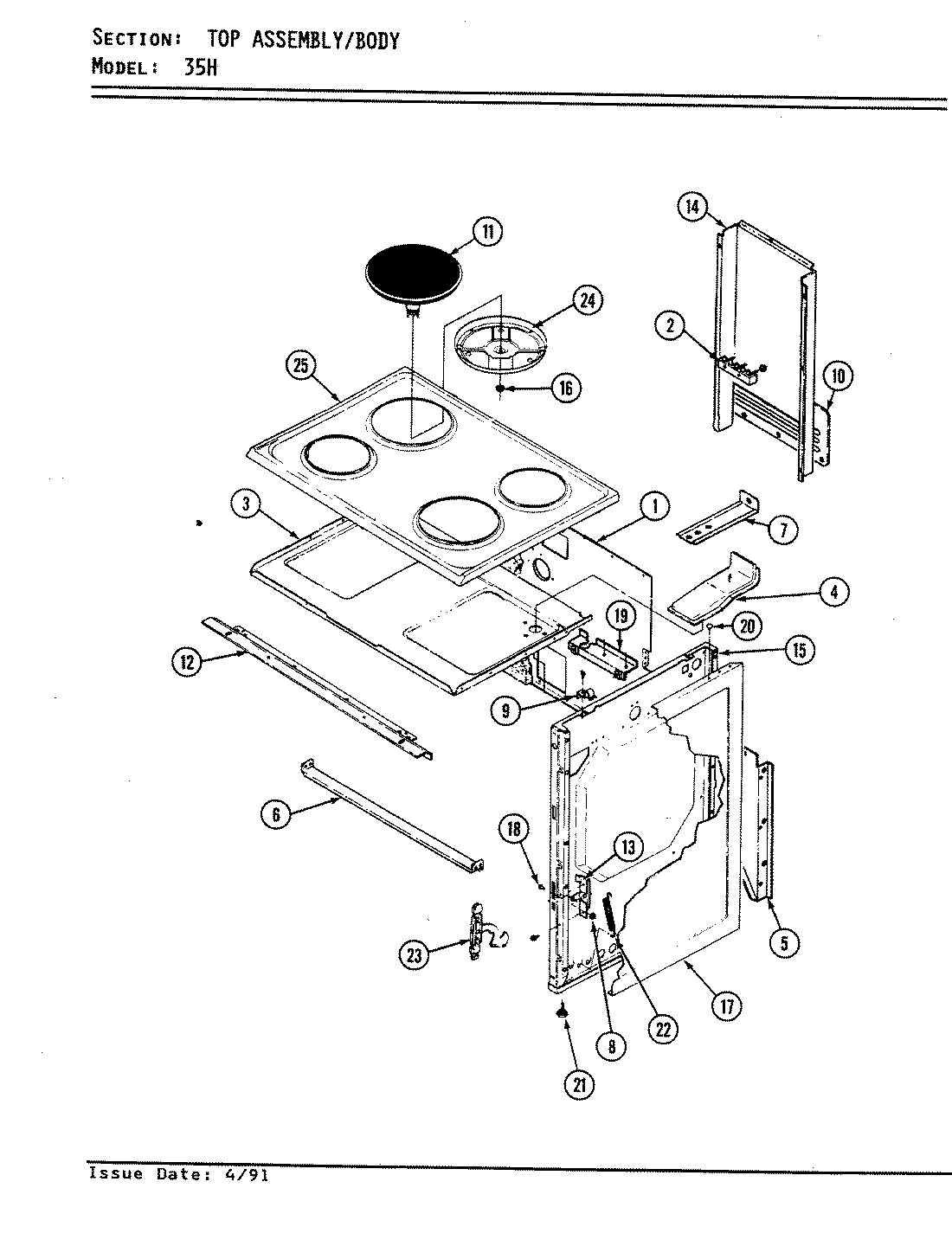

05 - TOP ASSY./BODY
01 - CONTROL PANEL
Common parts from model Whirlpool 35HA-3ELX-BO ELECTRIC RANGE
1
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
1
BACK, MAIN WPL 4002F10380 Contact Us For Availability
1
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
2
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
2
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
2
SCREW WPL 7101P06160 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
COVER, BKGD WIRE WPL 4005F28480 Contact Us For Availability
2
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
2
GASKET, COVER WPL 4005F29651 Contact Us For Availability
2
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
2
CLOCK (220V 50CY) WPL 7601P05260 Contact Us For Availability
2
SHAFT, BIT GENERATOR WPL 8312P01960 Contact Us For Availability
3
HANDLE DOOR ALM WPL 2411F00174 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
3
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12880 Contact Us For Availability
3
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
4
PANEL, DRWR (ALMOND) WPL 2416F00664 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
4
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
4
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
4
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
4
KNOB WPL 7737P02360 Contact Us For Availability
4
KNOB, THERM WPL 7739P02760 Contact Us For Availability
5
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
5
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
5
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
5
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
5
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
5
LIGHT, SIGNAL WPL 7407P06860 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
6
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
6
BRACE, MAIN TOP WPL 3802F04680 Contact Us For Availability
6
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
6
SCREW WPL 7118P00460 Contact Us For Availability
6
BACKGUARD ASSY WPL 2601W33584 Contact Us For Availability
6
SEAL, COVER WPL 7212P03260 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
7
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
7
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
7
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
7
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
7
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
7
SCREW WPL 7101P07460 Contact Us For Availability
8
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
8
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
8
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
9
LINING, OVEN DOOR WPL 2402W15416 Contact Us For Availability
9
LAMP, OVEN WPL 7407P02760 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
9
SWITCH, SELECTOR WPL 7403P17360 Contact Us For Availability
10
SCREW WPL 7101P12360 Contact Us For Availability
10
PAN, BROIL WPL 3401F00423 Contact Us For Availability
10
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
10
COVER, BACK BURNER BOX WPL 4005F25780 Contact Us For Availability
10
COVER, FLUE BOX WPL 4005F28251 Contact Us For Availability
10
COVER ACCESS WPL 4005F36251 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
SWITCH, INF. 250V WPL 7403P18360 Contact Us For Availability
10
SWITCH, INFINITE (1400W) WPL 7403P26860 Contact Us For Availability
10
SWITCH, INFINITE (2600W) WPL 7403P26960 Contact Us For Availability
11
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
11
RACK, OVEN WPL 7801P03060 Contact Us For Availability
11
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
11
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
11
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
11
THERMOSTAT WPL 7404P03060 Contact Us For Availability
12
RETAINER WPL 3804F01050 Contact Us For Availability
12
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
12
FRONT, BURNER BOX BOTTOM WPL 4012F02280 Contact Us For Availability
12
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
12
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
12
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
12
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
13
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
13
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
13
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
13
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
13
SCREW WPL 7101P11260 Contact Us For Availability
13
TRIM, BKGD WPL 7703P19060 Contact Us For Availability
14
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
14
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
14
HOUSING MAIN WIRE WPL 4001F05180 Contact Us For Availability
14
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
15
INSULATION, DOOR WPL 4804F02160 Contact Us For Availability
15
SHIELD WPL 3604F01745 Contact Us For Availability
15
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
15
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
15
WASHER, RETAINER WPL 7109P00660 Contact Us For Availability
15
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
16
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
16
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
16
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
17
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
17
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
17
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
18
TUBE, OVEN VENT WPL 8026P01560 Contact Us For Availability
18
PIN, HINGE WPL 7113P00260 Contact Us For Availability
18
SCREW WPL 7101P00860 Contact Us For Availability
19
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
19
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
19
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
20
RIVET WPL 7107P01760 Contact Us For Availability
20
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
21
NUT, NYLON WPL 7103P04560 Contact Us For Availability
21
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
22
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
23
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
24
SUPPORT, 6`` WPL 8004P01160 Contact Us For Availability
24
SUPPORT, 8`` WPL 8004P01260 Contact Us For Availability
25
TOP ASSY, MAIN ALMOND WPL 2002W03284 Contact Us For Availability
26
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
27
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
× ![]()
