Model Whirlpool 3527XUW ELECTRIC RANGE – Common Parts & Diagrams

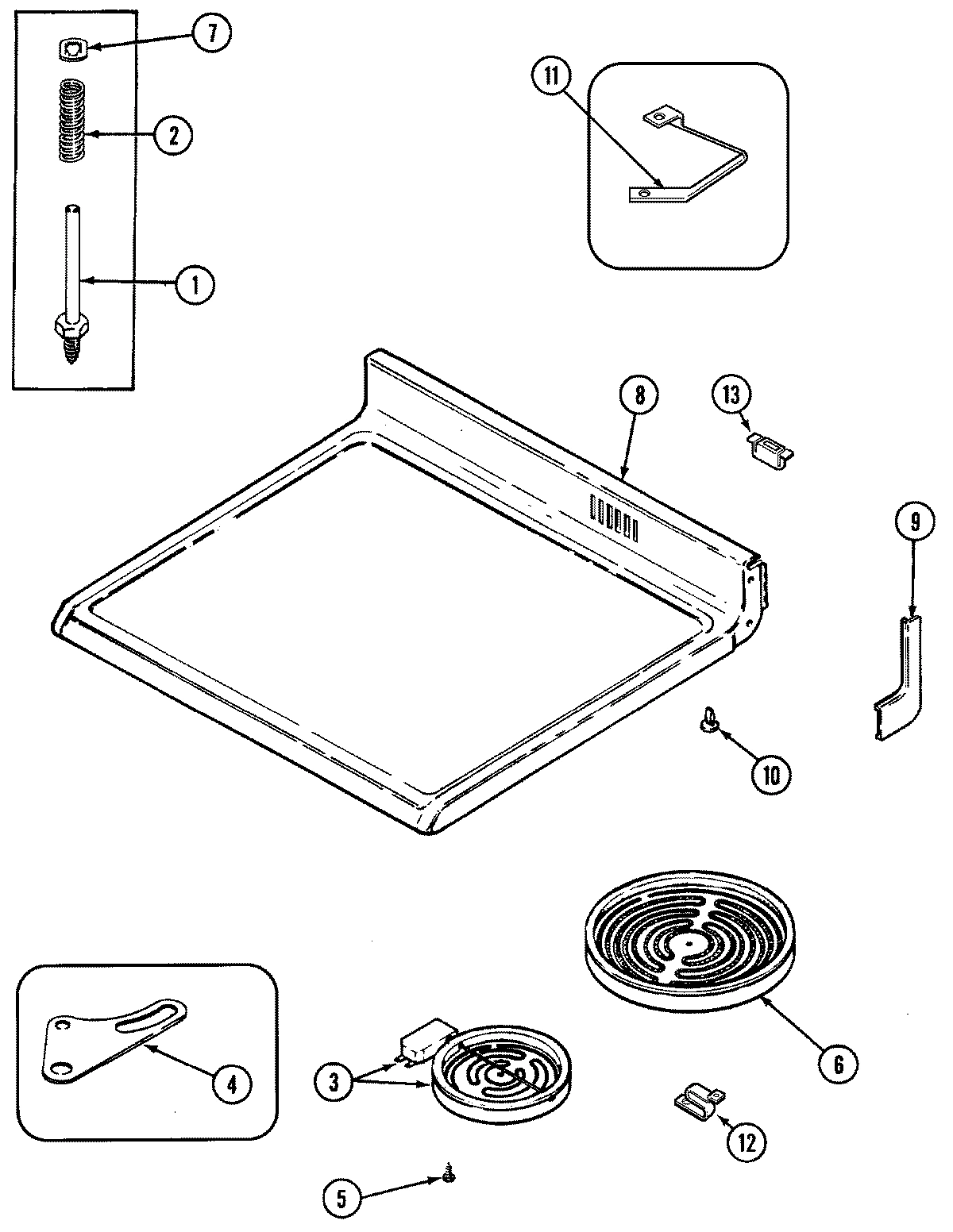

05 - TOP ASSEMBLY

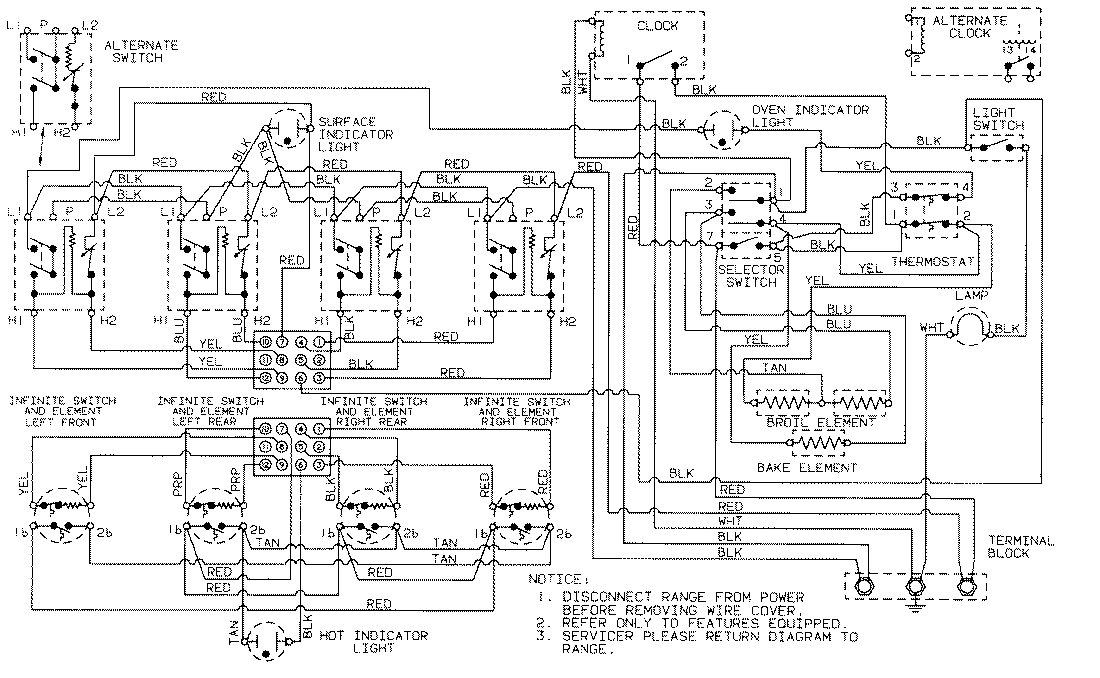

06 - WIRING INFORMATION

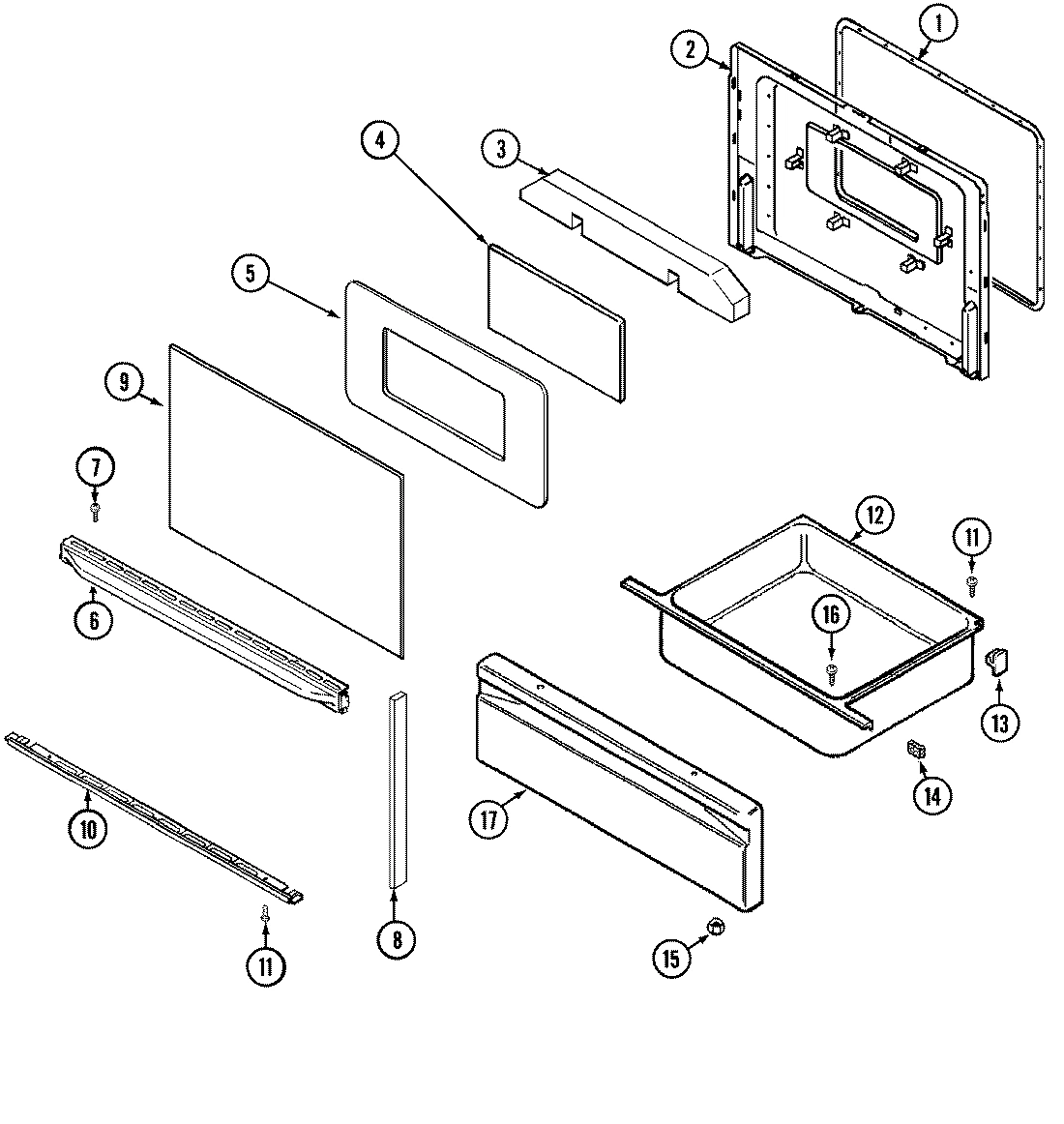

02 - DOOR/DRAWER (3527XUx SERIES 28)

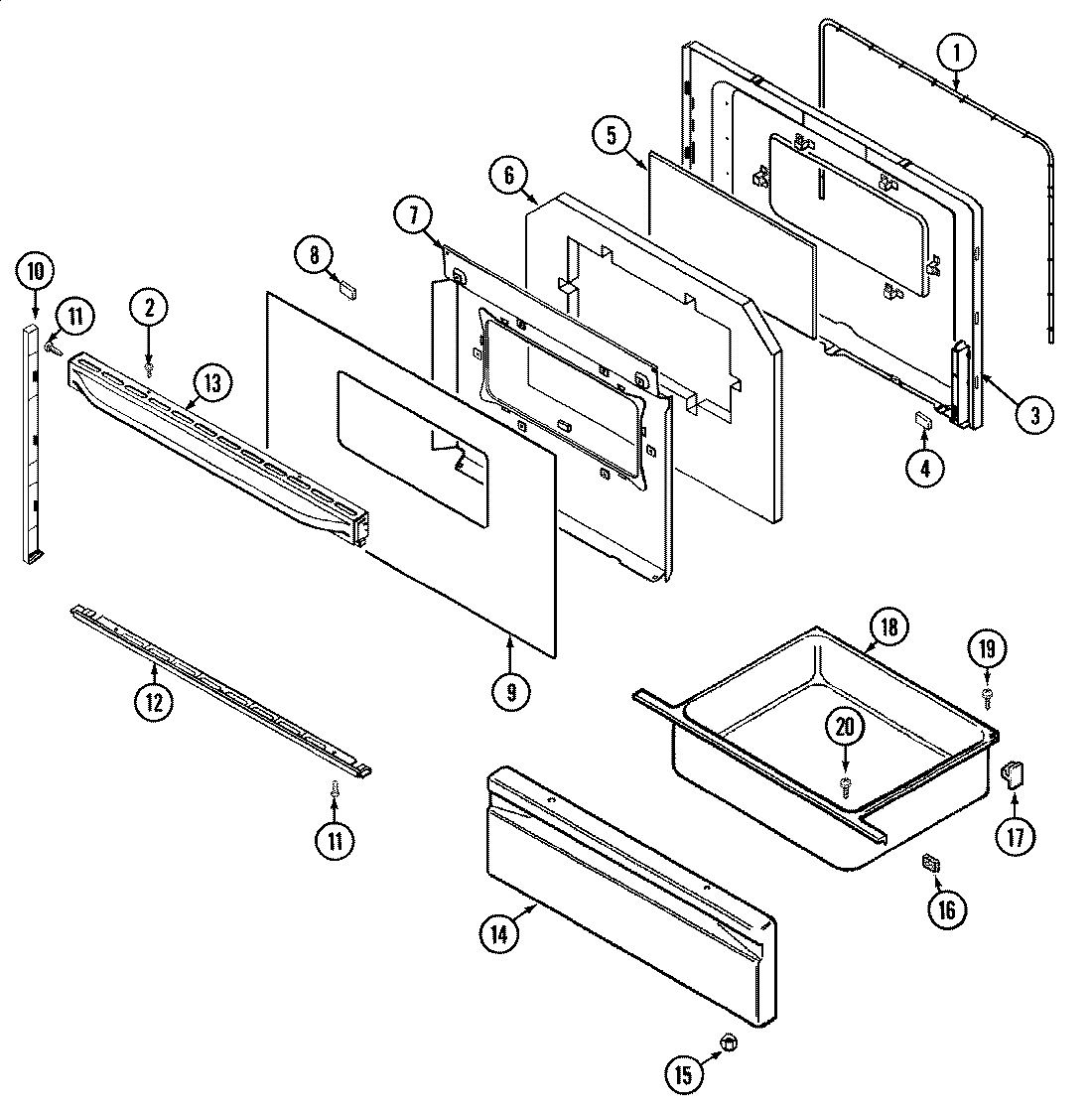

03 - DOOR/DRAWER (3527XUx)

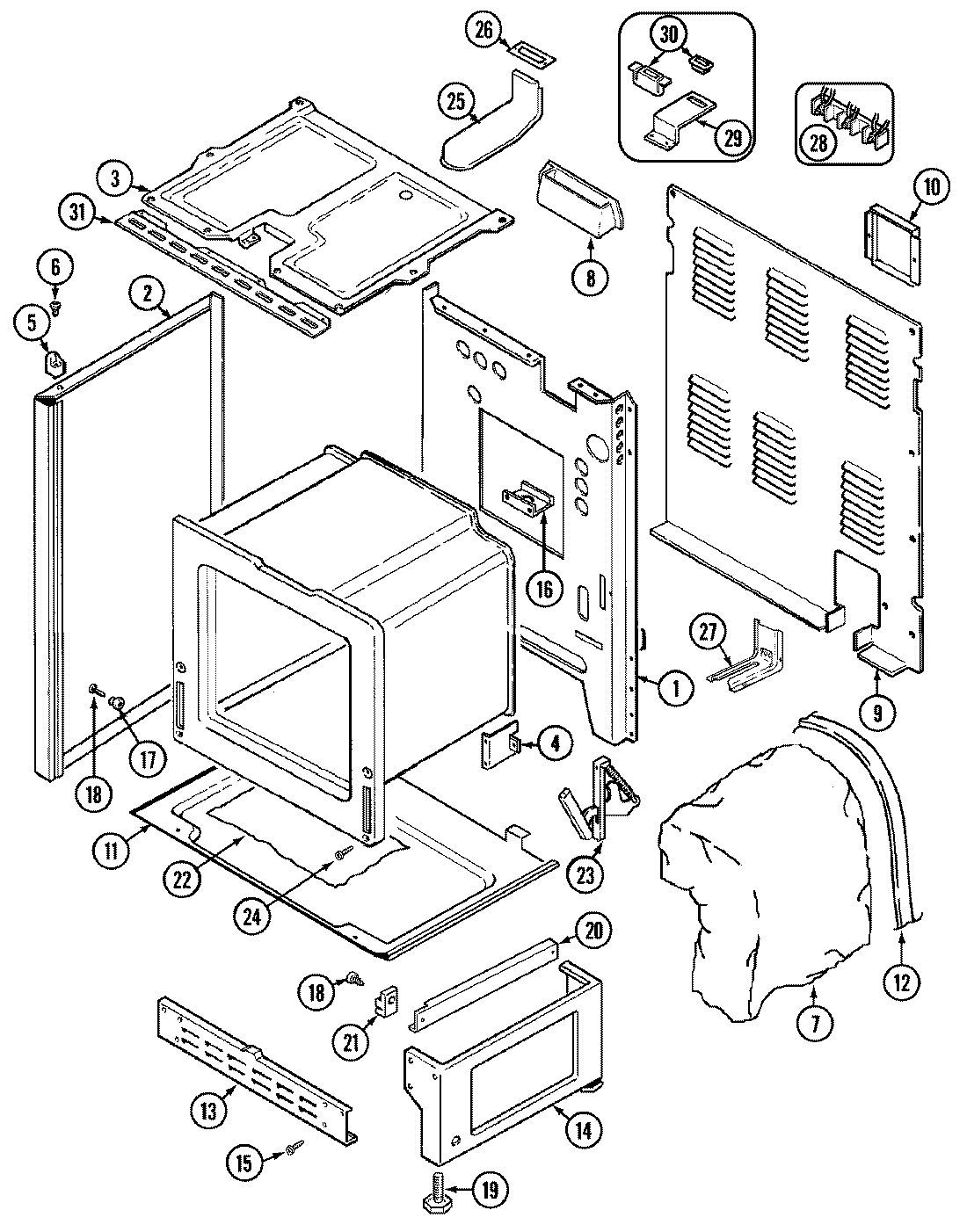

01 - BODY

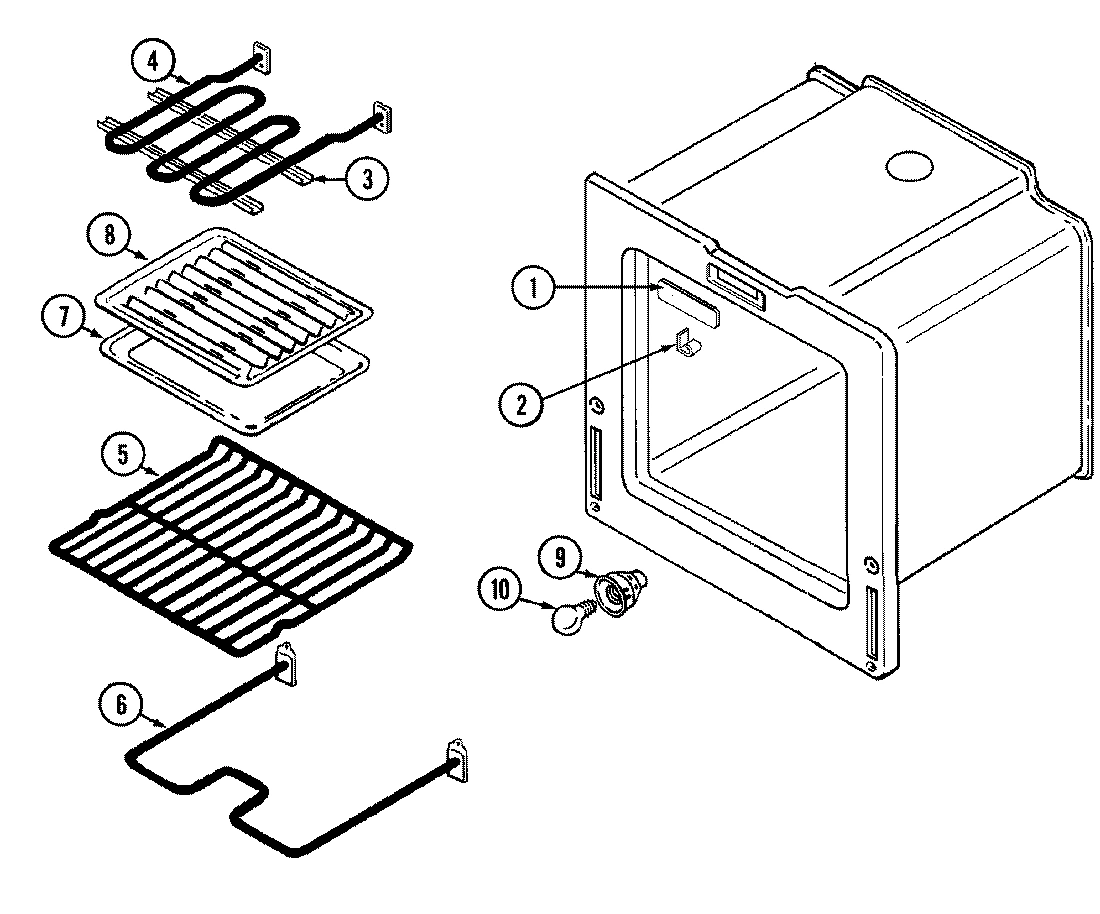

04 - OVEN
Common parts from model Whirlpool 3527XUW ELECTRIC RANGE
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
1
BACK, MAIN WPL 74001341 Contact Us For Availability
1
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
LINING, DOOR WPL 74002785 Contact Us For Availability
2
LINING, DOOR WPL 74003248 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
3
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
INSULATION, DOOR WPL 74002458 Contact Us For Availability
3
LINING, DOOR WPL 2402W21319 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 74001695 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SCREW WPL 7101P30060 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
4
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
5
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
6
LIMITER (8``) WPL 74002652 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
6
INSULATION, DOOR WPL 7002P15860 Contact Us For Availability
6
ELEMENT, BAKE WPL 7406P09260 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
BAFFLE, DOOR WPL 3601F24080 Contact Us For Availability
7
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
7
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
MAIN TOP (WHT GLASS/WHT FRAME) WPL 5706M10781 Contact Us For Availability
8
TOP, MAIN (WHT GLASS/WHT TOP) WPL 74003090 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
8
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
8
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
COVER, WIRE WPL 4005F45551 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
GLIDE WPL 8016P01360 Contact Us For Availability
10
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
10
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
10
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
11
SPRING, CERAMIC ELEMENT WPL 74001437 Contact Us For Availability
11
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
12
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
12
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
14
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
14
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
15
NUT, LOCK WPL 7103P13960 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
SCREW WPL 7101P11560 Contact Us For Availability
15
NUT, LOCK WPL 7103P08560 Contact Us For Availability
16
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
17
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
19
LEG, LEVELING WPL 74001311 Contact Us For Availability
20
SCREW WPL 7101P07260 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
21
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
21
NUT WPL 7103P08260 Contact Us For Availability
21
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
22
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
23
HINGE WPL 7106P05560 Contact Us For Availability
24
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
25
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
26
SEAL, VENT WPL 7212P03660 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
29
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
29
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
30
LIGHT, INDICATOR WPL 74003053 Contact Us For Availability
30
LIGHT, INDICATOR WPL 7407P10660 Contact Us For Availability
31
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002238 Contact Us For Availability
× ![]()
