Model Maytag 3522WUV-D ELECTRIC RANGE – Common Parts & Diagrams

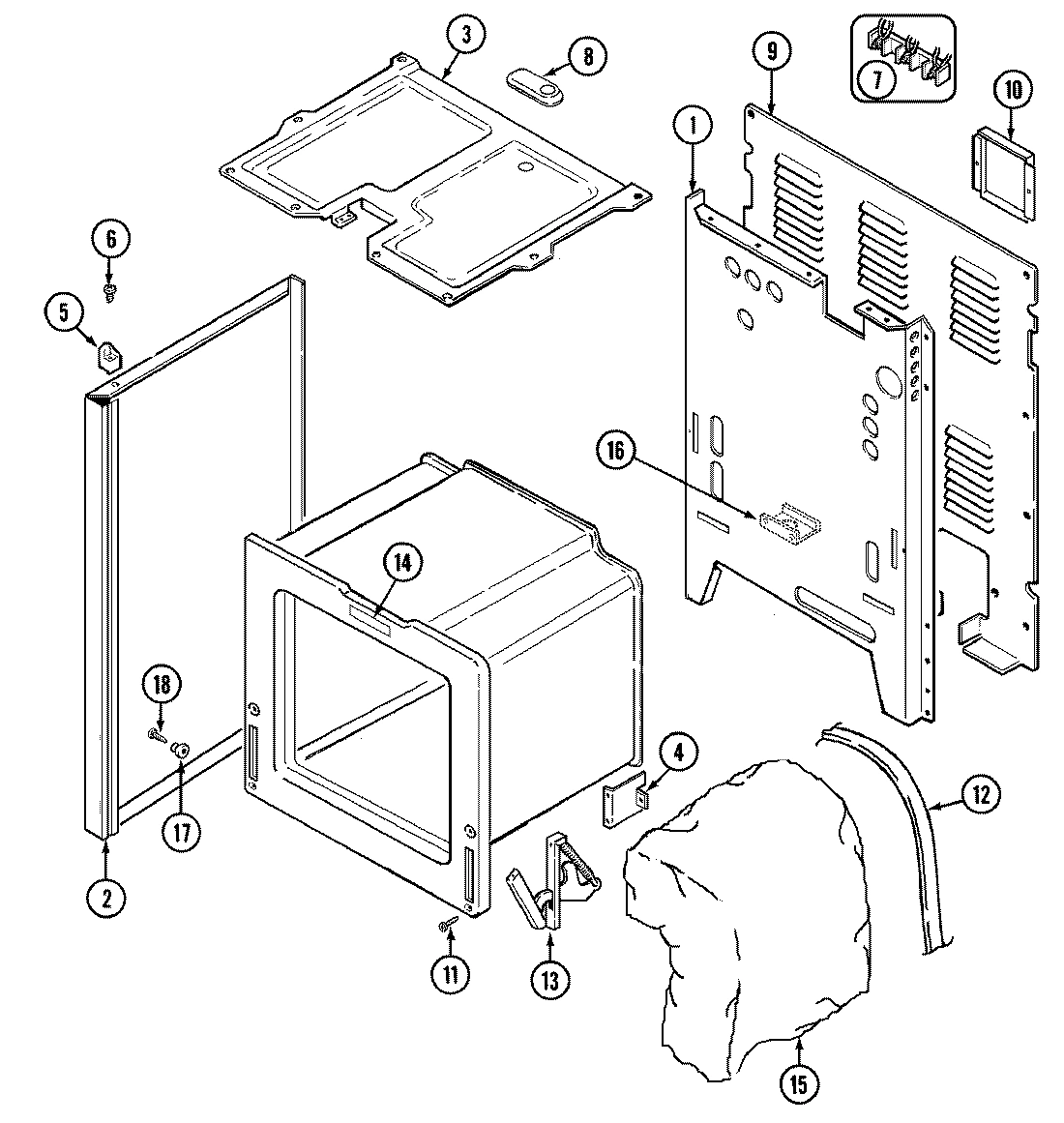

01 - BODY

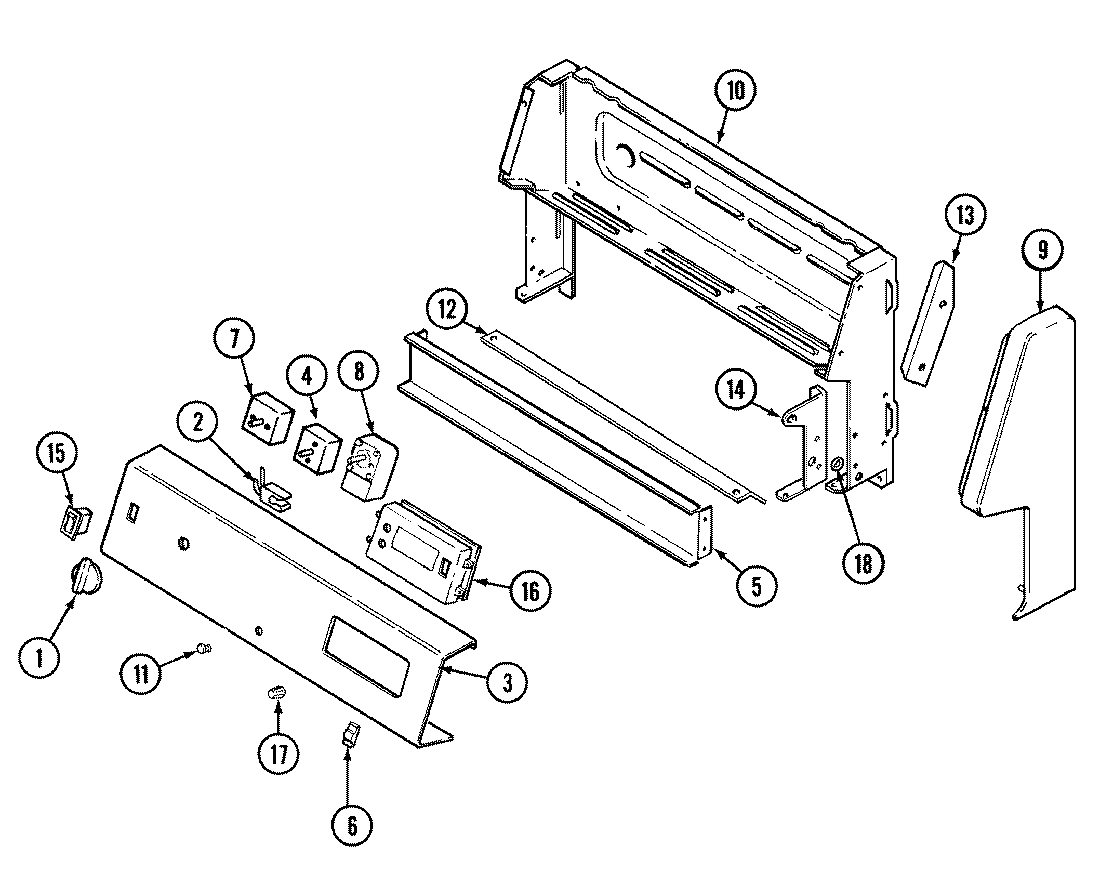

02 - CONTROL PANEL

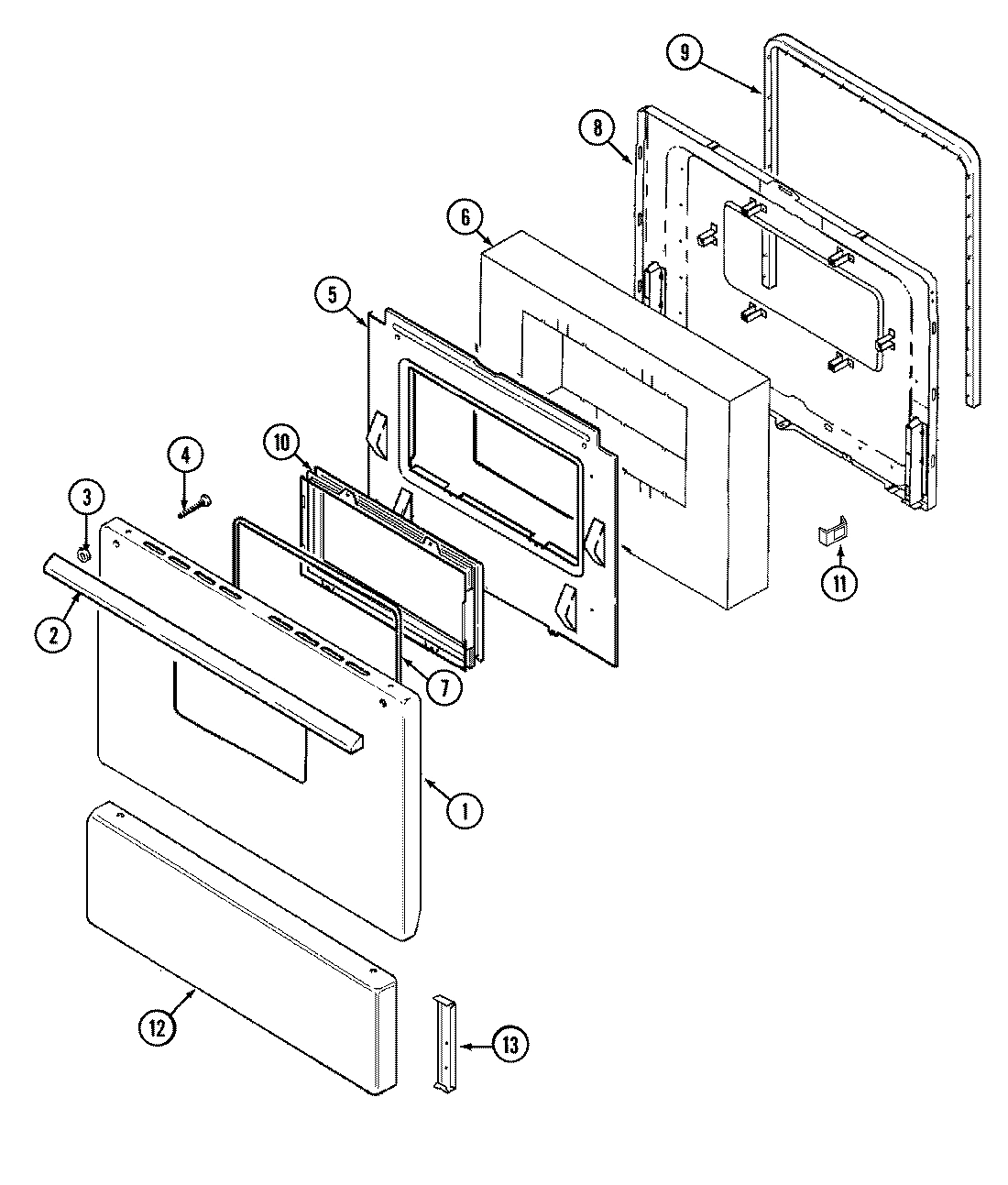

03 - DOOR

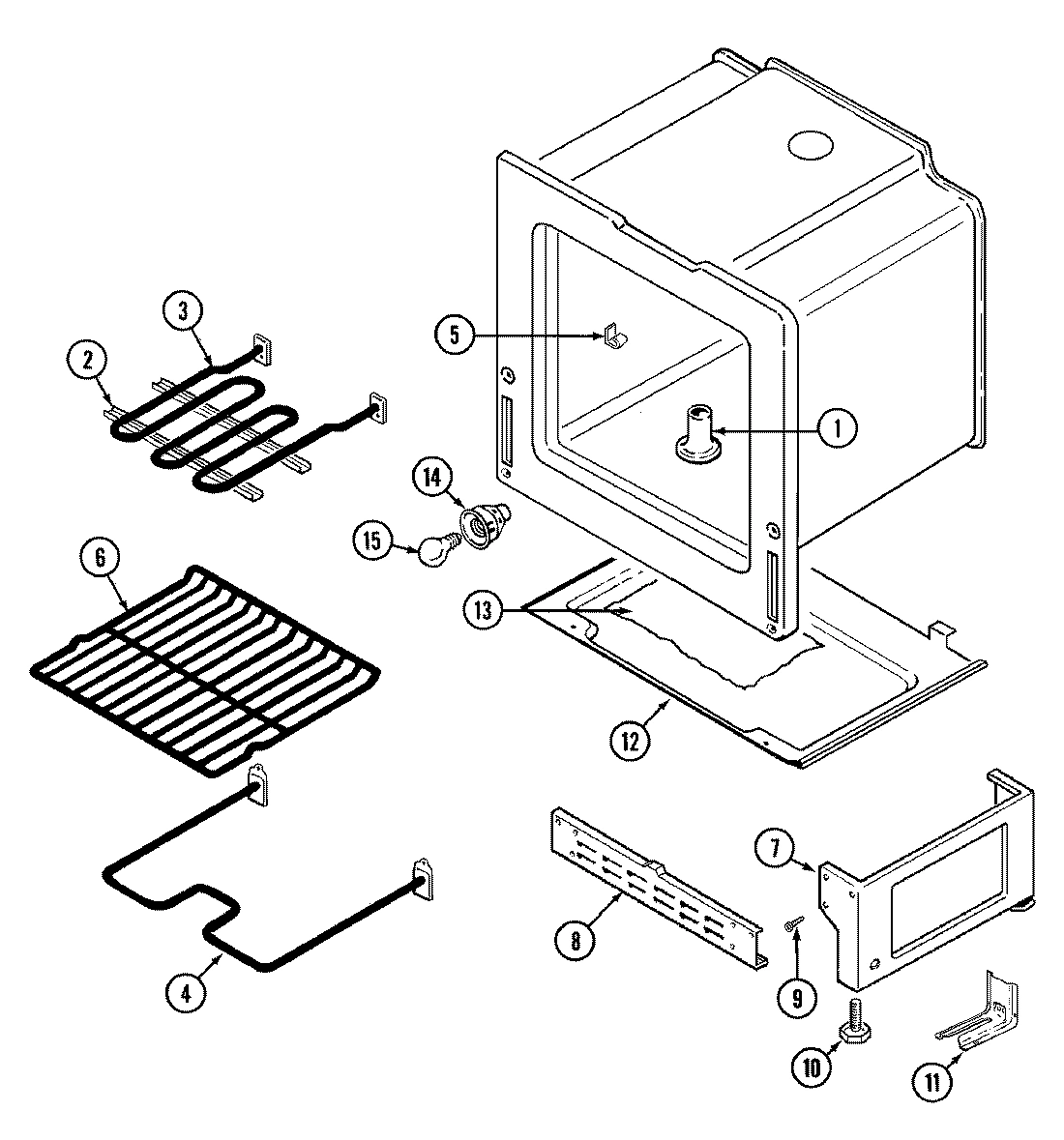

04 - OVEN/BASE

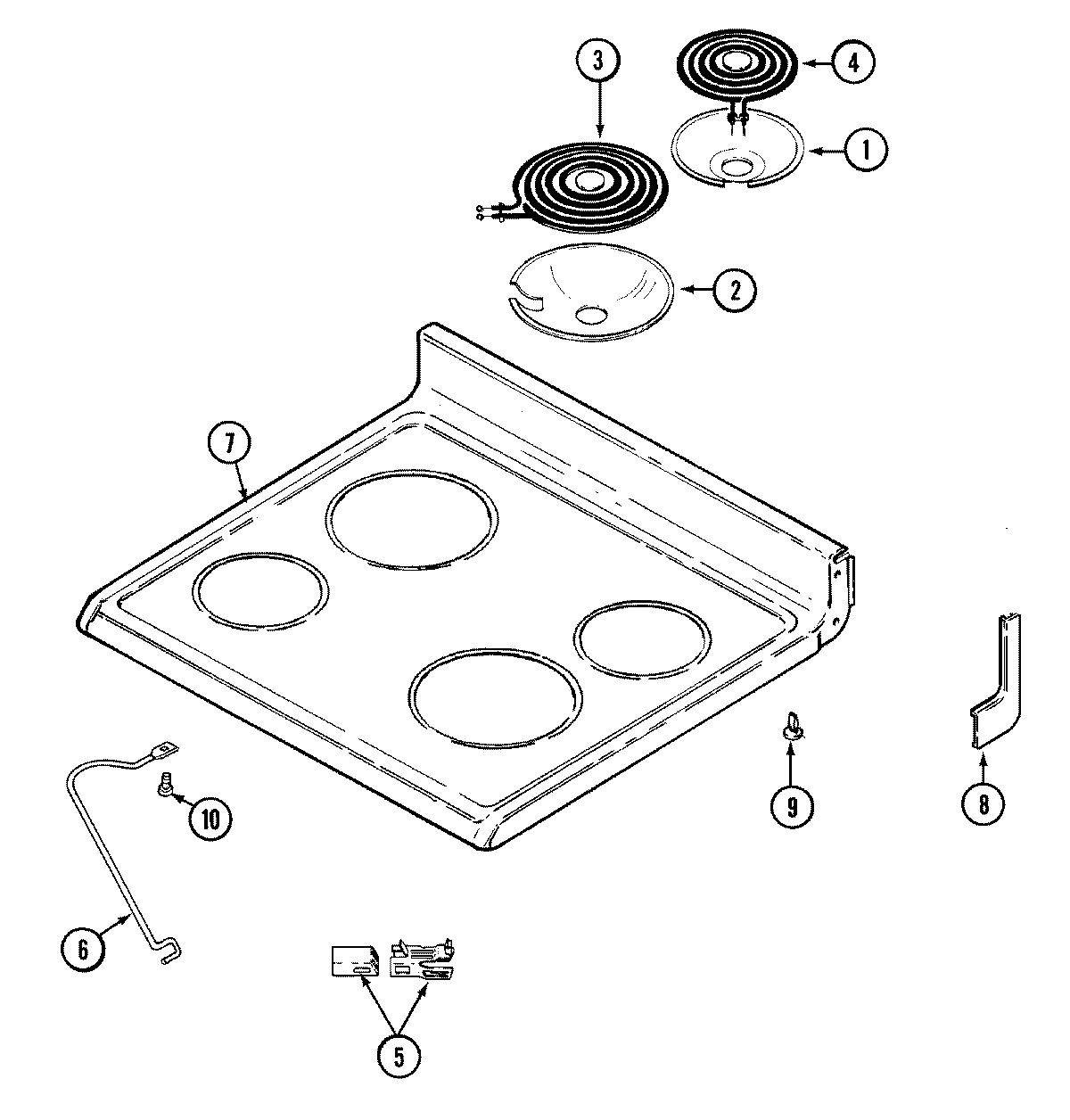

05 - TOP ASSEMBLY

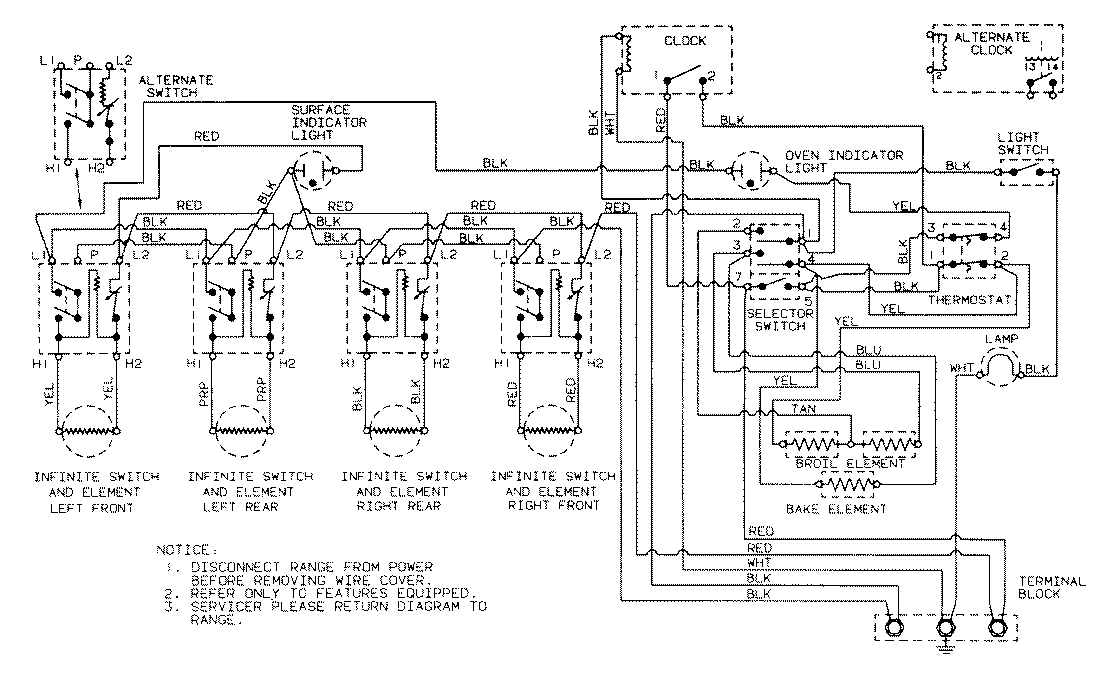

06 - WIRING INFORMATION
Common parts from model Maytag 3522WUV-D ELECTRIC RANGE
1
MAY 7731P081-60 MAY 7731P081-60 Contact Us For Availability
1
MAY 2401F121-71 MAY 2401F121-71 Contact Us For Availability
1
MAY 8026P020-60 MAY 8026P020-60 Contact Us For Availability
2
MAY 2411F003-71 MAY 2411F003-71 Contact Us For Availability
2
MAY 3807F389-45 MAY 3807F389-45 Contact Us For Availability
3
MAY 4876S046-59 MAY 4876S046-59 Contact Us For Availability
3
MAY 7406P072-60 MAY 7406P072-60 Contact Us For Availability
3
MAY 7406P040-60 MAY 7406P040-60 Contact Us For Availability
4
MAY 7101P080-60 MAY 7101P080-60 Contact Us For Availability
4
MAY Y04000058 MAY Y04000058 Contact Us For Availability
4
MAY 7406P038-60 MAY 7406P038-60 Contact Us For Availability
5
MAY 3802F087-51 MAY 3802F087-51 Contact Us For Availability
5
MAY 3601F236-51 MAY 3601F236-51 Contact Us For Availability
5
MAY 1430306K MAY 1430306K Contact Us For Availability
5
SCREW MAY 7101P349-60 Contact Us For Availability
6
MAY 7711P472-60 MAY 7711P472-60 Contact Us For Availability
6
MAY 4804F050-60 MAY 4804F050-60 Contact Us For Availability
6
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
6
MAY 74001170 MAY 74001170 Contact Us For Availability
7
MAY 7201P017-60 MAY 7201P017-60 Contact Us For Availability
7
MAY 74001705 MAY 74001705 Contact Us For Availability
7
MAY 74003016 MAY 74003016 Contact Us For Availability
7
MAY 2002W103-81 MAY 2002W103-81 Contact Us For Availability
8
MAY 7404P105-60 MAY 7404P105-60 Contact Us For Availability
8
COVER, VENT MAY 4005F432-45 Contact Us For Availability
8
MAY 2402W212-19 MAY 2402W212-19 Contact Us For Availability
8
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
8
MAY 7746P032-60 MAY 7746P032-60 Contact Us For Availability
8
MAY 7746P033-60 MAY 7746P033-60 Contact Us For Availability
9
MAY 4005F455-51 MAY 4005F455-51 Contact Us For Availability
9
MAY 7101P318-60 MAY 7101P318-60 Contact Us For Availability
9
MAY 7726P089-60 MAY 7726P089-60 Contact Us For Availability
9
MAY 7726P090-60 MAY 7726P090-60 Contact Us For Availability
9
MAY 74001663 MAY 74001663 Contact Us For Availability
10
MAY 74001311 MAY 74001311 Contact Us For Availability
10
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
10
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
10
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
10
MAY 7907P022-60 MAY 7907P022-60 Contact Us For Availability
11
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
11
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
11
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
11
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
12
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
12
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
12
MAY 2416F042-71 MAY 2416F042-71 Contact Us For Availability
12
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
13
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
13
MAY 3807F449-45 MAY 3807F449-45 Contact Us For Availability
13
MAY 3807F450-45 MAY 3807F450-45 Contact Us For Availability
13
MAY 3801F257-51 MAY 3801F257-51 Contact Us For Availability
13
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
14
MAY 7718P013-60 MAY 7718P013-60 Contact Us For Availability
14
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
14
MAY 3418D097-60 MAY 3418D097-60 Contact Us For Availability
14
MAY 3418D098-60 MAY 3418D098-60 Contact Us For Availability
14
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
15
MAY 4804F039-60 MAY 4804F039-60 Contact Us For Availability
15
MAY 4804F044-60 MAY 4804F044-60 Contact Us For Availability
15
MAY 7403P314-60 MAY 7403P314-60 Contact Us For Availability
16
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
16
MAY 7101P293-60 MAY 7101P293-60 Contact Us For Availability
16
MAY 7602P104-60 MAY 7602P104-60 Contact Us For Availability
17
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
17
MAY 7711P473-60 MAY 7711P473-60 Contact Us For Availability
18
MAY 74001449 MAY 74001449 Contact Us For Availability
19
MAY 5125A315-60 MAY 5125A315-60 Contact Us For Availability
19
MAY 5170D118-60 MAY 5170D118-60 Contact Us For Availability
19
MAY 74001013 MAY 74001013 Contact Us For Availability
20
MAY 8113P023-60 MAY 8113P023-60 Contact Us For Availability
21
MAY 16000329 MAY 16000329 Contact Us For Availability
NI
MAY 15001468 MAY 15001468 Contact Us For Availability
× ![]()
