  • LG 34WQ650-W Parts List

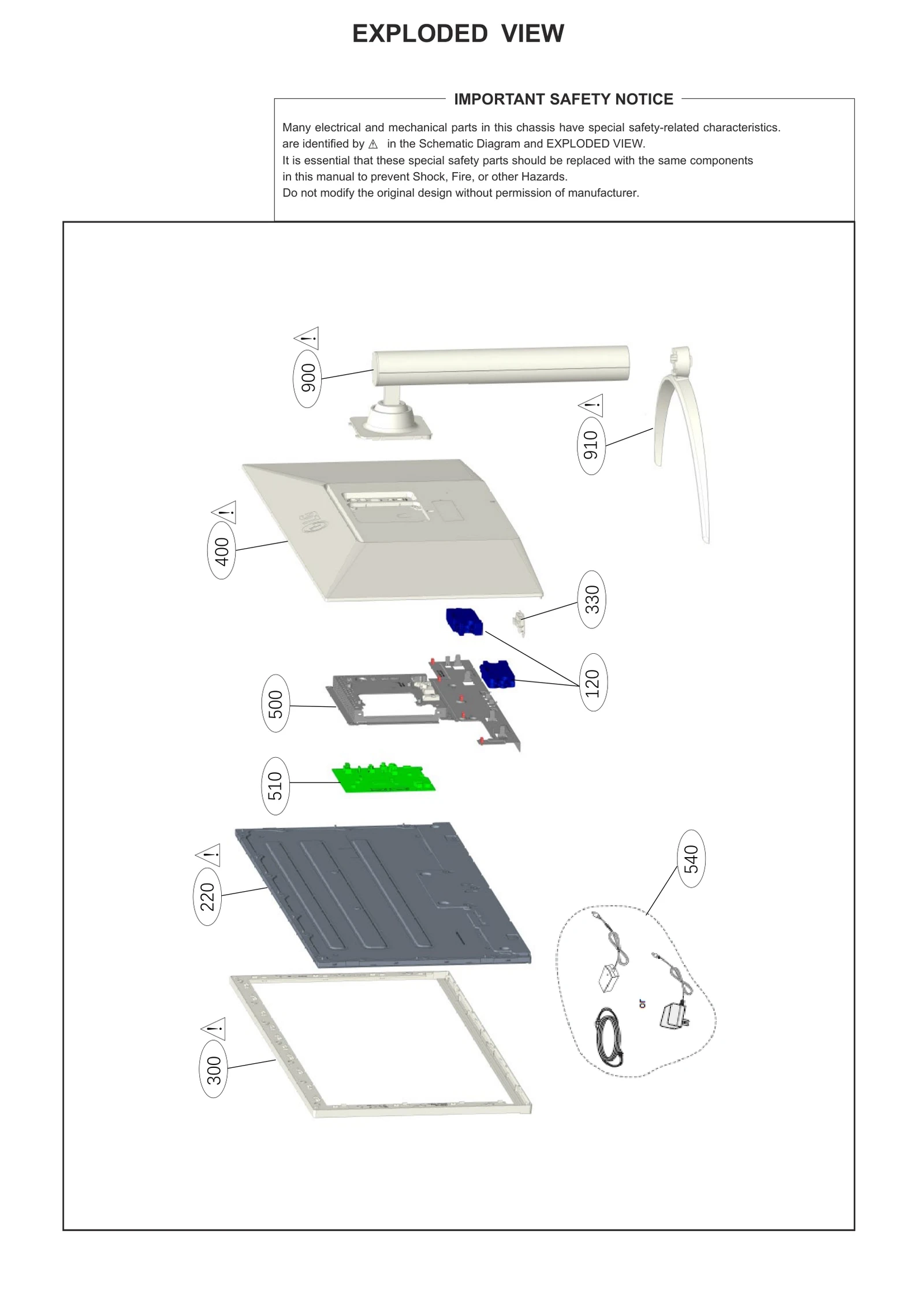

Model LG 34WQ650-W – Common Parts & Diagrams

120
Speaker Assembly
Speaker Assembly LGE EAB63628201 Contact Us For Availability
View on Model
220
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65878201 Contact Us For Availability
View on Model
330
PCB Assembly,Control
PCB Assembly,Control LGE EBR82069115 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ91567111 Contact Us For Availability
View on Model
500
Frame Assembly
Frame Assembly LGE ADV77747408 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN30013615 Contact Us For Availability
View on Model
910
Base Assembly
Base Assembly LGE AAN30011511 Contact Us For Availability
View on Model
920
Package Assembly
Package Assembly LGE AGF79358852 Contact Us For Availability
View on Model
A01
Manual Assembly
Manual Assembly LGE AFN30072921 Contact Us For Availability
View on Model
A04
Card
Card LGE 3840TWL061C Contact Us For Availability
View on Model
A07
Card
Card LGE MBM67507701 Contact Us For Availability
View on Model
A08
Cable,Assembly
Cable,Assembly LGE EAD00926140 Contact Us For Availability
View on Model
A08
Cable,Assembly
Cable,Assembly LGE EAD65185202 Contact Us For Availability
View on Model
A09
Card
Card LGE 3840TRL039A Contact Us For Availability
View on Model
A10
Card
Card LGE MBM67516302 Contact Us For Availability
View on Model
C13
Harness,Single
Harness,Single LGE EAD56480806 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63669419 Contact Us For Availability
View on Model
