Model LG 34UM67-P – Common Parts & Diagrams

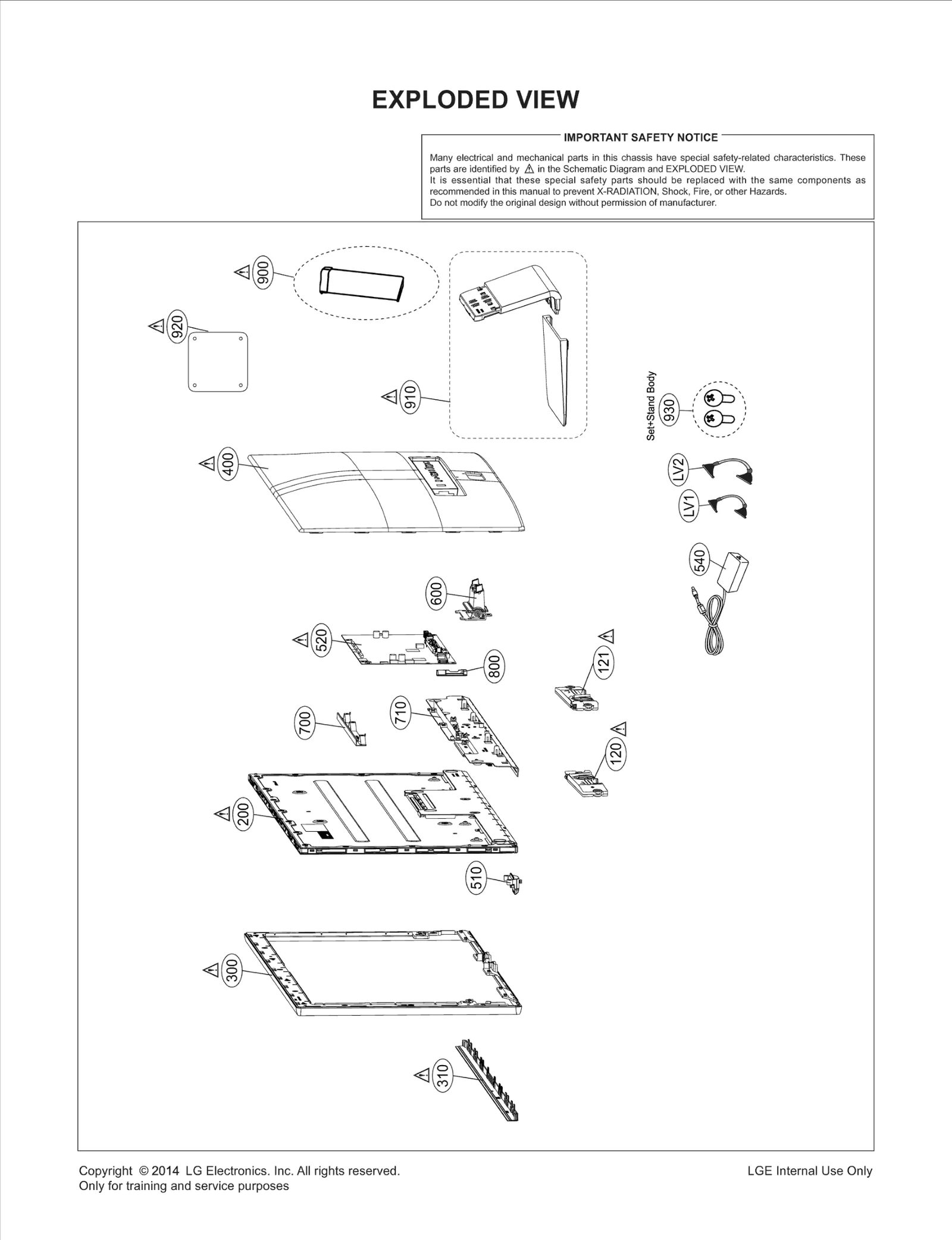

Diagram 0
Diagram 1
Common parts from model LG 34UM67-P
120
Speaker Assembly LGE EAB63049401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62588001 Contact Us For Availability
310
Cover Assembly LGE ACQ86810208 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86810322 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR80742801 Contact Us For Availability
520
BPR Total Assembly LGE EBU63242301 Contact Us For Availability
540
Adapters LGE EAY62990901 Contact Us For Availability
600
Bracket Assembly LGE ABA74688404 Contact Us For Availability
700
Plate,Metal LGE MGJ63723502 Contact Us For Availability
710
Plate Assembly LGE AGU74388004 Contact Us For Availability
800
Cover LGE MCK67813105 Contact Us For Availability
900
Cover Assembly LGE ACQ86810404 Contact Us For Availability
910
Base Assembly LGE AAN74549307 Contact Us For Availability
930
Package Assembly LGE AGF76702607 Contact Us For Availability
A1
Manual Assembly LGE AFN77031821 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A7
Card LGE MBM64658427 Contact Us For Availability
A7
Card LGE MBM64658430 Contact Us For Availability
A8
Cable,Assembly LGE EAD00926103 Contact Us For Availability
A9
Card LGE MBM65183801 Contact Us For Availability
A11
S/W Package LGE SAB36139899 Contact Us For Availability
A15
Card LGE 3840TRL039A Contact Us For Availability
C10
Harness,Single LGE EAD61646252 Contact Us For Availability
C11
Harness,Single LGE EAD61729410 Contact Us For Availability
IC201
S/W,Firmware LGE SAA38103702 Contact Us For Availability
LV1
Cable,FFC LGE EAD61652557 Contact Us For Availability
LV2
Cable,FFC LGE EAD61858764 Contact Us For Availability
× ![]()
