  • LG 34UM61-P Parts List

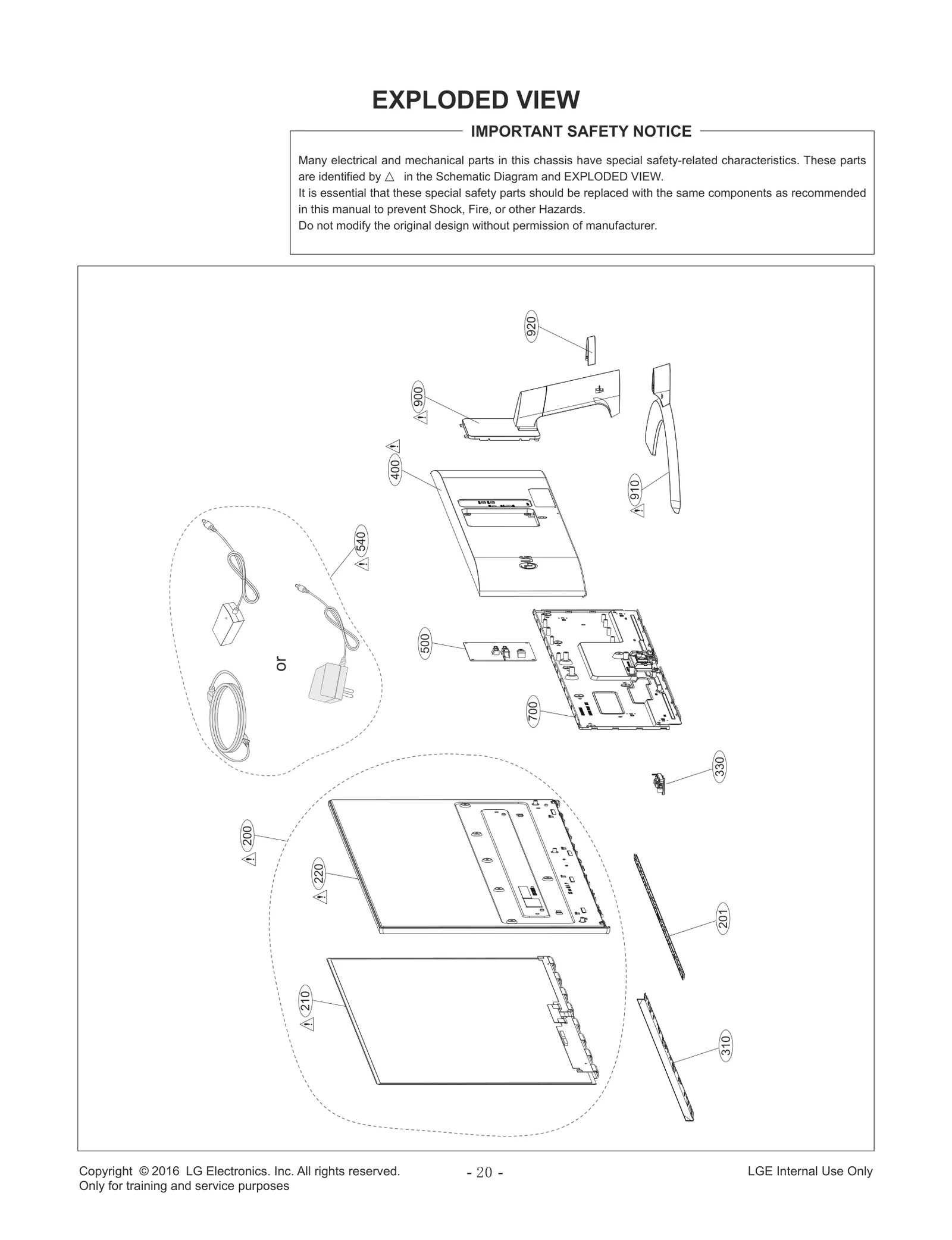

Model LG 34UM61-P – Common Parts & Diagrams

200
Module,Assembly
Module,Assembly LGE EAT63403001 Contact Us For Availability
View on Model
201
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ89592901 Contact Us For Availability
View on Model
210
LCD,Panel-TFT
LCD,Panel-TFT LGE EAJ63909701 Contact Us For Availability
View on Model
220
Back Light Assembly
Back Light Assembly LGE EBV61738001 Contact Us For Availability
View on Model
310
Cover Assembly
Cover Assembly LGE ACQ88978003 Contact Us For Availability
View on Model
330
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR81120006 Contact Us For Availability
View on Model
500
BPR Total Assembly
BPR Total Assembly LGE EBU64942302 Contact Us For Availability
View on Model
700
Frame Assembly
Frame Assembly LGE ADV75992101 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN75809601 Contact Us For Availability
View on Model
910
Base Assembly
Base Assembly LGE AAN75809701 Contact Us For Availability
View on Model
920
Package Assembly
Package Assembly LGE AGF77182226 Contact Us For Availability
View on Model
A1
Manual Assembly
Manual Assembly LGE AFN77892121 Contact Us For Availability
View on Model
A4
Card
Card LGE 3840TRL039A Contact Us For Availability
View on Model
A7
Card
Card LGE 3840TWL061C Contact Us For Availability
View on Model
A8
Cable,Assembly
Cable,Assembly LGE EAD00926103 Contact Us For Availability
View on Model
A8
Cable,Assembly
Cable,Assembly LGE EAD63954403 Contact Us For Availability
View on Model
C10
Harness,Single
Harness,Single LGE EAD61729403 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63787505 Contact Us For Availability
View on Model
LV2
Cable,FFC
Cable,FFC LGE EAD63787605 Contact Us For Availability
View on Model
