Model LG 34UC89G-B – Common Parts & Diagrams
Diagram 0

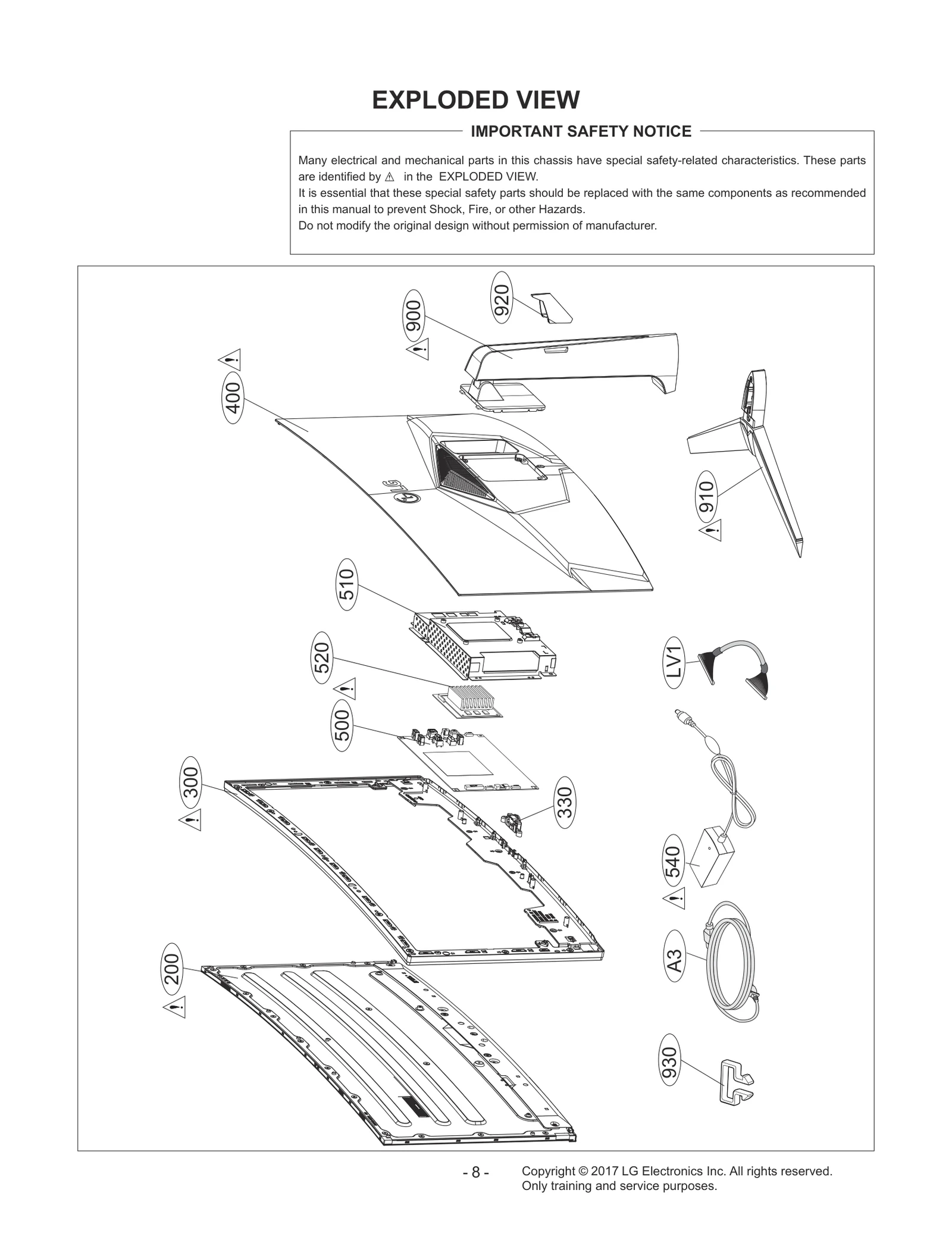

Diagram 1
Common parts from model LG 34UC89G-B
300
Cabinet Assembly LGE ABJ75507301 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR85221101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89596001 Contact Us For Availability
510
Frame Assembly LGE ADV76187801 Contact Us For Availability
520
S/W Package LGE SAB37139401 Contact Us For Availability
540
Adapters LGE EAY63032206 Contact Us For Availability
900
Base Assembly LGE AAN75849903 Contact Us For Availability
910
Base Assembly LGE AAN75790206 Contact Us For Availability
A1
Manual Assembly LGE AFN77674621 Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A9
Card LGE MBM66136504 Contact Us For Availability
A11
Cable,Assembly LGE EAD61273120 Contact Us For Availability
C10
Harness,Single LGE EAD61729405 Contact Us For Availability
C119
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C169
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C388
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C402
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C465
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C470
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C519
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C614
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C615
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C616
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C763
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C785
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C792
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
P202
Connector,Wafer LGE 6630V90141C Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R13
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R118
Resistor,Chip LGE 0RH1103D622 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R150
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ2003C678 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R167
RESISTOR,METAL GLAZE LGE 0RJ2490C477 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R261
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R262
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R263
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R333
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R345
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R351
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R384
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R450
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R458
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R541
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R546
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R634
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ2700C478 Contact Us For Availability
R645
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R652
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R653
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R712
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R717
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R754
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R759
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R762
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R783
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R784
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
× ![]()
