Model Whirlpool 34JA-4TKXW GAS RANGE – Common Parts & Diagrams

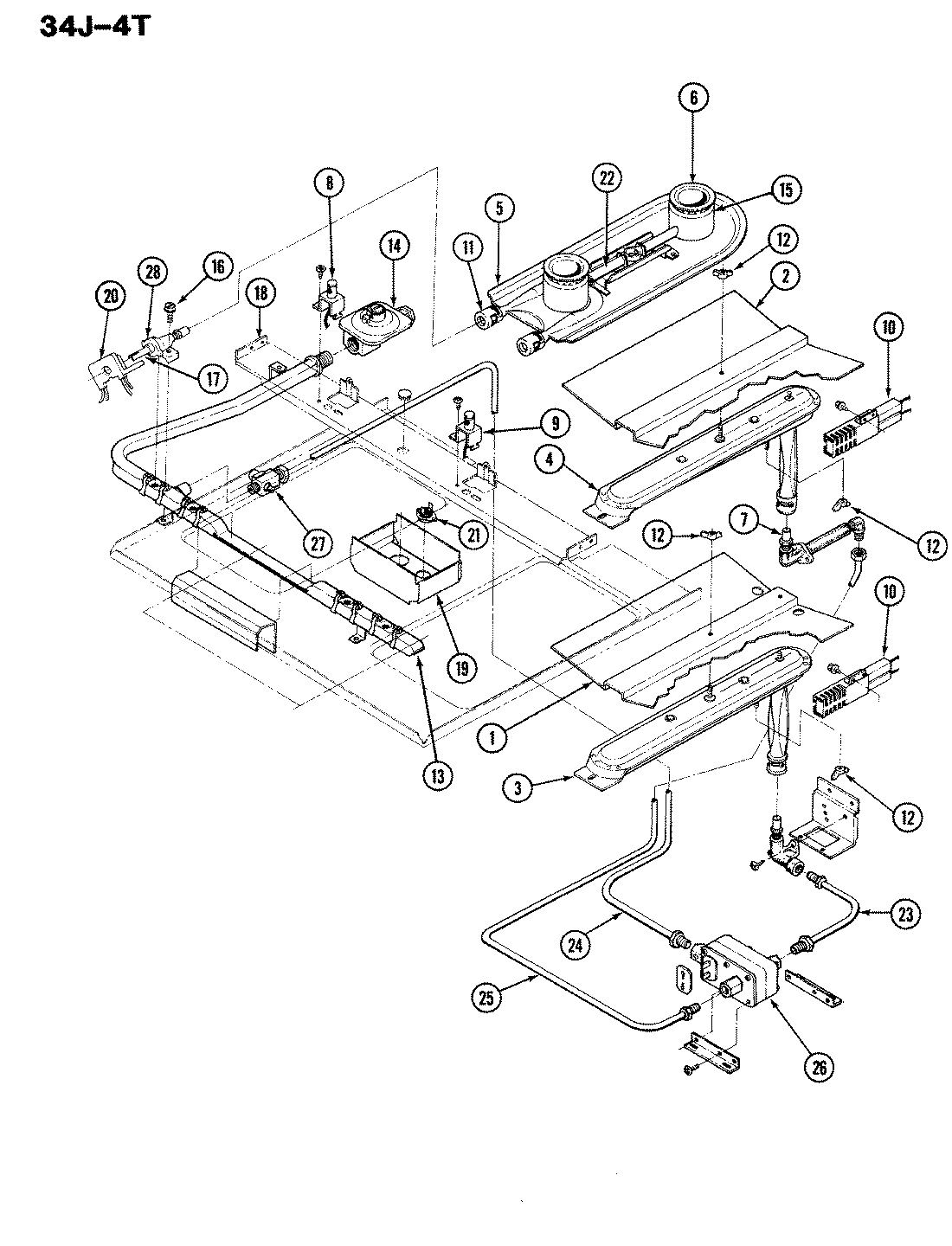

03 - GAS CONTROLS

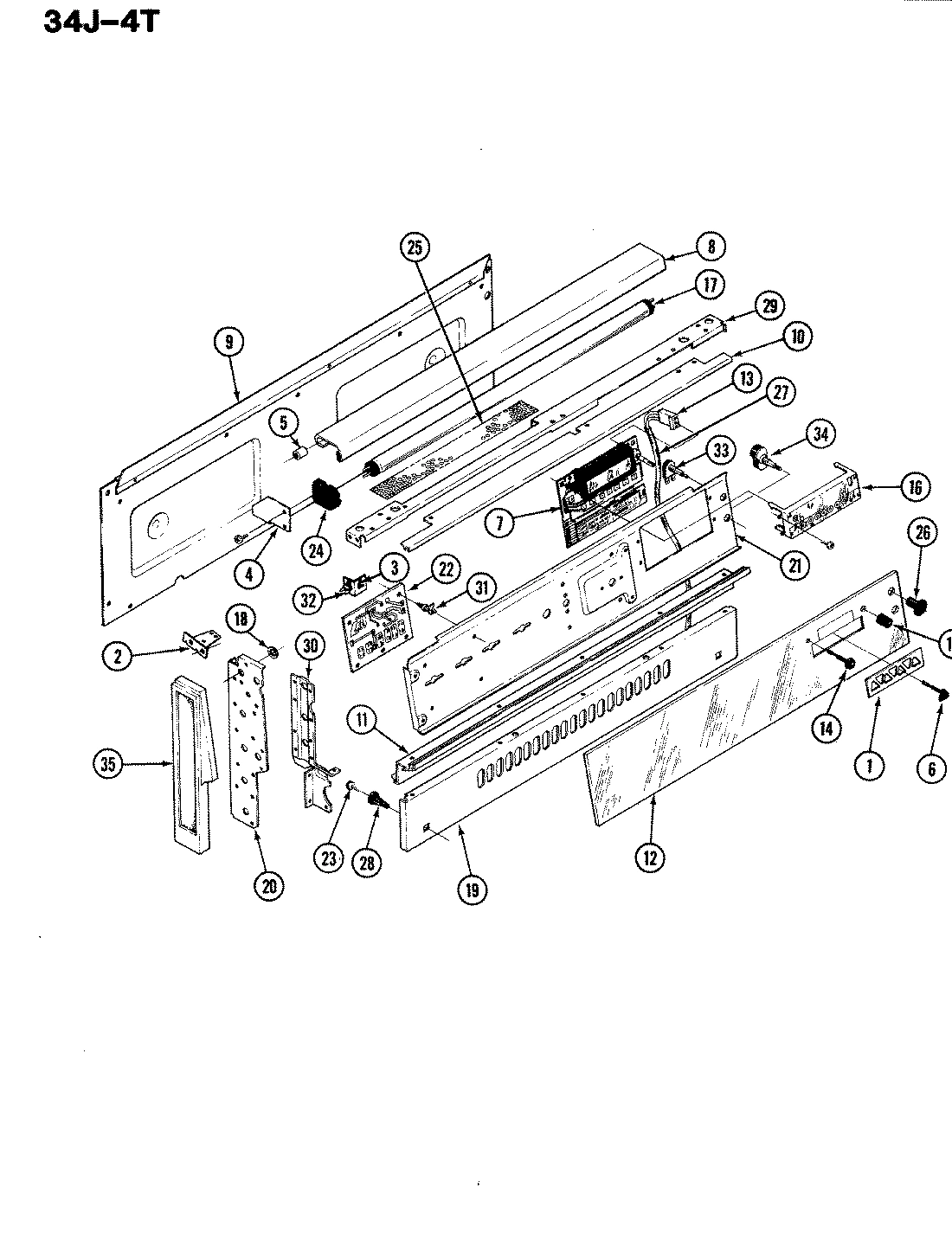

01 - CONTROL PANEL

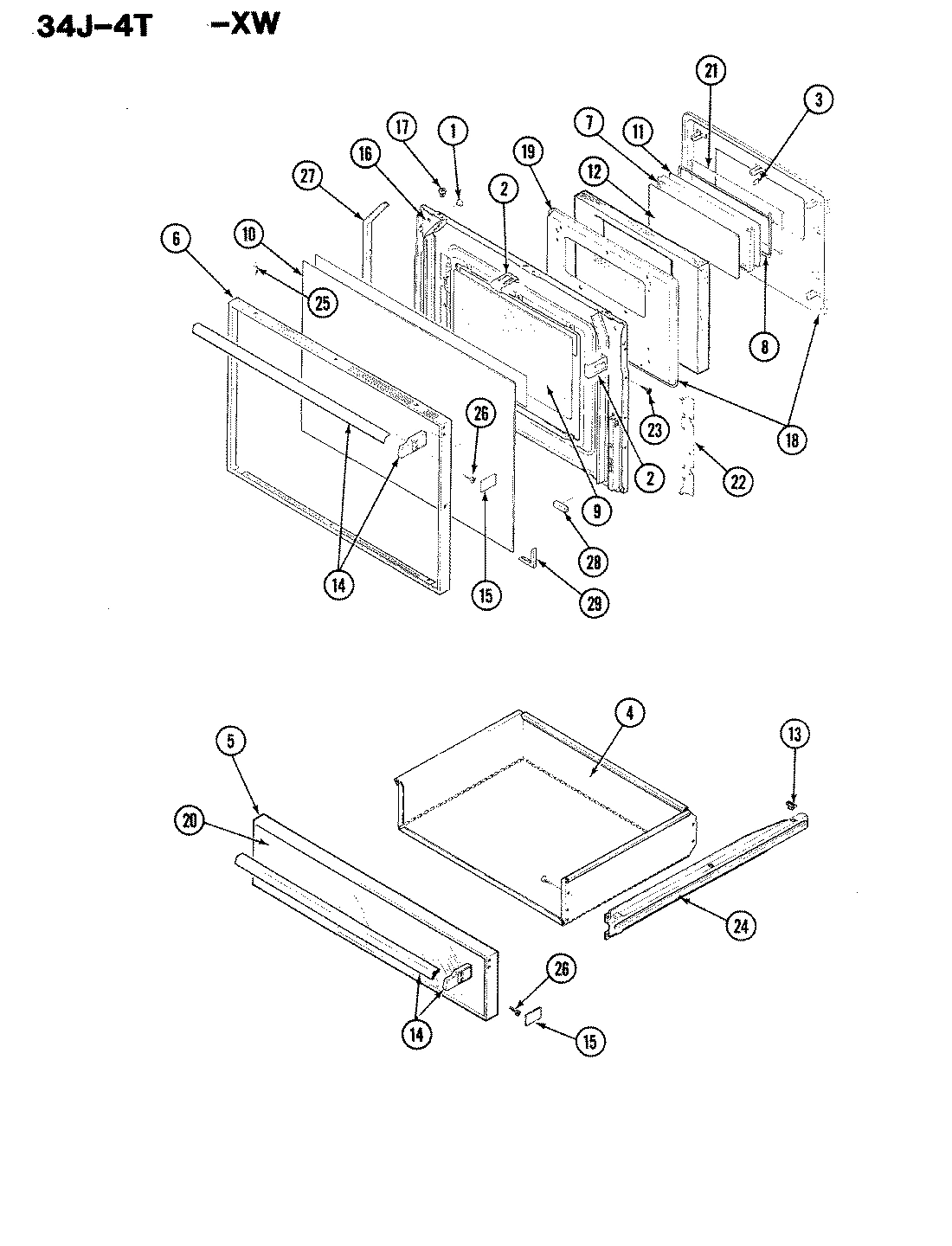

02 - DOOR

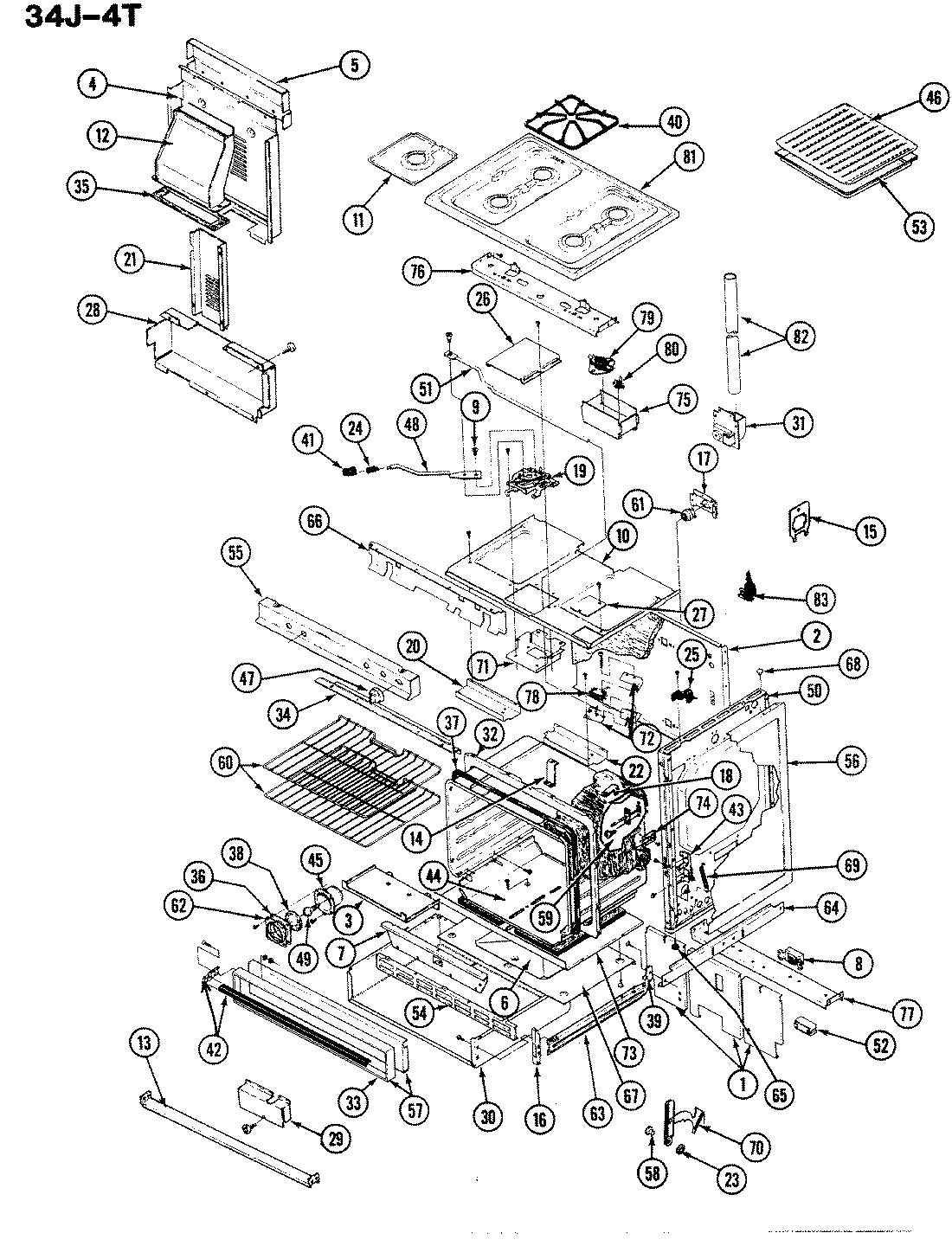

04 - TOP ASSEMBLY/BODY
Common parts from model Whirlpool 34JA-4TKXW GAS RANGE
1
BAFFLE WPL 3601W18415 Contact Us For Availability
1
TRIM, BEZEL WPL 7740P01060 Contact Us For Availability
1
TRIM, BEZEL WPL 7740P01660 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
1
BACK, BROILER SECTION WPL 4002F06645 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
2
BRACKET (LEFT) WPL 3801F00234 Contact Us For Availability
2
(RIGHT) WPL 3801F10934 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
3
BURNER OVEN WPL 3403A01545 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
3
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
3
SCREW WPL 7101P27360 Contact Us For Availability
4
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
BRACKET, LAMP WPL 3801F00651 Contact Us For Availability
4
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
5
BURNER, TOP WPL 3412A00419 Contact Us For Availability
5
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
5
BUSHING WPL 1089206 Contact Us For Availability
5
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
6
CAP, BURNER WPL 7504P00160 Contact Us For Availability
6
BUTTON, SET WPL 7711P33560 Contact Us For Availability
6
BUTTON, CONTROL SET WPL 7711P44960 Contact Us For Availability
6
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
BAFFLE WPL 3601F11645 Contact Us For Availability
7
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
7
SCREW WPL 7101P05860 Contact Us For Availability
7
CLOCK WPL 7601P10160 Contact Us For Availability
7
CLOCK WPL 7601P15560 Contact Us For Availability
7
CLOCK WPL 7601P16360 Contact Us For Availability
7
CLOCK, ELECTRONIC WPL 7601P18160 Contact Us For Availability
7
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
7
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
7
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
7
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
7
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
8
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
8
BALLAST WPL 7412P00560 Contact Us For Availability
8
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
8
COVER, LAMP WPL 7724P01060 Contact Us For Availability
8
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
8
BLOCK, DISCONNECT WPL 7401P01160 Contact Us For Availability
8
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
9
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
9
COVER, BKGD WIRE WPL 4005F10080 Contact Us For Availability
9
COVER WPL 4005F36880 Contact Us For Availability
9
GLASS, INNER WPL 7902P09760 Contact Us For Availability
9
BOLT WPL 7116P00360 Contact Us For Availability
10
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
10
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
10
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
10
BOTTOM, BURNER BOX WPL 4011F15780 Contact Us For Availability
10
BOTTOM, BURNER BOX WPL 4011F17880 Contact Us For Availability
10
BOTTOM BURNER BOX WPL 4011F20080 Contact Us For Availability
10
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
11
MIXER, AIR WPL 3411F00434 Contact Us For Availability
11
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
11
SCREW, EXTRUSION WPL 7101P17760 Contact Us For Availability
11
EXTRUSION WPL 7706P09760 Contact Us For Availability
11
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
11
GLASS, WINDOW INNER WPL 7902P34060 Contact Us For Availability
11
BOWL, DRIP TRAY WPL 7725P01660 Contact Us For Availability
12
NUT, WING WPL 7103P03060 Contact Us For Availability
12
GLASS, BKGD WPL 7910P07060 Contact Us For Availability
12
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
12
BOX, FLUE WPL 4006W02615 Contact Us For Availability
13
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
13
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
13
PIPE MANIFOLD WPL 7513P10360 Contact Us For Availability
13
HARNESS OVEN SENSOR WPL 5170P00760 Contact Us For Availability
13
WIRE HARNESS, CLOCK WPL 5170P06760 Contact Us For Availability
13
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
13
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
13
BRACE, INNER SIDE WPL 3802F05045 Contact Us For Availability
13
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
14
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
14
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
14
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
14
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
15
RETAINER, BURNER CAP THREADED WPL 3804F00144 Contact Us For Availability
15
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
15
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
15
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
15
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
16
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
16
MIXER, AIR WPL 3411F00635 Contact Us For Availability
16
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
16
SCREW WPL 7101P29660 Contact Us For Availability
16
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
16
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
16
LINING WPL 2402W12815 Contact Us For Availability
16
LINING WPL 2402W17315 Contact Us For Availability
16
LINING WPL 2402W17319 Contact Us For Availability
17
SLEEVE WPL 7214P00360 Contact Us For Availability
17
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
17
NUT, SNAP WPL 7103P11460 Contact Us For Availability
17
BRACKET WPL 3801F02451 Contact Us For Availability
18
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
18
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
18
PAD, OVEN DOOR WPL 2410A03715 Contact Us For Availability
18
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
18
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
18
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
18
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
18
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
18
SCREW WPL 7101P06160 Contact Us For Availability
18
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
19
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
19
PANEL, BKGD LOWER WPL 2620W01800 Contact Us For Availability
19
PAD, INNER WPL 2410F01651 Contact Us For Availability
19
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
20
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
20
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
20
SWITCH WPL 7403P25860 Contact Us For Availability
20
SWITCH, TOP IGNITOR WPL 7403P28260 Contact Us For Availability
20
PLATE, CONTROL PANEL END (LFT) WPL 3605F00680 Contact Us For Availability
20
PLATE WPL 3605F00880 Contact Us For Availability
20
DRAWER, SERVICE WPL 5425A02170K Contact Us For Availability
20
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
21
SWITCH, HI LIMIT WPL 7403P18760 Contact Us For Availability
21
PLATE, SWITCH MTG. WPL 3605F15280 Contact Us For Availability
21
PLATE SWITCH MTG WPL 3605F17180 Contact Us For Availability
21
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
21
RETAINER WPL 3804F02245 Contact Us For Availability
21
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
22
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
22
RELAY, BOARD ASSY. WPL 7428P00660 Contact Us For Availability
22
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
22
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
22
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
23
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
23
RIVET WPL 7107P01760 Contact Us For Availability
23
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
24
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
24
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
24
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
24
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
24
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
25
TUBING, 3/8 X 51-1/2 WPL 3414F04844 Contact Us For Availability
25
TUBING, 3/8 X 20-3/4 WPL 3414F05744 Contact Us For Availability
25
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
25
SHIELD, OV LAMP RECPT WPL 3604F07980 Contact Us For Availability
25
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
25
CLIP WPL 7112P02960 Contact Us For Availability
25
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
26
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
26
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
26
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
26
SCREW WPL 7101P12360 Contact Us For Availability
26
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
27
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
27
SLEEVE, WIRE PROTECT WPL 7214P00560 Contact Us For Availability
27
SEAL WPL 7208P00260 Contact Us For Availability
27
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
28
COVER, MODULE WPL 4005F17480 Contact Us For Availability
28
VALVE, BURNER WPL 7502P11160 Contact Us For Availability
28
VALVE WPL 7502P22460 Contact Us For Availability
28
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
28
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
28
COVER MODULE WPL 4005F39680 Contact Us For Availability
29
SCREW WPL 7101P07460 Contact Us For Availability
29
SUPPORT, LAMP WPL 3807F21580 Contact Us For Availability
29
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
29
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
30
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
30
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
30
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
31
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
31
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
32
SWITCH, PUSH (BLK) WPL 7403P17960 Contact Us For Availability
33
NOT REQUIRED PART OR SEE NOTE FRAME, DRAWER ( WPL W10124350 Contact Us For Availability
33
SWITCH WPL 7403P18860 Contact Us For Availability
34
SWITCH, OVEN LAMP WPL 7403P10460 Contact Us For Availability
34
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
34
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
35
OVEN SENSOR WPL 7430P00760 Contact Us For Availability
35
TRIM, GLASS WPL 7720P06160 Contact Us For Availability
35
TRIM, E WPL 7726P02960 Contact Us For Availability
35
WPL 7726P03060 WPL 7726P03060 Contact Us For Availability
35
WPL 7728P01060 WPL 7728P01060 Contact Us For Availability
35
GASKET WPL 7201P01360 Contact Us For Availability
35
GA WPL 7201P01460 Contact Us For Availability
36
WPL 7430P00460 WPL 7430P00460 Contact Us For Availability
36
WPL 7201P01560 WPL 7201P01560 Contact Us For Availability
37
WPL 7101P06460 WPL 7101P06460 Contact Us For Availability
37
WPL 7101P12460 WPL 7101P12460 Contact Us For Availability
37
WPL 7103P07760 WPL 7103P07760 Contact Us For Availability
37
WPL 7201P03660 WPL 7201P03660 Contact Us For Availability
38
WPL 7902P05760 WPL 7902P05760 Contact Us For Availability
39
WPL 7101P01360 WPL 7101P01360 Contact Us For Availability
39
WPL 8016P00560 WPL 8016P00560 Contact Us For Availability
40
WPL 2003W02300 WPL 2003W02300 Contact Us For Availability
40
WPL 7518P00860 WPL 7518P00860 Contact Us For Availability
41
WPL 7701P06860 WPL 7701P06860 Contact Us For Availability
42
WPL 7701P04760 WPL 7701P04760 Contact Us For Availability
43
WPL 3418A02934 WPL 3418A02934 Contact Us For Availability
43
WPL 3418A03034 WPL 3418A03034 Contact Us For Availability
43
WPL 7101P11260 WPL 7101P11260 Contact Us For Availability
44
WPL 4001F03645 WPL 4001F03645 Contact Us For Availability
44
WPL 4001F06045 WPL 4001F06045 Contact Us For Availability
45
WPL 4001F02019 WPL 4001F02019 Contact Us For Availability
45
WPL 4001F02023 WPL 4001F02023 Contact Us For Availability
46
WPL 3413F00223 WPL 3413F00223 Contact Us For Availability
46
WPL Y3413F01619 WPL Y3413F01619 Contact Us For Availability
47
WPL 7733P03860 WPL 7733P03860 Contact Us For Availability
47
WPL 7733P05360 WPL 7733P05360 Contact Us For Availability
47
WPL 7733P05960 WPL 7733P05960 Contact Us For Availability
48
WPL 7101P01860 WPL 7101P01860 Contact Us For Availability
48
WPL 8009P01060 WPL 8009P01060 Contact Us For Availability
48
WPL 8009P01960 WPL 8009P01960 Contact Us For Availability
49
WPL 7407P02660 WPL 7407P02660 Contact Us For Availability
50
WPL 4009W03880 WPL 4009W03880 Contact Us For Availability
50
WPL 4009W07480 WPL 4009W07480 Contact Us For Availability
51
WPL 7807P00460 WPL 7807P00460 Contact Us For Availability
51
WPL 7807P01260 WPL 7807P01260 Contact Us For Availability
52
WPL 7431 WPL 7431 Contact Us For Availability
× ![]()
Login and Registration Form
