Model Whirlpool 34HA-3TKXW GAS RANGE – Common Parts & Diagrams

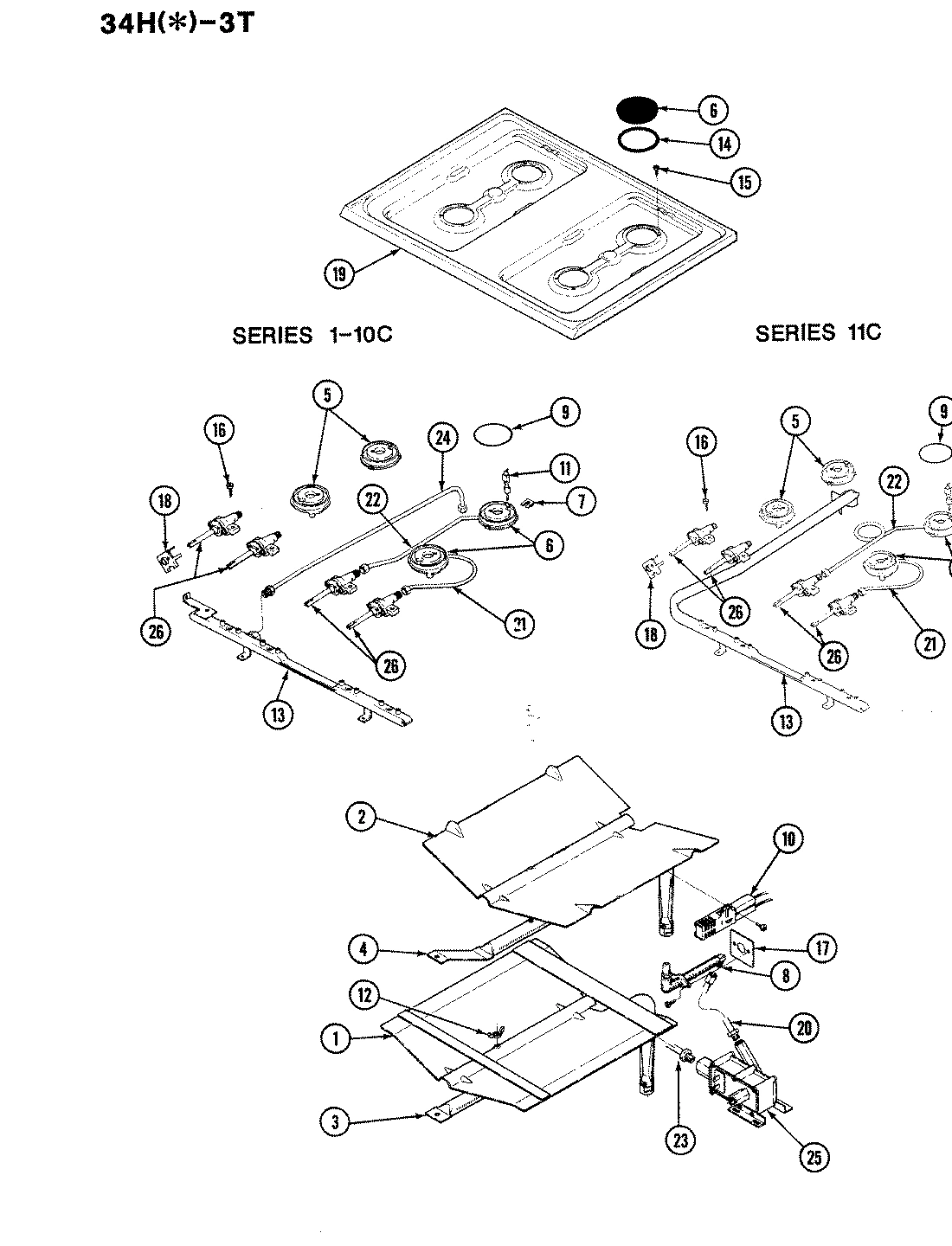

04 - OVEN CONTROL SYSTEM

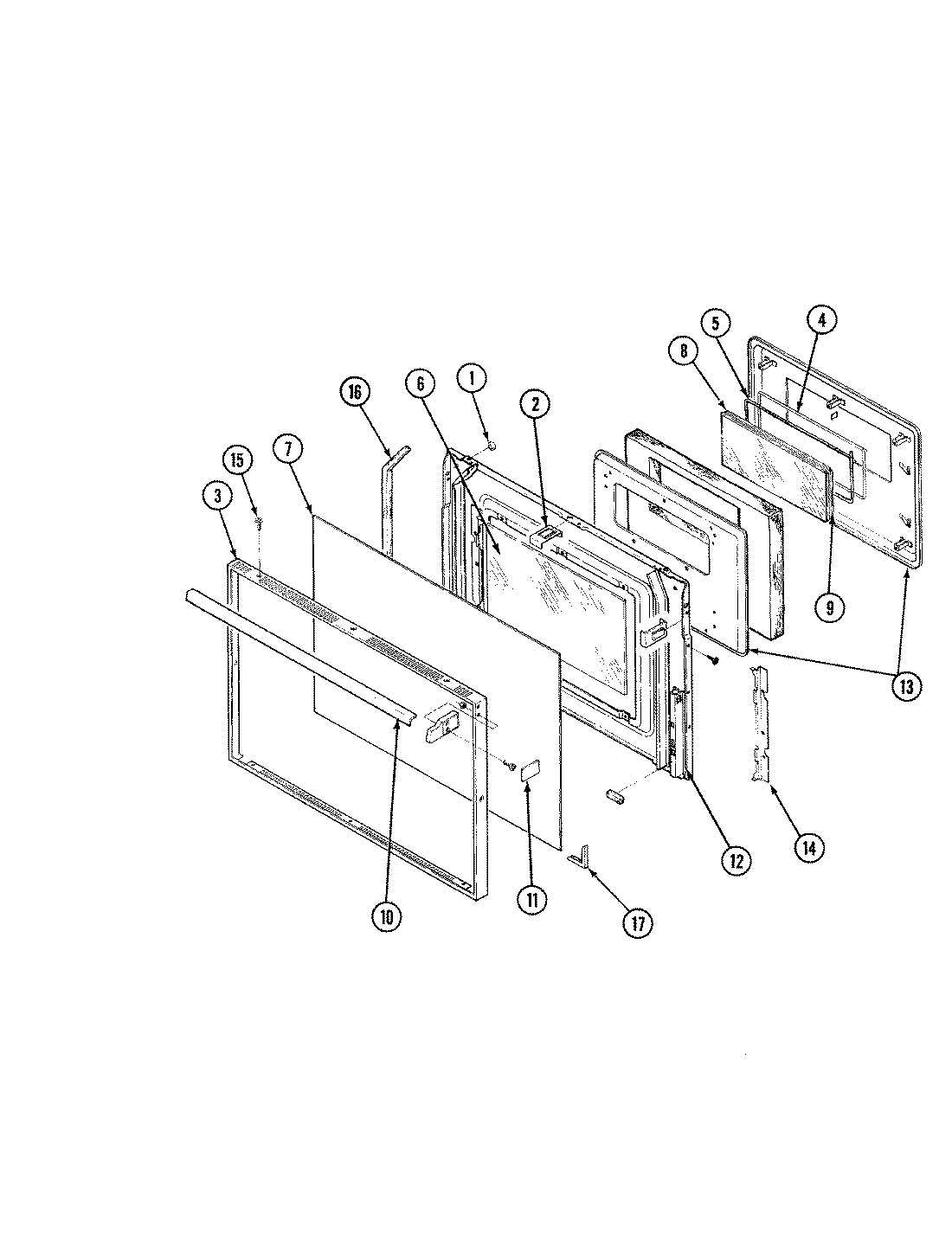

03 - DOOR PARTS

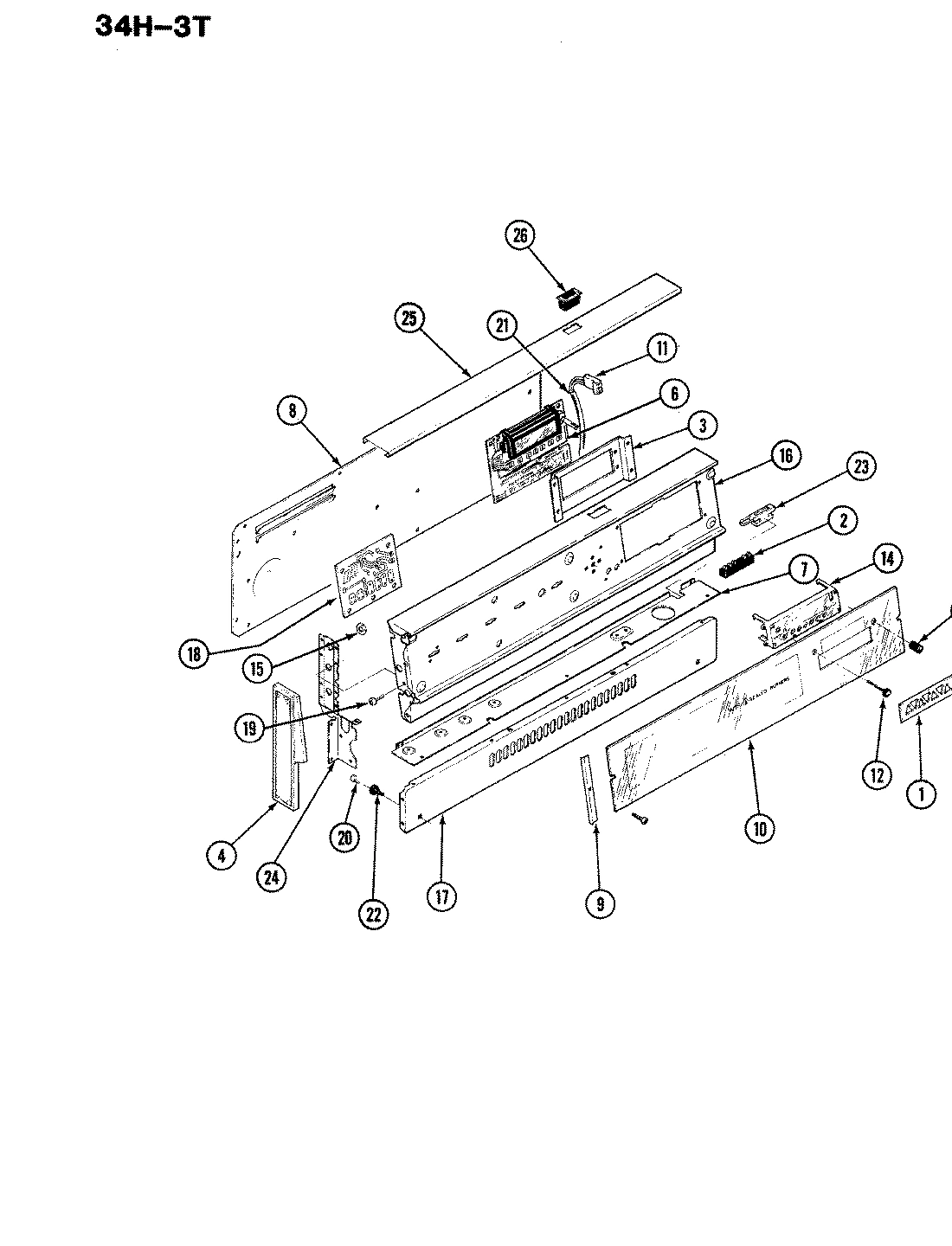

01 - BACKGUARD PARTS

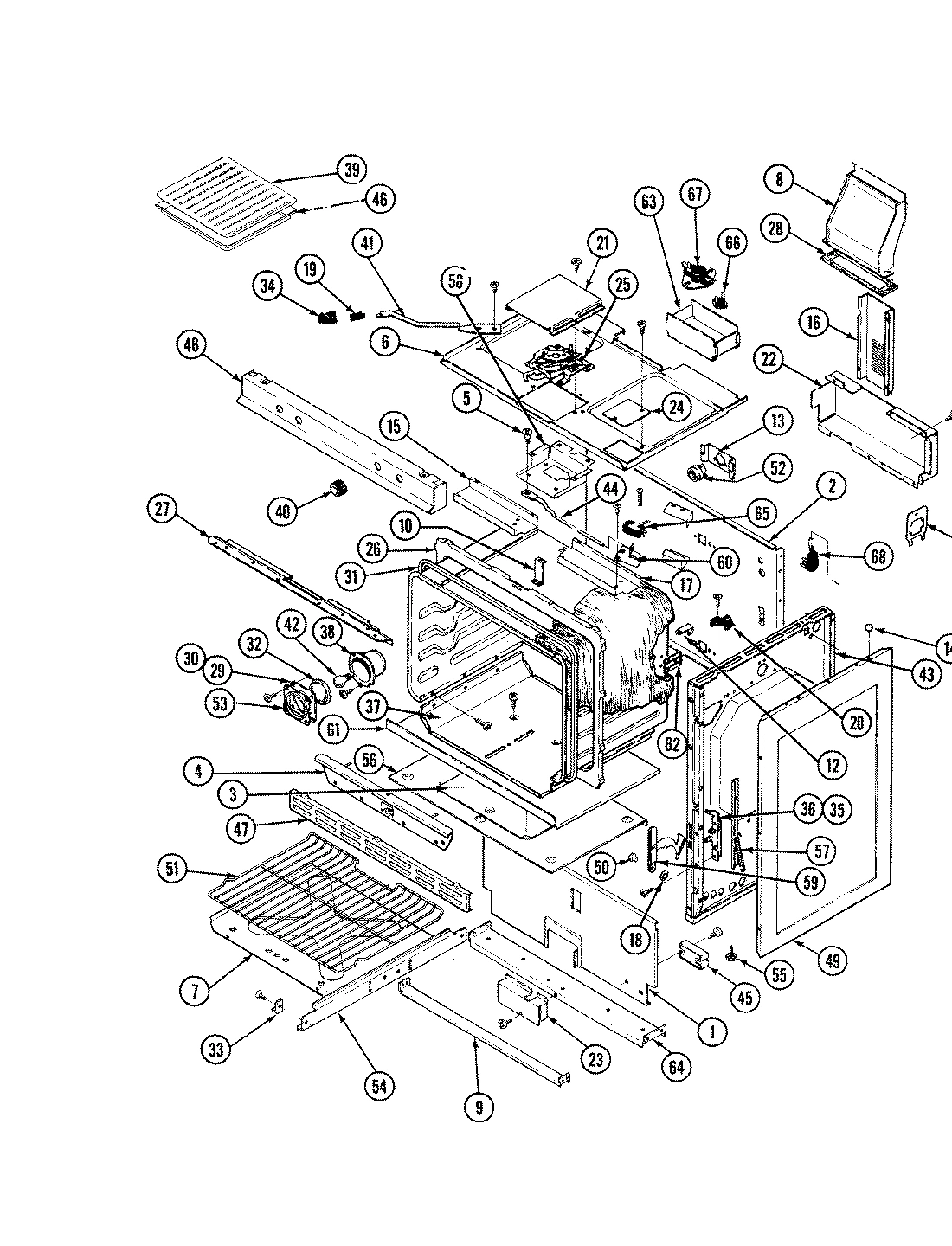

02 - BODY PARTS
Common parts from model Whirlpool 34HA-3TKXW GAS RANGE
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
SCREW WPL 7101P27360 Contact Us For Availability
1
BAFFLE WPL 3601F09351 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
TRIM, BEZEL WPL 7720P09160 Contact Us For Availability
1
TRIM, BEZEL WPL 7740P01060 Contact Us For Availability
1
TRIM, BEZEL WPL 7740P01660 Contact Us For Availability
1
BACK, BROILER WPL 4002F09545 Contact Us For Availability
1
BACK, BROIL SECTION WPL 4002F14545 Contact Us For Availability
2
BAFFLE, ASSY WPL 3601W12913 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
2
BACK, MAIN WPL 4002F09420 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
3
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
3
BAFFLE WPL 3601F11645 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
4
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
4
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
4
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
4
SCREW WPL 7101P05860 Contact Us For Availability
4
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
4
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
4
BAFFLE, OVN FRONT WPL 3601W12512 Contact Us For Availability
4
BLOCK WPL 7401P01860 Contact Us For Availability
5
BURNER, TOP WPL 7505P18760 Contact Us For Availability
5
BURNER, TOP COMPLETE KIT WPL W10127325 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
5
BUTTON, SET WPL 7711P33560 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
6
CAP, BURNER WPL 7504P00560 Contact Us For Availability
6
CAP, SURFACE BURNER, BLACK WPL 7504P00760 Contact Us For Availability
6
GLASS, INNER WPL 7902P09760 Contact Us For Availability
6
CLOCK WPL 7601P10160 Contact Us For Availability
6
CLOCK WPL 7601P15560 Contact Us For Availability
6
CLOCK WPL 7601P16360 Contact Us For Availability
6
CLOCK, ELECTRONIC WPL 7601P18160 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F15780 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F17880 Contact Us For Availability
7
CLIP WPL 7112P07260 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
7
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
7
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
8
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
8
FITTING, STRAIGHT WPL 7507P05360 Contact Us For Availability
8
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
8
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
8
COVER, BACKGUARD WPL 4005F19480 Contact Us For Availability
8
COVER, BKGD WIRE WPL 4005F36980 Contact Us For Availability
8
BOX, FLUE WPL 4006W02613 Contact Us For Availability
9
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
9
GRATE WPL 7518P00460 Contact Us For Availability
9
GRATE, BLACK WPL 7518P01460 Contact Us For Availability
9
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
9
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
9
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
9
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
9
BRACE WPL 3802F00380 Contact Us For Availability
10
SCREW WPL 7101P05760 Contact Us For Availability
10
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
10
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
HANDLE DOOR ALM WPL 2411F00174 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
GLASS, BACKGUARD WPL 7910P04260 Contact Us For Availability
10
GLASS BACKGUARD WPL 7910P12960 Contact Us For Availability
10
BRACKET WPL 3801F09351 Contact Us For Availability
11
NUT, BURNER CAP WPL 7103P00360 Contact Us For Availability
11
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
11
HARNESS, SENSOR WPL 5170A00760 Contact Us For Availability
11
WIRE HARNESS, CLOCK WPL 5170P06760 Contact Us For Availability
11
HARNESS, OVEN SENSOR WPL 5170P10060 Contact Us For Availability
11
BRACKET WPL 3801F02145 Contact Us For Availability
11
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
12
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
12
NUT, WING WPL 7103P03060 Contact Us For Availability
12
ORIFICE, LP SEALED WPL 7509P03060 Contact Us For Availability
12
LINING ASSY WPL 2402W12812 Contact Us For Availability
12
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
12
KNOB, CLOCK (WHT) WPL 7711P43260 Contact Us For Availability
12
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
12
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
12
BRACKET, SPARK MODULE WPL 3801F18045 Contact Us For Availability
12
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
12
BRACKET, SPARK MODULE WPL 3801F22645 Contact Us For Availability
13
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P02660 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P02760 Contact Us For Availability
13
PIPE, MANIFOLD WPL 7513P08660 Contact Us For Availability
13
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
13
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
13
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
13
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
13
BRACKET WPL 3801F02451 Contact Us For Availability
13
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
14
RING, BLACK WPL 2014F00100 Contact Us For Availability
14
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
14
LENS, CLOCK WPL 7730P00260 Contact Us For Availability
14
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
14
BUMPER WPL 1784202 Contact Us For Availability
15
SCREW WPL 7101P25660 Contact Us For Availability
15
NUT, SPEED WPL 7103P04460 Contact Us For Availability
15
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
16
SEAL WPL 7208P00260 Contact Us For Availability
16
PANEL, CONTROL (BLK) WPL 2601W15184 Contact Us For Availability
16
PANEL, CONTROL (ALMOND) WPL 2601W32884 Contact Us For Availability
16
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
17
SUPPORT, VALVE WPL 3807F32945 Contact Us For Availability
17
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
17
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
17
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
17
SPRING WPL 7803P00260 Contact Us For Availability
17
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
17
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
17
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
17
PROBE, OVEN SENSOR WPL 7430P00460 Contact Us For Availability
17
OVEN SENSOR WPL 7430P00760 Contact Us For Availability
17
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
18
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
18
RELAY, BOARD ASSY. WPL 7428P00660 Contact Us For Availability
18
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
18
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
19
TOP, MAIN ALMOND WPL 2001F06394 Contact Us For Availability
19
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
19
SLEEVE WPL 7214P00360 Contact Us For Availability
19
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
20
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
20
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
20
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
20
CLIP, WIRE WPL 7112P04560 Contact Us For Availability
21
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
21
SLEEVE, WIRE PROTECT WPL 7214P00560 Contact Us For Availability
21
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
22
COVER, MODULE WPL 4005F17480 Contact Us For Availability
22
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
22
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
22
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
23
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
23
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
23
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
23
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
24
TUBE, REGULATOR----NA WPL 7506P07560 Contact Us For Availability
24
TUBE, MANIFOLD FEED WPL 7506P09160 Contact Us For Availability
24
TUBE, MANIFOLD WPL 7506P09260 Contact Us For Availability
24
TUBE, MANIFOLD FEED----NA WPL 7506P10160 Contact Us For Availability
24
SUPPORT WPL 3807F01080 Contact Us For Availability
24
SUPPORT WPL 3807F01280 Contact Us For Availability
24
SCREW WPL 7101P07460 Contact Us For Availability
24
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
24
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
25
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
25
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
25
SCREW WPL 7101P00860 Contact Us For Availability
25
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
25
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
26
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
26
WIRE, IGNITER FRONT WPL 5110A82460 Contact Us For Availability
26
WIRE, IGNITER REAR WPL 5110A82560 Contact Us For Availability
26
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
26
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
26
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
27
CONVERSION KIT TO LP WPL 5415A01460 Contact Us For Availability
27
+ NAT. GAS CONVERSION KIT WPL 5415A01560 Contact Us For Availability
27
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
28
GASKET WPL 7201P01360 Contact Us For Availability
29
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
30
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
31
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
32
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
33
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
33
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
34
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
34
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
34
HANDLE, DOOR LOCK (WHITE) WPL 7701P07260 Contact Us For Availability
35
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
36
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
37
HOUSING, BA WPL 4001F03645 Contact Us For Availability
37
WPL 4001F06045 WPL 4001F06045 Contact Us For Availability
38
WPL 7101P06460 WPL 7101P06460 Contact Us For Availability
38
WPL 4001F02013 WPL 4001F02013 Contact Us For Availability
39
WPL 3413F00211 WPL 3413F00211 Contact Us For Availability
40
WPL 7733P03860 WPL 7733P03860 Contact Us For Availability
41
WPL 7101P01860 WPL 7101P01860 Contact Us For Availability
41
WPL 8009P01060 WPL 8009P01060 Contact Us For Availability
42
WPL 7407P02660 WPL 7407P02660 Contact Us For Availability
43
WPL 7101P06160 WPL 7101P06160 Contact Us For Availability
43
WPL 4009W03880 WPL 4009W03880 Contact Us For Availability
43
WPL 4009W05880 WPL 4009W05880 Contact Us For Availability
44
WPL 7807P00460 WPL 7807P00460 Contact Us For Availability
45
WPL 7431P00660 WPL 7431P00660 Contact Us For Availability
45
WPL 7431P01660 WPL 7431P01660 Contact Us For Availability
45
WPL 7431P01760 WPL 7431P01760 Contact Us For Availability
46
WPL 2416F01874 WPL 2416F01874 Contact Us For Availability
46
WPL 3401F00411 WPL 3401F00411 Contact Us For Availability
47
WPL 2614F WPL 2614F Contact Us For Availability
× ![]()
Login and Registration Form
