Model Whirlpool 34GA-4TKXW GAS RANGE – Common Parts & Diagrams

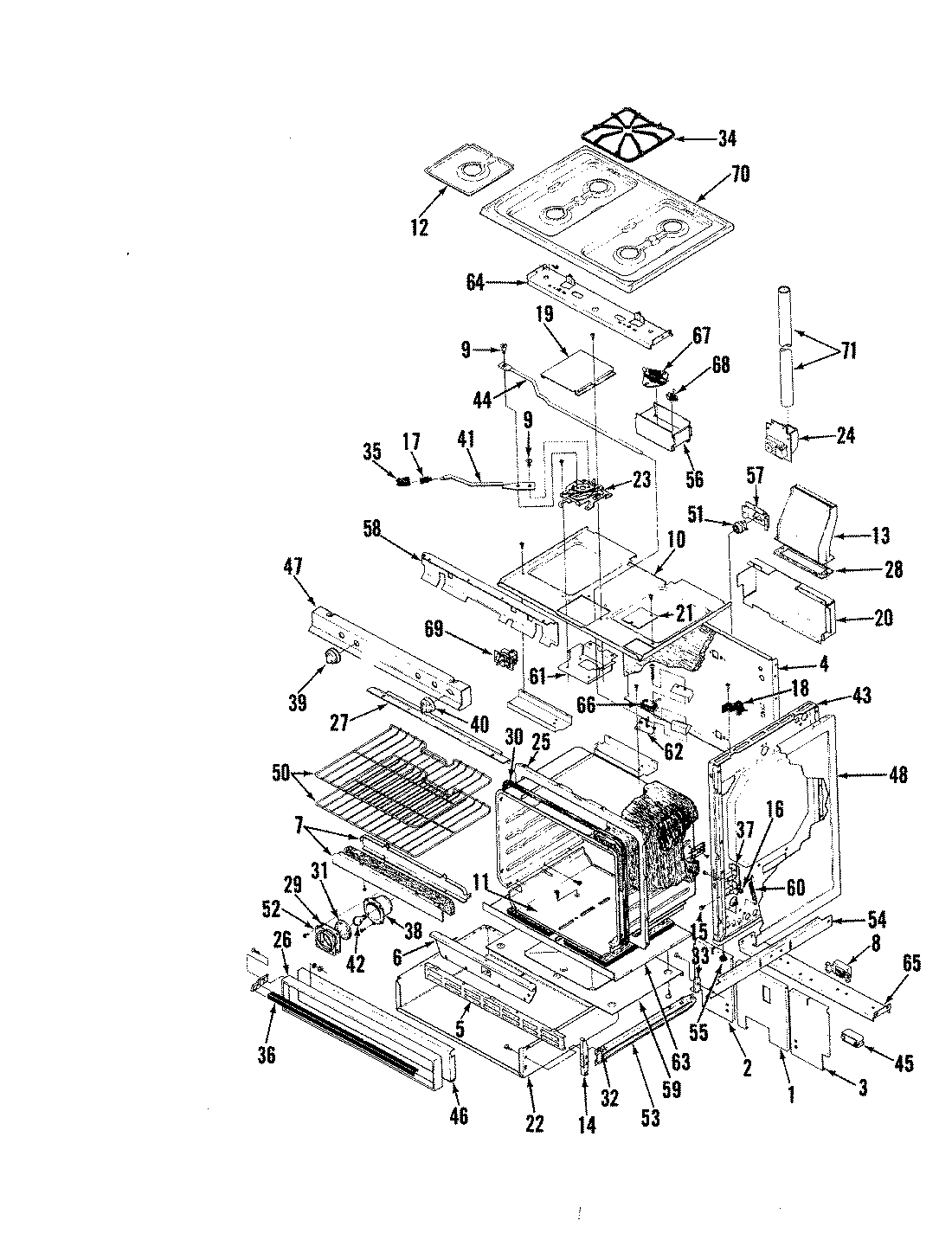

01 - BODY

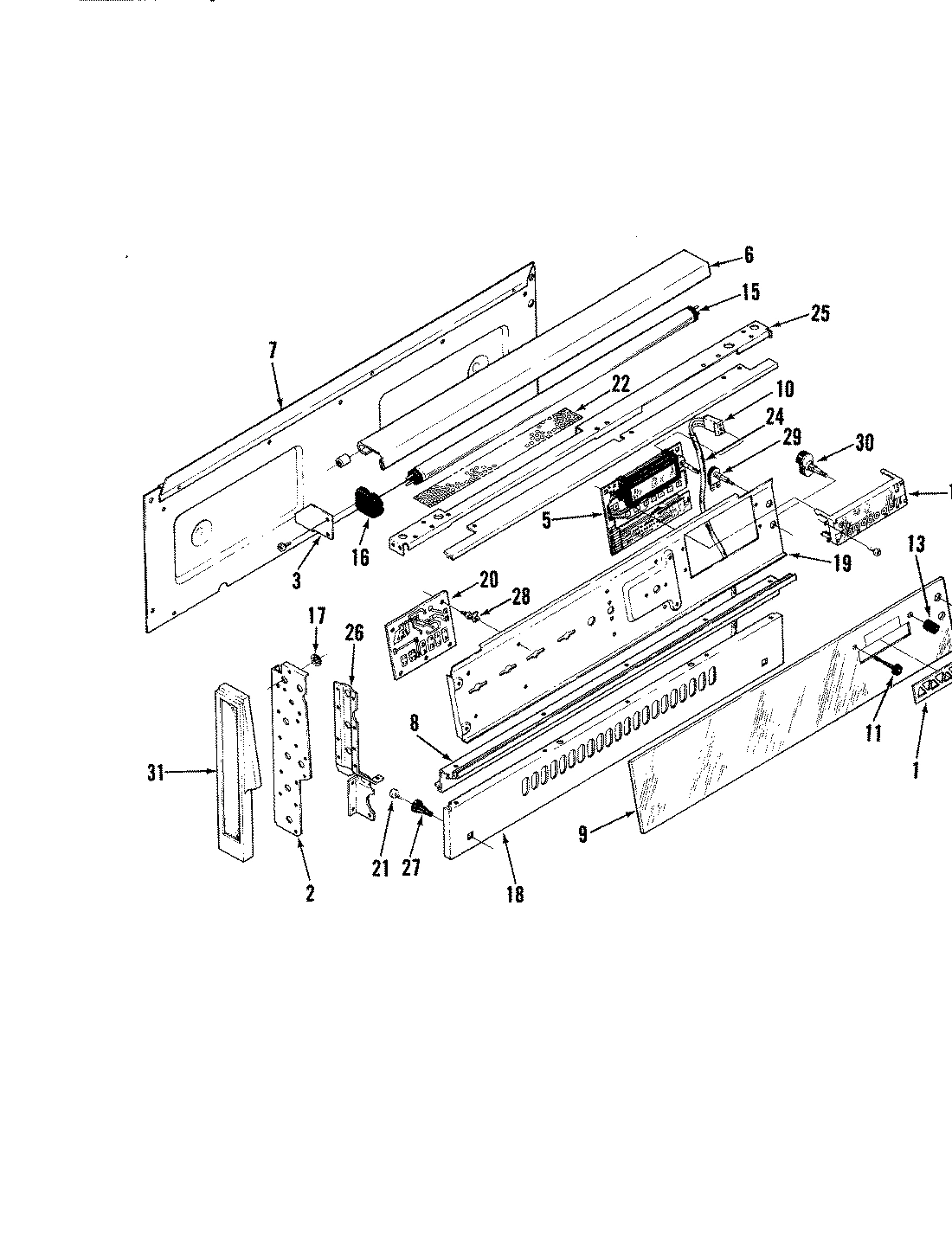

02 - CONTROL PANEL

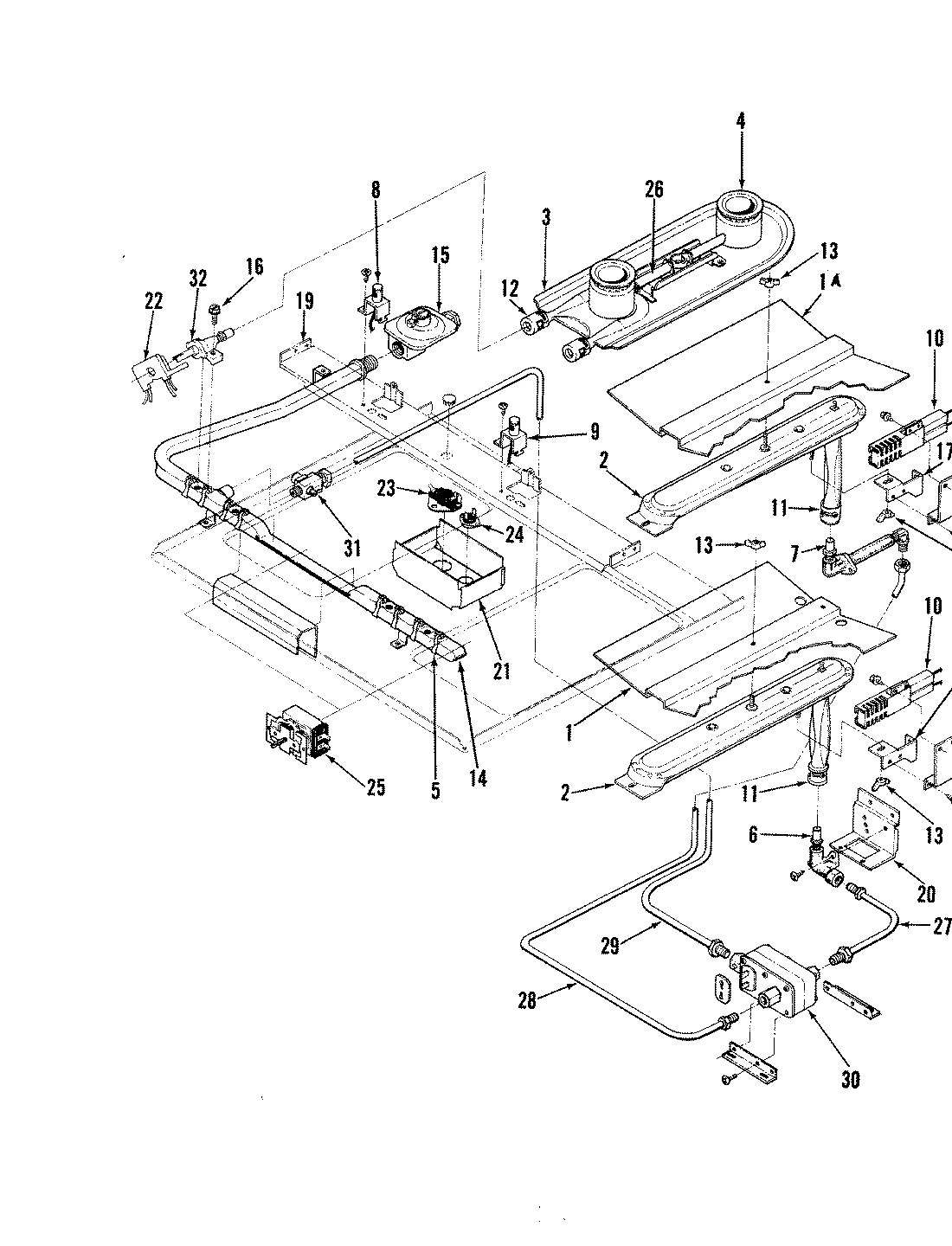

04 - GAS CONTROLS

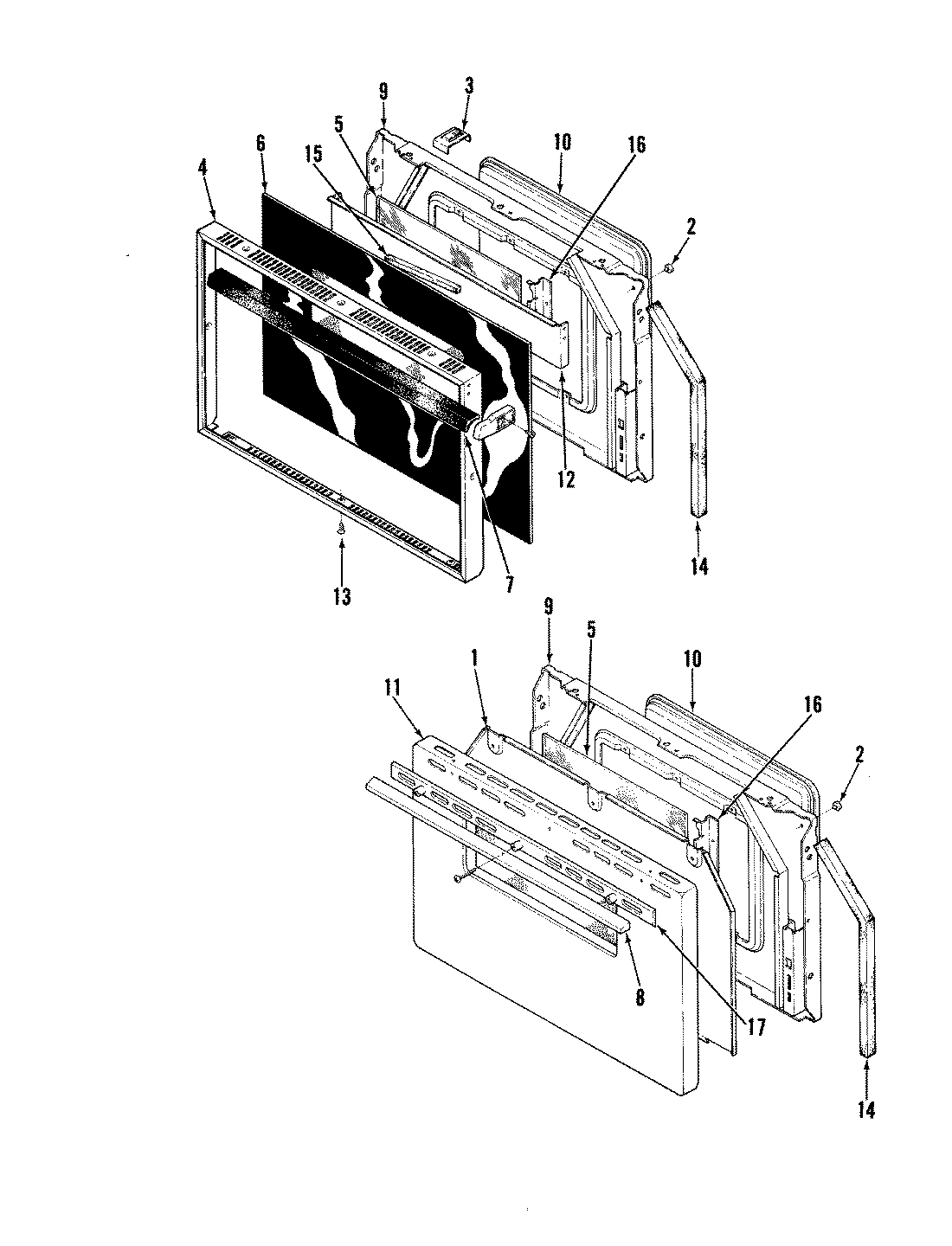

03 - DOOR
Common parts from model Whirlpool 34GA-4TKXW GAS RANGE
1
BALLAST WPL 1023200 Contact Us For Availability
1
TRIM, BEZEL WPL 7720P09160 Contact Us For Availability
1
TRIM, BEZEL WPL 7740P01060 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
BAFFLE, ASSY WPL 3601W12913 Contact Us For Availability
1
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
1
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
1
PAD, INNER OVEN DOOR WPL 2410F01551 Contact Us For Availability
1
BAFFLE WPL 3601F058 Contact Us For Availability
2
BACK, BR LEFT WPL 4002F06045 Contact Us For Availability
2
BRACKET WPL 0284298 Contact Us For Availability
2
(RIGHT) WPL 3801F10934 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06460 Contact Us For Availability
2
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
2
CATCH WPL 1135224 Contact Us For Availability
2
BUMPER WPL 1784200 Contact Us For Availability
3
BACK, BR RIGHT WPL 4002F06145 Contact Us For Availability
3
FRAME, SERV DOOR WPL 7706E056 Contact Us For Availability
3
BRACKET WPL 0284291 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300253 Contact Us For Availability
3
CLIP, DOOR GLASS WPL 7112E031 Contact Us For Availability
4
BACK, MAIN WPL 4002F06520 Contact Us For Availability
4
BUTTON, SET WPL 7711P33560 Contact Us For Availability
4
CAP, BURNER WPL 1083219 Contact Us For Availability
4
GASKET WPL 1313269 Contact Us For Availability
4
FRAME, OVN DOOR WPL 7706E007 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BAFFLE WPL 3601F11645 Contact Us For Availability
5
CLOCK WPL 7601P07160 Contact Us For Availability
5
CLOCK WPL 7601P10160 Contact Us For Availability
5
CLIP WPL 1141225 Contact Us For Availability
5
COVER, SPARK MODULE WPL 4005F15620 Contact Us For Availability
5
GLASS, DOOR WPL 7902E097 Contact Us For Availability
6
BAFFLE, OVEN FRT WPL 3601F11712 Contact Us For Availability
6
COVER, BKGD BOTTOM WPL 4005F15520 Contact Us For Availability
6
COVER, LAMP WPL 7724P01060 Contact Us For Availability
6
COVER, BKGD LAMP WPL 7724P01760 Contact Us For Availability
6
FITTING WPL 1285325 Contact Us For Availability
6
GLASS, DOOR WPL 7902E065 Contact Us For Availability
6
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
6
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
6
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
7
BAFFLE, OVN FRT UPPE WPL 3601F10812 Contact Us For Availability
7
COVER, BKGD WPL 4005F16120 Contact Us For Availability
7
EXTRUSION WPL 7706E097 Contact Us For Availability
7
FITTING WPL 1285326 Contact Us For Availability
7
HANDLE, DOOR WPL 7701E019 Contact Us For Availability
8
BLOCK WPL 1867269 Contact Us For Availability
8
BLOCK WPL 1867271 Contact Us For Availability
8
EXTRUSION WPL 7706P09760 Contact Us For Availability
8
IGNITOR WPL 1482238 Contact Us For Availability
8
HANDLE, DOOR WPL 1355304A Contact Us For Availability
8
LINING, BROILER DRAWER WPL 2404F015 Contact Us For Availability
8
INSERT, HANDLE WPL 7728E012 Contact Us For Availability
9
BOLT, DOOR LOCK WPL 7116E002 Contact Us For Availability
9
GLASS, BKGD WPL 7902P17460 Contact Us For Availability
9
IGNITOR WPL 1482237 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
9
LINING WPL 2402W12815 Contact Us For Availability
9
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
10
BOTTOM, BURNER BOX WPL 4011J067 Contact Us For Availability
10
+ BOTTOM ASY OVN WPL Y0234281 Contact Us For Availability
10
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
10
HARNESS, WIRE WPL 5170A00560 Contact Us For Availability
10
HARNESS, SENSOR WPL 5170A00760 Contact Us For Availability
10
WIRE HARNESS, CLOCK WPL 5170A06760 Contact Us For Availability
10
+ DRAWER, SERVICE WPL 1430299K Contact Us For Availability
10
PAD WPL 2410A02912 Contact Us For Availability
10
+ PAD ASSEMBLY WPL 2430F016 Contact Us For Availability
11
+ BAFFLE WPL 0153332 Contact Us For Availability
11
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
11
MIXER, AIR WPL 0607214 Contact Us For Availability
11
PIN WPL 1584209 Contact Us For Availability
11
PIN WPL 1584211 Contact Us For Availability
12
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
12
MODULE, SPARK WPL 1522102 Contact Us For Availability
12
MIXER, AIR WPL Y0607215 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F040 Contact Us For Availability
13
BRACE WPL 0277257 Contact Us For Availability
13
BRACKET WPL 0284303 Contact Us For Availability
13
BRACKET WPL 3801F093 Contact Us For Availability
13
BOX, FLUE WPL 4006W02613 Contact Us For Availability
13
KNOB,THERMOSTAT(ELE) WPL 1360331 Contact Us For Availability
13
WING NUT WPL 1555254 Contact Us For Availability
13
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
14
BRACKET WPL 0284306 Contact Us For Availability
14
+ BRACKET WPL 0284307 Contact Us For Availability
14
BRACKET WPL 0284312 Contact Us For Availability
14
BRACKET WPL 0284316 Contact Us For Availability
14
BRACKET WPL 3801F082 Contact Us For Availability
14
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
14
BUMPER, MAIN TOP WPL 8010E012 Contact Us For Availability
14
LENS, CLOCK WPL 7730P00260 Contact Us For Availability
14
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
14
SEAL WPL 1726250 Contact Us For Availability
15
BUMPER WPL 1784202 Contact Us For Availability
15
CLAMP WPL Y0315206 Contact Us For Availability
15
REGULATOR, PRESSURE WPL 1665248 Contact Us For Availability
15
SEAL WPL 1726252 Contact Us For Availability
15
STOP, DOOR WPL Y0112241 Contact Us For Availability
16
RING, SNAP WPL 1013214 Contact Us For Availability
16
RECEPTACLE, LAMP WPL 1448213 Contact Us For Availability
16
SCREW VALVE WPL 1986319 Contact Us For Availability
16
SUPPORT, GLASS WPL 3804J038 Contact Us For Availability
16
TAPE, 2`` X 16`` REFLECTIVE WPL 8270P05160 Contact Us For Availability
17
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE TRIM, HANDLE (N WPL W10124350 Contact Us For Availability
17
GRIP NUT WPL 1555247 Contact Us For Availability
17
SUPPORT WPL 0862434 Contact Us For Availability
18
CLIP WPL 1141237 Contact Us For Availability
18
CLIP, WIRE WPL 7112P04560 Contact Us For Availability
18
PANEL, BKGD LOWER WPL 2620W01800 Contact Us For Availability
18
SUPPORT WPL 0862420 Contact Us For Availability
18
+ WINDOW, PKG WPL 5700A08460 Contact Us For Availability
18
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
19
COVER - LOCK WPL 4005J037 Contact Us For Availability
19
SUPPORT WPL 0862470 Contact Us For Availability
19
PLATE, SWITCH MTG WPL 3605F10220 Contact Us For Availability
20
COVER, MODULE WPL 4005F17420 Contact Us For Availability
20
COVER, OV VALVE WPL 4005F17551 Contact Us For Availability
20
RELAY, BOARD ASSY. WPL 7428P00560 Contact Us For Availability
20
RELAY, BOARD ASSY. WPL 7428P00660 Contact Us For Availability
20
SUPPORT WPL 0862445 Contact Us For Availability
21
COVER SWITCH LOCK WPL 4005F139 Contact Us For Availability
21
SCREW WPL 1986341 Contact Us For Availability
21
SUPPORT WPL 0862462 Contact Us For Availability
21
SWITCH, H.L. FAN WPL 7403P08760 Contact Us For Availability
21
SWITCH WPL 7403P18860 Contact Us For Availability
22
DRAWER ASSY. WPL 0384227 Contact Us For Availability
22
SHIELD, TERMINAL WPL 3604F07920 Contact Us For Availability
23
SLEEVE WPL 1762216 Contact Us For Availability
24
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
24
SWITCH WPL 7403E004 Contact Us For Availability
24
SWITCH, HI LIMIT WPL 7403P18760 Contact Us For Availability
24
SLEEVE, WIRE PROTECT WPL 7214P00560 Contact Us For Availability
25
FRAME, OVEN FRONT WPL 2201C025 Contact Us For Availability
25
SUPPORT, BKGD LIGHT WPL 3807F20220 Contact Us For Availability
26
SUPPORT WPL 0862417 Contact Us For Availability
26
SUPPORT WPL 0862418 Contact Us For Availability
26
TUBE WPL 1930342 Contact Us For Availability
27
FRAME, BURNER BOX FRONT WPL 4012F013 Contact Us For Availability
27
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
27
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
28
GASKET WPL 1313276 Contact Us For Availability
28
SUPPORT, RELAY BOARD WPL 8004P01460 Contact Us For Availability
28
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
29
GASKET, LAMPGUARD RETAINER WPL 1313260 Contact Us For Availability
29
SWITCH WPL 1832379 Contact Us For Availability
29
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
30
GASKET, OVEN WPL 1313279 Contact Us For Availability
30
SWITCH WPL 1832397 Contact Us For Availability
30
VALVE, OVEN WPL 7501P03060 Contact Us For Availability
30
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
30
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
31
GLASS, LIGHTGUARD WPL 1327784 Contact Us For Availability
31
SVR DRAWER GLASS WPL 7902P21460 Contact Us For Availability
31
TRIM WPL 1916960 Contact Us For Availability
31
TRIM WPL 1916961 Contact Us For Availability
31
TRIM, OVERLAY WPL 7728P01060 Contact Us For Availability
31
VALVE, SHUT OFF WPL 1951367 Contact Us For Availability
32
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
32
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
32
VALVE, TOP BURNER WPL 1951372 Contact Us For Availability
33
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
34
HANDLE, DOOR LOCK WPL 7701E003 Contact Us For Availability
34
GRATE WPL Y0505218 Contact Us For Availability
36
HANDLE, DOOR ALMD WPL 7701P03260 Contact Us For Availability
37
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
37
+ HINGE, OVEN DOOR (LT) WPL Y0528261 Contact Us For Availability
37
+ HINGE WPL Y0528262 Contact Us For Availability
38
INSERT, BROIL PAN WPL 0507243 Contact Us For Availability
38
HOUSING, LAMP WPL 0537253 Contact Us For Availability
38
KNOB, SELECTOR WPL 7711E106 Contact Us For Availability
41
CATCH, DOOR LOCK WPL 8002E009 Contact Us For Availability
41
CATCH, DR LK WPL 8002P01560 Contact Us For Availability
41
LEVER, DOOR LOCK WPL 8009E003 Contact Us For Availability
41
LEVER, DOOR LOCK WPL 8009P00760 Contact Us For Availability
43
LINING ASSY, INNER SIDE WPL 4009W03880 Contact Us For Availability
43
LINING, INNER SIDE WPL 4009W05880 Contact Us For Availability
44
LINK, DOOR LOCK WPL 8021E001 Contact Us For Availability
45
MODULE, SPARK WPL 1522106 Contact Us For Availability
46
WPL 2416F01474 WPL 2416F01474 Contact Us For Availability
46
WPL 2614F00820 WPL 2614F00820 Contact Us For Availability
47
WPL 7712A02660 WPL 7712A02660 Contact Us For Availability
48
WPL Y0801240A WPL Y0801240A Contact Us For Availability
49
WPL 1584204 WPL 1584204 Contact Us For Availability
50
WPL 1636255 WPL 1636255 Contact Us For Availability
51
WPL 1657202 WPL 1657202 Contact Us For Availability
52
WPL 0749227 WPL 0749227 Contact Us For Availability
53
WPL 3406F02680 WPL 3406F02680 Contact Us For Availability
53
WPL Y0766215 WPL Y0766215 Contact Us For Availability
54
WPL 3406F02751 WPL 3406F02751 Contact Us For Availability
54
WPL 3406J007 WPL 3406J007 Contact Us For Availability
55
WPL 1986214 WPL 1986214 Contact Us For Availability
55
WPL 7430P00160 WPL 7430P00160 Contact Us For Availability
55
WPL 7430P00460 WPL 7430P00460 Contact Us For Availability
56
WPL 3807F21951 WPL 3807F21951 Contact Us For Availability
56
WPL Y0787421 WPL Y0787421 Contact Us For Availability
57
WPL 0537252 WPL 0537252 Contact Us For Availability
58
WPL 3604F058 WPL 3604F058 Contact Us For Availability
59
WPL 3604F08345 WPL 3604F08345 Contact Us For Availability
59
WPL 7214P00460 WPL 7214P00460 Contact Us For Availability
60
WPL 0115101 WPL 0115101 Contact Us For Availability
61
WPL 3807F188 WPL 3807F188 Contact Us For Availability
62
WPL 3807F193 WPL 3807F193 Contact Us For Availability
63
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
65
WPL 3807F20845 WPL 3807F20845 Contact Us For Availability
66
WPL 1832415 WPL 1832415 Contact Us For Availability
66
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
67
WPL 1832404 WPL 1832404 Contact Us For Availability
70
WPL 1916179 WPL 1916179 Contact Us For Availability
70
WPL 1916180 WPL 1916180 Contact Us For Availability
70
WPL 2001F WPL 2001F Contact Us For Availability
× ![]()
Login and Registration Form
