Model Whirlpool 34FA-2CK GAS RANGE – Common Parts & Diagrams

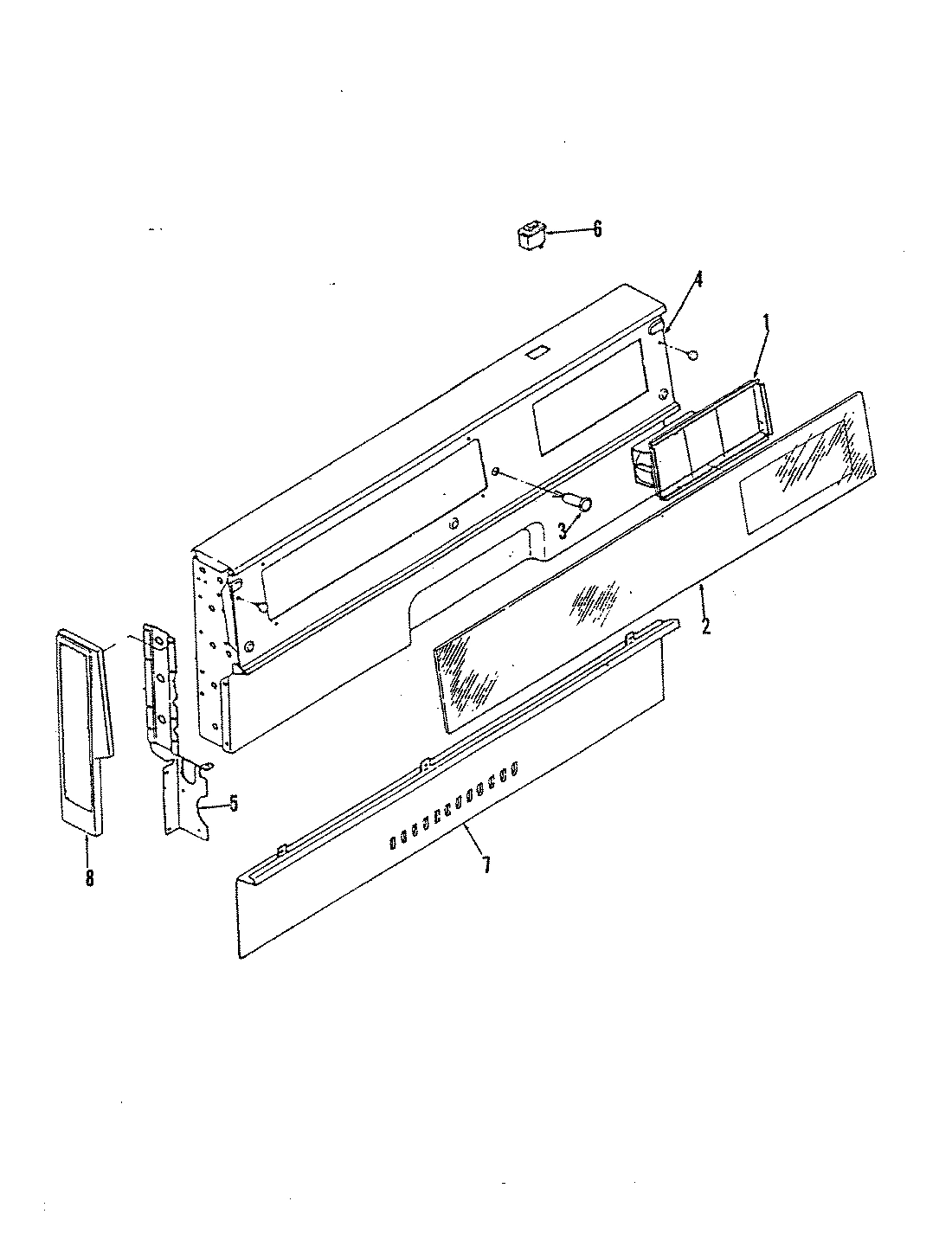

02 - CONTROL PANEL

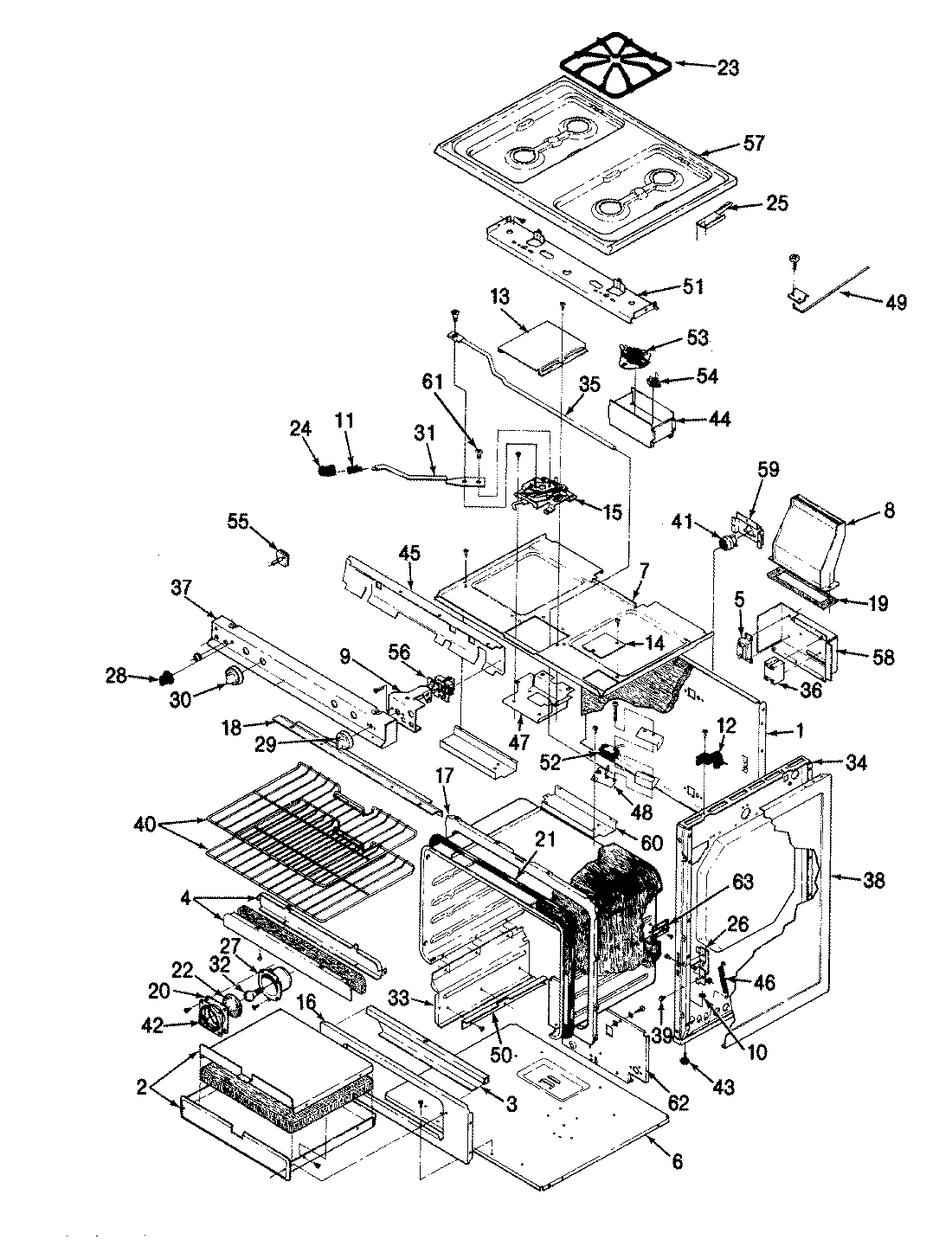

01 - BODY

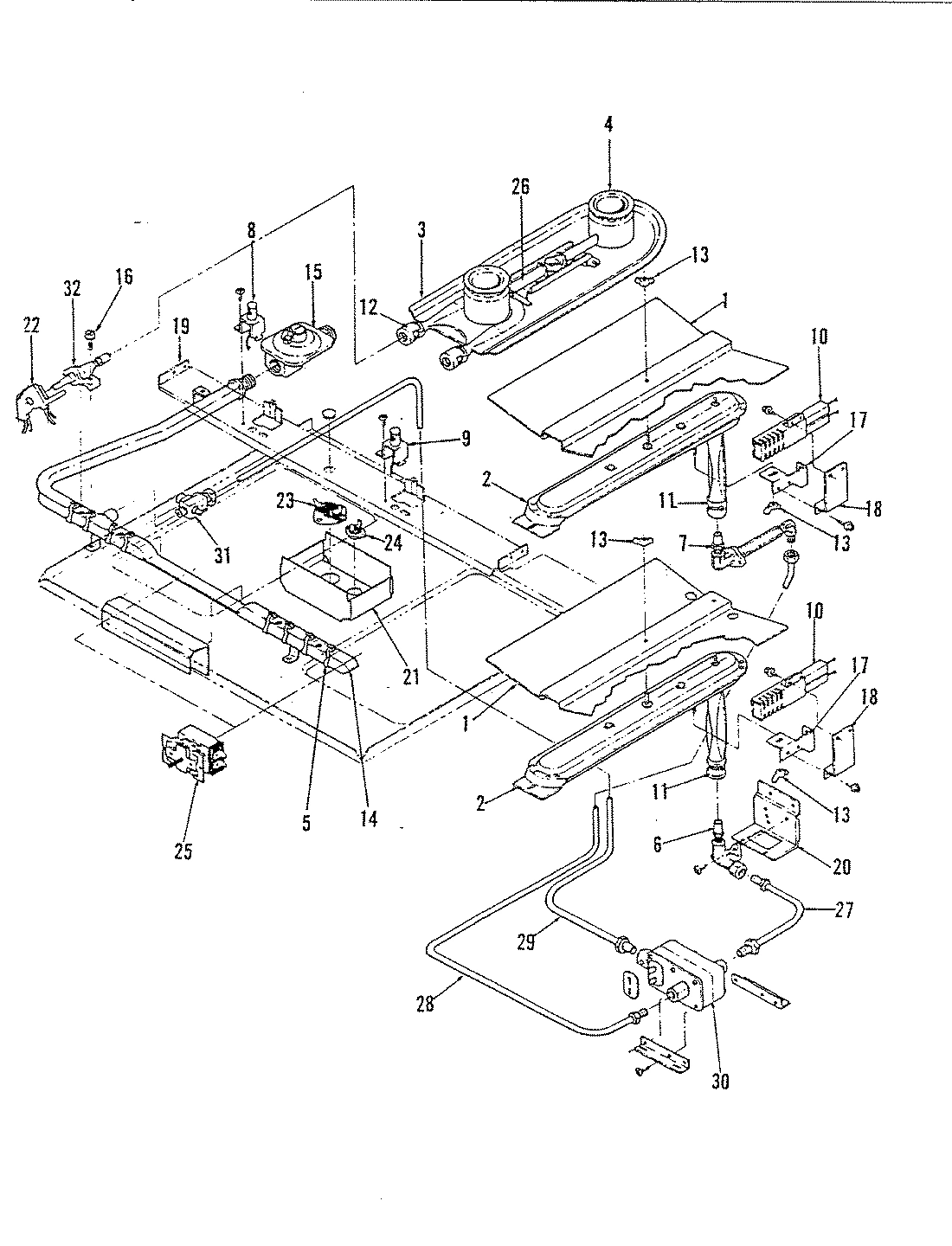

03 - CONTROL SYSTEM

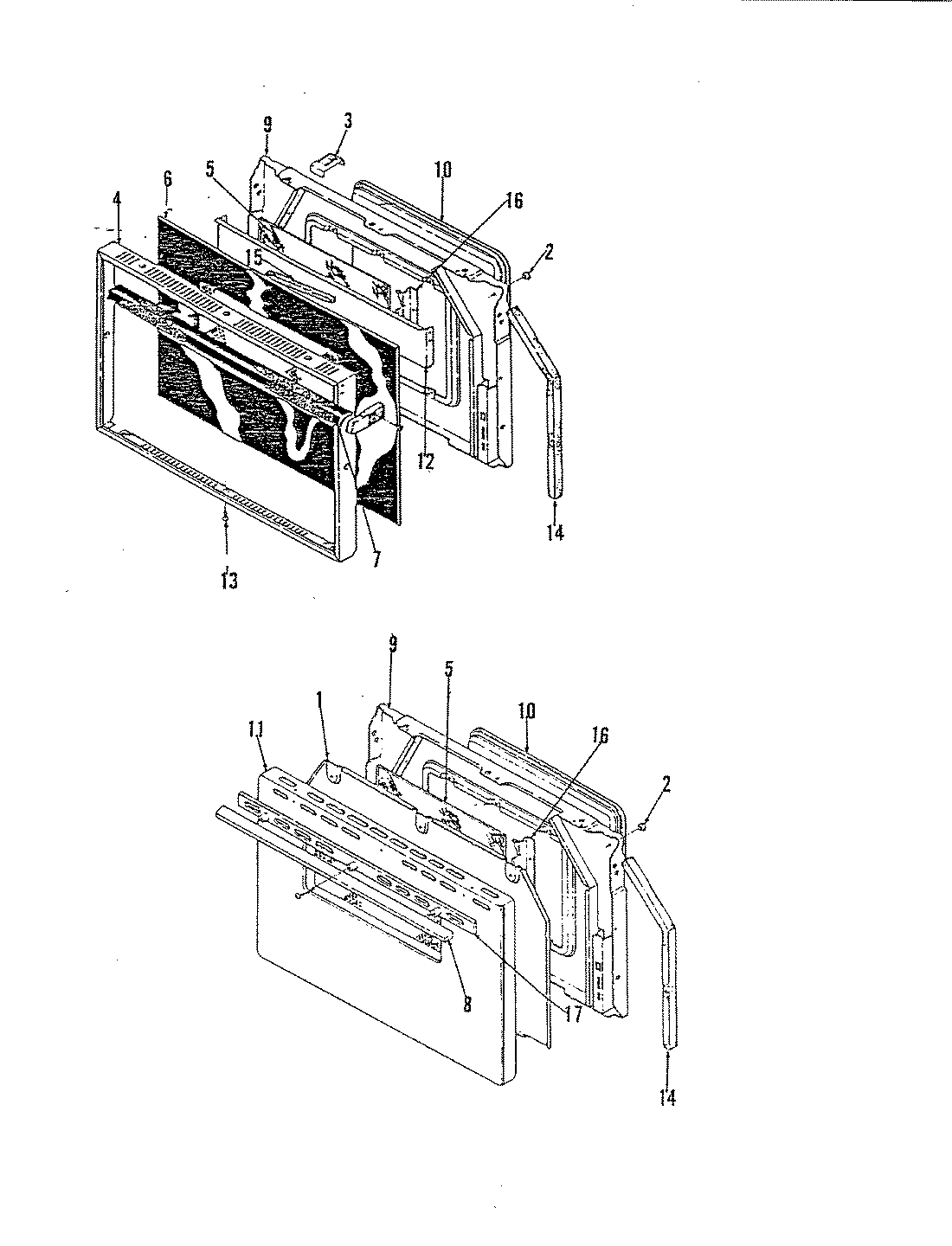

04 - DOOR
Common parts from model Whirlpool 34FA-2CK GAS RANGE
1
SHIELD WPL 0787408 Contact Us For Availability
1
+ CLOCK, EXPORT WPL 1895523 Contact Us For Availability
1
+ CLOCK, EXPORT WPL 1895524 Contact Us For Availability
1
+ CLOCK, EXPORT WPL 1895525 Contact Us For Availability
1
+ CLOCK WPL 7601P04460 Contact Us For Availability
1
BACK, MAIN WPL 4002J028 Contact Us For Availability
1
BAFFLE WPL 0153320 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
BAFFLE WPL 3601F095 Contact Us For Availability
2
GLASS, BKGD WPL 7902P11360 Contact Us For Availability
2
+ BAFFLE WPL 0153332 Contact Us For Availability
2
BURNER ASSY., OVEN WPL 0298234 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06460 Contact Us For Availability
2
CATCH WPL 1135224 Contact Us For Availability
2
BUMPER WPL 1784200 Contact Us For Availability
3
LIGHT, INDICATOR WPL 1406235 Contact Us For Availability
3
GRIP NUT WPL 1555247 Contact Us For Availability
3
BAFFLE WPL 0153327 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300253 Contact Us For Availability
4
BACKGUARD ASSY, ALM WPL 2601W03084 Contact Us For Availability
4
+ BAFFLE WPL 0153330 Contact Us For Availability
4
CAP, BURNER WPL 1083219 Contact Us For Availability
5
SUPPORT WPL 0862417 Contact Us For Availability
5
SUPPORT WPL 0862418 Contact Us For Availability
5
BLOCK WPL 1867269 Contact Us For Availability
5
BLOCK WPL 1867271 Contact Us For Availability
5
BOLT, DOOR LOCK WPL 7116E002 Contact Us For Availability
5
CLIP WPL 1141225 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
6
BOTTOM, MISC WPL 0236238 Contact Us For Availability
6
BOTTOM, BROILER WPL 4011F09720 Contact Us For Availability
6
FITTING WPL 1285325 Contact Us For Availability
7
PANEL, BKGD BLK WPL 2620W00200 Contact Us For Availability
7
PANEL, BKGD LOWER WPL 2620W01400 Contact Us For Availability
7
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
7
BOTTOM, BURNER BOX WPL 4011J067 Contact Us For Availability
7
+ BOTTOM ASY OVN WPL Y0234281 Contact Us For Availability
7
FITTING WPL 1285326 Contact Us For Availability
8
TRIM WPL 1916211 Contact Us For Availability
8
TRIM WPL 1916212 Contact Us For Availability
8
TRIM, GLASS RET WPL 7702P07360 Contact Us For Availability
8
BRACKET WPL 0284303 Contact Us For Availability
8
BRACKET WPL 0284312 Contact Us For Availability
8
BRACKET WPL 0284316 Contact Us For Availability
8
BRACKET WPL 3801F082 Contact Us For Availability
8
BRACKET WPL 3801F093 Contact Us For Availability
8
BOX, FLUE WPL 4006W02613 Contact Us For Availability
8
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
8
HANDLE, DOOR WPL 1355298 Contact Us For Availability
8
LINING, BROILER DRAWER WPL 2404F015 Contact Us For Availability
9
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
9
BRACKET WPL 0284306 Contact Us For Availability
9
+ BRACKET WPL 0284307 Contact Us For Availability
9
BUMPER, MAIN TOP WPL 8010E012 Contact Us For Availability
9
CLAMP WPL Y0315206 Contact Us For Availability
9
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
9
LINING WPL 2402W12815 Contact Us For Availability
9
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
10
RING, SNAP WPL 1013214 Contact Us For Availability
10
KNOB, SELECTOR WPL 7711E112 Contact Us For Availability
10
KNOB, THERM WPL 7711P15660 Contact Us For Availability
10
KNOB, VALVE WPL 7711P15160 Contact Us For Availability
10
PANEL,BROILER DOOR WPL 0684313A Contact Us For Availability
10
PAD ASSY, OV DR NON W WPL 2410W02612 Contact Us For Availability
10
PAD ASSY, O.D. SOLID WPL 2410W02812 Contact Us For Availability
10
+ PAD ASSEMBLY WPL 2430F017 Contact Us For Availability
11
CLIP, DOOR LOCK WPL 7112E003 Contact Us For Availability
11
MIXER, AIR WPL 0607214 Contact Us For Availability
11
PIN WPL 1584209 Contact Us For Availability
11
PIN WPL 1584211 Contact Us For Availability
11
PANEL, OVEN DR-A WPL 2401F04374 Contact Us For Availability
12
CLIP WPL 1141237 Contact Us For Availability
12
MODULE, SPARK WPL 1522102 Contact Us For Availability
12
3/8`` MICRO LOXIT NUT WPL 1555257 Contact Us For Availability
12
MIXER, AIR WPL Y0607215 Contact Us For Availability
13
COVER - LOCK WPL 4005J037 Contact Us For Availability
13
WING NUT WPL 1555254 Contact Us For Availability
14
COVER SWITCH LOCK WPL 4005F139 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
15
EXTRUSION, SIDE PANEL (LT) WPL 1259599 Contact Us For Availability
15
EXTRUSION, TRIM WPL 1259600 Contact Us For Availability
15
REGULATOR, PRESSURE WPL 1665248 Contact Us For Availability
15
SPACER WPL 1783228 Contact Us For Availability
15
STOP, DOOR WPL Y0112241 Contact Us For Availability
16
FRAME ASSY. WPL 0462232 Contact Us For Availability
16
FRONT, FRAME OVEN LOWER WPL 2201F03425 Contact Us For Availability
16
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
16
SCREW VALVE WPL 1986319 Contact Us For Availability
17
SUPPORT WPL 0862434 Contact Us For Availability
17
TRIM, HANDLE WPL 7720E063 Contact Us For Availability
18
FRAME, BURNER BOX FRONT WPL 4012F013 Contact Us For Availability
18
SUPPORT WPL 0862420 Contact Us For Availability
19
GASKET WPL 1313276 Contact Us For Availability
19
SUPPORT WPL 0862470 Contact Us For Availability
20
GASKET, LAMPGUARD RETAINER WPL 1313260 Contact Us For Availability
20
SUPPORT WPL 0862445 Contact Us For Availability
21
GASKET, OVEN WPL 1313279 Contact Us For Availability
21
SUPPORT WPL 0862462 Contact Us For Availability
22
GLASS, LIGHTGUARD WPL 1327784 Contact Us For Availability
23
GRATE WPL Y0505218 Contact Us For Availability
23
SWITCH WPL 1832404 Contact Us For Availability
23
SWITCH, THERMAL WPL 7403P09160 Contact Us For Availability
24
HANDLE, DOOR LOCK WPL 7701E003 Contact Us For Availability
24
SWITCH WPL 7403E004 Contact Us For Availability
25
+ HINGE, MAIN TOP WPL 0529103 Contact Us For Availability
25
+ HINGE, MAIN TOP WPL 0529104 Contact Us For Availability
25
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
25
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
25
+ HINGE, OVEN DOOR (LT) WPL Y0528261 Contact Us For Availability
25
+ HINGE WPL Y0528262 Contact Us For Availability
25
THERMOSTAT, GAS WPL 7515E005 Contact Us For Availability
25
THERMOSTAT, OV WPL 7515P02060 Contact Us For Availability
26
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
26
TUBE WPL 1930342 Contact Us For Availability
27
INSERT, BROIL PAN WPL 0507243 Contact Us For Availability
27
HOUSING, LAMP WPL 0537253 Contact Us For Availability
27
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
28
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
29
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
30
VALVE, OVEN WPL 7501P01960 Contact Us For Availability
30
VALVE, OVEN WPL 7501P03060 Contact Us For Availability
30
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
31
CATCH, DOOR LOCK WPL 8002E009 Contact Us For Availability
31
CATCH, DR LK WPL 8002P01560 Contact Us For Availability
31
LEVER, DOOR LOCK WPL 8009E003 Contact Us For Availability
31
LEVER, DOOR LOCK WPL 8009P00760 Contact Us For Availability
31
VALVE, SHUT OFF WPL 1951367 Contact Us For Availability
32
VALVE, TOP BURNER WPL 1951370 Contact Us For Availability
32
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
33
LINING, MISC. WPL 0606391 Contact Us For Availability
34
LINING, INNER SIDE WPL 4009W02820 Contact Us For Availability
35
LINK, DOOR LOCK WPL 8021E001 Contact Us For Availability
36
MODULE, SPARK WPL 1522106 Contact Us For Availability
37
TRIM, MANIFOLD PANEL WPL 7712P00760 Contact Us For Availability
38
PANEL, SIDE (ALM) WPL Y0801240A Contact Us For Availability
39
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
40
RACK, OVEN WPL 7801P01160 Contact Us For Availability
41
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
42
RETAINER, LAMPGUARD WPL 0749227 Contact Us For Availability
43
S WPL 1986214 Contact Us For Availability
44
WPL 0537252 WPL 0537252 Contact Us For Availability
44
WPL Y0787421 WPL Y0787421 Contact Us For Availability
45
WPL 3604F058 WPL 3604F058 Contact Us For Availability
46
WPL 0115101 WPL 0115101 Contact Us For Availability
47
WPL 3807F188 WPL 3807F188 Contact Us For Availability
48
WPL 3807F193 WPL 3807F193 Contact Us For Availability
49
WPL 3807F22634 WPL 3807F22634 Contact Us For Availability
50
WPL 0862446 WPL 0862446 Contact Us For Availability
52
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
55
WPL 7403E015 WPL 7403E015 Contact Us For Availability
55
WPL 7403P01960 WPL 7403P01960 Contact Us For Availability
57
WPL 1916179 WPL 1916179 Contact Us For Availability
57
WPL 1916180 WPL 1916180 Contact Us For Availability
57
WPL 2001F03594 WPL 2001F03594 Contact Us For Availability
57
WPL 7402P01160 WPL 7402P01160 Contact Us For Availability
57
WPL 7402P01460 WPL 7402P01460 Contact Us For Availability
57
WPL Y0902288A WPL Y0902288A Contact Us For Availability
58
WPL 4005F17480 WPL 4005F17480 Contact Us For Availability
59
WPL 3801F02451 WPL 3801F02451 Contact Us For Availability
60
WPL 3818F02745 WPL 3818F02745 Contact Us For Availability
61
WPL 7101P01860 WPL 7101P01860 Contact Us For Availability
62
WPL 4002F06645 WPL 4002F06645 Contact Us For Availability
63
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
× ![]()
