Model LG 34BQ77QC-B – Common Parts & Diagrams

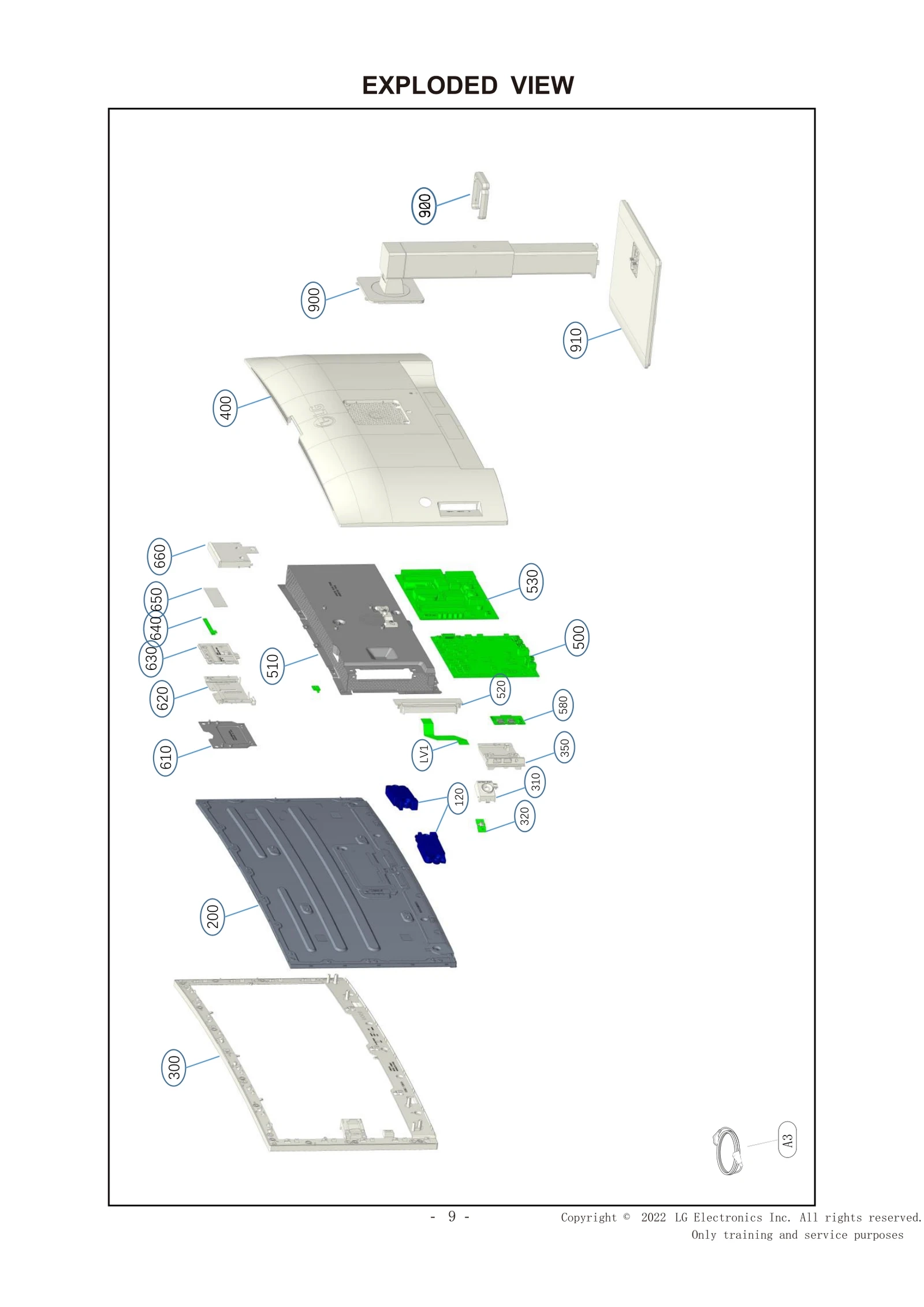

Diagram 0
Diagram 1
Common parts from model LG 34BQ77QC-B
120
Speaker Assembly LGE EAB63628201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76754401 Contact Us For Availability
310
Cover LGE MCK71612201 Contact Us For Availability
320
PCB Assembly,Sub LGE EBR87542901 Contact Us For Availability
500
BPR Total Assembly LGE EBU67308003 Contact Us For Availability
510
Frame Assembly LGE ADV30058603 Contact Us For Availability
520
Cover LGE MCK70125001 Contact Us For Availability
530
Power Supply Assembly LGE EAY65288602 Contact Us For Availability
530
Power Supply Assembly LGE EAY65898901 Contact Us For Availability
610
Plate LGE MGJ67426101 Contact Us For Availability
620
Cover LGE MCK71641101 Contact Us For Availability
630
Cover LGE MCK71640901 Contact Us For Availability
640
Harness,Single LGE EAD65647904 Contact Us For Availability
650
Camera Module LGE EBP64154902 Contact Us For Availability
660
Cover LGE MCK71641001 Contact Us For Availability
900
LGE AAN30003017 LGE AAN30003017 Contact Us For Availability
910
LGE AAN30066101 LGE AAN30066101 Contact Us For Availability
920
Package Assembly LGE AGF79358843 Contact Us For Availability
A1
Manual Assembly LGE AFN30096080 Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A6
Cable,Assembly LGE EAD65185303 Contact Us For Availability
A6
Cable,Assembly LGE EAD65185308 Contact Us For Availability
A7
Card LGE MBM67528502 Contact Us For Availability
A8
Cable,Assembly LGE EAD63932607 Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
A10
Card LGE MBM67507701 Contact Us For Availability
LV1
Cable,FFC LGE EAD63825239 Contact Us For Availability
LV2
Cable,FFC LGE EAD63825240 Contact Us For Availability
× ![]()
