Model LG 34BL850-W – Common Parts & Diagrams

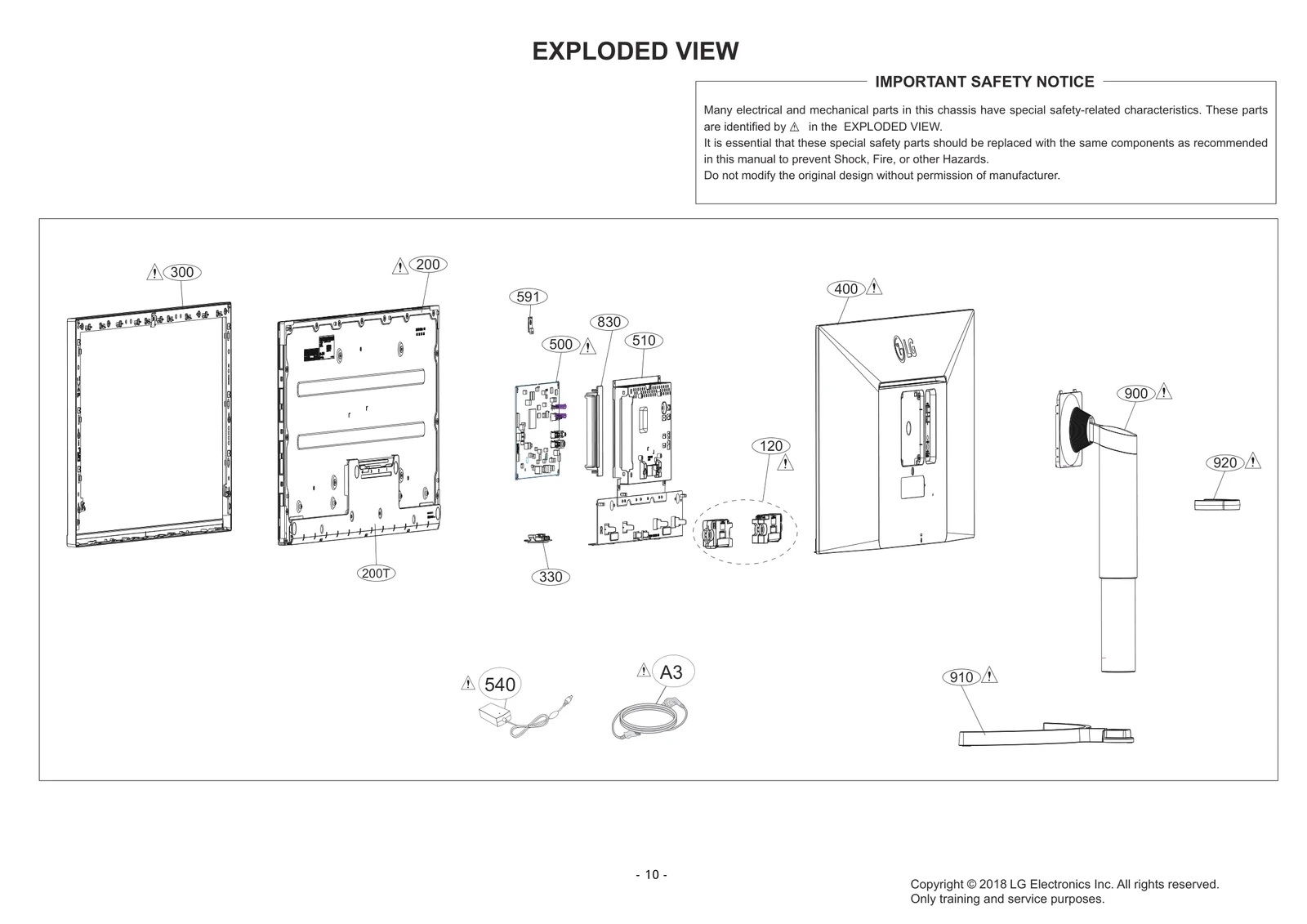

Diagram 0
Diagram 1
Common parts from model LG 34BL850-W
120
Speaker Assembly LGE EAB63628201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65028401 Contact Us For Availability
200T
Time Control LGE EAT64953301 Contact Us For Availability
330
Auto SMT PCB Assembly,Sub LGE EBR77779120 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ90778401 Contact Us For Availability
500
BPR Total Assembly LGE EBU65202601 Contact Us For Availability
510
Frame Assembly LGE ADV77105901 Contact Us For Availability
540
Adapters LGE EAY65068601 Contact Us For Availability
591
Auto SMT PCB Assembly,Sub LGE EBR86424402 Contact Us For Availability
830
Cover LGE MCK70125001 Contact Us For Availability
900
Base Assembly LGE AAN76409901 Contact Us For Availability
910
Base Assembly LGE AAN76349001 Contact Us For Availability
A1
Manual Assembly LGE AFN79113980 Contact Us For Availability
A4
Card LGE MBM65364031 Contact Us For Availability
A7
Card LGE 3840TWL001S Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
A10
Cable,Assembly LGE EAD63988302 Contact Us For Availability
C10
Harness,Single LGE EAD63806801 Contact Us For Availability
C11
Harness,Multi LGE EAD64548115 Contact Us For Availability
C13
Harness,Single LGE EAD52821207 Contact Us For Availability
LV1
Cable,FFC LGE EAD63825226 Contact Us For Availability
MT1
Tape,Double Faced LGE RAB34873121 Contact Us For Availability
× ![]()
