Model Maytag 3428PVA-D GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

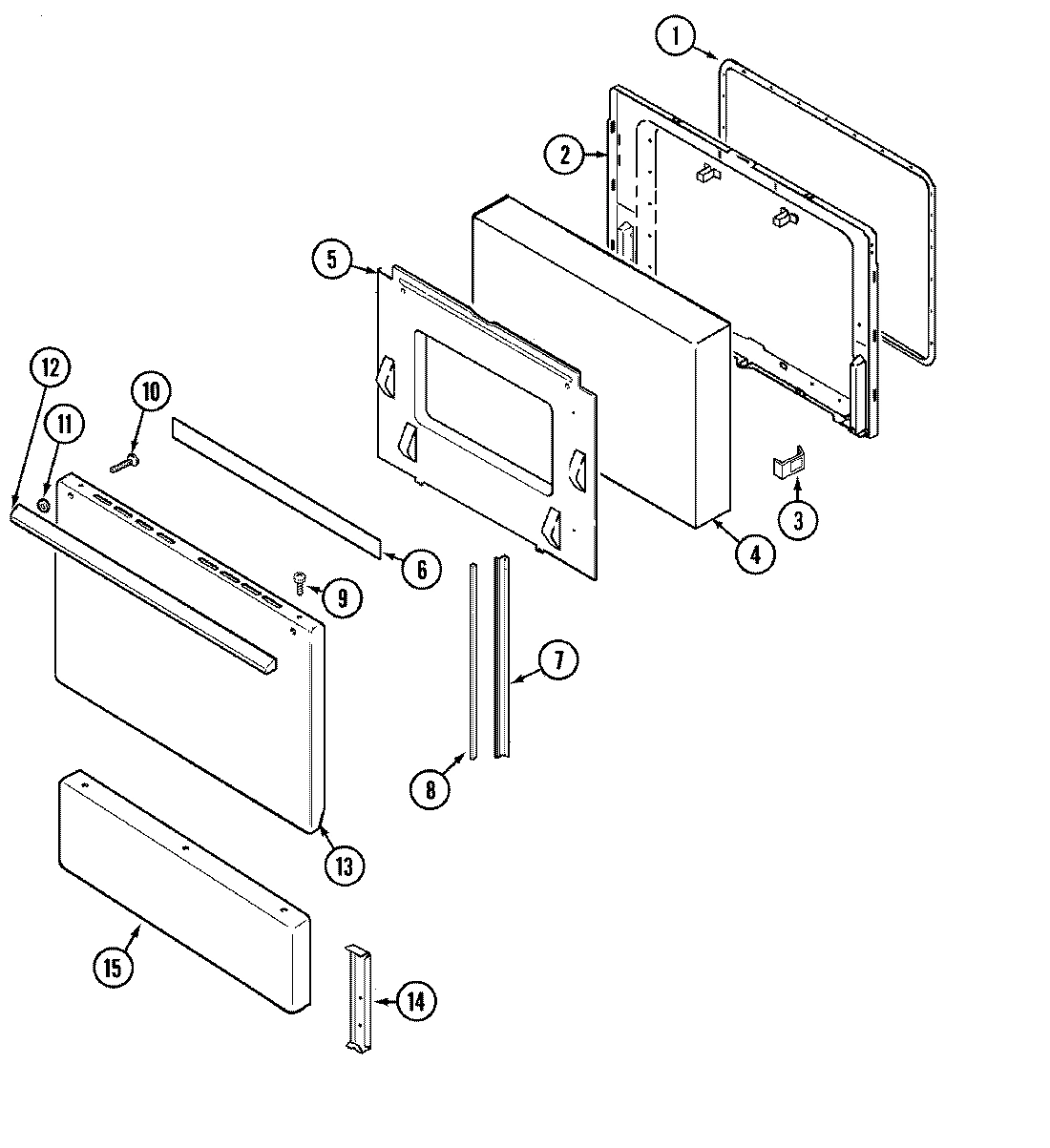

03 - DOOR

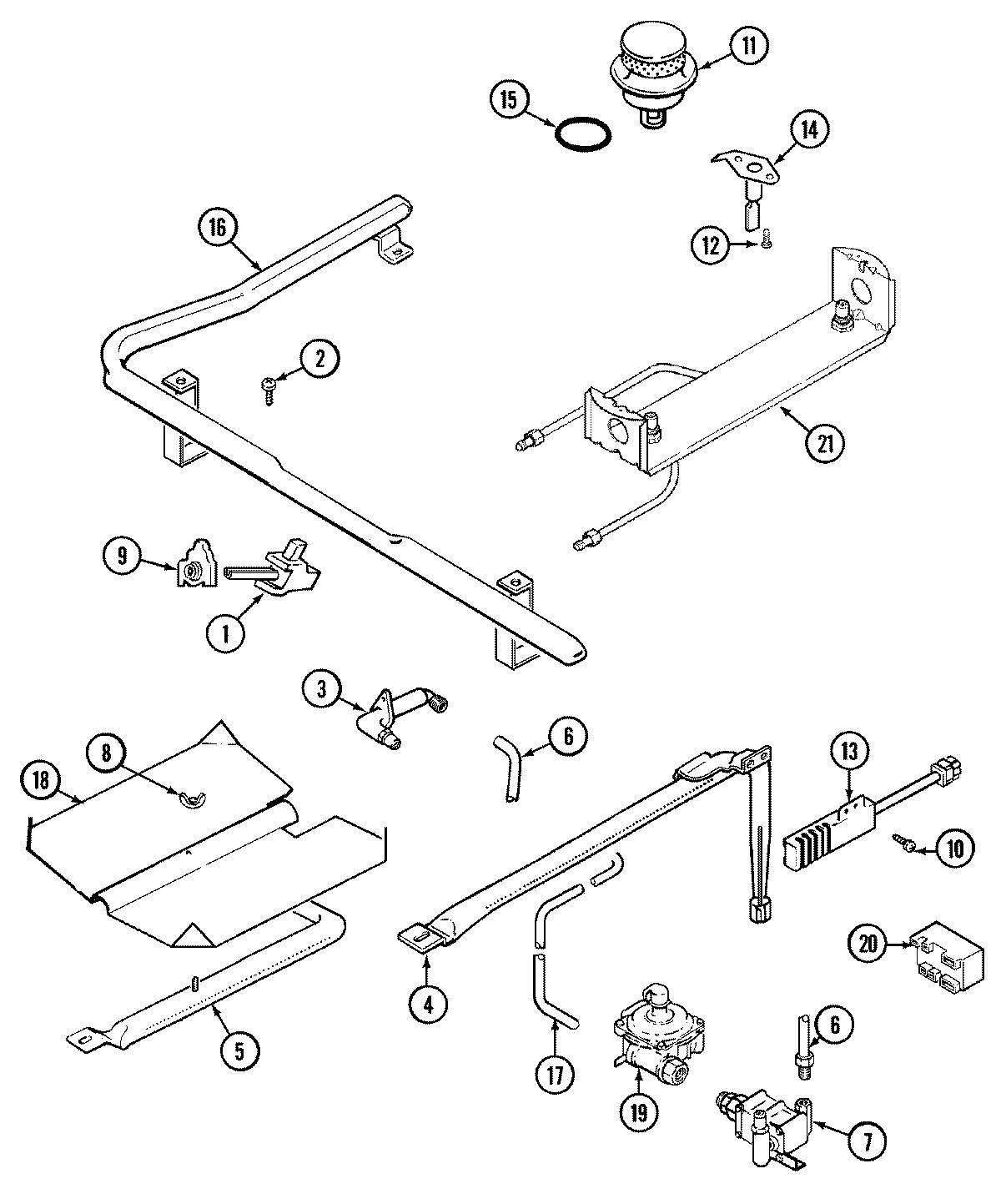

04 - GAS CONTROLS

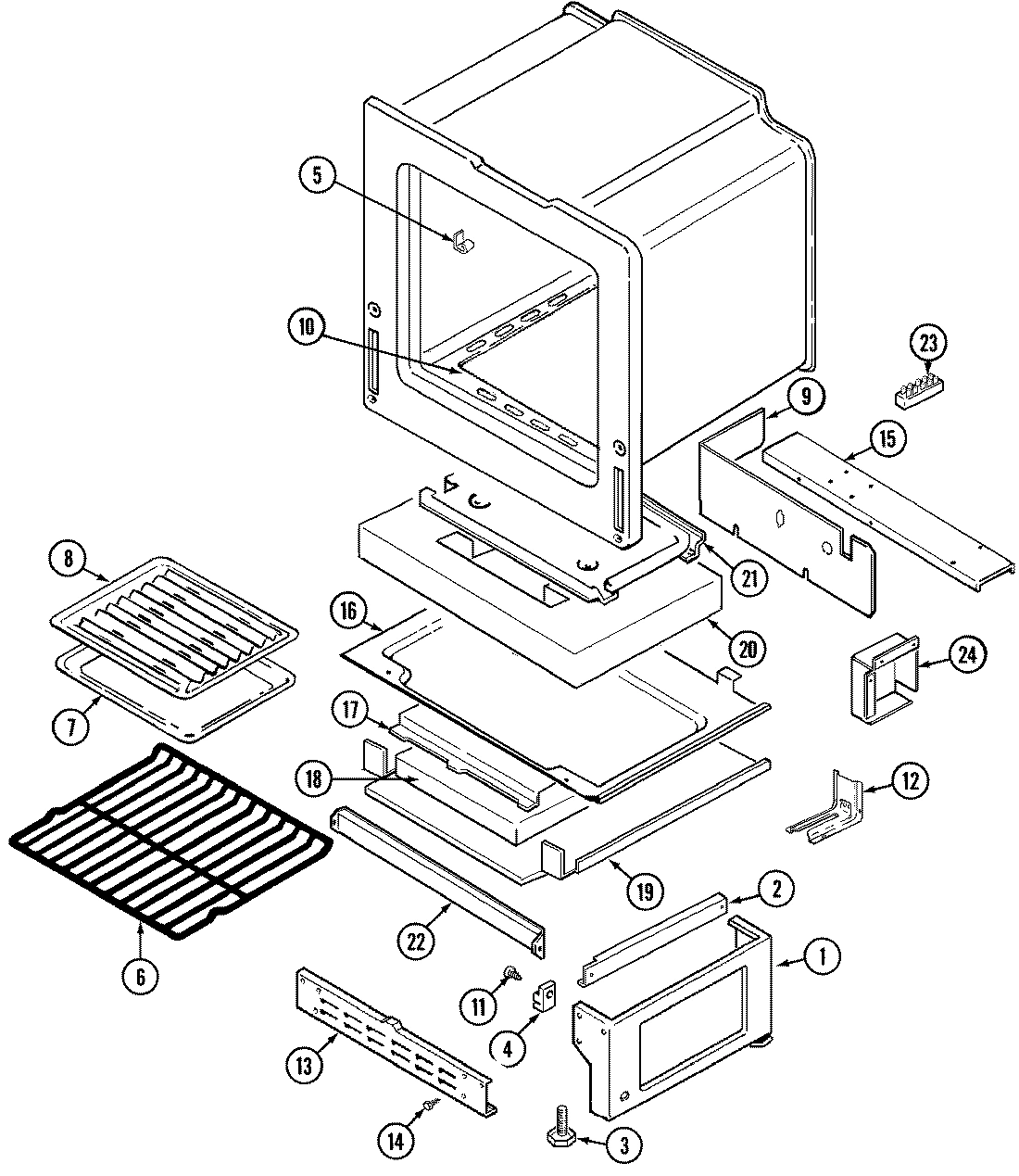

05 - OVEN/BASE

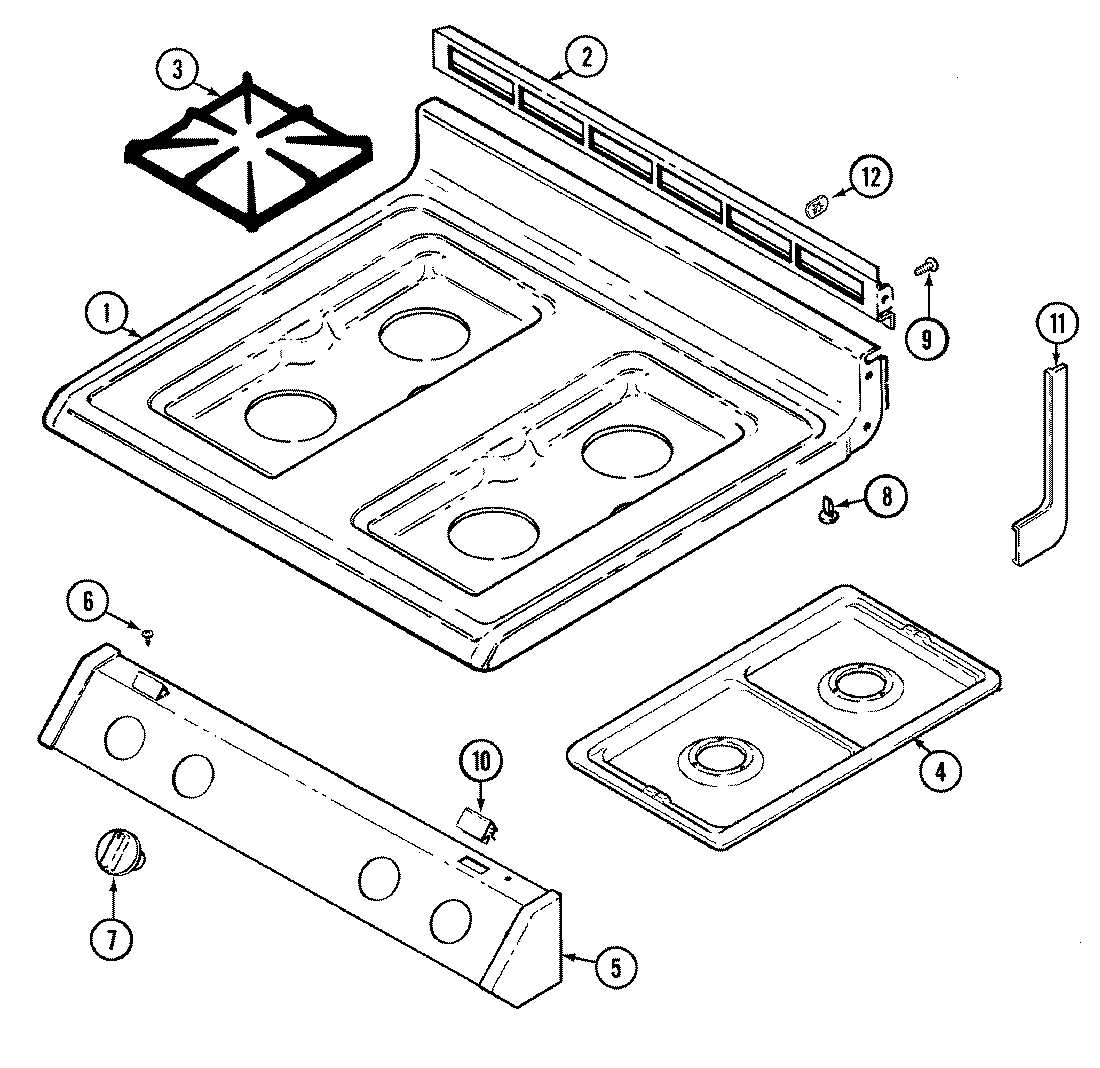

06 - TOP ASSEMBLY

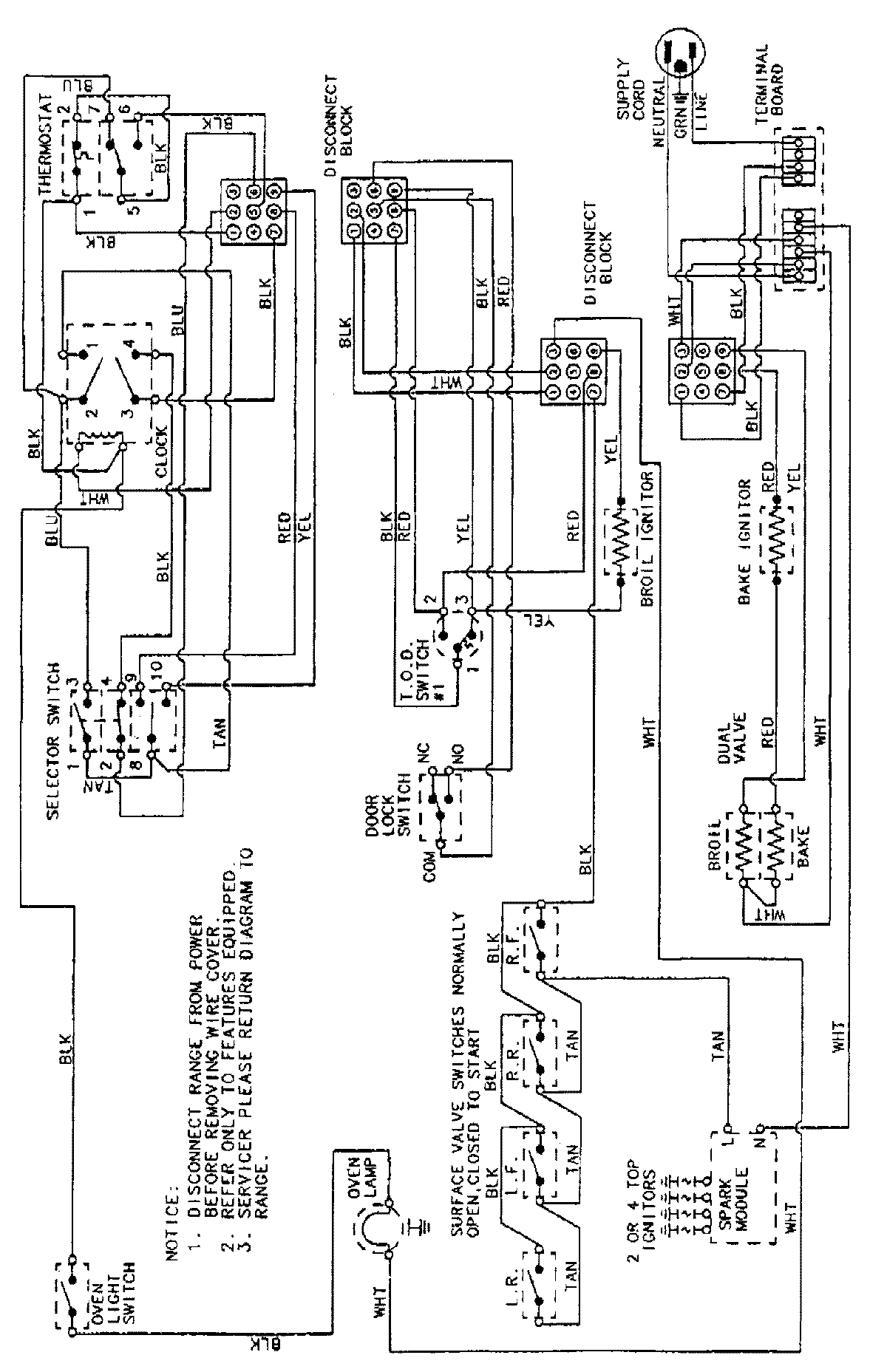

07 - WIRING INFORMATION
Common parts from model Maytag 3428PVA-D GAS RANGE
1
MAY 74002162 MAY 74002162 Contact Us For Availability
1
MAY 7502P219-60 MAY 7502P219-60 Contact Us For Availability
1
MAY 74001705 MAY 74001705 Contact Us For Availability
1
MAY 2001W085-84 MAY 2001W085-84 Contact Us For Availability
2
MAY 3807F449-45 MAY 3807F449-45 Contact Us For Availability
2
MAY 3807F450-45 MAY 3807F450-45 Contact Us For Availability
2
MAY 2402W210-19 MAY 2402W210-19 Contact Us For Availability
2
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
2
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
2
MAY 3608F042-09 MAY 3608F042-09 Contact Us For Availability
3
MAY 74001311 MAY 74001311 Contact Us For Availability
3
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
3
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
3
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
3
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
3
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
3
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
3
MAY 2003W026-00 MAY 2003W026-00 Contact Us For Availability
4
MAY 74002312 MAY 74002312 Contact Us For Availability
4
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
4
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
4
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
5
MAY 3601F218-47 MAY 3601F218-47 Contact Us For Availability
5
MAY 3403D024-45 MAY 3403D024-45 Contact Us For Availability
5
CLIP, THERMOSTAT BULB MAY 790055 Contact Us For Availability
5
MAY 7712P135-60 MAY 7712P135-60 Contact Us For Availability
6
MAY 74002484 MAY 74002484 Contact Us For Availability
6
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
6
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
6
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
6
MAY 7101P329-60 MAY 7101P329-60 Contact Us For Availability
7
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
7
MAY 7718P009-60 MAY 7718P009-60 Contact Us For Availability
7
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
7
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
8
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
8
MAY 7201P056-60 MAY 7201P056-60 Contact Us For Availability
8
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
8
MAY 74001069 MAY 74001069 Contact Us For Availability
8
MAY 74001084 MAY 74001084 Contact Us For Availability
8
MAY 74003139 MAY 74003139 Contact Us For Availability
8
MAY 8002P027-60 MAY 8002P027-60 Contact Us For Availability
8
MAY 7902P109-60 MAY 7902P109-60 Contact Us For Availability
8
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
8
NUT, WING MAY 7103P030-60 Contact Us For Availability
8
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
8
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
9
MAY 7403P284-60 MAY 7403P284-60 Contact Us For Availability
9
MAY 4005F331-51 MAY 4005F331-51 Contact Us For Availability
9
MAY 74001560 MAY 74001560 Contact Us For Availability
9
MAY 4005F429-51 MAY 4005F429-51 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
10
MAY 7003P063-60 MAY 7003P063-60 Contact Us For Availability
10
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
10
MAY 7403P236-60 MAY 7403P236-60 Contact Us For Availability
10
MAY 7101P080-60 MAY 7101P080-60 Contact Us For Availability
10
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
10
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
11
MAY 8009P029-60 MAY 8009P029-60 Contact Us For Availability
11
LEVER, LATCH (BLK) MAY 74001075 Contact Us For Availability
11
MAY 74001449 MAY 74001449 Contact Us For Availability
11
MAY 7726P051-60 MAY 7726P051-60 Contact Us For Availability
11
MAY 7726P052-60 MAY 7726P052-60 Contact Us For Availability
11
MAY 8010P084-60 MAY 8010P084-60 Contact Us For Availability
11
MAY 3412D018-08 MAY 3412D018-08 Contact Us For Availability
11
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
11
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
12
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
12
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
12
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
12
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
12
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
13
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
13
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
13
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
13
MAY 2401F098-74 MAY 2401F098-74 Contact Us For Availability
13
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
13
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
13
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
14
MAY 74001719 MAY 74001719 Contact Us For Availability
14
MAY 7737P028-60 MAY 7737P028-60 Contact Us For Availability
14
MAY 3801F278-51 MAY 3801F278-51 Contact Us For Availability
15
MAY 7711P466-60 MAY 7711P466-60 Contact Us For Availability
15
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
15
MAY 2403F034-74 MAY 2403F034-74 Contact Us For Availability
15
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
15
MAY 3807F476-51 MAY 3807F476-51 Contact Us For Availability
16
MAY 3604F165-51 MAY 3604F165-51 Contact Us For Availability
16
MAY 7404P102-60 MAY 7404P102-60 Contact Us For Availability
16
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
16
MAY 7513P120-60 MAY 7513P120-60 Contact Us For Availability
16
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
17
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
17
MAY 4005F448-45 MAY 4005F448-45 Contact Us For Availability
17
MAY 3414F103-44 MAY 3414F103-44 Contact Us For Availability
17
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
18
MAY 74002252 MAY 74002252 Contact Us For Availability
18
MAY 3601F217-45 MAY 3601F217-45 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
19
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
19
MAY 16000329 MAY 16000329 Contact Us For Availability
19
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
20
MAY 74002367 MAY 74002367 Contact Us For Availability
20
MAY 7431P027-60 MAY 7431P027-60 Contact Us For Availability
20
MAY 4804F014-60 MAY 4804F014-60 Contact Us For Availability
21
MAY 74002599 MAY 74002599 Contact Us For Availability
21
MAY 5187D025-60 MAY 5187D025-60 Contact Us For Availability
21
MAY 74001651 MAY 74001651 Contact Us For Availability
22
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
22
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
22
MAY 5140D038-60 MAY 5140D038-60 Contact Us For Availability
22
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K MAY W10124350 Contact Us For Availability
23
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
23
MAY 74001800 MAY 74001800 Contact Us For Availability
23
MAY 74003037 MAY 74003037 Contact Us For Availability
23
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
24
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
24
MAY 3807F432-45 MAY 3807F432-45 Contact Us For Availability
25
SCREW MAY 7101P349-60 Contact Us For Availability
25
MAY 7403P275-60 MAY 7403P275-60 Contact Us For Availability
26
MAY 3807F420-51 MAY 3807F420-51 Contact Us For Availability
NI
MAY 15001188 MAY 15001188 Contact Us For Availability
× ![]()
