  • LG 32SL5B-B Parts List

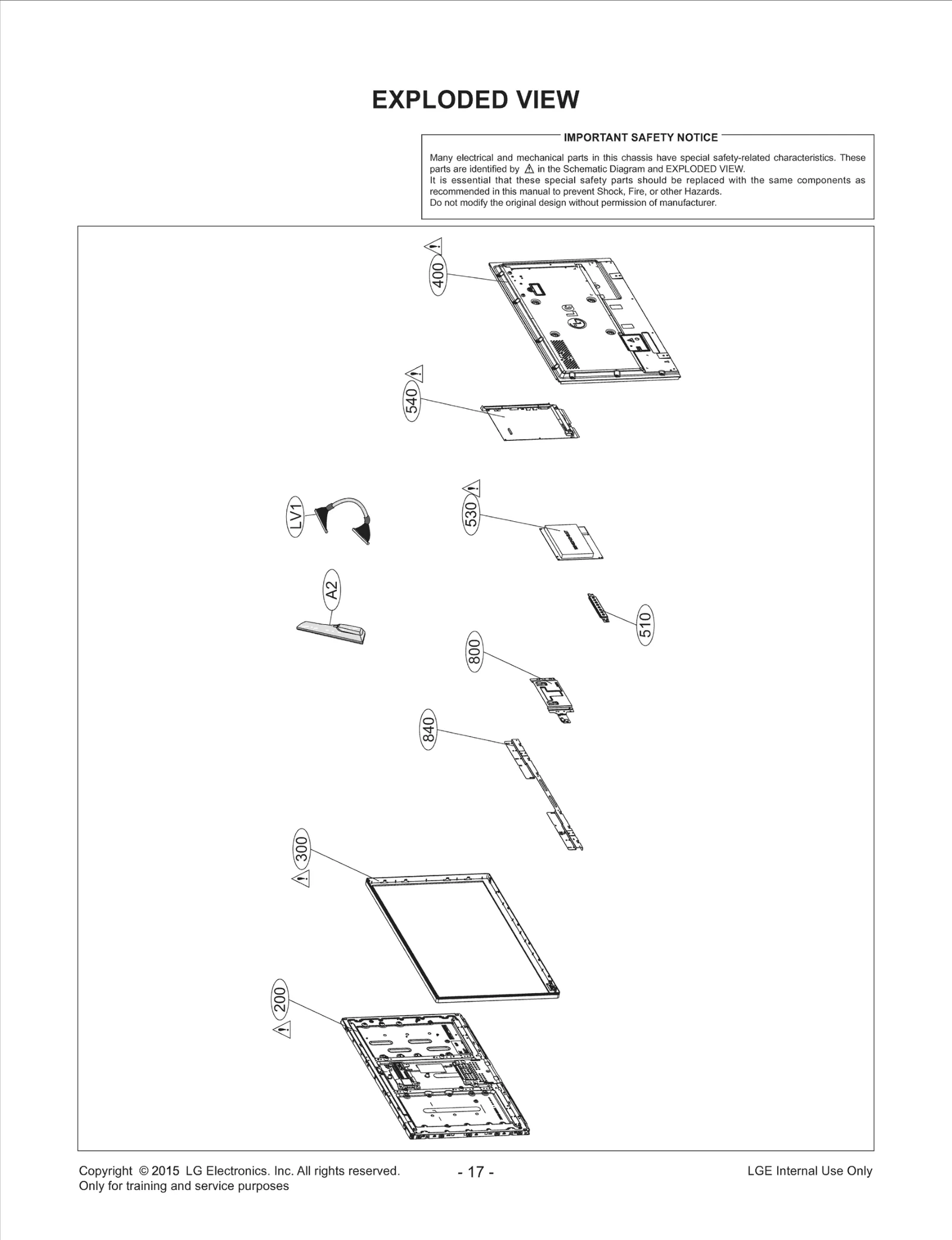

Model LG 32SL5B-B – Common Parts & Diagrams

200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ62072601 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ73888202 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ86098909 Contact Us For Availability
View on Model
540
DMS Chassis Assembly
DMS Chassis Assembly LGE EBT63894802 Contact Us For Availability
View on Model
800
Plate,Shield
Plate,Shield LGE MGJ63441602 Contact Us For Availability
View on Model
840
Plate,Shield
Plate,Shield LGE MGJ63441502 Contact Us For Availability
View on Model
A2
Remote Controller Assembly
Remote Controller Assembly LGE AKB73975762 Contact Us For Availability
View on Model
C326
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
View on Model
C1508
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
View on Model
C3615
Capacitor,Ceramic,Ch
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
View on Model
D1108
DIODE,SWITCHING
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
View on Model
JK1102
Connector,DSUB
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD62572201 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD62345501 Contact Us For Availability
View on Model
N/A
S/W Package
S/W Package LGE SAB36319301 Contact Us For Availability
View on Model
R105
Resistor,Chip
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
View on Model
R106
RESISTOR CHIP 4.7K 1/10W 5 D.
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
View on Model
