Model LG 32QN600-B – Common Parts & Diagrams

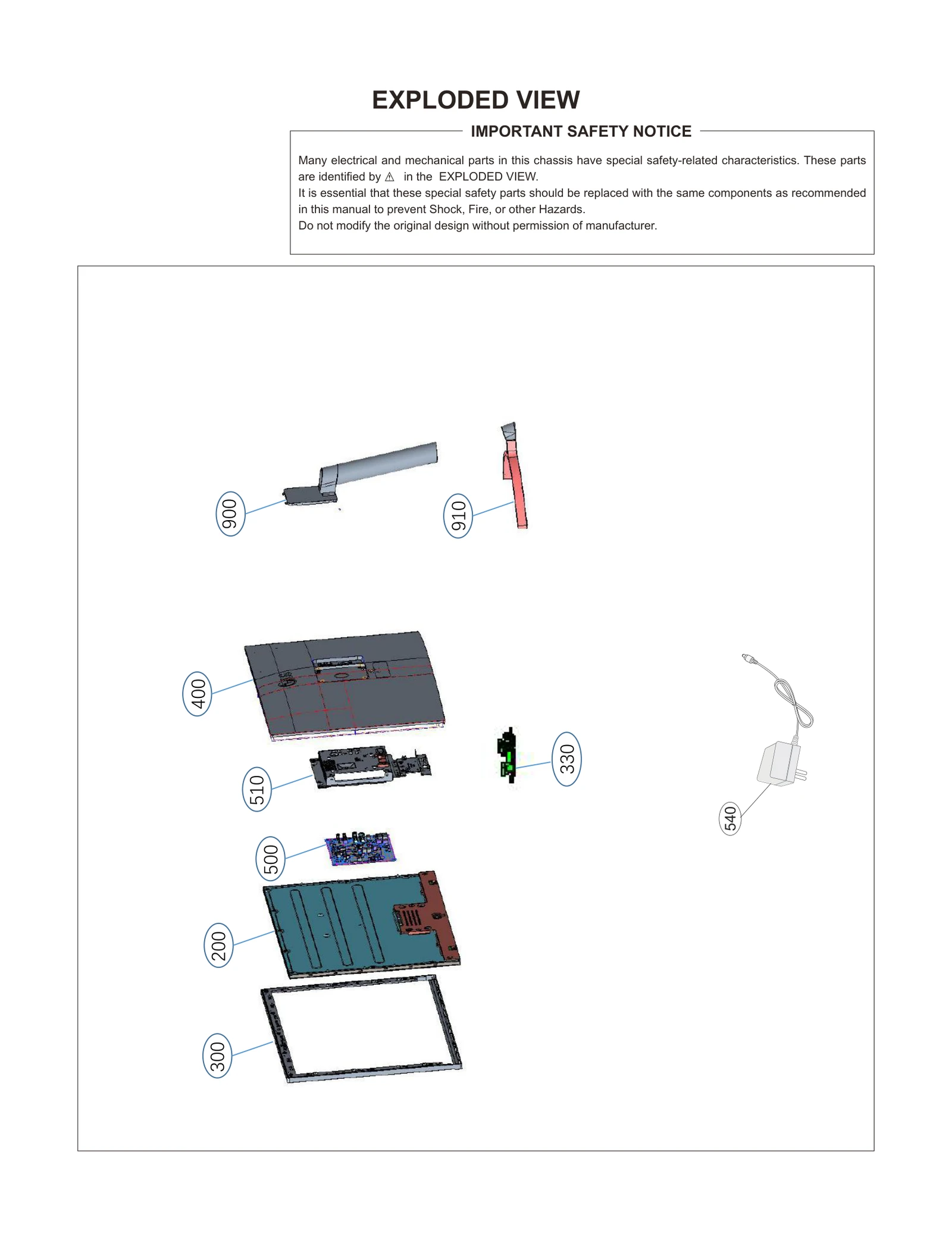

Diagram 0
Diagram 1
Common parts from model LG 32QN600-B
300
Cabinet Assembly LGE ABJ76507601 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ91625801 Contact Us For Availability
510
Frame Assembly LGE ADV77732203 Contact Us For Availability
900
Base Assembly LGE AAN76829802 Contact Us For Availability
910
Base Assembly LGE AAN76449113 Contact Us For Availability
A1
Manual Assembly LGE AFN30009621 Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A8
Cable,Assembly LGE EAD63954401 Contact Us For Availability
A9
Card LGE MBM64637211 Contact Us For Availability
C206
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C621
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C642
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C644
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C647
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
LV1
Cable,FFC LGE EAD63669421 Contact Us For Availability
R133
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R434
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R531
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R673
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
× ![]()
