Model LG 32LY770M – Common Parts & Diagrams

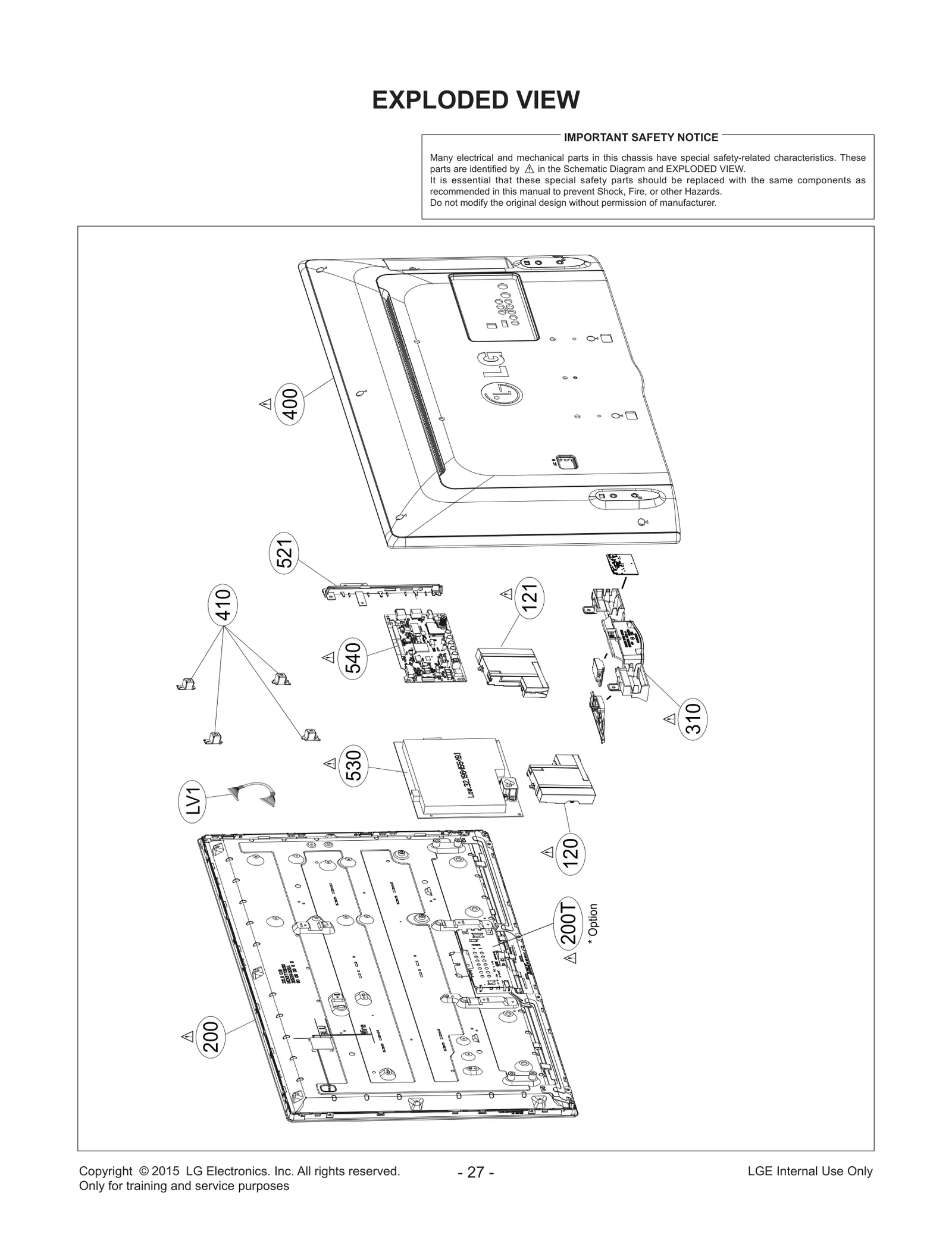

Diagram 0
Diagram 1
Common parts from model LG 32LY770M
121
Speaker Assembly LGE EAB62972201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62587701 Contact Us For Availability
310
Cover Assembly LGE ACQ87216220 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87694028 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU62984401 Contact Us For Availability
C317
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C331
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C414
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C2302
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C8632
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C9500
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C9502
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C9504
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C9505
CAPACITOR,FIXED CERA LGE 0CK152CK51A Contact Us For Availability
C9508
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C9511
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C9512
Capacitor,Ceramic,Chip LGE 0CH3223K516 Contact Us For Availability
D9501
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
L9500
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD8200
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Cable,FFC LGE EAD62572204 Contact Us For Availability
Q3202
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
Q8901
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R3400
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R8812
Resistor,Chip LGE 0RH1602D622 Contact Us For Availability
R8817
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
R9534
Resistor,Chip LGE 0RH2000D422 Contact Us For Availability
R9538
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
× ![]()
