Model LG 32LY750H – Common Parts & Diagrams

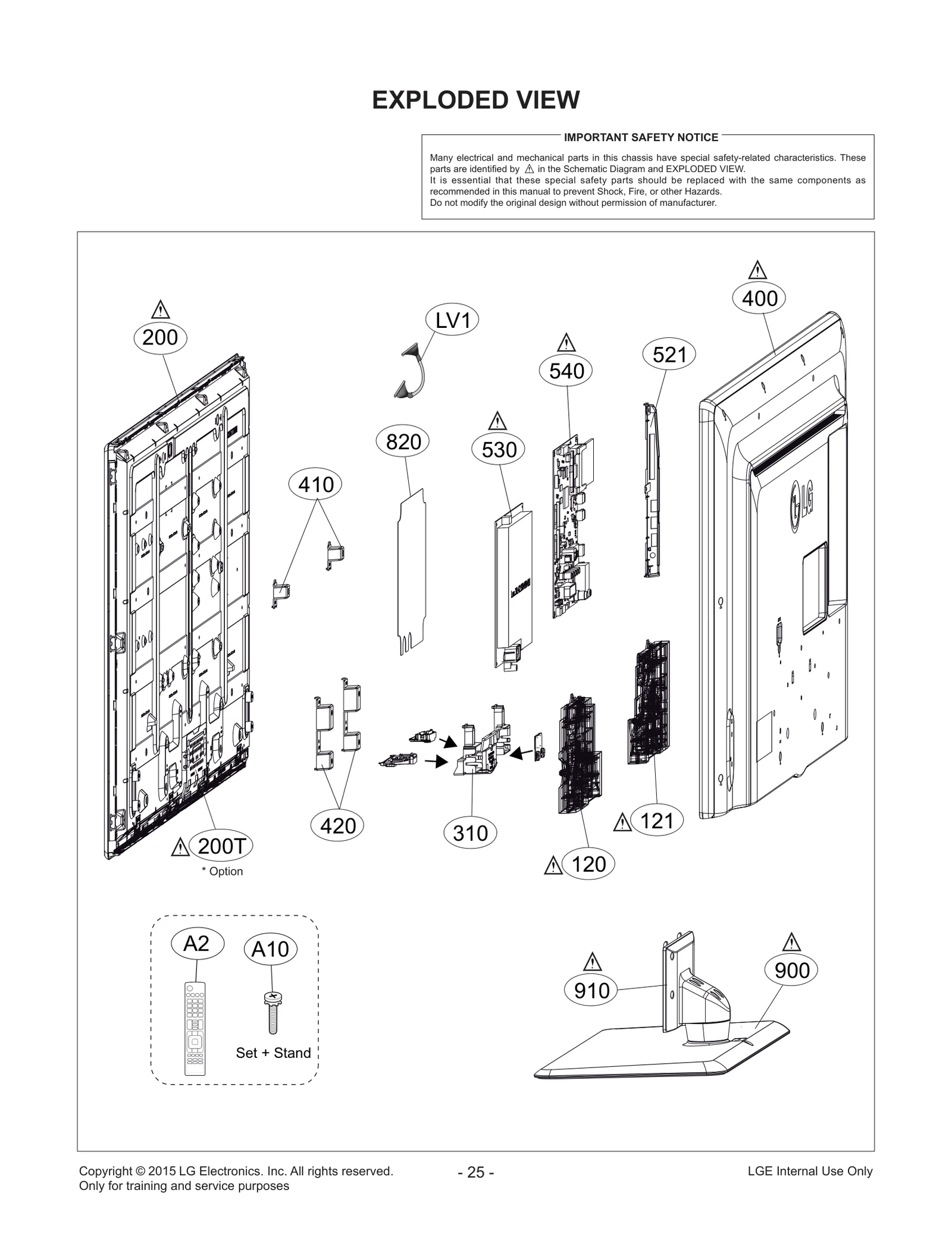

Diagram 0
Diagram 1
Common parts from model LG 32LY750H
200
LCD,Module-TFT LGE EAJ62769201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87034344 Contact Us For Availability
521
Bracket LGE MAZ63925508 Contact Us For Availability
540
PCB Assembly LGE EBR78923001 Contact Us For Availability
C706
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4324
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C5407
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C8613
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C9102
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C9106
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
D3305
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
JK3803
Connector,DSUB LGE 6630G00001E Contact Us For Availability
L9201
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62572201 Contact Us For Availability
N/A1
CARTON PLATE LGE 3918TKK038J Contact Us For Availability
R330
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R8674
Resistor,Chip LGE 0RH1602D622 Contact Us For Availability
× ![]()
