Model LG 32LX774M – Common Parts & Diagrams

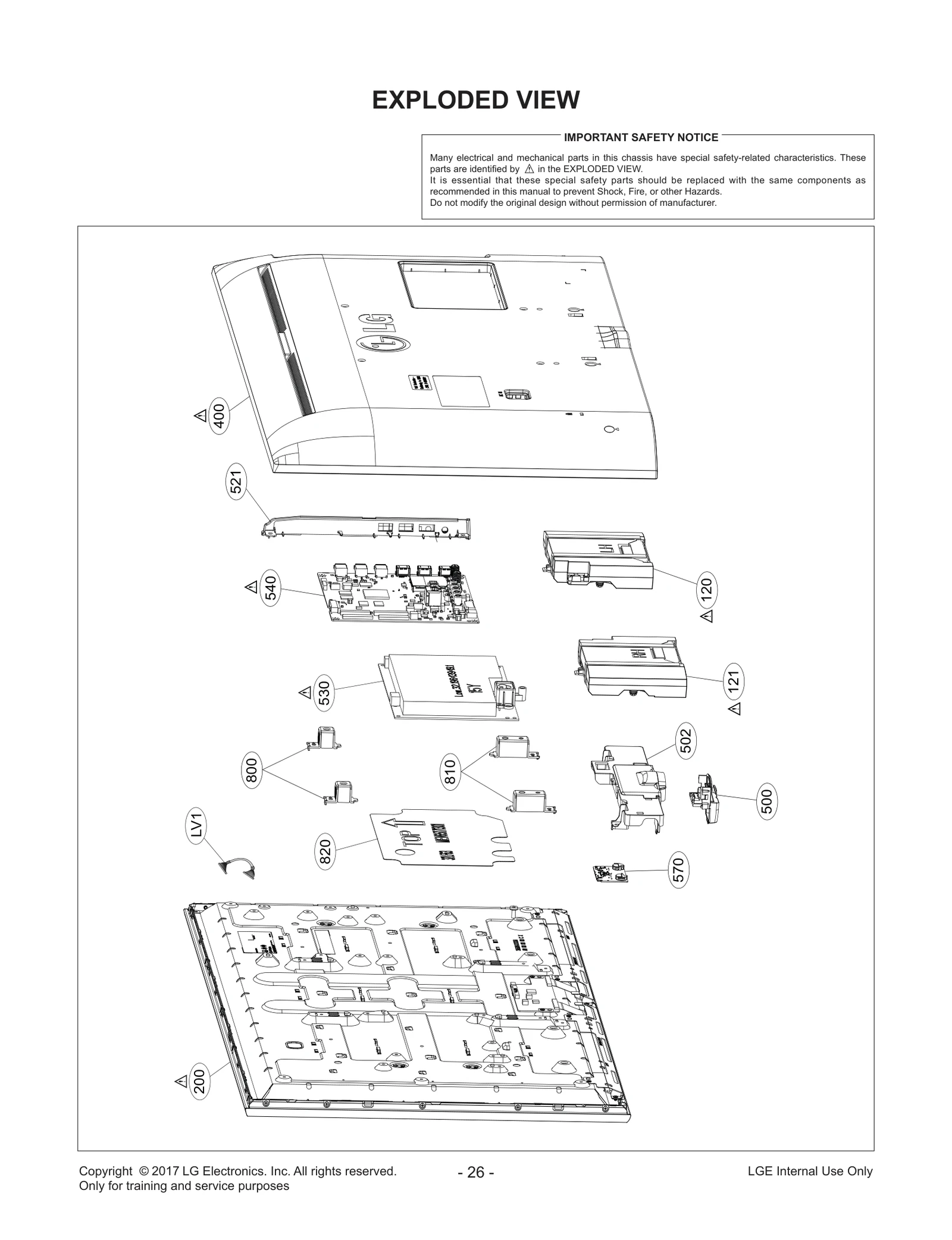

Diagram 0
Diagram 1
Common parts from model LG 32LX774M
121
Speaker Assembly LGE EAB63650202 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63429101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87628071 Contact Us For Availability
502
Bracket LGE MAZ64467401 Contact Us For Availability
521
Bracket Assembly LGE ABA75910427 Contact Us For Availability
540
PCB Assembly LGE EBR83839501 Contact Us For Availability
800
Supporter,VESA LGE MJH64353901 Contact Us For Availability
810
Supporter,VESA LGE MJH63693401 Contact Us For Availability
820
Insulator LGE MEV65171303 Contact Us For Availability
C649
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C8623
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
D9501
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
L8907
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD8200
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Cable,FFC LGE EAD63265801 Contact Us For Availability
Q8711
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q9502
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R3400
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R9534
Resistor,Chip LGE 0RH2000D422 Contact Us For Availability
R9536
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
× ![]()
