Model LG 32LV3500 – Common Parts & Diagrams

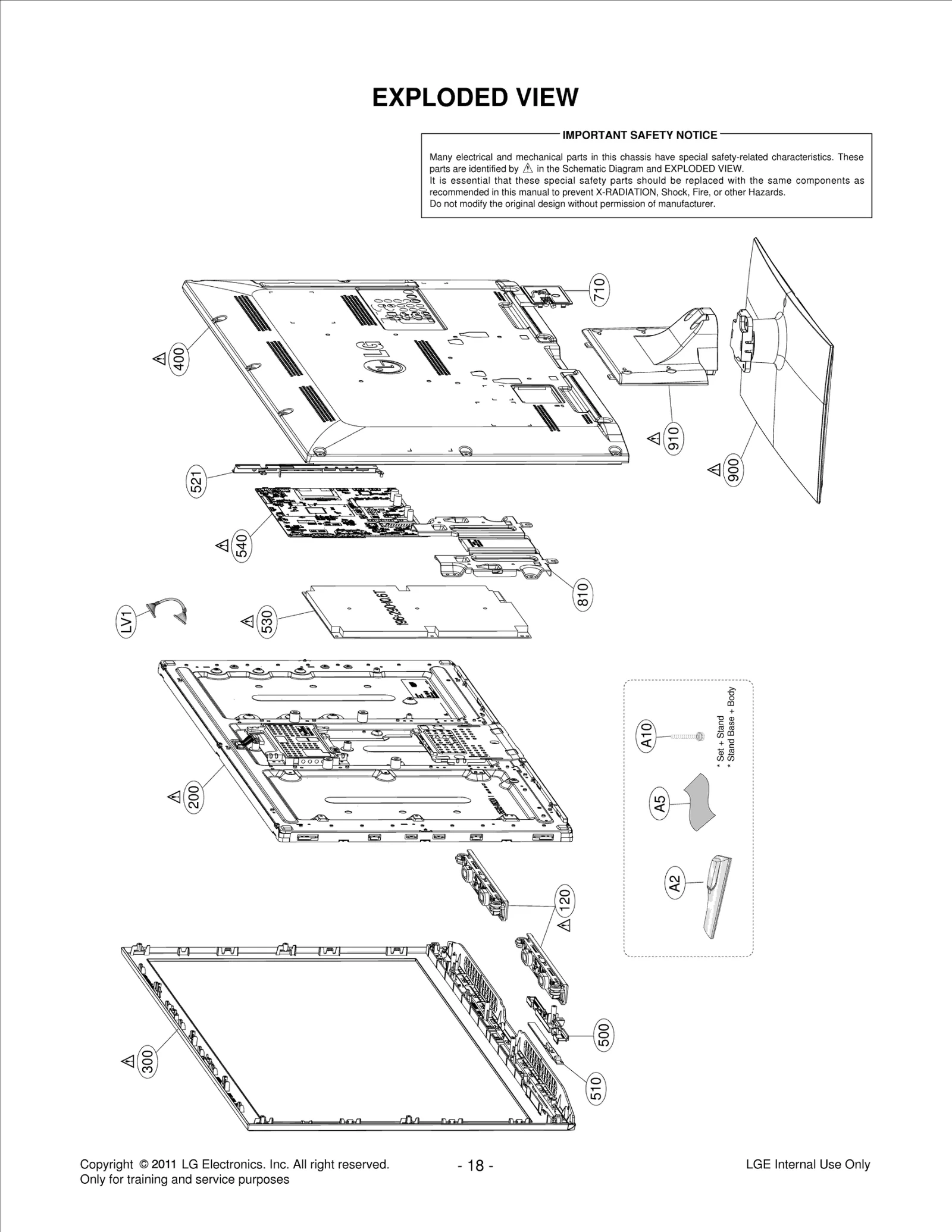

Diagram 0
Diagram 1
Common parts from model LG 32LV3500
120
Speaker,Full Range LGE EAB62088401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61769701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73267625 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83490227 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671401 Contact Us For Availability
511
Bracket LGE MAZ62828202 Contact Us For Availability
521
Plate LGE MGJ62683306 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169402 Contact Us For Availability
540
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
540
Chassis Assembly LGE EBT61438902 Contact Us For Availability
810
Supporter LGE MJH62276405 Contact Us For Availability
900
Base Assembly LGE AAN73530414 Contact Us For Availability
910
Supporter LGE MJH62276202 Contact Us For Availability
A1
Title LGE SAC34134216 Contact Us For Availability
A4
Manual,Owners LGE MFL62882741 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A8
Screw,Tapping LGE FAB30021301 Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
D2403
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
LV1
Cable,FFC LGE EAD61668640 Contact Us For Availability
LV35
Screw,Taptite LGE FAB30013213 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R885
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R887
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
× ![]()
