Model LG 32LS3410 – Common Parts & Diagrams

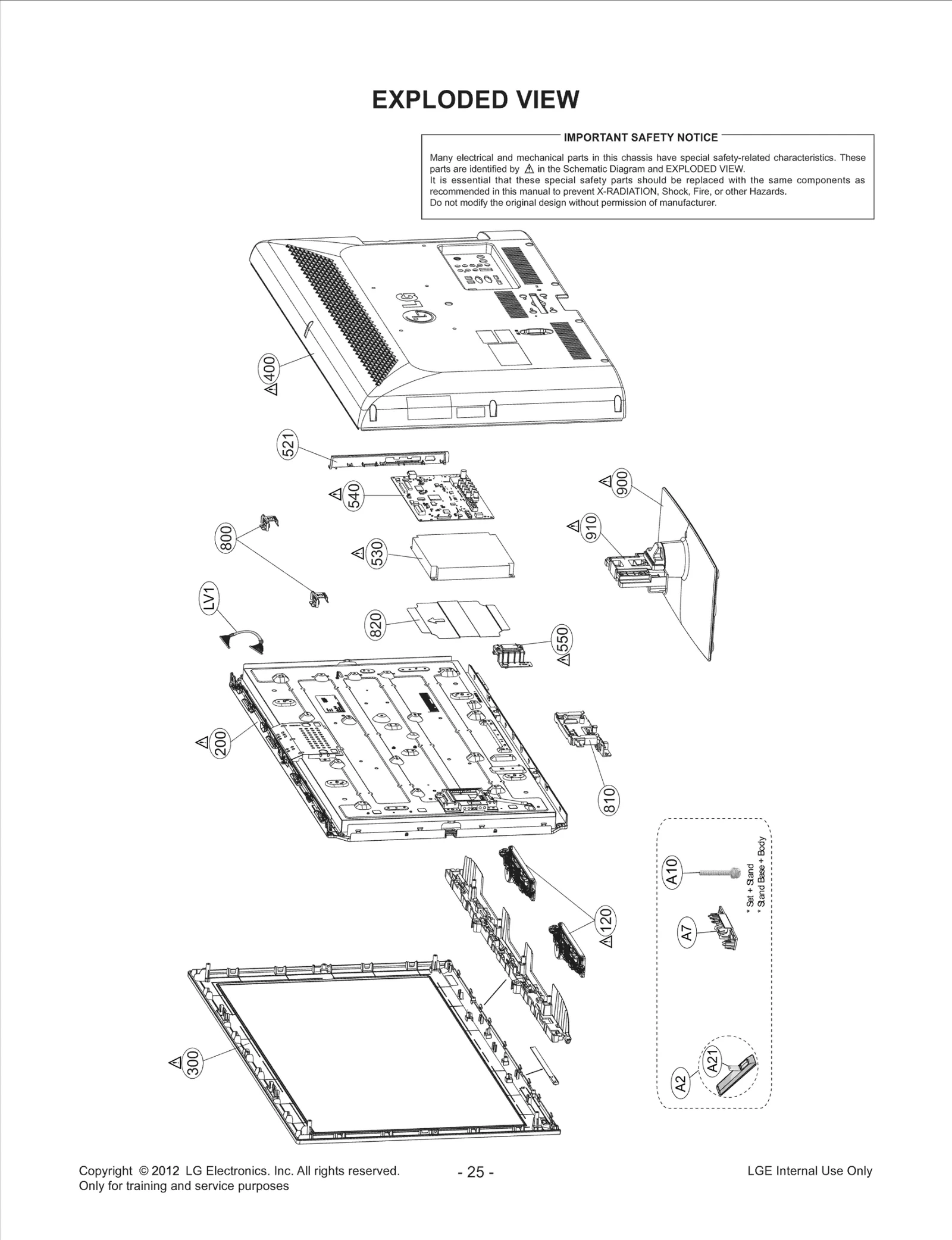

Diagram 0
Diagram 1
Common parts from model LG 32LS3410
200
LCD,Module-TFT LGE EAJ62189601 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62130501 Contact Us For Availability
300
Cover Assembly LGE ACQ85901363 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85980706 Contact Us For Availability
521
Bracket LGE MAZ63311307 Contact Us For Availability
530
Power Supply Assembly LGE EAY62770401 Contact Us For Availability
540
PCB Assembly,Main LGE EBR75097907 Contact Us For Availability
800
Supporter LGE MJH61884818 Contact Us For Availability
810
Supporter LGE MJH61879301 Contact Us For Availability
820
Decor LGE MCR64753702 Contact Us For Availability
900
Base Assembly LGE AAN72947857 Contact Us For Availability
910
Supporter LGE MJH62618801 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73655839 Contact Us For Availability
A3
Power Cord,Detach LGE EAD61909202 Contact Us For Availability
A7
Cover LGE MCK66009302 Contact Us For Availability
C243
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C539
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
L1451
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62108506 Contact Us For Availability
× ![]()
